Page 1 Sun StorageTek Array ™ Administration Guide For the Browser Interface Management Software Sun Microsystems, Inc. www.sun.com Part No. 819-5050-10 May, 2006 Submit comments about this document at: http://www.sun.com/hwdocs/feedback...
Page 2 Copyright 2006 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, Californie 95054, Etats-Unis. Tous droits réservés. Sun Microsystems, Inc. a les droits de propriété intellectuels relatants à la technologie qui est décrit dans ce document. En particulier, et sans la limitation, ces droits de propriété...
Page 3: Table Of Contents
Contents Preface xv Overview 1 Array and Software Overview 2 About the Sun StorageTek 6140, 6130, and 6540 Arrays 2 About the Array Software 3 Hardware Components Overview 7 About High-Availability Features 7 About the Sun StorageTek 6140 Storage Array Hardware 8...
Page 4 About the Navigation Tree 19 About the Page Content Area 20 Controlling the Display of Table Information 21 About the Status Icons 22 Using Forms 23 Searching for System Elements 24 Using Help 25 Logging Out of the Management Software 26 Performing Connection and Administration Tasks 27 Connection Tasks 28 Managing From the Site LAN 28...
Page 5 Setting the Time 38 Setting the Array IP Address 38 Managing User Accounts 39 About User Accounts 40 Displaying User Information 40 Adding a New User 41 Removing a User 41 Managing Licenses 42 About Licensed Features 42 Displaying License Information 42 Adding a License 43 Disabling a License 43 Re-enabling a License 44...
Page 6 Planning Volumes 54 Managing Volumes 56 Displaying Volume Information 56 Displaying Volume Performance Statistics 57 Creating a Volume 57 Modifying a Volume 57 Copying Volume Information 58 Mapping a Volume to a Host or Host Group 58 Expanding Volume Capacity 59 Unmapping a Volume From a Host or Host Group 60 Changing Controller Ownership of a Volume 60 Deleting a Volume 61...
Page 7 Displaying Volume Snapshot Information 77 Creating a Volume Snapshot 77 Resnapping a Volume Snapshot 78 Copying a Volume Snapshot 78 Mapping a Volume Snapshot to a Host or Host Group 79 Expanding Snapshot Capacity 80 Unmapping a Volume Snapshot 80 Disabling a Volume Snapshot 81 Deleting a Volume Snapshot 82 Configuring Data Replication 83...
Page 8 Displaying Replication Set Information 100 Creating Replication Sets 101 Deleting Replication Sets 102 Reversing Roles 102 Changing Replication Modes 103 Suspending and Resuming Data Replication 104 Testing Replication Set Links 105 Troubleshooting Data Replication 105 Configuring Virtual Disks 106 About Virtual Disks 106 Displaying Virtual Disk Information 107 Expanding a Virtual Disk 107 Defragmenting a Virtual Disk 108...
Page 9 About Initiators 118 Displaying Initiator Information 118 Creating an Initiator 119 Deleting an Initiator 120 Configuring Host Groups and Hosts 121 About Host Groups 121 Managing Host Groups 122 Displaying Host Group Information 122 Creating a Host Group 122 Adding/Removing Host Group Members 123 Deleting a Host Group 124 Mapping a Host Group to a Volume 125 Unmapping a Host Group From a Volume 126...
Page 10 Managing Hot-Spare Drives 136 About Hot-Spare Drives 136 Planning Hot-Spares 137 Assigning and Unassigning Hot-Spares Manually 137 Assigning and Unassigning Hot-Spares Automatically 138 Configuring Storage Domains 139 About Storage Domains 139 Preparing to Create a Storage Domain 140 Determining How to Create a Storage Domain 140 Enabling the Storage Domain Feature 141 About Performing Mapping Functions 142 Displaying All Mappings on the Array 142...
Page 11 Index 169 Contents...
Page 12 Sun StorageTek Array Administration Guide • May 2006...
Page 13: Preface
Before You Read This Book Before you begin to configure the array, you must have already installed the array as described in these books: Sun StorageTek 6140 Array Getting Started Guide ν Sun StorageTek 6130 Array Getting Started Guide ν...
Page 14 Using UNIX Commands ® This document does not contain information on basic UNIX commands and procedures such as shutting down the system, booting the system, and configuring devices. Refer to the following for this information: Software documentation that you received with your system ν...
Page 15 Preparation Guide Instructions for installing Sun StorageTek 6140 Array Getting 819-5045-nn the array Started Guide Late-breaking information Sun StorageTek 6140 Array Release Notes 819-5044-nn not included in the Sun Storage Automated Diagnostic 819-0432-nn information set Environment Enterprise Edition Release Notes...
Page 16 Third-Party Web Sites Sun is not responsible for the availability of third-party web sites mentioned in this document. Sun does not endorse and is not responsible or liable for any content, advertising, products, or other materials that are available on or through such sites or resources.
Page 17: Overview
C H A P T E R Overview Click a link below for overview information about the Sun StorageTek arrays, including the 6140, 6130, and 6540: “Array and Software Overview” on page 2 “Hardware Components Overview” on page 7...
Page 18: Array And Software Overview
Array and Software Overview This section describes the features of the array and user accounts: “About the Sun StorageTek 6140, 6130, and 6540 Arrays” on page 2 “About the Array Software” on page 3 About the Sun StorageTek 6140, 6130,...
Page 19: About The Array Software
Local Remote management host management host Sun StorageTek 6140 Array Product OverviewSun StorageTek 6140 Array Product Overview FIGURE 1-1 About the Array Software The array software is delivered on compact disk (CD) and consists of: “Management Software” on page 4 “Remote CLI Client”...
Page 20: Management Software
“Optional Software” on page 6 “Management-Related Service” on page 6 You specify the functionality you require, and the compact CD installs the necessary software. Management Software The web-based management software is the primary interface for configuring and managing the array. The management software consists of a suite of tools that you install on an external management host.
Page 21: Remote Cli Client
Remote CLI Client You can also manage and configure storage for the array using the remote command line interface (CLI) client. The CLI provides the same control and monitoring capability as the web browser, and it is also scriptable for running frequently performed tasks.
Page 22 Data host software for Solaris is distributed on the host software installation CD. You can also obtain the software for other operating systems from Sun’s Download Center. Optional Software You can also purchase the following software for use on hosts with data paths or network connections to the array: Sun StorageTek Enterprise Storage Manager diagnostic software, for installation on a management host...
Page 23: Hardware Components Overview
This section describes array hardware. It contains the following subsections: “About High-Availability Features” on page 7 “About the Sun StorageTek 6140 Storage Array Hardware” on page 8 “About the Sun StorageTek 6130 Storage Array Hardware” on page 13 About High-Availability Features The Sun StorageTek arrays, including the 6130, 6140, and the 6540, are designed to provide high levels of reliability, availability, and serviceability (RAS).

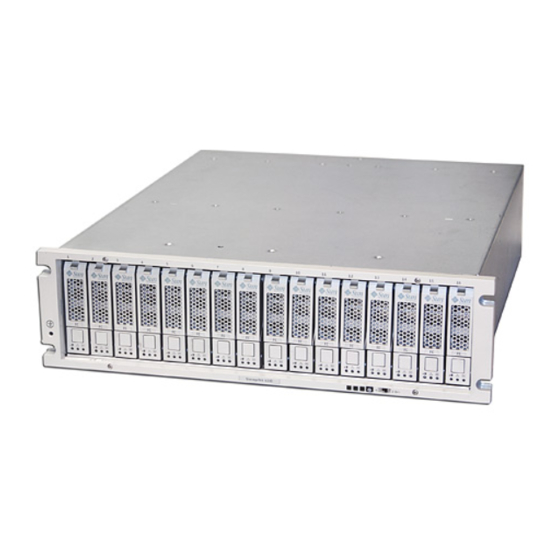

Page 24: About The Sun Storagetek 6140 Storage Array Hardware
“About the Sun StorageTek 6140 Expansion Tray” on page 12 Hardware Overview The Sun StorageTek 6140 Array is a modular storage device that can contain up to 16 disk drives. A maximum of eight trays, one controller tray and seven expansion trays, can be installed in the Sun StorEdge Expansion cabinet, Sun Fire cabinet, and Sun Rack 900 cabinets.
Page 25: About The Sun Storagetek 6140 Controller Tray
You must replace the battery every two years. The battery is customer replaceable and can be accessed from the rear of the controller on the back of the array tray. The Sun StorageTek 6140 array controller tray has the components listed in TABLE 1-1 Sun StorageTek 6140 Array Controller Tray...
Page 26 Required Cancel Tray LEDs Sun StorageTek 6140 Array Controller Tray (Front View) FIGURE 1-2 shows the ports and switches at the back of the Sun StorageTek 6140 FIGURE 1-3 array controller tray. Sun StorageTek Array Administration Guide • May 2006...
Page 27 Ethernet ports Sun StorageTek 6140 Array Controller Tray Ports and Switches (Back View) FIGURE 1-3 describes the ports and switches on the back of the Sun StorageTek 6140 TABLE 1-2 array controller tray. Sun StorageTek 6140 Array Controller Tray Ports and Switches (Back)
Page 28: About The Sun Storagetek 6140 Expansion Tray
5 to 16, 4- or :400G7.2 2-Gbit/second drives Drive expansion ports Power supplies Fan assemblies shows the ports and components on the back of the Sun StorageTek 6140 FIGURE 1-4 array expansion tray. Serial port Power supply Reserved Expansion ports...
Page 29: About The Sun Storagetek 6130 Storage Array Hardware
Sun StorageTek TABLE 1-4 6140 array expansion tray. Sun StorageTek 6140 Array Expansion Tray Ports and Components (Back) TABLE 1-4 Ports/Switches/LEDs Description Expansion ports Two 4- or 2-Gbit FC ports used to connect to an array controller 2A (In), 2B (Out) and/or additional expansion trays.
Page 30: About The Sun Storagetek 6130 Controller Tray
The array includes the following components: Power supplies – The two power supplies are housed in removable components. The power supplies convert incoming AC power to DC power. They are hot swappable and provide redundancy. It takes one power supply to power a fully loaded chassis.
Page 31: About The Sun Storagetek 6130 Expansion Tray
Sun StorageTek 6130 Array Controller Tray (Continued) TABLE 1-5 Description Quantity Power supplies Fan assemblies Light emitting diodes (LEDs) and switches on the front of the controller tray are available to monitor the state of the controller. The ports, switches, and LEDs at the back of the controller tray also enable you to monitor state of the controller and are especially useful during installation.
Page 32 The Sun StorageTek 6130 array controller tray has the components listed in TABLE 1-6 Sun StorageTek 6130 Array Expansion Tray TABLE 1-6 Description Quantity or SATA 3.5-inch drives 5 - 14 hard disk drives: 73G10K, 73G15K, 146G10K, 146G15K, 300G10K SATA model: 400G7.2K tray with In and Out expansion ports Power supplies...
Page 33: Using The Browser Interface
C H A P T E R Using the Browser Interface This chapter describes how to use the browser interface. It contains the following sections: “About the Browser Interface” on page 18 “About the Page Banner” on page 18 “About the Navigation Tree” on page 19 “About the Page Content Area”...
Page 34: About The Browser Interface
About the Browser Interface The browser interface provides you with an easy-to-use interface to configure, manage, and monitor the system. You navigate through the browser interface as you would a typical web page. You use the navigation tree to move among pages within an application.
Page 35: About The Navigation Tree
Contents of the Banner (Continued) TABLE 2-1 Button Description Opens the online help in a separate window. System Information and Status Displays the name of the user who is currently logged in to the system. Displays the name of the system. Displays the number of users currently logged in to the system.
Page 36: About The Page Content Area
describes the top-level objects in the Sun StorageTek Configuration Service TABLE 2-2 navigation tree. Sun StorageTek Configuration Service Tree - Top-Level Components TABLE 2-2 Description Logical Storage Enables you to configure volumes, snapshots, replication sets, virtual disks, storage pools, storage profiles, and storage domains. Physical Storage Enables you to configure initiators, ports, arrays, trays, disks, and external storage devices.
Page 37: Controlling The Display Of Table Information
Controlling the Display of Table Information Tables display data in a tabular format. describes the objects you can use to TABLE 2-3 control the display of data on a page. Table Objects TABLE 2-3 Control/Indicator Description Enables you to display only the information that interests you.
Page 38: About The Status Icons
Table Objects (Continued) TABLE 2-3 Control/Indicator Description Indicates that the column in the table is sorted in descending order. The descending sort order is by lowercase letter (z-a), by uppercase letter (Z-A), and then by number (9-0). Click this icon to change the sort order of the column to ascending.
Page 39: Using Forms
Status Icons (Continued) TABLE 2-4 Control/Indicator Description Identifies an unknown condition. A report on the status cannot be supplied at this time. Using Forms Forms have menus, buttons, links, and text fields that allow you to select available options and enter information on a page. describes these elements.
Page 40: Searching For System Elements
Form Controls (Continued) TABLE 2-5 Control/Indicator Description Causes the current settings to take effect. Searching for System Elements You can easily locate logical and physical elements of the system by using the search feature located in the banner of any configuration service page. You can search for all elements of a selected type for particular elements that match a specified term.
Page 41: Using Help
Using Help To view additional information about the configuration software, click Help in the banner of the web browser. The help window consists of a Navigation pane on the left and a Topic pane on the right. To display a help topic, use the Navigation pane's Contents, Index, and Search tabs. Click the Search tab and click Tips on Searching to learn about the search feature.
Page 42: Logging Out Of The Management Software
Logging Out of the Management Software To log out of the software, click Log Out in the window banner. Sun StorageTek Array Administration Guide • May 2006...
Page 43: Performing Connection And Administration Tasks
C H A P T E R Performing Connection and Administration Tasks This chapter describes performing connection and administration tasks. It contains the following subsections: “Connection Tasks” on page 28 “Administration Tasks” on page 31...
Page 44: Connection Tasks
Connection Tasks This section contains information about setting up network connections and other administrative tasks. It includes the following subsections: “Managing From the Site LAN” on page 28 “Managing an Array Isolated From the LAN” on page 29 “Installing the Remote CLI Client” on page 29 “About Host Bus Adapters”...
Page 45: Managing An Array Isolated From The Lan
Managing an Array Isolated From the Use the following procedure when your site’s security requirements necessitate having the array isolated from any external local area network (LAN): Set up and configure the array using a management host. When you have finished configuring the array, disconnect the management host. Whenever the array needs to be reconfigured, reconnect the management host.
Page 46: About Host Bus Adapters
About Host Bus Adapters A data host is any host that uses the array for storage. When a data host is connected to the array by a host bus adapter (HBA), the HBA is an initiator. The HBA is connected by a cable to a Fibre Channel (FC) port on the array. After connecting a data host directly to the array with one or two HBAs, use the luxadm(1M) command to verify the firmware level of HBAs.
Page 47: Administration Tasks
Administration Tasks This section describes performing administration tasks for the array. It includes the following subsections: “Accessing, Adding, and Deleting Storage Arrays” on page 31 “Specifying General Settings” on page 34 “Setting the Array IP Address” on page 38 “Managing User Accounts” on page 39 “Managing Licenses”...
Page 48: Planning To Register An Array
The Array Registration wizard displays firmware information for each array and, for each Sun StorageTek 6140 and 6130 array, lists any action recommended to bring the array up to the current firmware baseline level. You can choose to perform the...
Page 49: Unregistering An Array
Upgrading Array Firmware For optimal performance, Sun Microsystems recommends that the firmware on all arrays be at the level of the current firmware baseline. For the Sun StorageTek 6140 and 6130 arrays, you can upgrade array firmware during array registration. To upgrade the firmware for the Sun StorageTek 6540 array, see the instructions in the Sun StorageTek 6540 Release Notes.
Page 50: Specifying General Settings
2. Note the value in the Health field, which indicates the state of the array. Possible values include: OK - Indicates that every component of the storage array is in the desired working condition. Degraded - Indicates that, although the management host can communicate with the storage array, a problem on the array requires intervention.
Page 51: Changing The Array Password
You can change the array password at any time. Changing the array password causes the management software to automatically update the password stored in its array registration database. Multiple management hosts can access a single array. Each management host has its own instance of management software, each of which has its own array registration database.
Page 52: Setting Array Details
To manually synchronize the password stored in the array registration database with the password set on the array, select Update Array Password In Array Registration Database. Do this if the array password was previously changed from another management host or, if the array was registered without a password or with an incorrectly typed password.
Page 53 Before disk scrubbing can run, you must enable it on the array. Disk scrubbing then runs on all volumes on the array. You can disable disk scrubbing on any volume that you do not want to have scrubbed. Later, you can re-enable disk scrubbing for any volume on which you disabled it.
Page 54: Setting The Time
4. Do one of the following: To disable disk scrubbing, select False in the Disk Scrubbing Enabled field. To re-enable disk scrubbing, select True in the Disk Scrubbing Enabled field. To re-enable disk scrubbing so that it also scans the volume redundancy data, select True in the Disk Scrubbing With Redundancy field.
Page 55: Managing User Accounts
powered on and logs in to the network. Alternatively, you can choose a static IP address, which the array will use every time it is powered on and logs in to the network. Note: The web browser you use to manage the array relies on the array’s IP address. If the address changes because either you changed it manually or the system was assigned a new one, the browser loses its connection to the array.
Page 56: About User Accounts
About User Accounts The management software and the Sun Storage Automated Diagnostic Environment software installed on the management host share user roles that define the privileges available to the user. describes the user roles and their privileges. TABLE 3-1 User Roles and Privileges TABLE 3-1 Role Description of Role...
Page 57: Adding A New User
Adding a New User To add a new user: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array for which you want to add a new user. The navigation pane and the Volume Summary page for that array are displayed. 3.
Page 58: Managing Licenses
5. Click Remove. Note: For information about removing user accounts from the server or NIS, consult the Solaris system administration documentation. Managing Licenses This section describes managing licenses. It contains the following subtopics: “About Licensed Features” on page 42 “Displaying License Information” on page 42 “Adding a License”...
Page 59: Adding A License
3. In the navigation pane, choose Administration > Licensing. The Licensable Feature Summary page is displayed. 4. Click a feature for detailed information on licenses for that feature. The Licenseable Feature Details page for the selected feature is displayed. Adding a License License certificates are issued when you purchase premium services and contain instructions for obtaining license information from the Sun Licensing Center.
Page 60: Re-Enabling A License
4. Click the check box to the left of the license that you want to disable, and click Disable. Re-enabling a License To re-enable a license, contact the Sun License Center (http://www.sun.com/licensing). Be prepared to provide the following information: Name of the product to be licensed Feature serial number, available from the license certificate Controller tray serial number, located on the back of the controller tray and on the Licensable Feature Summary page...
Page 61: Monitoring Performance
Monitoring Performance To monitor array performance: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array for which you want to see performance statistics. The navigation pane and the Volume Summary page for that array are displayed. 3.
Page 62: Displaying Job Information
Displaying Job Information While a job is in progress, it is reported on the Job Summary page. To display job information: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array for which you want to see job information. The navigation pane and the Volume Summary page are displayed.
Page 63 To view the activity log: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array for which you want to display the activity log. The navigation pane and the Volume Summary page are displayed. 3.
Page 64 Sun StorageTek Array Administration Guide • May 2006...
Page 65: Performing Configuration Tasks
C H A P T E R Performing Configuration Tasks This chapter describes configuration tasks. It contains the following subsections: “Initial State of the Array” on page 50 “Configuring Storage Volumes” on page 53 “Configuring Volume Copies” on page 62 “Configuring Volume Snapshots”...
Page 66: Initial State Of The Array
Initial State of the Array This section describes the initial state of the array and factors to consider before you configure the array. It contains the following subsections: “About the Initial State of the Array” on page 50 “About Provisioning Storage” on page 50 “About Physical Storage Elements”...
Page 67: About Physical Storage Elements
Logical storage elements: volumes, virtual disks, and pools Before you can allocate storage appropriately, consider the following requirements for your site: Security – By creating host groups, you segregate initiators. For example, the hosts that handle financial data store their data in a different host group from the host group consisting of hosts that handle research data.
Page 68: About Logical Storage Elements
About Logical Storage Elements Consider the following logical storage elements before you decide how to distribute data across the available physical storage and map it to data hosts: Storage pools are collections of volumes that share a profile. The profiles defines the common configuration of the volumes.
Page 69: Configuring Storage Volumes
Configuring Storage Volumes This section describes storage volumes. It contains the following subsections: “About Volumes” on page 53 “Planning Volumes” on page 54 “Managing Volumes” on page 56 About Volumes You manage the array’s physical disks as a pool of storage space for creating volumes.
Page 70: Planning Volumes
Reserve volume – A snapshot reserve volume is automatically created when you create a snapshot. The reserve volume stores information about the data that has changed since the volume snapshot was created. When you delete a snapshot, the management software also deletes its associated reserve volume. You can create up to 256 volumes on each virtual disk.
Page 71 Volume capacity Identify the capacity of the volume in megabytes, gigabytes, or terabytes. The storage pool for this volume By default, the management software supplies a default storage pool. This pool uses the default storage profile, which implements RAID-5 storage characteristics that can be used in the most common storage environment.
Page 72: Managing Volumes
Managing Volumes This section describes managing volumes. It contains the following subsections: “Displaying Volume Information” on page 56 “Displaying Volume Performance Statistics” on page 57 “Creating a Volume” on page 57 “Modifying a Volume” on page 57 “Copying Volume Information” on page 58 “Mapping a Volume to a Host or Host Group”...
Page 73: Displaying Volume Performance Statistics
Displaying Volume Performance Statistics To display information about volume performance: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array for which you want to see volume performance statistics. The navigation pane and the Volume Summary page for that array are displayed. 3.
Page 74: Copying Volume Information
3. Select the volume that you want to modify. The Volume Details page for that volume is displayed. 4. Make the appropriate modifications, and click OK. A message confirms that the volume was modified successfully. Copying Volume Information You can copy an existing volume to a target volume. To copy an existing volume: 1.
Page 75: Expanding Volume Capacity
3. Click the check box to the left of the volume to which you want to map a host or host group. This enables the Map button. 4. Click Map. The Map Volume page displays a list of available hosts and host groups. Use the filter to display only hosts or host groups.
Page 76: Unmapping A Volume From A Host Or Host Group
Unmapping a Volume From a Host or Host Group To unmap a volume from a host or host group: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array on which you want to unmap a volume. The navigation pane and the Volume Summary page for that array are displayed displayed.
Page 77: Deleting A Volume
To change a volume’s controller owner: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array on which you want to change controller ownership of a volume. The navigation pane and the Volume Summary page for that array are displayed displayed.
Page 78: Configuring Volume Copies
Configuring Volume Copies This section describes volume copies. It contains the following subsections: “About Volume Copies” on page 62 “Planning Volume Copies” on page 63 “Managing Volume Copies” on page 65 About Volume Copies A volume copy is a copy of data on one volume (called a source volume) written onto another volume (called a target volume) on the same storage array.
Page 79: Planning Volume Copies
The status of a volume copy can be one those described in TABLE 4-2 Volume Copy Status TABLE 4-2 Volume Copy Status Description Completed The volume copy process finished successfully. • The source volume is available for both read and write I/O activity. •...
Page 80 Select a target volume from the list of target volume candidates. The target volume must have a capacity that is equal to or greater than the usable capacity of the source volume. A target volume must be one of the following: Standard volume Base volume of a Failed or Disabled volume snapshot.
Page 81: Managing Volume Copies
Managing Volume Copies Before you can use the volume copy feature, you must enable it. This section describes how to manage volume copies. It contains the following subsections: “Enabling the Volume Copy Feature” on page 65 “Displaying Volume Copy Information” on page 66 “Creating a Volume Copy”...
Page 82: Displaying Volume Copy Information
Displaying Volume Copy Information To determine which volumes are involved in a volume copy, see the Volume Details page. For the source volume, the Related Information section identifies associated target volumes. For the target volume, the Volume Details page identifies the associated source volume, the copy priority, and the target volume read-only status.
Page 83: Recopying A Volume Copy
2. Click the array for which you want to create a volume copy. The navigation pane and the Volume Summary page for that array are displayed displayed. 3. Click the name of the volume whose contents you want to copy to another volume.
Page 84: Changing The Copy Priority
Caution: Recopying a volume copy will overwrite all data on the target volume and automatically make the target volume read-only to hosts. Ensure that you no longer need the data or have backed up the data on the target volume before recopying a volume copy.
Page 85: Removing A Copy Pair
4. In the Copy Priority field, select the copy priority you want. The higher the priority you select, the more resources will be allocated to the volume copy operation at the expense of the storage array’s performance. 5. Click OK. A confirmation message indicates that the change was successful.
Page 86: Configuring Volume Snapshots
Configuring Volume Snapshots This section describes configuring and managing volume snapshots. It contains the following subsections: “About Volume Snapshots” on page 70 “Planning Volume Snapshots” on page 72 “Calculating Reserve Volume Capacity” on page 73 “Managing Volume Snapshots” on page 76 About Volume Snapshots A snapshot is a copy of the data on a volume at the moment at which you create the snapshot.
Page 87 Note: A snapshot of data is not suitable for failure recovery. Continue to use offline backup methods to create full-volume backup copies. Snapshots on the array are copy-on-write or dependent copies. In this type of snapshot, write operations to the primary volume causes the management software to copy the snapshot metadata and copy-on-write data to the reserve volume.
Page 88: Planning Volume Snapshots
Planning Volume Snapshots Create a volume snapshot involves a number of tasks and decisions about a variety of factors. Therefore, before running the Create a Snapshot Volume wizard. The wizard, you should plan the following aspects of your snapshots: The name of the snapshot reserve volume When you create a snapshot, you must provide a unique name for the snapshot that enables you to easily identify the primary volume.
Page 89: Calculating Reserve Volume Capacity
The following options are available: Automatic – The management software automatically searches for and selects a virtual disk that matches the necessary criteria. If there are none, and enough space is available, it creates a new virtual disk. Create Volume on an Existing Virtual Disk – You manually select the virtual disks on which you want to create the volume from the list of all available virtual disks.
Page 90 The capacity needed for the snapshot reserve volume varies, depending on the frequency and size of I/O writes to the base volume and how long you need to keep the snapshot volume. In general, choose a large capacity for the reserve volume if you intend to keep the snapshot volume for a long period of time or if you anticipate heavy I/O activity, which will cause a large percentage of data blocks to change on the base volume during the life of the snapshot volume.
Page 91 set of 32 blocks, even if only one set of blocks has changed. Consider this when determining the percentage of the base volume's capacity that can be copied to the snapshot reserve volume. Use the following formula to calculate the amount of management overhead required to store snapshot data on the snapshot reserve volume.
Page 92: Managing Volume Snapshots
In the Create Snapshot Volume Wizard: Specify Reserve Capacity dialog box, use the percentage (%) of base volume to specify the estimated capacity of the snapshot reserve volume. When you create a snapshot, you will specify this snapshot reserve volume capacity as a percentage of the base volume.
Page 93: Displaying Volume Snapshot Information
3. In the navigation pane, choose Administration > Licensing. The Licensable Feature Summary page is displayed. 4. Click Add License. The Add License page is displayed. 5. Select Snapshot from the License Type menu. 6. Enter the version number and the digest, and click OK. Displaying Volume Snapshot Information You can display summary and detail information for existing snapshots.
Page 94: Resnapping A Volume Snapshot
3. Click the volume for which you want to create a snapshot. The Volume Details page for that volume is displayed. 4. Click Snapshot. The Create a Snapshot Volume wizard is launched. 5. Follow the steps in the wizard. Click the Help tab in the wizard for more information.
Page 95: Mapping A Volume Snapshot To A Host Or Host Group
2. Click the array for which you want to copy a snapshot. The navigation pane and the Volume Summary page are displayed. 3. In the navigation pane, choose Logical Storage > Snapshots. The Snapshot Summary page is displayed. 4. Click the name of the snapshot that you want to copy. The Snapshot Details page is displayed.
Page 96: Expanding Snapshot Capacity
3. In the navigation pane, choose Logical Storage > Snapshots. The Snapshot Summary page is displayed. 4. Click the snapshot to which you want to map the host or host group. This enables the Map button. 5. Click Map. The Map Volume page displays a list of available hosts and host groups. Use the filter to display only hosts and host groups.
Page 97: Disabling A Volume Snapshot
2. Click the array for which you want to unmap a snapshot. The navigation pane and the Volume Summary page are displayed. 3. In the navigation pane, choose Logical Storage > Snapshots. The Snapshot Summary page is displayed. 4. Select the snapshot that you want to unmap. The Snapshot Details page is displayed.
Page 98: Deleting A Volume Snapshot
Deleting a Volume Snapshot When you delete a volume snapshot, the corresponding reserve volume is also deleted, thus freeing up the capacity allocated to the reserve volume. To delete a volume snapshot: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2.
Page 99: Configuring Data Replication
Configuring Data Replication This section describes data replication. It contains the following subsections: “About Data Replication” on page 83 “Planning for Data Replication” on page 93 “Managing Data Replication” on page 97 About Data Replication This section describes data replication concepts. It contains the following subtopics: “About the Replication Process”...
Page 100 The software replicates data from a primary volume to a secondary volume. The association between the primary and secondary volumes constitutes a replication set. After the volumes in a replication set have been initially synchronized, the software ensures that the primary and secondary volumes contain the same data on an ongoing basis.
Page 101: About Replication Sets
You can also restore data from a secondary volume to a primary volume by reversing the roles of the primary and secondary volumes. Role reversal is a failover technique in which a primary volume failure causes the secondary volume to assume the role of the primary volume.
Page 102 Array A Array B Replication Replication repository Physical connection repository volume volume Data Primary Secondary Volume Volume Relationship Between Arrays and Their Corresponding Replication Sets FIGURE 4-1 After you create a replication set, you can modify its properties (see “About Replication Set Properties”...
Page 103: About The Consistency Group
If the primary volume becomes unavailable, the secondary volume assumes the role of primary volume. This role reversal allows applications to continue their operations by using the newly designated primary volume. When the former primary volume is again available, you must synchronize it with the more recent data on the other volume to restore the functions of the replication set.
Page 104: About Replication Links
Consistency Group Guidelines (Continued) TABLE 4-3 Regarding Note Replication sets Replication sets in the consistency group must all use asynchronous replication mode. The consistency group supports up to 32 replication sets. A best practice is to plan the consistency group in advance and include the replication set in the consistency group at the same time that you create the replication set.
Page 105: About Primary And Secondary Role Reversal
Specify a secondary volume. When you create the replication set, the local volume assumes the primary role by default, and you are prompted to choose the secondary volume. Once the replication set is created, you can change the role of a volume on the Replication Set Details page as needed without suspending replication.
Page 106 Caution: If I/O operations to the primary and secondary volumes occur during a role reversal, data is lost when you initiate a synchronization operation. The current secondary volume is brought into synchronization with the current primary volume, and any writes that have been written to the secondary volume are lost. Secondary to Primary You usually promote a secondary volume to a primary volume in a replication set when a catastrophic failure has occurred on the array that contains the primary...
Page 107: About Replication Modes
About Replication Modes The replication mode is a user-selectable property that defines the communication mode for a replication set. The software supports two modes of data replication: Synchronous mode – In synchronous mode replication, a write operation to the primary volume is not confirmed as complete until the secondary volume has been updated.
Page 108: Reference: Synchronous Versus Asynchronous Replication Modes
Reference: Synchronous Versus Asynchronous Replication Modes When you choose a replication mode, consider the characteristics of each, as described in TABLE 4-4 Synchronous and Asynchronous Mode Comparison TABLE 4-4 Synchronous Replication Asynchronous Replication A write operation to the primary volume is not The write operation is considered complete as soon as considered complete until the user data is written to the user data is written to the primary volume.
Page 109: About Data Replication Operations
About Data Replication Operations You can choose one of the following data replication operations from the Replication Set Details page: Suspend – This operation temporarily stops replication of a replication set (or all of the replication sets in the consistency group with primary volumes on the primary array).
Page 110: General Planning Considerations
General Planning Considerations Replicating data and modifying replication properties may require a significant change to your system’s configuration. You must plan accordingly before you perform data replication operations. Consider the following: Business needs – When you decide to replicate your business data, consider the maximum delay: How long out of date can you allow the data on the secondary volume to become? This determines the replication mode and how often you should back up the data.
Page 111: Planning To Create Replication Sets
Planning to Create Replication Sets Before you can replicate data to a secondary volume, use the Create Replication Set wizard to create a replication set. Before you use the wizard, you must do the following: The storage domain definitions for the primary and secondary arrays are independent of each other.
Page 112 Back up the data on both volumes so that you can restore it easily if there is a problem. Ensure that the Sun StorageTek Data Replicator software premium feature is enabled and activated on both arrays participating in data replication, as described in “Enabling Data Replication”...
Page 113: Managing Data Replication
Managing Data Replication This section describes data replication tasks. It contains the following subsections: “About Data Replication Status” on page 97 “Enabling Data Replication” on page 98 “Activating and Deactivating Data Replication” on page 99 “Disabling Data Replication” on page 100 “Displaying Replication Set Information”...
Page 114: Enabling Data Replication
Data Replication Status (Continued) TABLE 4-5 Status Description Enabled/Deactivated Data replication is enabled, but not activated. Until data replication is activated, you cannot use any of the data replication functions. To activate data replication, see “Activating and Deactivating Data Replication” on page 99. Enabled/Activated Data replication is enabled and activated.
Page 115: Activating And Deactivating Data Replication
3. In the navigation pane, choose Administration > Licensing. The Licensable Feature Summary page is displayed. 4. Click Add License. The Add License page is displayed. 5. Select Sun StorageTek Data Replicator Software from the License Type menu. 6. Enter the version number and the key digest, and click OK. Activating and Deactivating Data Replication Activating the Sun StorageTek Data Replicator software premium feature prepares the array to create and configure replication sets.
Page 116: Disabling Data Replication
5. Click Activate or Deactivate, as appropriate. A confirmation dialog box indicates success or failure. Disabling Data Replication When data replication is in the disabled/activated state, previously existing replication sets can still be maintained and managed; however, new data replication sets cannot be created.
Page 117: Creating Replication Sets
4. Click the name of a replication set. The Replication Set Details page for the selected replication set is displayed. Creating Replication Sets You must do three things before creating a replication set: Consider a number of factors and make a number of decisions. For information on planning a replication set, see “Planning for Data Replication”...
Page 118: Deleting Replication Sets
Deleting Replication Sets When you delete a replication set, the primary volume stops replicating data to the secondary volume. The association between the primary and secondary volumes is removed, and both revert to conventional volumes. The data stored on the volumes is not affected, and the volumes can remain mapped.
Page 119: Changing Replication Modes
2. Click the name of the array containing the volume in the replication set whose role you want to reverse. The navigation pane and the Volume Summary page are displayed. 3. In the navigation pane, choose Logical Storage > Replication Sets. The Replication Set Summary page is displayed.
Page 120: Suspending And Resuming Data Replication
Suspending and Resuming Data Replication To suspend or resume data replication in an existing replication set: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the name of the array containing the replication set for which you want to suspend or resume replication.
Page 121: Testing Replication Set Links
Testing Replication Set Links You can test communication between volumes in a replication set by clicking the Test Communication button on the Replication Set Details page. If a viable link exists between primary and secondary volumes, a message displays indicating that communication between the primary and secondary volume is normal.
Page 122: Configuring Virtual Disks
Configuring Virtual Disks This section describes virtual disks. It contains the following subtopics: “About Virtual Disks” on page 106 “Displaying Virtual Disk Information” on page 107 “Expanding a Virtual Disk” on page 107 “Defragmenting a Virtual Disk” on page 108 About Virtual Disks Virtual disks are created and removed indirectly through the process of creating or deleting volumes or snapshots.
Page 123: Displaying Virtual Disk Information
RAID-5 results in excellent performance and good fault tolerance. Parity checking specifies that when the RAID controller writes information onto disks, it also writes redundant information, called parity bits. If a disk fails, the parity information enables the RAID controller to re-create the lost information as it is requested.
Page 124: Defragmenting A Virtual Disk
Note: When you expand a virtual disk, the disk drives that participate in the virtual disk must all be of the same type, either Serial Attached Technology Advancement (SATA) or Fibre Channel (FC). To expand a virtual disk: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed 2.
Page 125 5. Click Defragment. The Virtual Disk Details page is refreshed, and a message confirms that the defragmentation process has successfully started. Chapter 4 Configuring Virtual Disks...
Page 126: Configuring Storage Pools
Configuring Storage Pools This section describes storage pools. It contains the following subsections: “About Storage Pools” on page 110 “Displaying Pool Information” on page 110 “Creating a Storage Pool” on page 111 “Modifying a Storage Pool” on page 112 “Deleting a Storage Pool” on page 112 About Storage Pools A storage environment can be divided into storage pools.
Page 127: Creating A Storage Pool
To display information on pools: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array for which you want to display pool information. The navigation pane and the Volume Summary page are displayed. 3. In the navigation pane, choose Logical Storage > Pools. The Storage Pool Summary page is displayed.
Page 128: Modifying A Storage Pool
Modifying a Storage Pool To modify a storage pool: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array on which you want to modify a storage pool. The navigation pane and the Volume Summary page are displayed. 3.
Page 129: Configuring Storage Profiles
Configuring Storage Profiles This section describes storage profiles. It contains the following subtopics: “About Storage Profiles” on page 113 “Reference: Standard Storage Profiles” on page 114 “Displaying Profile Information” on page 115 “Creating a Storage Profile” on page 115 “Modifying a Storage Profile” on page 116 “Copying a Storage Profile”...
Page 130: Reference: Standard Storage Profiles
Storage Profile Settings (Continued) TABLE 4-7 Parameter Value or Variable Type Description No. of Disks 1 to 14, or variable The number of disks to be grouped together in a virtual disk. For example, if you create a storage pool with a profile that has the number of disks parameter set to a number, all virtual disks that are part of that storage pool must have the same number of disks.
Page 131: Displaying Profile Information
Displaying Profile Information You can display summary and detail information on existing storage profiles. You can also display summary information about pools and volumes associated with each storage profile. To display information on storage profiles: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed.
Page 132: Modifying A Storage Profile
5. Specify a name for the new profile, using a maximum of 32 characters. 6. Specify a description for the new profile, using a maximum of 256 characters. 7. Specify the remaining profile attributes. 8. Review the specified information for the new storage profile. If you are satisfied, click OK.
Page 133: Deleting A Storage Profile
2. Click the array for which you want to copy a profile. The navigation pane and the Volume Summary page are displayed. 3. In the navigation pane, choose Logical Storage > Profiles. The Storage Profile Summary page is displayed. 4. Select the check box to the left of the storage profile that you want to copy. The Copy button is enabled.
Page 134: Configuring Initiators
Configuring Initiators This section describes initiators. It contains the following subsections: “About Initiators” on page 118 “Displaying Initiator Information” on page 118 “Creating an Initiator” on page 119 “Deleting an Initiator” on page 120 About Initiators An initiator is the protocol-specific physical port that initiates the I/O exchanges with the array.
Page 135: Creating An Initiator
To display information on initiators: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array for which you want to display initiator information. The navigation pane and the Volume Summary page are displayed. 3. In the navigation pane, choose Physical Storage > Initiators. The Initiator Summary page is displayed.
Page 136: Deleting An Initiator
6. Select an existing World Wide Name (WWN) or specify a new WWN for the initiator. The list displays only existing WWNs that are currently unassigned. The WWN that you select is automatically displayed in the Type a New WWN field. If no unassigned WWNs exist, the list is empty and you must enter a new WWN in the Type a New WWN field.
Page 137: Configuring Host Groups And Hosts
Configuring Host Groups and Hosts This section describes storage host groups and hosts. It contains the following subsections: “About Host Groups” on page 121 “Managing Host Groups” on page 122 “About Hosts” on page 127 “Managing Hosts” on page 127 About Host Groups A host group is collection of one or more data hosts.
Page 138: Managing Host Groups
Managing Host Groups You can create host groups, you can add hosts to and remove hosts from a host group, you can map a host group to a volume, and you can display information about existing host groups and the mappings associated with them. Displaying Host Group Information You can display summary and detail information on existing host groups.
Page 139: Adding/Removing Host Group Members
2. Click the array on which you want to create a host group. The navigation pane and the Volume Summary page for that array are displayed displayed. 3. In the navigation pane, choose Physical Storage > Host Groups. The Host Group Summary page is displayed. 4.
Page 140: Deleting A Host Group
When you move Host1 from Host Group 1 to Host Group 2, the following occurs: Host1 keeps its specific mappings and inherits the mapping associated with Host Group 2. Host Group 1, Host2, and Host3 become part of the default storage domain, because they have no specific mappings.
Page 141: Mapping A Host Group To A Volume
2. Click the array on which you want to delete a host group. The navigation pane and the Volume Summary page for that array are displayed displayed. 3. In the navigation pane, choose Physical Storage > Host Groups. 4. Select the check box net to the name of the host group that you want to delete. This enables the Delete button.
Page 142: Unmapping A Host Group From A Volume
7. Specify the logical unit number (LUN) (0 to 255 for the Sun StorageTek 6130 and 6140 arrays; 0 to 31 for the Sun StorageTek 6540 array) for each volume that you want to map to this host group. 8. Click OK. The management software maps the volume to the host group and displays the Host Group Details page with the updated information.
Page 143: About Hosts
About Hosts A host represents a data host, which is a computer that is attached to the storage array and generates data to be saved in a storage array. The data host sends data to the storage array using a Fibre Channel (FC) connection. A host must have one or more associated initiators to enable you to map volumes to the host.
Page 144: Creating A Host
To display information on hosts: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array on which you want to display host information. The navigation pane and the Volume Summary page for that array are displayed displayed.
Page 145: Deleting A Host
7. Click OK. The host is created and the Host Summary page is displayed, listing the new host. Deleting a Host Deleting a host will delete all associated initiators and remove all mappings to volumes and snapshots associated with the host. To delete a host: 1.
Page 146: Unmapping A Host From A Volume
6. Click the name of the volume that you want to map to the host. 7. Specify the logical unit number (LUN) (0 to 255 for Sun StorageTek 6140 and 6130 arrays, and 0 to 31 for the Sun StorageTek 6540 array) of this volume to map to the host.
Page 147 5. Click Unmap. The Mapped Volumes and Snapshots page is displayed. 6. Click the volume that you want to unmap from this host. 7. Click OK. Chapter 4 Configuring Host Groups and Hosts...
Page 148: Managing Trays And Disk Drives
In the Sun StorageTek 6140 and 6130 arrays, each tray has a minimum of 5 and a maximum of 14 disk drives, numbered 1 to 14, from left to right. With the maximum of 8 trays in a cabinet, you can have up to 112 drives.
Page 149: Displaying General Controller Information
Other characteristics of the disk drives are described in TABLE 4-9 Disk Drive Characteristics TABLE 4-9 Feature Description Drive capacity 72 GB/15 K, 72 GB/10 K, 146 GB/10 K Mixed drive sizes Allowed but not recommended. If drives of different sizes are mixed in a storage tray, all the drives used in a volume are treated as the smallest drive.
Page 150: Testing Controller Communication
The Array Summary page is displayed. 2. Click the array for which you want to see performance statistics. The navigation pane and the Volume Summary page for that array are displayed. 3. In the navigation pane, choose Physical Storage > Controllers. The Controller Summary page is displayed.
Page 151: Displaying Tray Information
To display information on FC ports: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array for which you want to display port information. The navigation pane and the Volume Summary page are displayed. 3.
Page 152: Displaying Disk Information
Displaying Disk Information You can display summary and detail information on existing disks. To display information on disks: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2. Click the array for which you want to display disk information. The navigation pane and the Volume Summary page are displayed.
Page 153: Planning Hot-Spares
If a hot-spare is available when a disk drive fails, the hot-spare is automatically substituted for the failed disk drive, without intervention. The controller uses redundancy data to reconstruct the data from the failed drive onto the hot-spare. When you have physically replaced the failed disk drive, the data from the hot-spare is copied back to the replacement drive.
Page 154: Assigning And Unassigning Hot-Spares Automatically
5. Do one of the following: To assign the selected disk as a hot-spare, click Assign Hot-Spare. To unassign the selected disk as a hot-spare, click Unassign Hot-Spare. The Disk Summary page is displayed with the updated information. Assigning and Unassigning Hot-Spares Automatically When the management software assigns the hot-spares, it balances the request for spares across all trays within the array and ensures that the hot-spare drive is of the...
Page 155: Configuring Storage Domains
Configuring Storage Domains This section describes storage domains. It contains the following subsections: “About Storage Domains” on page 139 “Preparing to Create a Storage Domain” on page 140 “Determining How to Create a Storage Domain” on page 140 “Enabling the Storage Domain Feature” on page 141 “About Performing Mapping Functions”...
Page 156: Preparing To Create A Storage Domain
Creating an explicit volume-to-LUN mapping for any host or host group and volume within the default storage domain causes the management software to remove the specified host or host group and volume from the default storage domain and create a new separate storage domain. The array management software supplies eight storage domains.
Page 157: Enabling The Storage Domain Feature
Create a storage domain using the wizard if you want to map an existing volume or snapshot, assign a logical unit number (LUN) to it, and then select an existing host or host group to which to map the volume or snapshot. From the Volume Summary or Volume Details page, you can click Map to map the volume to an existing host or host group.
Page 158: About Performing Mapping Functions
5. Select the type of storage domain license that you have purchased from the License Type menu. 6. Enter the version number and the key digest, and click OK. A message displays, indicating that the operation was successful and the Licensable Feature Summary page is displayed with the updated information.
Page 159: Creating A Mapping
Host Summary page To map a volume or snapshot to a host or host group: 1. Click Sun StorageTek 6140 Configuration Service. The Array Summary page is displayed. 2. Click the array for which you want to display all mappings.
Page 160 Sun StorageTek Array Administration Guide • May 2006...
Page 161: Troubleshooting The System
C H A P T E R Troubleshooting the System This chapter describes troubleshooting. It contains the following subsection: “Basic Troubleshooting” on page 146...
Page 162: Basic Troubleshooting
Basic Troubleshooting This section described updating array components and troubleshooting the array: “About Patches, Firmware, and Software” on page 146 “Backing Out Changes” on page 147 “About Field-Replaceable Units” on page 147 “About LED Status Indicators” on page 147 “Checking LEDs” on page 156 “Responding to an Array Boot-Up Failure”...
Page 163: Backing Out Changes
component’s upgrade procedure fails, repeat the procedure. If this second attempt also fails, you must back out the changes on the components that were successful so that the array operates properly. Then contact Sun Services with a description of the component’s failed upgrade process.
Page 164 shows the LEDs and components on the front of the controller tray. FIGURE 5-1 Grounding strap connector Drive LEDs OK/Power Service Action Allowed Service Action Required Service Action OK/Power Locate Alarm Rate Select switch Required Cancel Tray LEDs Controller Tray (Front View) FIGURE 5-1 describes the LEDs and components on the front of the controller tray.
Page 165 Tray LED Components (Front) (Continued) TABLE 5-1 LED/Component Description Service Action Required Steady amber indicates that the drive requires service. Off indicates that the drive does not require service. Steady green indicates that power is applied to the drive and the drive is functioning normally. Off indicates that power is not applied to the drive.
Page 166 Tray LED Components (Front) (Continued) TABLE 5-1 LED/Component Description Grounding strap connector Use this connector to connect a grounding strap to the tray before handling the tray or its components. shows the LEDs and indicators at the back of the controller tray. FIGURE 5-2 Controller A (inverted) Expansion port...
Page 167 Controller Tray LEDs and Indicators (Back) TABLE 5-2 LED/Indicator Description Power Supply LEDs On indicates that the correct DC power is being output from the controller power supply. Service Action Required Steady amber indicates that the power supply requires service. Off indicates that the power supply does not require service.
Page 168 Controller Tray LEDs and Indicators (Back) (Continued) TABLE 5-2 LED/Indicator Description Controller Indicators Host Port Rate The combined display indicates the host port link rate for the tray: • LED 1 On, LED 2 On – 4 Gbits/second • LED 1 Off, LED 2 On – 2 Gbits/second •...
Page 169 Expansion port Expansion port Expansion port 1B (Out) bypass rate indicators 1A (In) bypass indicator indicator B Power Supply DC Service action Service action required allowed Service action allowed Service action A (inverted) required Locate ID/Diag display ID/Diag display Locate Service action required Service action...
Page 170 Expansion Tray LEDs and Indicators (Back) (Continued) TABLE 5-3 LED/Indicator Description Service Action Allowed Steady blue indicates that service action can be taken on the power supply without adverse consequences. Off indicates that the power supply is engaged and service action should not be implemented.
Page 171 shows the location of the battery compartment on the controller and FIGURE 5-4 expansion trays and identifies the LEDs on the compartment. Service action allowed Service action required Battery status Expansion tray Controller tray Battery Compartment LEDs FIGURE 5-4 describes the LEDs and indicators on the back of the expansion tray. TABLE 5-4 Battery Compartment LEDs TABLE 5-4...
Page 172: Checking Leds
Battery Compartment LEDs (Continued) TABLE 5-4 LED/Indicator Description Service Action Required Steady amber indicates that the power supply requires service. Off indicates that service is not required for the power supply. Battery Status Steady green on indicates that the battery is fully charged.
Page 173: Responding To An Array Boot-Up Failure
Responding to an Array Boot-Up Failure If the array does not boot after a shutdown, the failure could have several causes, both hardware and software. Check the messages reported on the console and in the event log to diagnose the problem. Viewing Log Files The array logs its events to the same log file maintained by the Sun Web Console.
Page 174: Redistributing Volumes
Note: Before you begin, be sure that all data on the storage array has been backed up to tape or another storage array. To reset the array configuration: 1. Click Sun StorageTek Configuration Service. The Array Summary page is displayed. 2.
Page 175: Resetting A Controller
2. Click the array on which you want to redistribute the volumes. The navigation pane and the Volume Summary page for the selected array are displayed. 3. In the navigation pane, choose Administration > General Settings. The General Setup page is displayed. 4.
Page 176: Reviving Virtual Disks And Disk Drives
Reviving Virtual Disks and Disk Drives The Sun StorageTek Configuration Service enables you to more closely manage the states of the virtual disks and physical disk drives and recover from failures. If one or more disk drives in a virtual disk are in the Failed state, you can recover from this failure by reviving the virtual disk.
Page 177: Glossary
Glossary Definitions obtained from the Storage Networking Industry Association (SNIA) Dictionary are indicated with “(SNIA)” at the end. For the complete SNIA Dictionary, go to www.snia.org/education/dictionary. The component of the system monitoring and diagnostic software that agent collects health and asset information about the array. A type of event that requires service action.
Page 178 RAID controller tray A tray with an installed redundant controller pair. In a Sun StorageTek 6140 Array, 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, and 1x7 array types are available. control path The route used for communication of system management information, usually an out-of-band connection.
Page 179 (FRU). host bus adapter (HBA). host As a function of the Sun StorageTek 6140 Array configuration, a representation of a data host that is mapped to initiators and volumes to create a storage domain. See also data host, initiator.
Page 180 A Solaris host serving the configuration, management, and monitoring management host software for the Sun . The software on the station can StorageTek 6140 Array be accessed with a browser interface or with a remote scripting command- line interface (CLI) client to access the SSCS CLI commands master/alternate A design for reliability that uses redundant configuration.
Page 181 power distribution unit The assembly that provides power management for the system. The redundant (PDU) design uses two PDUs in each system so that the system’s data path continues to function if one of the PDUs fails. profile storage profile. provisioning The process of allocation and assignment of storage to hosts.
Page 182 A container that groups physical disk capacity (abstracted as virtual disks storage pool in the browser interface) into a logical pool of available storage capacity. A storage pool’s characteristics are defined by a storage profile. You can create multiple storage pools to segregate storage capacity for use in various types of applications (for example, high throughput and online transaction-processing applications).
Page 183 World Wide Name. A unique 64-bit number assigned by a recognized naming authority such as the Institute of Electrical and Electronics Engineers (IEEE) that identifies a connection (device) or a set of connections to the network. The World Wide Name (WWN) is constructed from the number that identifies the naming authority, the number that identifies the manufacturer, and a unique number for the specific connection.
Page 184 168 Sun StorageTek Array Administration Guide · May 2006...
Page 185 Index upgrading ﬁrmware 33 asterisk, meaning of account passwords, changing 34 in forms 22, 23 Administration tab in searches 24 for conﬁguration administration 20 administrative functions conﬁguration 20 banner, described 18 administrative settings 34 boot-up failure, responding 157 alarms browser interface current 19 navigating 18 types of 19...
Page 186 recopying volume copies for 67 removing 69 failure handling considerations, in snapshot copy priorities planning 72 changing 68 fan assembly 8, 14 copy priorities, for volume copies 64 fault tolerance, RAID levels and 107 current alarms 19 FC drives 15 current user logins 19 Fibre Channel (FC) ports initiators and 118...
Page 187 hosts licenses access to multiple volumes by 121 adding 43 creating 128 disabling 43 deleting 129 displaying information about 42 displaying information about 127 obtaining 42 initiators and 118 link rate LED check 156 managing 127 log ﬁles 5, 7 mapping a volume to 58 viewing 157 mapping snapshots to 79...
Page 188 deleted snapshots and 71 described 54, 70 page banner, described 18 disabled snapshots and 71 page display controls 21 planning the capacity of 73 parity checks, RAID levels and 106 threshold for 71 passwords Reset button 23, 24 changing 34 resetting a controller 159 patch upgrades 146 resetting an array conﬁguration 157...
Page 189 logical 52 Sun Fire cabinet 8, 13 physical 51 Sun Rack cabinets 8, 13 storage pools 52 Sun StorageTek Enterprise Storage Manager creating 111 software 6 default 50 Sun StorageTek Expansion cabinet 8, 13 deleting 112 Sun StorageTek SAM-FS software 6 described 4, 110 Sun StorageTek SAN Foundation Software 5 displaying information for 110...
Page 190 planning the assignment of volumes to 55 requirements for 72 storage pools and 53 volumes and 53 volume capacity, extending 59 volume copies changing the copy priority for 68 creating 66 described 4 displaying information on 66 enabling 65 managing 65 overview of 62 planning 63 recopying 67...
