5. Attach the other end of the Ethernet cable to a network hub or router.
Note – You must use a shielded Ethernet interface cable to comply with regulatory
emissions requirements.
6. Partner group only: Repeat Step 4 and Step 5 to connect the alternate master unit
to a hub or router using a second Ethernet cable.
Connect this cable to a hub or router on the same network as the master unit.
7. Attach the two power cords to the two power and cooling units on the back of the
master unit (
AC power cords
FIGURE 6-4
8. Partner group only: Repeat Step 7 to connect the power cords to the alternate
master unit.
Caution – Do not power on the units yet. If you are connecting a single array unit,
proceed to "To Power On and Verify the Hardware Configuration" on page 70 for
instructions on powering on the unit. If you are connecting a partner group, proceed
to Step 9.
68 Sun StorEdge T3+ Array Installation and Configuration Manual • April 2002
).

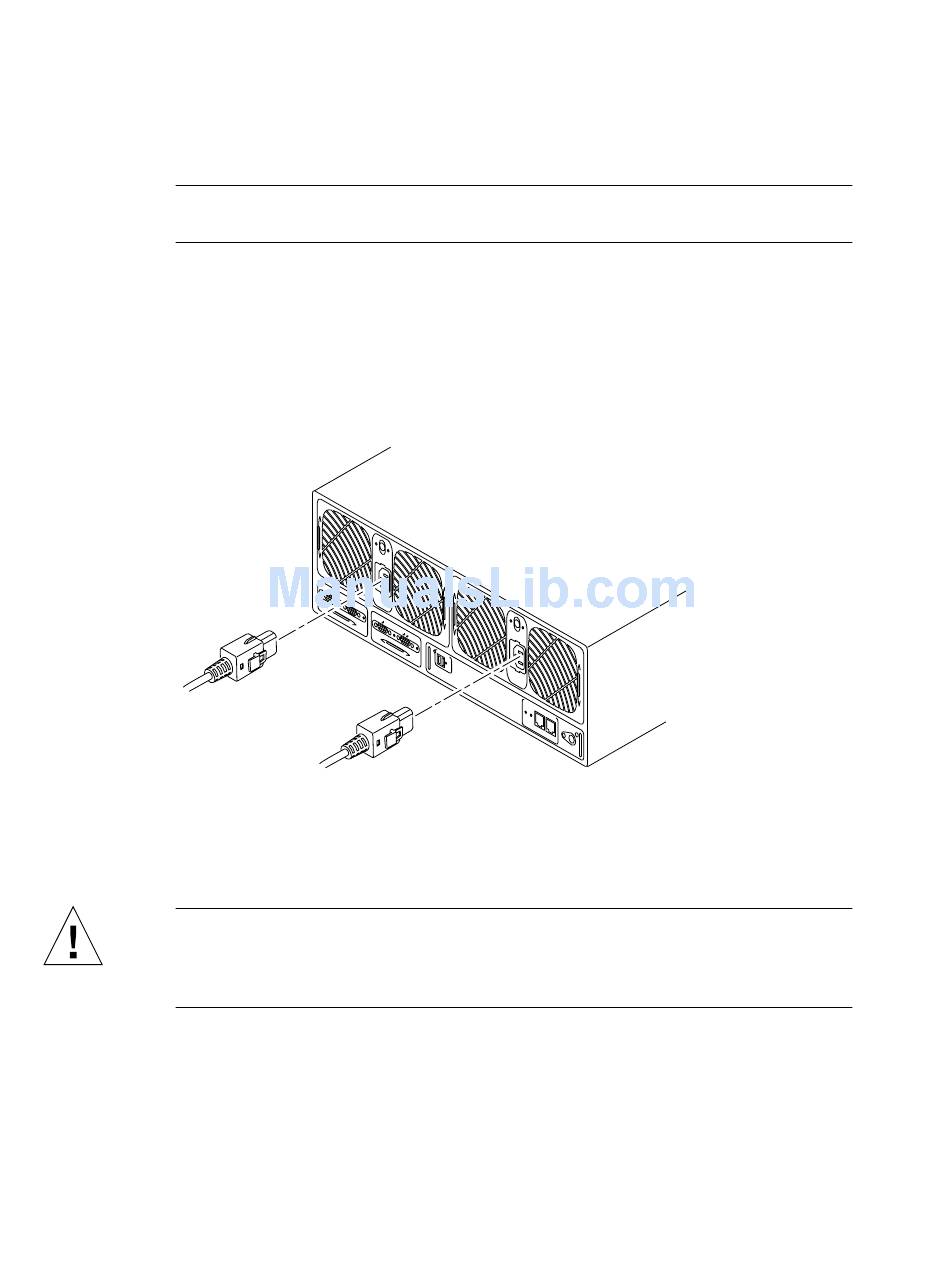

FIGURE 6-4
Connecting the Power Cords
