To Inspect the Array

Caution – This procedure requires two people to lift and move the array. Use care
to avoid injury. An array can weigh up to 67 pounds (30 kg).
1. Unpack the array.
You should have the following items:
Sun StorEdge T3+ array
One 5m fiber-optic cable (unique to the array model)
Two power cords
The cables are illustrated in
Ethernet cable (category 5)

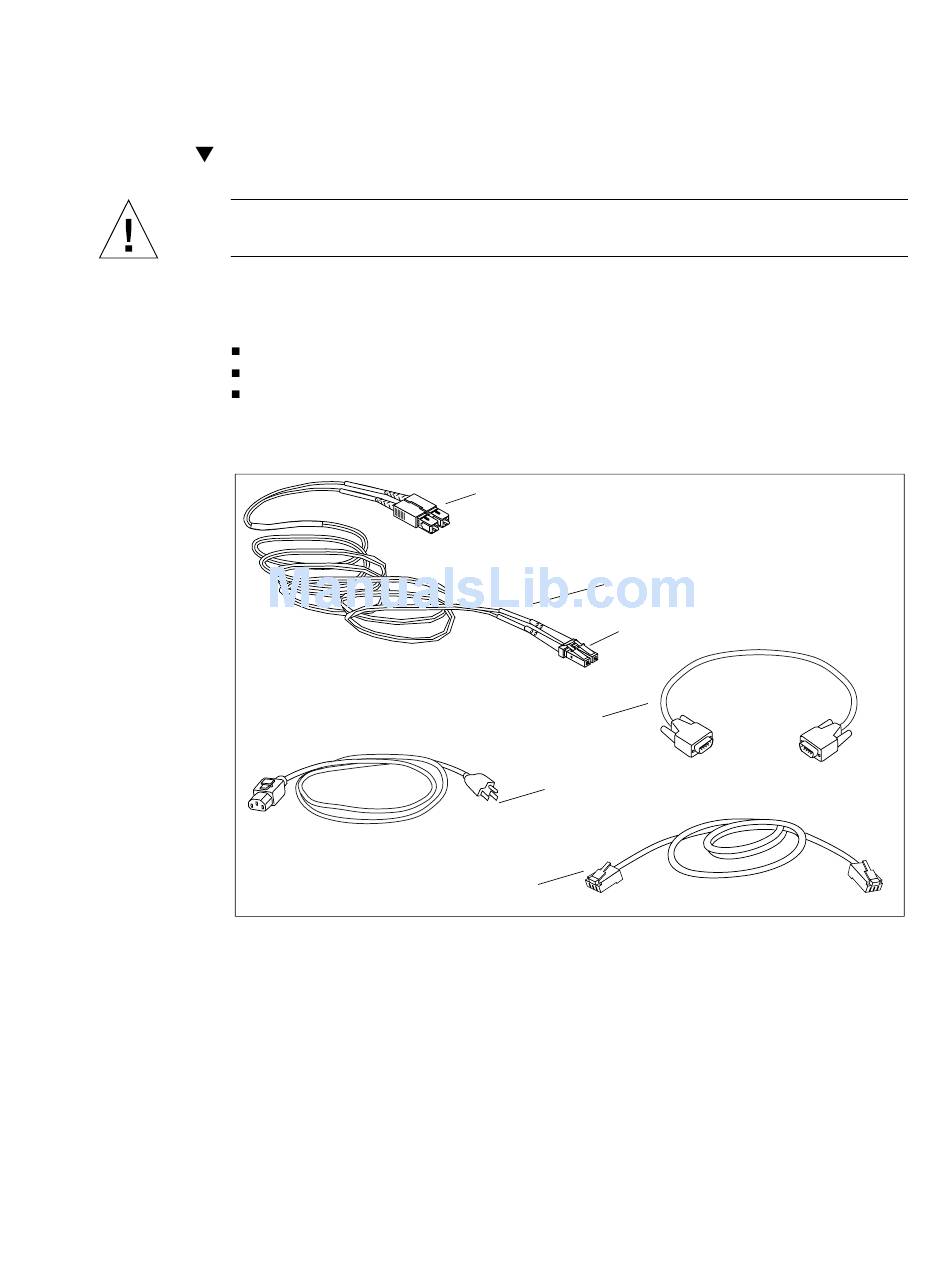

Sun StorEdge T3+ Array Cables
FIGURE 5-1
2. Inspect the array for evidence of damage.
If the array is damaged, keep all contents and packing materials for the shipping
company's agent to inspect.
3. Save the packing materials for future use.
4. Remove the front panel of the array by pressing in on the side latches and pulling
the cover off (
FIGURE 5-2
.
FIGURE 5-1
SC connector
Interconnect cable
AC power cord
).
Fiber-optic cable
LC-SFF connector
Chapter 5 Preparing to Install 55
