Workgroup Configurations

The following configuration rules apply to array workgroup configurations
(

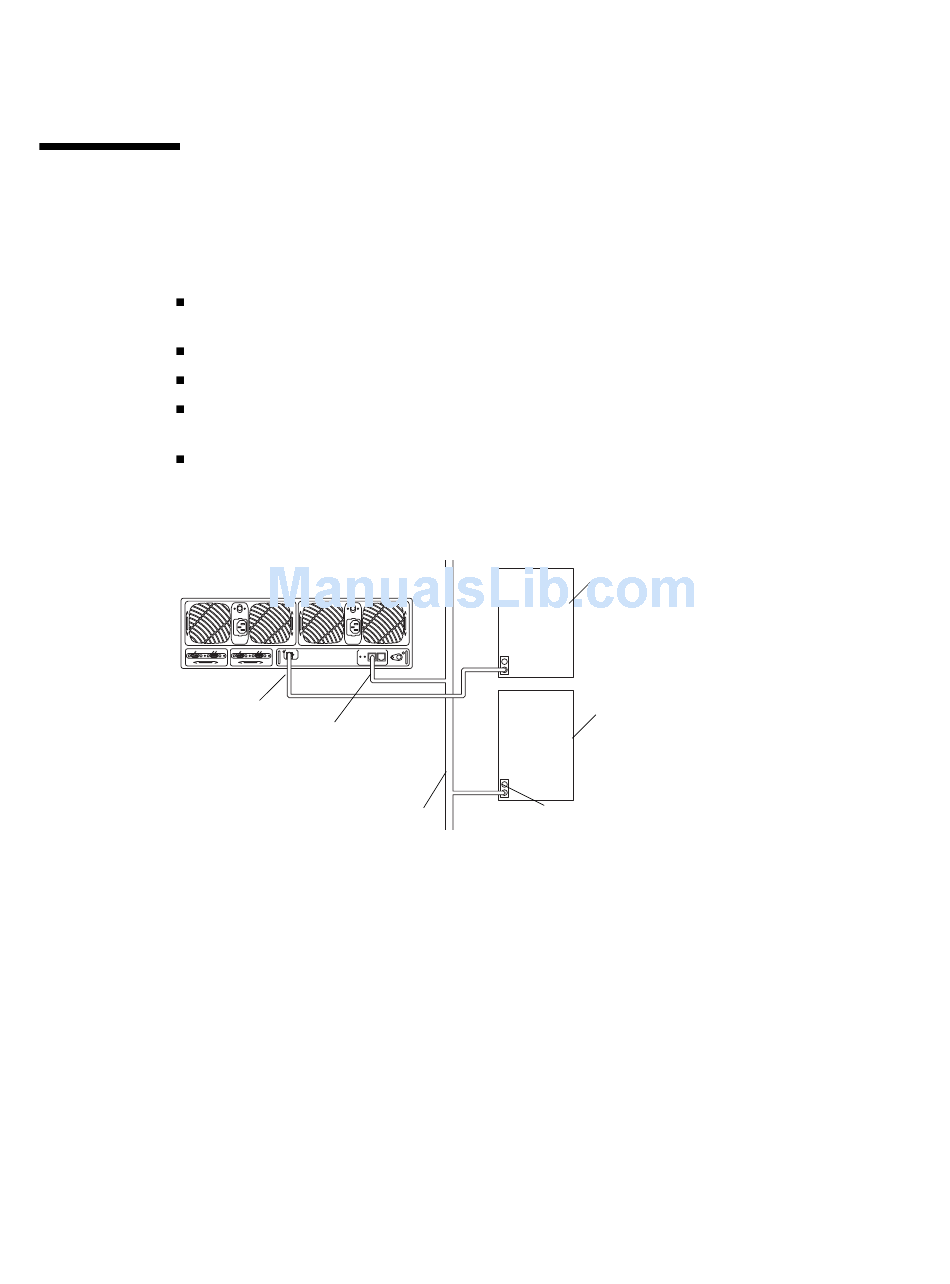

FIGURE 12-2
The interconnect ports, which are used only in partner group configurations,
cannot be used for host connections.
The FC-AL connection provides a data path to the application host.
The Ethernet connection provides a link to the management host.
The serial port is used solely for diagnostics and service by qualified service
personnel only.
Fiber-optic cable lengths between 2 and 500 meters, using short-wave laser and
50-micron fiber-optic cable, are supported.
FC-AL
connection
FIGURE 12-2
150 Sun StorEdge T3+ Array Installation and Configuration Manual • April 2002
):
Ethernet
connection
LAN
Array Workgroup Configuration
Application host
Management host
Ethernet port
