Remote Control

Remote control signals ("dweedle tones") may be used
to control the transmitter. The tones are played back into
the microphone to avoid the need to reach and handle
the transmitter when making changes to the following
adjustments and settings:
• Input Gain
• Sleep/Unsleep
• Lock/Unlock
• Tx power output
• Frequency
A smart phone app is available in the App Store and in
Google Play to implement this control. Search for the
title LectroRM.

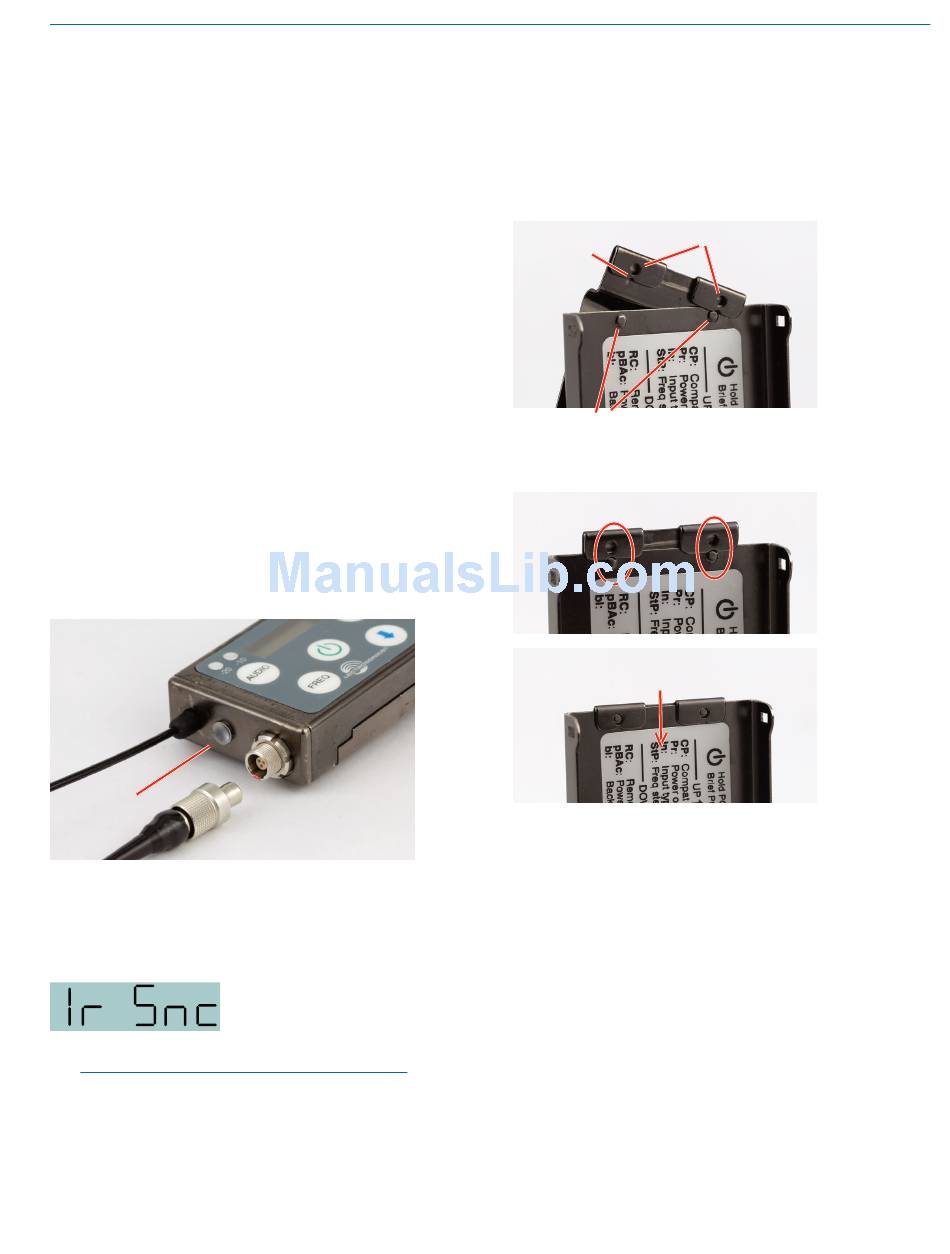

IR (infrared) Sync

An IR (infrared) link between an associated receiver
and the transmitter can be used to shorten setup time
and ensure that the correct settings in the transmitter
are made. The dome on the side panel of the transmit-
ter is the port used for the IR link. The receiver is nor-
mally used to identify a clear operating frequency. Once
step size, frequency and compatibility mode are set in
the receiver, the settings can be sent to the transmitter
via this IR link.
IR port
Place the transmitter close to the IR enabled receiver
with the ports facing each other within a foot or two
apart. Send the settings with the trigger on the receiver.
If the settings are successfully transferred, a confirma-
tion message will appear on the transmitter LCD.
NOTE: If a mismatch exists between the receiver
and transmitter, an error message will appear on
the transmitter LCD stating what the problem is.
Rio Rancho, NM
Micro Body Pack Transmitter

Removable Belt Clips

Two different belt clips are available, one that orients
the antenna downward and another one that orients the
antenna upward. Attaching and removing the clips is the
same for both models.
A belt clip is removed by rotating it as shown and sliding
it off the retaining tabs on the battery door.
Alignment
notch
Retaining tabs
To attach a belt clip, align the notches with the retaining
tabs, then press on the clip to attach it.
Press clip into place with tabs
seated in mounting holes
The antenna works equally well when oriented either
upward or downward. Position the transmitter so that
the antenna is not in contact with or underneath any
metallic object or surface in wardrobe or costuming, and
preferably with a layer of fabric between the antenna
and the user's body.
Mounting holes
