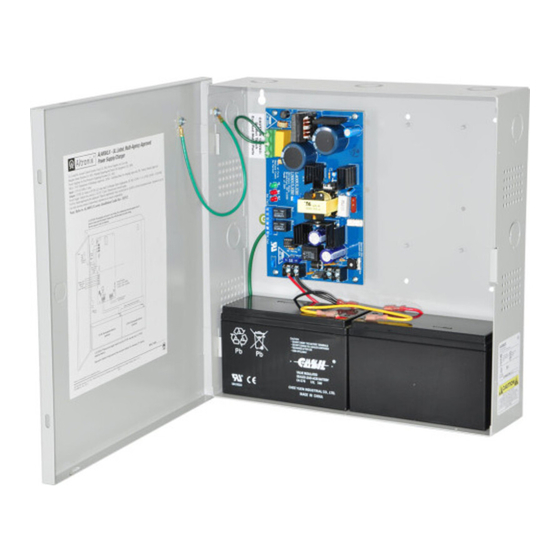

AL400X220 Series
Power Supply/Charger
Installation Guide
Models Include:
• AL400X220
-
Single Output
• AL400PD4220
-
Four (4) Fused Outputs
• AL400PD8220
-
Eight (8) Fused Outputs
• AL400XPD16220
-
Sixteen (16) Fused Outputs
For a red enclosure, add an "R" suffix to the part # e.g. AL400PD8R220
For a larger enclosure, add an "X" suffix to the part # e.g. AL400XPD8220
• AL400PD4CB220
-
Four (4) PTC Outputs
• AL400PD8CB220
-
Eight (8) PTC Outputs
• AL400XPD16CB220
-
Sixteen (16) PTC Outputs
Rev. 102512

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL400X220 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altronix AL400X220 Series

Summary of Contents for Altronix AL400X220 Series

  • Page 1 AL400X220 Series Power Supply/Charger Installation Guide Models Include: • AL400X220 Single Output • AL400PD4220 • AL400PD4CB220 Four (4) Fused Outputs Four (4) PTC Outputs • AL400PD8220 • AL400PD8CB220 Eight (8) Fused Outputs Eight (8) PTC Outputs • AL400XPD16220 • AL400XPD16CB220...

  • Page 2: Specifications

    12VDC or 24VDC regulating output, (see specifications below). The AL400X is the base power supply unit for the multi-output power supply/charger series: AL400PD4220, AL400PD4CB220, AL400PD8220, AL400PD8CB220, AL400XPD16220, AL400XPD16CB220 (Refer to AL400X220 Series Power Supply Configuration Reference Chart below). AL400X220 Series Power Supply Configuration Reference Chart:...

  • Page 3: Power Supply Output Specifications

    12VDC Rechargeable Battery (optional) 12VDC Rechargeable Battery (optional) For 12VDC Operation use hook-up in the inset on the right CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC stand-by battery. AL400X220 series - 3 -...

  • Page 4: Installation Instructions

    Red (DC) Green (AC) Power Supply Status Normal operating condition. Loss of AC, Stand-by battery supplying power. No DC output. Loss of AC. Discharged or no stand-by battery. No DC output. Red (Bat) Battery Status Normal operating condition. Battery fail/low battery. - 4 - AL400X220 series...

  • Page 5: Terminal Identification

    O U T P U T S DC Output to devices From Power Supply DC Output to devices From Power Supply Board 1P-8P Power Outputs, Board 1P-8P Power Outputs, 1N-8N Common Outputs (Factory Installed) (Factory Installed) 1N-8N Common Outputs AL400X220 series - 5 -...
  • Page 6 (279mm) 0.9375” 1.40” (24mm) 1.40” (36mm) (36mm) 5.10” 5.10” (130mm) (130mm) 13.0” (330mm) 5.10” (130mm) 6.5625” (167mm) 0.9375” (24mm) 3.25” 3.25” (83mm) (83mm) 3.25” (83mm) 1.0” 1.0” (25mm) (25mm) 1.0” 10.5” 1.0” (25mm) (267mm) (25mm) - 6 - AL400X220 series...
  • Page 7 0.91” (23.114mm) (23.114mm) 1.5” 1.5” (38.1mm) (38.1mm) 2.0” 15.5” (50.8mm) (393.7mm) 2.0” (50.8mm) 5.0” 5.0” (127.0mm) (127.0mm) 0.79” 1.1” (20.06mm) 1.25” 1.25” (27.94mm) (31.75mm) (31.75mm) 1.75” (44.45mm) 1.5” 1.5” 4.615” 4.615” (38.1mm) (117.22mm) (117.22mm) (38.1mm) AL400X220 series - 7 -...
  • Page 8 Notes: Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. MEMBER IIAL400X220 series G26M - 8 - AL400X220 series...
