Installation

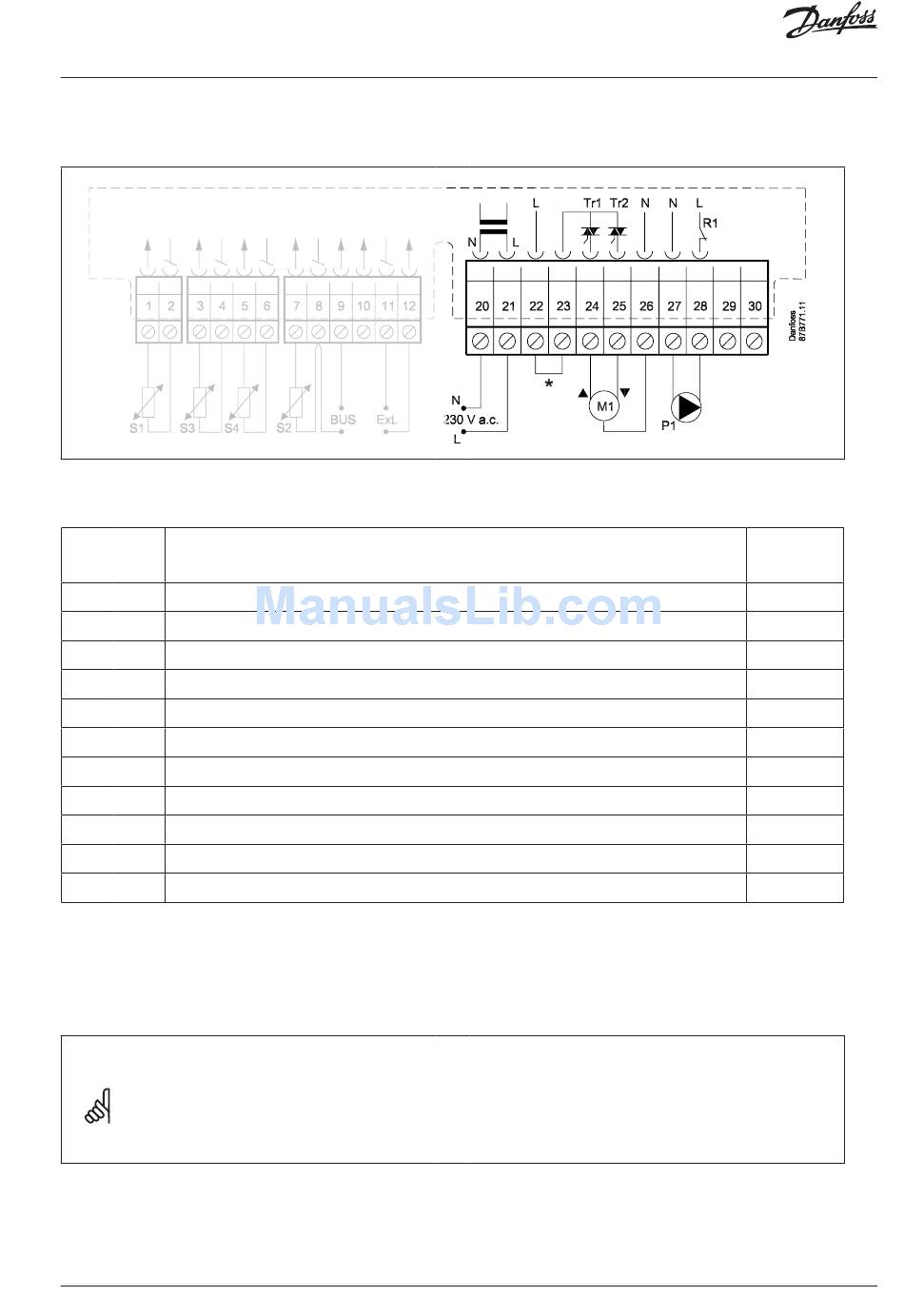

Electrical connections - 230 V a.c. - in general

* Optional connections for safety thermostat
Terminal Description
20 Supply voltage 230 V a.c. - neutral (N)
21 Supply voltage 230 V a.c. - live (L)
22 Optional connections for safety thermostat
23 Optional connections for safety thermostat
24 M1 Actuator - open
25 M1 Actuator - close
26 M1 Actuator - neutral
27 P1 Circulation pump - neutral
28 P1 Circulation pump - live (relay R1)
29 Not to be used
30 Not to be used
*: Ohmic load: 4 Amp.; Inductive load: 2 Amp.
Wire cross section: 0.5 - 1.5 mm
Incorrect connection can damage the TRIAC outputs (terminals 23, 24 and 25).
VI.LV.A1.02
2
Max.
load
15 VA
15 VA
4 (2) A *
© Danfoss | 2016.05 | 33
