LOG SET ASSEMBLY REPLACEMENT

Tools Required: Philips head screwdriver
WARNING: If the firebox was operating prior to servic-
ing, allow at least 10 minutes for the heating elements to
cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Remove the front glass or any accessories that are
around the fireplace and will inhibit your ability to fully
access the unit.
2. Locate and remove the screw behind each of the front
legs of the firebox. (Figure 3)
!
IMPORTANT: Only handle the log-set by the plastic
grate, not the logs themselves.
3. Slide the firebox assembly forward and lift out.
!
NOTE: It may be necessary to slide the ember mat
forward and backward, and possibly out, as well to assist
with the removal.
4. Trace the wire from the back of the harness to the con-
nector that will be located in the middle slightly under
the flame screen.
5. Disconnect the old log set assembly and connect the
new one.
6. Place the connector back under the flame screen.
7. Install the replacement logs and secure with the two
screws that were previously removed.
8. Re-assemble the remainder of the firebox in reverse
order from the instructions above.

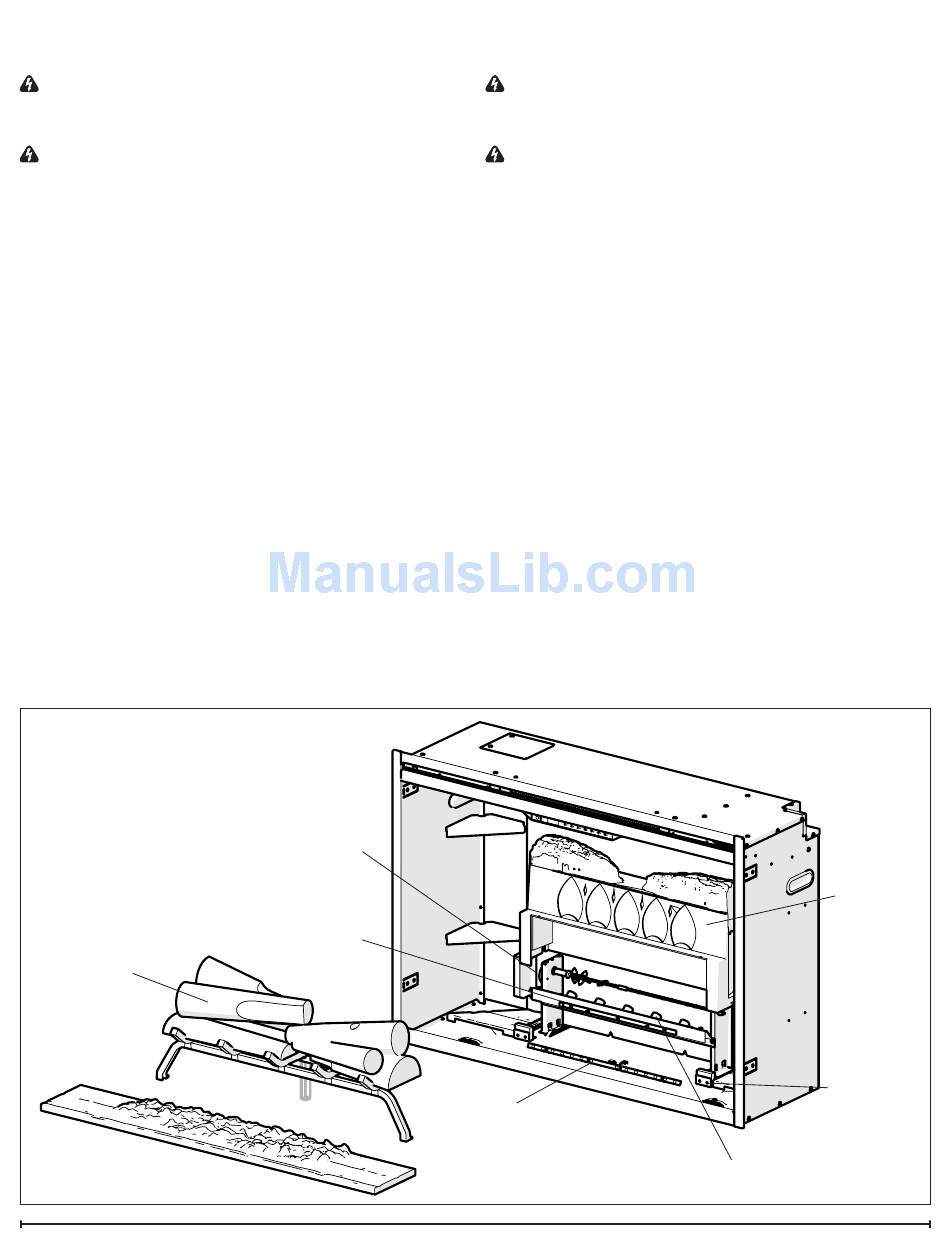

Figure 3
Log Set
Assembly
8
Flicker
Motor
Back Log
LED

FLAME SCREEN REPLACEMENT

Tools Required: Philips head screwdriver
WARNING: If the firebox was operating prior to servic-
ing, allow at least 10 minutes for the heating elements to
cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Remove the front glass or any accessories that are
around the fireplace and will inhibit your ability to fully
access the unit.
2. Locate and remove the screw behind each of the front
legs of the firebox. (Figure 3)
!
IMPORTANT: Only handle the log-set by the plastic
grate, not the logs themselves.
3. Slide the log set assembly forward and lift the log set
assembly and the ember mat out. (Figure 3)
!
NOTE: The log set assembly has a wire attached to
the unit which can be temporarily disconnected for easier
access.
4. On either side of the firebox gently remove the brick
panels by placing you finger in the gap and pulling
forward. The brick panels are held in place by magnets
and need minimal force to be removed.
5. Locate the two brackets securing the flame panel in the
unit at the bottom and remove the 4 screws.
6. Gently lift the flame panel out and replace with the new
one.
7. Re-assemble the unit in reverse order from the instruc-
tions above.
Ember
LED Light
Back Log
Flame Panel
Brackets
Flame
Base LED
