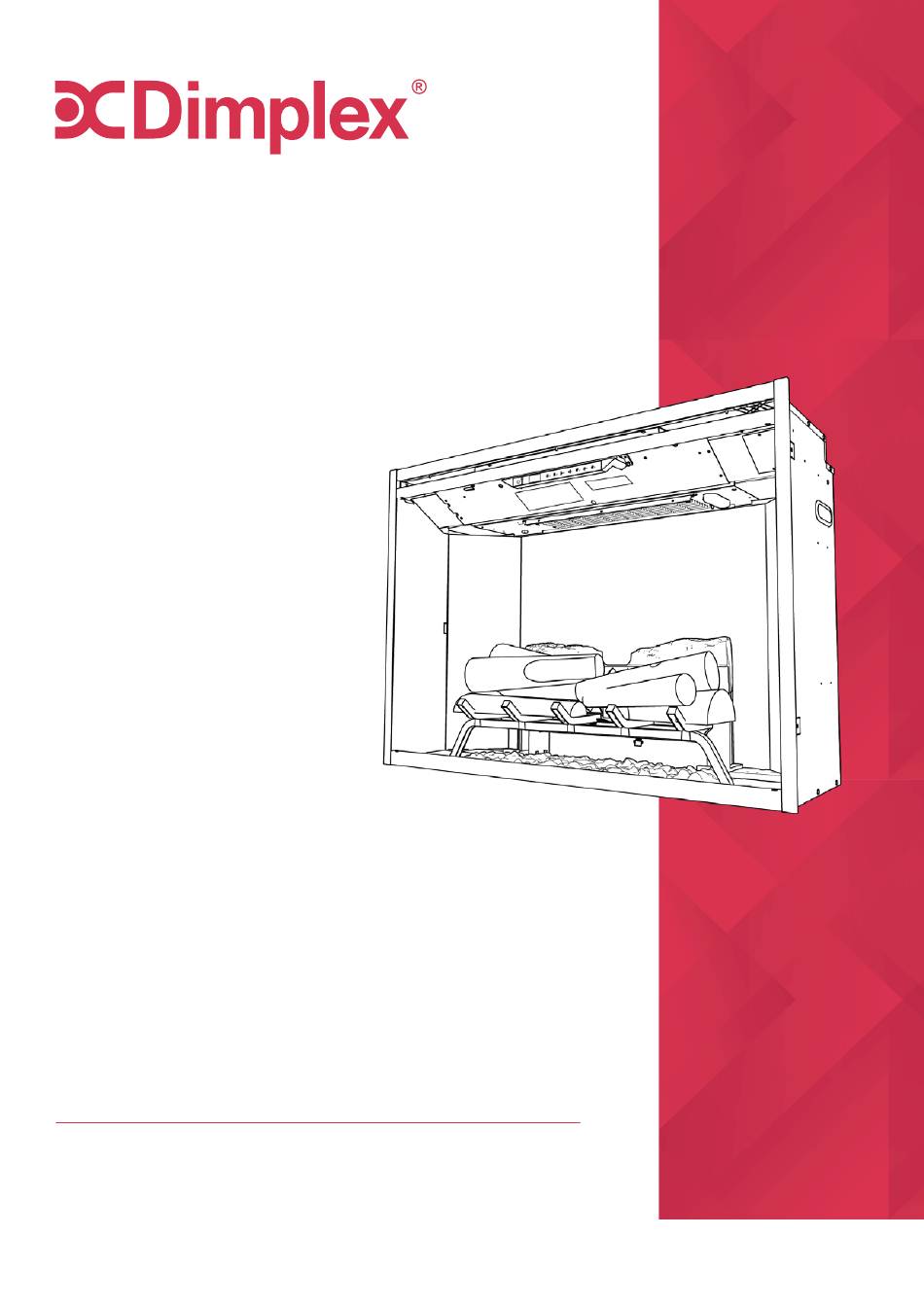

- Page 1 INSTRUCTION MANUAL Revillusion ™ Built-in Electric Firebox Model: RBF30C-AU, RBF36C-AU, RBF42C-AU For domestic household use only. 8/54541/0 Issue 5 OCN 11905...
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your product for the first time and keep them in a safe place.
- Page 3 • Although this appliance complies with safety standards, we do not recommend its use on deep pile carpets or on long hair type of rugs • The appliance must be positioned so that the plug is accessible. • If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person in order to avoid a hazard.
- Page 4 WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN • Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. • If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specifications
Specifications Model no. 30" Firebox 36" Firebox 42" Firebox Colour/Finish Black Wattage 2000 Heat Settings Thermostat Control Remote Control Warranty 2 years Dimensions (w x d x h) 792 x 307 x 676 944 x 307 x 676 1098 x 307 x 788 For greater precision, please always refer to the rating label placed on the product. - Page 7 Setup Operating Temperature -20°-40°C Fixed Wiring In some jurisdictions this appliance is supplied without a plug. This is to comply with local regulations. In such instances, this appliance must be installed by a suitably qualified installer and the means for disconnection must be incorporated in the fixed wiring in accordance to the local wiring rules.
-
Page 8: Installation
Installation Framing The Revillusion Built-in Electric Firebox does not require any special venting. 2. Rough in the framing opening. Follow the recommended framing dimensions below. NOTE: The materials used for the finished surround must be cut to precise dimensions (dimensions B & C) as the 0.6cm self trimming flange is only to create a finished appearance. - Page 9 Installation Placement This firebox is a zero clearance design, with the exception of the top of the unit, where any insulation and vapour barrier should be placed a minimum of 2" (5.1cm) from the firebox. DANGER: High temperatures may be generated under certain abnormal conditions. Do not partially or fully cover or obstruct the front of the firebox.
- Page 10 Control Panel & Remote WARNING: FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY RESULT IN INJURY AND/OR DAMAGE. WARNING: The Revillusion Built-in Electric Firebox must be installed properly before usage. CAUTION: Except for installation and cleaning described in the manual, an authorised service representative should perform any other servicing.
- Page 11 Control Panel & Remote To replace the battery: 1. Remove the screw, push down on the battery cover located on the back side of the remote control. Slide the battery cover open. 2. Install 3V (CR2032) Lithium battery in the battery holder. The positive side (+) of the battery faces up.
-
Page 12: Operation
Operation Operating Instructions Icon Function Description Press to turn the unit on or put it in Standby mode. When the unit is turned back on, it will retain the previously used settings (except Power/Standby timer). Heat On Press to turn heat On (indicated by 1 short beep and the icon appearing on the display). - Page 13 Operation User Modes: Mode Name /Description Action (Actions cannot be input by remote control) Change Celsius ( C) to Fahrenheit ( F) Press both Temp down ( ) and Temp up ( on the unit and hold until beep is heard and display flashes.
- Page 14 Cleaning Maintenance Inspect the built-in firebox regularly depending on conditions and at a minimum, yearly intervals. Remove dust and clean the logs, grate and base as required. WARNING: Disconnect power and allow heater to cool before attempting any maintenance or cleaning to reduce the risk of fire, electric shock or injury. CAUTION: Except for installation and cleaning described in this manual, an authorized service representative should perform any other servicing.
-
Page 15: Warranty
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 16 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
