INSTRUCTION MANUAL
Installation and Operating

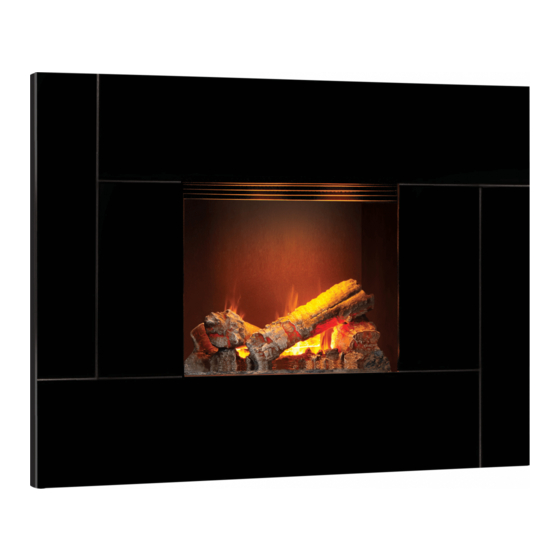

Dimplex Opti-myst Electric Wall Fire
Models: OMWFC20 E / RTOPW20 E / PEM20 E
These instructions should be read carefully and
retained for future use. Note also the information
presented on the appliance.
EN: This product is only suitable for well insulated rooms or occasional use. DE: Dieses Produkt ist nur für gut isolierte
Bereiche oder gelegentliche Verwendung geeignet. FR: Ce produit convient uniquement à des endroits bien isolés ou
pour un usage occasionnel. IT: Questo prodotto è adatto solo per spazi ben isolati o per uso occasionale. ES: Este
producto sólo es adecuado para espacios bien aislados o un uso ocasional. NL: Dit product is uitsluitend geschikt
voor goed geïsoleerde ruimten of voor sporadisch gebruik. PL: Produkt ten jest odpowiedni wyłącznie do dobrze
odizolowanych miejsc lub do okazjonalnego użytku. NO: Dette produktet egner seg kun for godt isolerte rom eller
sporadisk bruk. RO: Acest produs este adecvat exclusiv spaţiilor bine ventilate sau utilizării ocazionale. CZ: Tento
výrobek je vhodný pouze do dobře izolovaných prostor nebo k příležitostnému použití. DK: Dette produkt er kun egnet
til velisolerede rum eller lejlighedsvis brug. PT: Este produto somente é adequado para espaços bem isolados ou uso
ocasional. SE: Denna produkt är endast avsedd för välisolerade utrymmen eller tillfällig användning. FI: Tämä tuote
soveltuu ainoastaan hyvin eristettyihin tiloihin tai satunnaiseen käyttöön. SK: Tento výrobok je vhodný len pre dobre
izolované priestory alebo na občasné použitie. SI: Ta izdelek je primeren le za dobro izolirane prostore ali za občasno
uporabo. HR: Ovaj proizvod je pogodan samo za dobro izolirane prostore ili povremenu upotrebu. HU: Ez a termék
csak jól szigetelt terekhez vagy eseti használatra alkalmas
The product complies with the European Safety Standards EN60335-2-30 and the European Standard
Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential
requirements of EEC Directives 2006/95/EC and 2004/108/EC.
08/53728/0 ISSUE 3 OCN 10969
Advertisement
Table of Contents
Related Manuals for Dimplex Opti-myst RTOPW20 E
Summary of Contents for Dimplex Opti-myst RTOPW20 E
- Page 1 INSTRUCTION MANUAL Installation and Operating Dimplex Opti-myst Electric Wall Fire Models: OMWFC20 E / RTOPW20 E / PEM20 E These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. EN: This product is only suitable for well insulated rooms or occasional use. DE: Dieses Produkt ist nur für gut isolierte Bereiche oder gelegentliche Verwendung geeignet.
-
Page 2: Important Safety Advice
Caution: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. This instruction can be found at www. dimplex.co.uk... -
Page 3: General Information
If you intend not using the appliance for longer than 2 weeks, drain the water from sump and water tank and dry the sump. This fire is to be used in conjunction with a Dimplex decorative front. Please note: Used in an environment where background noise is very low, it may be possible to hear a sound which is related to the operation of the flame effect. -
Page 4: Installation Instructions
Installation Instructions This heater must be used on an AC ~ supply only and the voltage marked on the heater must correspond to the supply voltage. Before switching on, please read the safety warnings and operating instructions. Please retain this user’s guide for future reference. Ensure that all packing items are removed (read any warning labels carefully). -
Page 5: Operating The Product
Operating The Product WARNING: FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY RESULT IN INJURY AND/OR DAMAGE. Manual Controls The Opti-myst Manual controls are located on the base of the appliance. (See Fig.2 for Manual Control lay out) Switch ‘A’:- Controls the electricity supply to the Fire. Note: This switch must be in the ‘ON’... - Page 6 represents a typical comfortable room temperature. If you require a different room temperature then press either up or down on the home screen until the display shows the temperature you require. Thermal Safety Cut-out A thermal safety cut-out is incorporated in the fan heater to prevent damage due to overheating. This can happen if the heat outlet was restricted in any way.
- Page 7 Choosing and Setting a Mode User Timer - To re-programme the factory default Timer Modes: 1. Press Menu Button 2. Press ^ once to the schedule Icon is blinking. Press Enter 3. Press ^ Twice then press Enter *Days of the weeks are now displayed at the top of the screen* Day 1 = Monday Day 2 = Tuesday Day3 = Wednesday...
-
Page 8: Getting The Desired Flame Effect
Manual Mode - To choose a constant heat mode. This mode ignores the User Timer and maintains the displayed temperature. • Press Menu Button • Press ^ twice to highlight the Hand icon • Press Enter to Confirm • Use v and ^ to adjust to the desired temperature Frost protect - Frost protect mode maintains a room temperature of 7ºC throughout a 24 hour period. -
Page 9: Remote Control
2. Press the ADV button twice - SP will be blinking. 3. Press Enter to confirm. 4. Press v or ^ to choose between ºC and ºF. 5. Press Enter to confirm. 6. Press v or ^ to choose your maximum temperature set point. 7. -
Page 10: Maintenance
7. Remove the defective lamp, by gently lifting vertically and disengaging the pins from the lamp holder, (See Fig.4 and 4a). Replace with a Dimplex Opti-myst, 12V, 45W, Gu5.3 base, 8º beam angle, coloured lamp. (Purchased from www.dimplex.co.uk under the section ‘After Sales Service’, details of how to purchase the lamps are contained therein.) -
Page 11: Air Filter
The outside can be cleaned by wiping it over with a soft damp cloth and then dried. Do not use abrasive cleaning powders or furniture polish, as this can damage the surface finish. CAUTION: Assembly, installation and repair of this heater must be carried out by Dimplex or its authorised agent. CAUTION: We recommend that you arrange for this heater to be checked annually for safety by a qualified electrician. -
Page 12: Additional Information
If damaged, the mains power lead must be replaced by the manufacturer or its authorised dealer. Should you require after sales information or assistance with this product please go to www. dimplex. co.uk and select “Customer Support” or ring our help desk on 0844 879 3588 (UK) or 01 842 4833 (R. -
Page 13: Troubleshooting
Troubleshooting Symptom Cause Corrective Action The flame effect will Mains plug is not plugged in. Check plug is connected to wall socket not start. correctly. Low water level. CD01 will be Check that the water tank is full and displayed on the remote control there is water in the sump. - Page 14 Fig. 1 1205 Recommended Fig. 2 Fig. 3 Fig. 4 Fig. 4a...
- Page 15 Fig. 5 Fig. 6 Fig. 6a Fig. 7 Fig. 8 Fig. 9...
- Page 16 Fig. 10 Fig. 11...
- Page 17 Notes...
- Page 18 Notes...
- Page 19 Notes...
- Page 20 © GDC Group Ltd. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Dimplex. A division of GDC Group Ltd. OPTIMYST is a trade mark of GDC Group Ltd.
