IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to service this firebox.
For your safety, always comply with all warnings and safety instructions contained in this manual to prevent
personal injury or property damage.

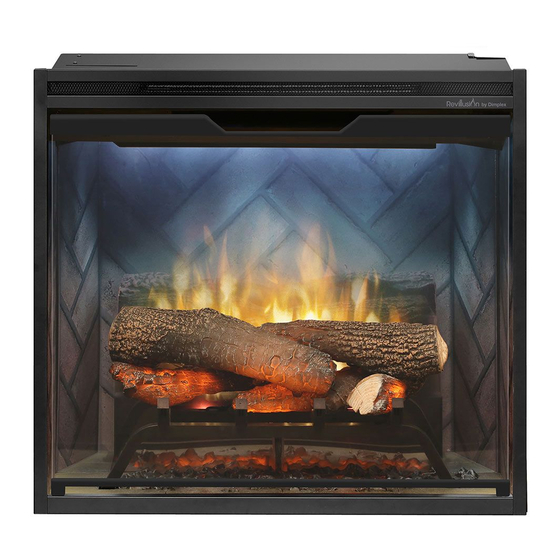

Service Manual
Model
RBF24DLX
RBF30
RBF36
RBF36P
RBF42
Part Number
6909990100
6909780100
6909790100
6909790200
6909800100
7400970000R02
Advertisement
Table of Contents
Related Manuals for Dimplex RBF24DLX
Summary of Contents for Dimplex RBF24DLX

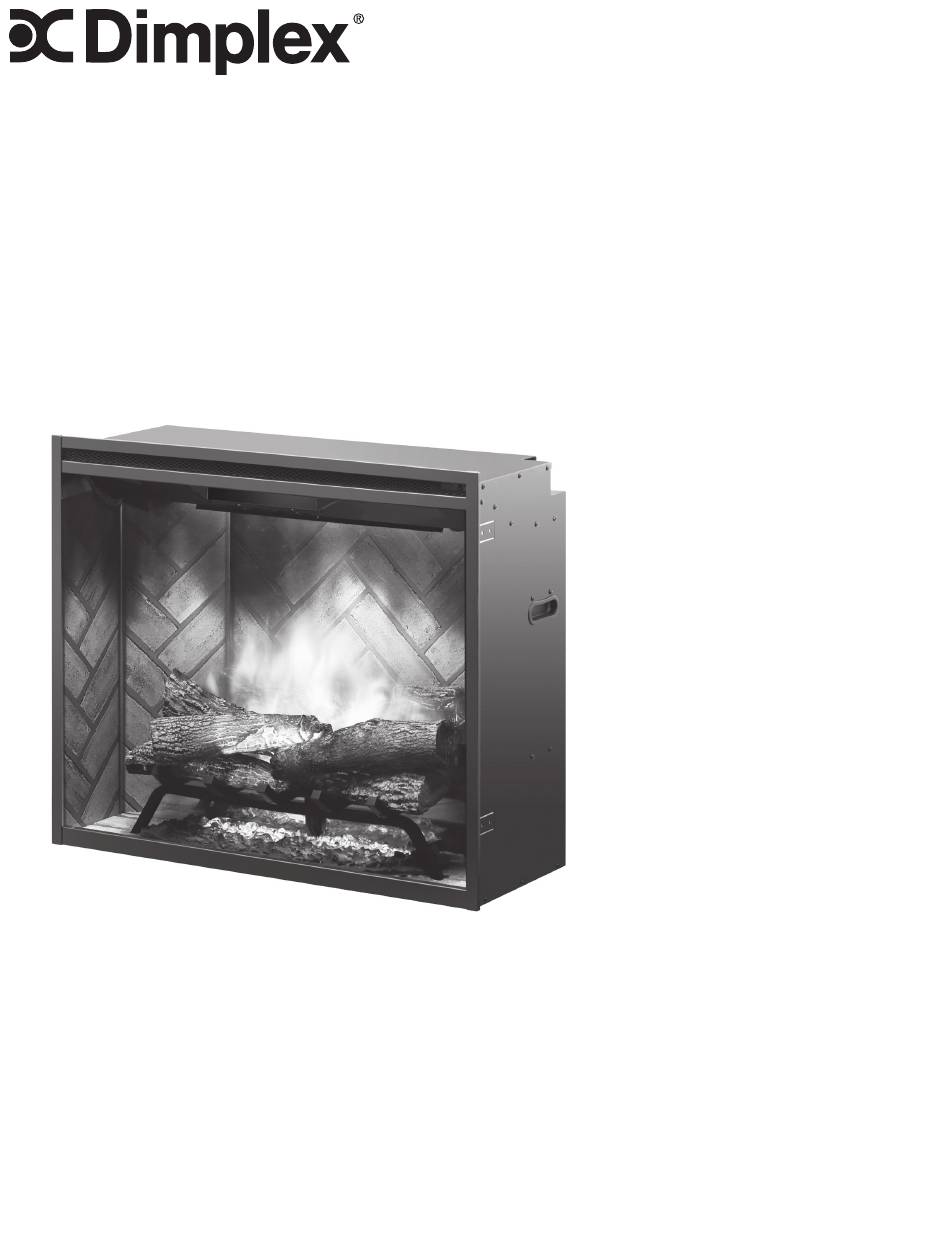

- Page 1 Service Manual Model RBF24DLX RBF30 RBF36 RBF36P RBF42 Part Number 6909990100 6909780100 6909790100 6909790200 6909800100 IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to service this firebox. For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage.
-
Page 2: Table Of Contents
Heater Assembly Replacement (RBF24DLX) . . . . . . . . . . . . . . . . . . -
Page 3: Operation - Rbf30, Rbf36, Rbf36P, Rbf42
Operation - RBF30, RBF36, RBF36P, RBF42 Figure 2 Figure 1 Touch Panel and Remote Controls WARNING: The Revillusion Built-in Electric Firebox must be installed properly before it is used. CAUTION: Except for installation and cleaning described in this manual, an authorized service representative should perform any other servicing. - Page 4 5 minutes before plugging the unit back in. CAUTION: If you need to con tinuously reset the heater, unplug the unit and call technical support at 1-888-346-7539. www.dimplex.com...
-
Page 5: Operation - Rbf24Dlx
Operation - RBF24DLX Icon Function Description Press to activate the current standby state (On/Off). • Standby State On Press to turn everything Off. Press again to activate the previous state. • Standby State Off Press to activate the previous state. - Page 6 Hold both Temp– ( ) and Brightness ( ), on the unit, for 2 seconds to disable the manual controls. Control Unlock Hold both Temp– ( ) and Brightness ( ), on the unit, for 2 seconds to enable the manual controls. www.dimplex.com...
-
Page 7: Maintenance
Maintenance General Maintenance Inspect the built-in electric firebox regularly, depending upon conditions, and at a minimum yearly intervals. Remove dust and clean the logs, grate, and base as required. WARNING: Disconnect power and allow heater to cool before attempting any maintenance or cleaning to reduce the risk of fire, electric shock, or injury. -
Page 8: Exploded Parts Diagram - Rbf30, Rbf36, Rbf36P, Rbf42
19. Accessory Door Hardware ....9601760100RP RBF36, RBF36P, RBF42 ..3001820200RP 13. Top Back Light (RGB)....3001570100RP www.dimplex.com... -
Page 9: Exploded Parts Diagram - Rbf24Dlx
Exploded Parts Diagram - RBF24DLX Replacement Parts List Power Supply ......2100250600RP 11. Ember LED......3001820100RP Main Control Board . -
Page 10: Wiring Diagram - Rbf30, Rbf36, Rbf36P, Rbf42
Wiring Diagram - RBF30, RBF36, RBF36P, RBF42 Wiring Diagram - RBF24DLX FAN1 uart CN14 FAN2 CONTROL PANEL PCB P/N: www.dimplex.com... -
Page 11: Preparing For Service
Preparing for Service Tools Required: Phillips head screwdriver WARNING: If the firebox was operating prior to servicing, allow at least 10 minutes for the heating elements to cool off to avoid accidental burning of skin. WARNING: Disconnect power before attempting any maintenance to reduce the risk of electric shock or damage to persons. -
Page 12: Ember Led Light Replacement
3. Lift the back log assembly out of the unit. Flicker Motor Replacement (RBF24DLX) 4. Locate the flame base LED strip. (Figure 3) Tools Required: Phillips head screwdriver 5. -
Page 13: Main Control Board Replacement
Main Control Board Replacement Power Supply Replacement Tools Required: Phillips head screwdriver Tools Required: Phillips head screwdriver Flat Head Screwdriver 1. Follow the steps of ‘Preparing for Service” on page 8. 1. Follow the steps of ‘Preparing for Service” on page 8. 2. -
Page 14: Blower Assembly Replacement (Rbf30, Rbf36, Rbf36P, Rbf42)
WARNING: Ensure wires do not come in contact with order from the instructions above. moving parts by securing wires in cable ties. WARNING: Ensure wires do not come in contact with moving parts by securing wires in cable ties. www.dimplex.com... -
Page 15: Cutout Replacement (Rbf30, Rbf36, Rbf36P, Rbf42)
Cutout Replacement (RBF30, RBF36, Heater Assembly Replacement RBF36P, RBF42) (RBF24DLX) Tools Required: Phillips head screwdriver Tools Required: Phillips head screwdriver Flat Head Screwdriver Flat Head Screwdriver 1. Follow the steps of ‘Preparing for Service” on page 8. 1. Follow the steps of ‘Preparing for Service” on page 8. -
Page 16: Touch Pad Replacement
Touch Pad Replacement Thermistor Replacement (RBF24DLX) Tools Required: Phillips head screwdriver Tools Required: Phillips head screwdriver 1. Follow the steps of ‘Preparing for Service” on page 8. WARNING: If the firebox was operating prior to servicing, allow at least 10 minutes for the heating 2. -
Page 17: Thermistor Replacement (Rbf30, Rbf36, Rbf36P, Rbf42)
Thermistor Replacement (RBF30, Top Front Lights Replacement RBF36, RBF36P, RBF42) Tools Required: Phillips head screwdriver 1. Follow the steps of ‘Preparing for Service” on page 8. Tools Required: Phillips head screwdriver 2. Remove the 2 hex head screws on either side of the 1. -
Page 18: Troubleshooting Guide
Improper operation Refer to Operation section Loose connection of coloured LEDs Check wiring connections Colour themes dim or not appearing Defective coloured LED wiring Replace affected coloured LED strip Defective main control board Replace main control board. DATE 5-Sept-18 11-Feb-20 www.dimplex.com... - Page 19 Heat has been permanently disabled. board. ¹ Only applicable to units RBF30, RBF36, RBF36P, and RBF42 ² Only applicable to RBF24DLX 1-888-346-7539 | www.dimplex.com In keeping with our policy of continuous product improvement, we reserve the right to make changes without notice.
