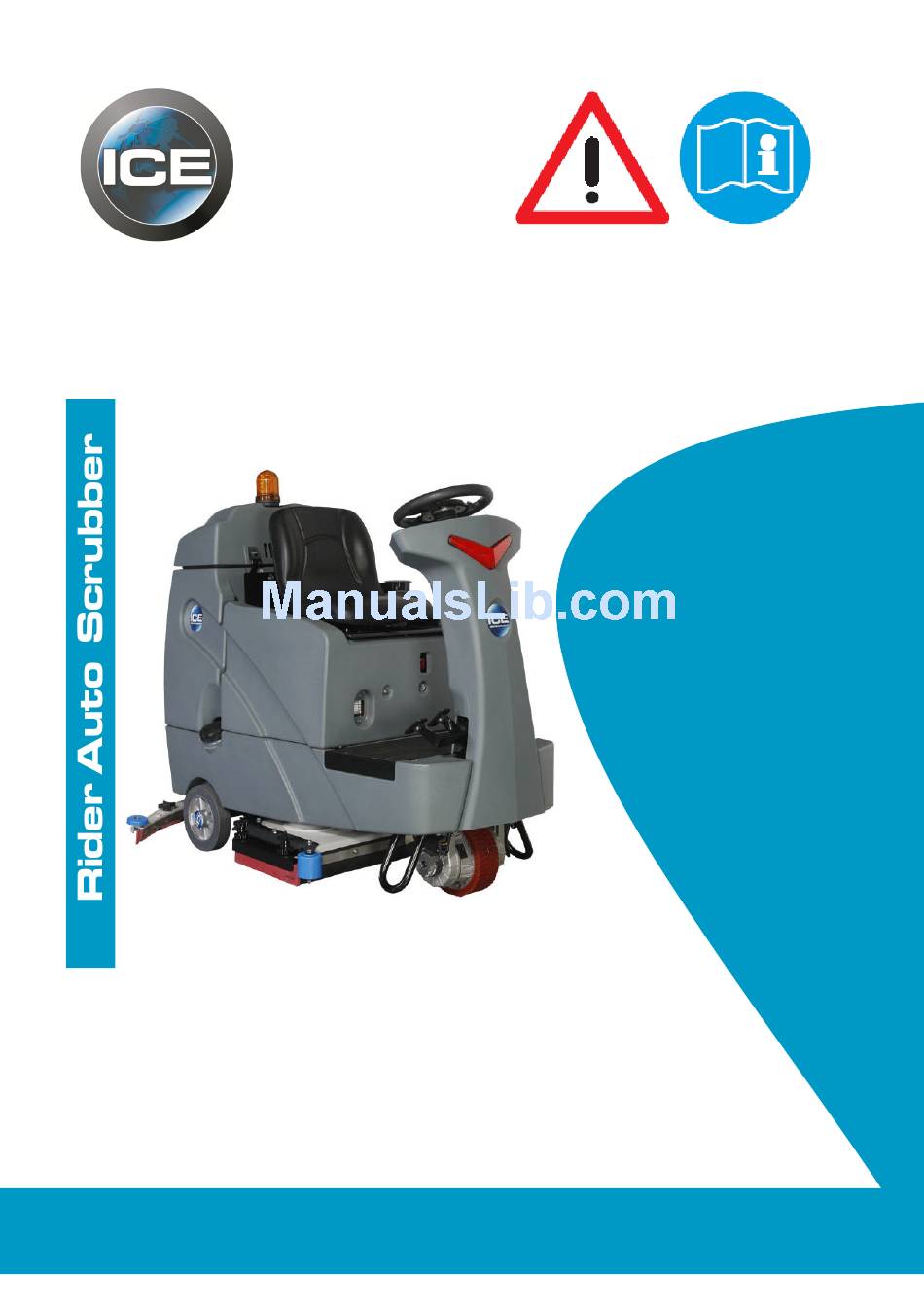

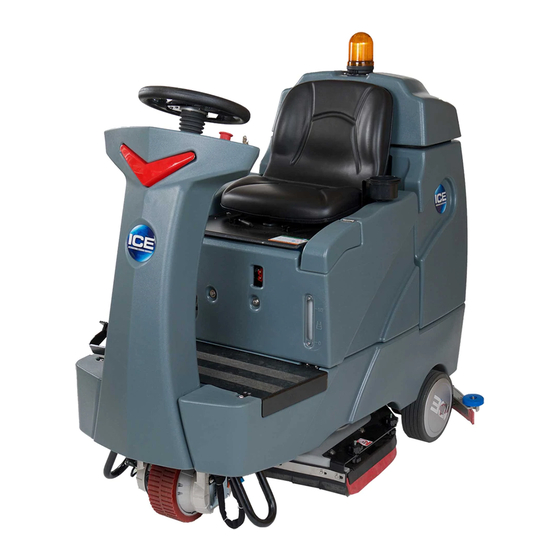

Operator & Parts Manual
www.icecompanies.com
RS26
RS28
RS32
8300004
REV.04 (03-2017)
INTELLIGENT CLEANING EQUIPMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS26 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ice RS26

Summary of Contents for Ice RS26

  • Page 1 Operator & Parts Manual www.icecompanies.com RS26 RS28 RS32 8300004 REV.04 (03-2017) INTELLIGENT CLEANING EQUIPMENT...
  • Page 2 Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY PRECAUTIONS......................4 MACHINE COMPONENTS....................5-6 MACHINE SETUP & INSTALLATION..................7 MACHINE OPERATION......................8 WHILE OPERATING MACHINE....................9 TANK DRAINING.........................10 BATTERY CHARGING......................10 PREVENTATIVE MAINTENANCE..................11 FAULT CODE AND ELIMINATE..................12 TECHNICAL SPECIFICATION....................13 PARTS LIST........................14-39 WEAR AND TEAR PARTS....................40 WIRING DIAGRAM......................41 ICE RS26 / RS28 / RS32...

  • Page 4: Safety Precautions

    - Secure machine with wheel blocks prior to jacking the machine up. - Use approved jack or hoist to safely elevate the machine. - Disconnect batteries prior to working on machine. - Wear gloves when handling batteries or battery cables. ICE RS26 / RS28 / RS32...

  • Page 5: Machine Components

    14. Adjusting handle, seat 15. Off-board battery charger receptacle 16. Detergent level watching window 17. Warning light 18. Recovery tank cover 19. Recovery tank 20. Cup holder 21. Cap 22. Detergent bottle 23. Battery box ICE RS26 / RS28 / RS32...

  • Page 6: Machine Components

    36. Solution flow adjusting buttons & indicator 37. Horn button 38. 1-Step switch & Indicator 39. Brush pressure adjusting button & indicator 40. Drain hose, recovery tank 41. Drain hose, solution tank 42. Vacuum hose ICE RS26 / RS28 / RS32...

  • Page 7: Machine Setup & Installation

    1. Turn the Main power key switch off. scrub head and remove the Side squeegee 2. Remove the Operator seat & the Battery box assembly (machine components, #6), push the (machine components, #23). edge of brush downward. ICE RS26 / RS28 / RS32...

  • Page 8: Machine Operation

    (the vacuum motor will turn distributor for recommendations on proper off after a short delay) when drive machine chemicals. backwards. This is to prevents damaging the squeegee. NOTE: Go slow when drive machine backwards. ICE RS26 / RS28 / RS32...

  • Page 9: While Operating Machine

    1-Step switch (if it is ON), the scrub head will 4. If the squeegee assembly leaves streaks on the raise and then start to working. floor, raise the squeegee off the floor and wipe ICE RS26 / RS28 / RS32...

  • Page 10: Tank Draining

    3. Raise the squeegee assembly off floor and wipe • deep cycle charging it down with a damp towel. Be sure to store the • output current of 20-30 amps squeegee in the up position. • output voltage of 24 volts ICE RS26 / RS28 / RS32...
  • Page 11 If the fault is occurred frequently, or the fault can't Fault code (see Machine components, item #33) be eliminated, please contact ICE service center. & Fault message (see Machine components, item #34) display on the LED screen, and the Fault...

  • Page 12: Fault Code And Eliminate

    Release emergency stop button and Emergency stop button activated RE-START! restart machine Replace Control Unit Return Control Unit Contact service center, Replace the Return Control Unit Bad Control Unit Control Unit Return Control Unit Return Control Unit ICE RS26 / RS28 / RS32...

  • Page 13: Technical Specification

    0.6 hp / 0.45KW VACUUM WATER LIFT (MAX) 70 in. H2O / 1780 mm. H2O RUN TIME PER CHARGE 3~3.5 Hours DECIBEL RATING AT 68 dB(A) OPERATOR'S EAR, INDOORS GRADE LEVEL, MAX Scrubbing: 4°/7% Transporting (empty):10°/17.5% ICE RS26 / RS28 / RS32...

  • Page 14: Parts List

    PARTS LIST MAIN FRAME GROUP ICE RS26 / RS28 / RS32...
  • Page 15 SCREW, PAN HEAD, M5×12 8310120 BRACKET, STAND 1421824 FLAT WASHER, M8×∮24×2.0 1422821 LOCK WASHER M8 1021825 BOLT, HEX, M8×25 8210118 STATIC STRAP 8310708A HORN, 24VDC, KIT 1421307 PLAT WASHER, M3×∮7×0.5 1211316 SCREW, PAN HEAD, M3×16 ICE RS26 / RS28 / RS32...
  • Page 16 PARTS LIST STEERING & DRIVE WHEEL GROUP ICE RS26 / RS28 / RS32...
  • Page 17 FLAT WASHER, M14×∮24×2.0 8310640 ACCELERATOR/ BRAKE PEDAL 8310431 HALL SENSOR WITH CABLE 8310603 STEER-CONTROL ASSY. 8310650 DRIVE WHEEL, 24VDC 800W 8310611 PU TIRE, DRIVER WHEEL 8310612 ARMATURE BRUSH 8310613 BRUSHES CONNECTION BOX 8310618A ELECTRICALLY RELEASED BRAKE ICE RS26 / RS28 / RS32...
  • Page 18 PARTS LIST SOLUTION TANK GROUP ICE RS26 / RS28 / RS32...

  • Page 19: Solution Tank Group

    SENSOR, SOLUTION LEVEL, KIT 8310125 CAP, SOLUTION TANK SLEEVE, ∮8.1×∮12.7×7.8 1021825 BOLT, HEX HEAD, M8×25 8310225 8310224 ARM, RECOVERY TANK SUPPORT 1962050 CLAMP, 2 INCH 8011030 HOSE ASSEMBLY 8310123 ADAPTER, STRAINER ASSY 8310122 STRAINER ASSY ICE RS26 / RS28 / RS32...
  • Page 20 PARTS LIST RECOVERY TANK GROUP ICE RS26 / RS28 / RS32...

  • Page 21: Recovery Tank Group

    SEALING STRIP 1022860 BOLT, HEX HEAD, M8×60 1123810 LOCK NUT, M8 SLEEVE, ∮8.1×∮12.7×7.8 1021825 BOLT, HEX HEAD, M8×25 8310225 8310223 ARM, RECOVERY TANK SUPPORT 8310215 BRACKET, RECOVERY TANK SUPPORT 8310211 BRACKET, SUPPORT 8310214 SPACER, RUBBER ICE RS26 / RS28 / RS32...
  • Page 22 PARTS LIST RECOVERY TANK COVER GROUP ICE RS26 / RS28 / RS32...
  • Page 23 1422616 LOCK WASHER, M6 1021820 BOLT, HEX HEAD, M8×20 1421824 FLAT WASHER, M8×∮24×2.0 8310203 PLATE, VACCUM MOTOR MNTG 8310208 ISOLATER, M6 8310209 BRACKET, VACCUM MOTOR 8310234 INSULATION 1311316 SCREW, SELF-TAPPING, ST4.8×16 8310206 SEAL, FAN ICE RS26 / RS28 / RS32...
  • Page 24 PARTS LIST CONTROL PANEL GROUP ICE RS26 / RS28 / RS32...
  • Page 25 8310702 PLATE, SWITCH PANEL 8310704 DECAL, SWITCH PANEL, RS32 8312704 DECAL, SWITCH PANEL, RS28 8310750 DECAL, SWITCH PANEL, RS26 2010121 ICE LOGO, SMALL 8310709 ROCKER SWITCH 8310707 EMERGENCY STOP SWITCH 8310706A KEY SWITCH, KIT ICE RS26 / RS28 / RS32...
  • Page 26 PARTS LIST MAIN CONTROLLER GROUP ICE RS26 / RS28 / RS32...
  • Page 27 1421510 FLAT WASHER, M5×∮10×1.0 1221520 SCREW, HEX HEAD, M5×20 8310790 MAIN CONTROLLER 1423612 FLAT WASHER M6× ∮ 12×1, COPPER 1023612 HEX BOLT M6 X 12, COPPER 1422513 LOCK WASHER,M5 1221525 SCREW, HEX HEAD, M5×25 ICE RS26 / RS28 / RS32...
  • Page 28 PARTS LIST SEAT & DETERGENT SYSTEM GROUP ICE RS26 / RS28 / RS32...
  • Page 29 LOCK NUT, M6 8310460 SPACER 8310463 ADAPTOR, KEY 8310464 INSERT, LOCK 8310461 BOTTLE, DETERGENT 8310462 CAP, BOTTLE 1021820 BOLT, HEX HEAD, M8×20 1422821 LOCK WASHER, M8 1421828 FLAT WASHER, M8×∮28×2.5 8310465 BOX, DETERGENT BOTTLE 8310421 BRACKET ICE RS26 / RS28 / RS32...
  • Page 30 PARTS LIST BATTERY GROUP ICE RS26 / RS28 / RS32...
  • Page 31 BATTERY CONNECT CABLE, BLACK 8114751 JACKET, BATTERY TERMINAL,BLACK 8210141 BATTERY CONNECT CABLE, BLACK 1221412 SCREW, PAN HEAD, M4×12 8310406 COVER 8210114 COVER 1662316 RIVET, 3.2×16 8310404 HINGE ASSEMBLY 1421409 FLAT WASHER, M4×∮9×0.8 8310403 COVER ICE RS26 / RS28 / RS32...
  • Page 32 PARTS LIST SCRUB HEAD LIFTING GROUP ICE RS26 / RS28 / RS32...
  • Page 33 8310304 BRACKET, SCRUB HEAD LIFTING 1421020 FLAT WASHER, M10×∮20×2 8310307 BUSHING, FLANGE SLEEVE, ∮16×∮18.6×25.4 1123012 LOCK NUT, M10 8310144 8310118 ARM, SCRUB HEAD LIFTING SLEEVE, ∮10.5×∮18.5×34 1011025 BOLT, HEX HEAD, M10×25 8310306 8310308 SPRING ICE RS26 / RS28 / RS32...
  • Page 34 PARTS LIST SCRUB HEAD GROUP ICE RS26 / RS28 / RS32...
  • Page 35 BOLT, HEX HEAD, M6×16 8310361 BRACKET, PROTECTIVE WHEEL 1021840 BOLT, HEX HEAD, M8×40 SLEEVE, ∮8×∮12.7×12.7 8310362 PROTECTIVE WHEEL 8115404 1022800 BOLT, HEX HEAD, M8×100 8310354 KNOB, M10 8310351 BRACKET, SIDE SKIRT, RIGHT 8310353 BRACKET, RIGHT ICE RS26 / RS28 / RS32...
  • Page 36 PARTS LIST SQUEEGEE GROUP / 水刮组件 ICE RS26 / RS28 / RS32...
  • Page 37 LOCK NUT, M8 8210309 PIN, COTTER 8310311 PIN, ∮ 16×150 8310508 PIN, ∮ 12×100 8310509 EXTENSION SPRING 1031212 BOLT, HEX HEAD, M12×120 1421030 FLAT WASHER, M10× ∮ 30×2.5 1021060 BOLT, HEX HEAD, M10×60 8310507 ADAPTER ICE RS26 / RS28 / RS32...
  • Page 38 PARTS LIST SOLUTION & DETERGENT SYSTEM ICE RS26 / RS28 / RS32...

  • Page 39: Parts List

    TUBING, ID=12MM L=175MM 8310374 FITTING, PLASTIC 8310904 TUBING, ID=12MM L=210MM 8310905 TUBING, ID=4MM L=330MM 8310930A DETERGENT PUMP, KIT 1914080 TIE, 3×80MM 8310910 TUBING, ID=4MM L=100MM 8310467 FITTING 8310909 TUBING, ID=4MM L=30MM 8310466 ONE WAY VALVE ICE RS26 / RS28 / RS32...

  • Page 40: Wear And Tear Parts

    FRONT BLADE, LINATEX, RS28 / RS32 9050013 BRUSH, 13 INCH, RS26 9050014 BRUSH, 14 INCH, RS28 9050016 BRUSH, 16 INCH, RS32 9040013 PAD DRIVER, 13 INCH, RS26 9040014 PAD DRIVER, 14 INCH, RS28 9040016 PAD DRIVER, 16 INCH, RS32 ICE RS26 / RS28 / RS32...

  • Page 41: Wiring Diagram

    WIRING DIAGRAM ICE RS26 / RS28 / RS32...
