Summary of Contents for Ice RS26L+

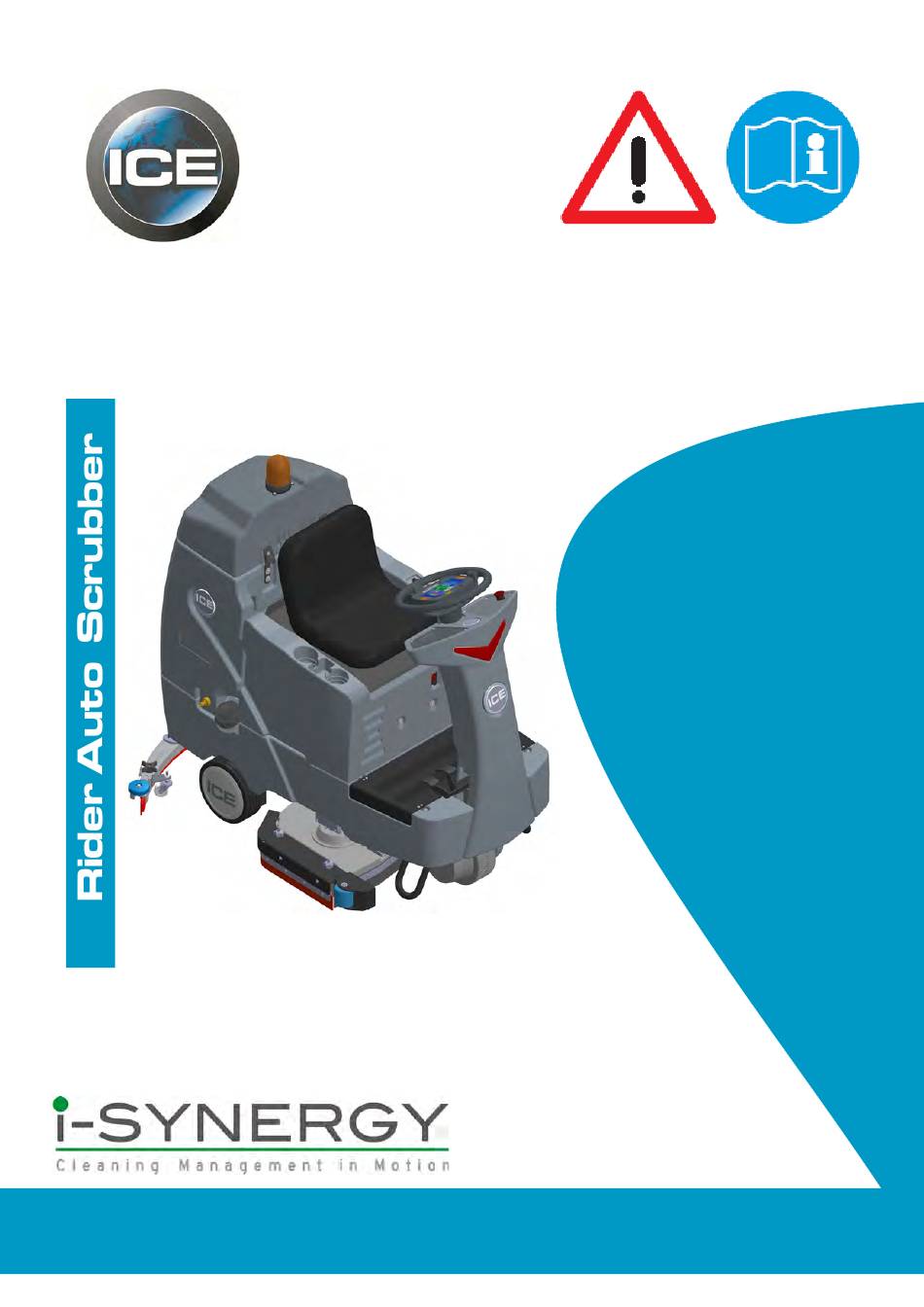

- Page 1 www.icecompanies.com Operator & Parts Manual www.icerental.com RS26L+ RS32L+ 8320020 REV.02 (01-2019) INTELLIGENT CLEANING EQUIPMENT...
- Page 2 Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS......................4 MACHINE COMPONENTS....................5-6 MACHINE SETUP & INSTALLATION..................7 MACHINE OPERATION......................8 WHILE OPERATING MACHINE....................9 TANK DRAINING.........................10 BATTERY CHARGING......................10 PREVENTATIVE MAINTENANCE..................11 FAULT CODE AND ELIMINATE..................12 TECHNICAL SPECIFICATIONS..................13 PARTS LIST........................14-41 WEAR AND TEAR PARTS....................42 WIRING DIAGRAM ......................43 ICE RS26L+ / RS32L+... -
Page 4: Safety Precautions
- Use approved jack or hoist to safely elevate the machine. - Disconnect batteries prior to working on machine. - Avoid moving parts. Do not wear loose fitting clothing while servicing machine. ICE RS26L+ / RS32L+... -
Page 5: Machine Components
(Option) 20. Watching window, On board battery charger 21. Warning light 22. Recovery tank cover 23. Recovery tank 24. USB Charging port 25. Cabin door, Detergent bottle compartment 26. Mesh, Battery charger power cord. ICE RS26L+ / RS32L+... -
Page 6: Machine Components
35. Brush pressure adjusting button 36. Direction button 37. Setting button 38. Vacuum motor button 39. Fault icon 40. Warning light button 41. Drain hose, recovery tank 42. Vacuum hose 43. Drain hose, solution tank 44. Adjusting knob, Squeegee ICE RS26L+ / RS32L+... -
Page 7: Machine Setup & Installation
2. Open and prop up the Operator seat, plug the to the Ice server in case of any malfunction. batteries connector to the machine adaptor, Ice maintenance personnel will receive a SmS within minutes from the Ice server for... -
Page 8: Machine Operation
Solution Detergent bottle by openning the Deterent bottle flow adjusting button (Machine components, cabin door (Machine components, #25), and #30), Detergent adjusting button (Machine removing the detergent bottle cap. components, #33), and the Brush pressure ICE RS26L+ / RS32L+... -
Page 9: While Operating Machine
NOTE: Please hold the steering wheel when button(Machine components, #38) , the emergency stop. squeegee will lower down, and turn off the 1-Step starting button (if it is ON), the scrub head will raise and then start to picking water ICE RS26L+ / RS32L+... -
Page 10: Tank Draining
Battery compartment propped open When and cleaned. charging. Use only ICE supplied or approved batteries charger, use unapproved charger may cause WaRnInG: If the recovery tank is not damage to the batteries and machine. -
Page 11: Preventative Maintenance
Occasionally. If the fault icon is occurred frequently, or can't be eliminated, please contact ICE service center. The Fault icon have 2 colors. Yellow icon represents a low level fault, you can click it to pop... -
Page 12: Fault Code And Eliminate
Check Brush Motor (Right) Wiring and Connector Vacuum Motor Short Circuit Check Vacuum Motor Wiring and Connector Scrub Head Actuator Short Circuit Check Scrub head actuator Wiring and Connector Squeegee Actuator Short Circuit Check Squeegee actuator Wiring and Connector ICE RS26L+ / RS32L+... -
Page 13: Technical Specifications
0.6 hp / 0.45KW VACUUM WATER LIFT (MAX) 70 in. H2O / 1780 mm. H2O RUN TIME PER CHARGE 3~3.5 Hours DECIBEL RATING AT 68 dB(A) OPERATOR'S EAR, INDOORS GRADE LEVEL, MAX Scrubbing: 4°/7% Transporting (empty):10°/17.5% ICE RS26L+ / RS32L+... -
Page 14: Parts List
PARTS LIST MAIN FRAME GROUP ICE RS26L+ / RS32L+... - Page 15 LOCK NUT M8 8310158 BRACKET,PROXIMITY SENSOR 8134709A PROXIMITY SENSOR,KIT 1421618 FLAT WASHER, M6×∮18×1.6 1422616 LOCK WASHER M6 1021616 BOLT, HEX, M6×16 8310708A HORN, 24VDC, KIT 1421307 FLAT WASHER, M3×∮7×0.5 1221312 SCREW, PAN HEAD, M3×12 8210118 STATIC STRAP ICE RS26L+ / RS32L+...
-
Page 16: Parts List
PARTS LIST STEERING & DRIVE WHEEL GROUP ICE RS26L+ / RS32L+... - Page 17 FLANGE BEARING, PLASTIC 8313608 FLANGE BAEARING 8313601 STEERING SUPPORT 1021825 BOLT, HEX HEAD,M8×25 1421824 FLAT WASHER, M8×∮24×2.0 8310640 ACCELERATOR & BRAKE ASSEMBLY 8310431 HALL SENSOR WITH CABLE 1021050 BOLT, HEX HEAD,M10×50 1421030 FLAT WASHER, M10×∮30×2.5 8320685 STEER-CONTROL ASSEMBLY ICE RS26L+ / RS32L+...
- Page 18 SET SCREW, M5 ×8 8310604 U-JOINT 1654025 KEY, 4.75×4.75×25.4 8313603 SHAFT, STEERING 7000411 U-JOINT 8313602 BRACKET, FLANGLE BEARING 8313607 BELT 8313606 PULLEY 1655025 KEY, 5×5×25 8313611 BUSHING 8313604 SHAFT, PULLEY 8313605 SHAFT , PULLEY 1436025 RETAINING RING, 25MM ICE RS26L+ / RS32L+...
- Page 19 PARTS LIST SOLUTION TANK GROUP ICE RS26L+ / RS32L+...
- Page 20 ARM, RECOVERY TANK SUPPORT 1962050 CLAMP, 2 INCH 8011040 DRAIN HOSE 8320121 FLOAT VALVE 8320122 ELBOW, G1/2 8310123 ADAPTER, STRAINER ASSEMBLY 8310122 STRAINER 8310463 CAP ADAPTER 8310464 INSERT TUBE 8310462 CAP, BOTTLE 8320901 DETERGENT TANK 8113009 CLAMP, NYLON ICE RS26L+ / RS32L+...
- Page 21 PARTS LIST RECOVERY TANK GROUP ICE RS26L+ / RS32L+...
- Page 22 ARM, RCOVERY TANK SUPPORT 8310215 RECOVERY TANK SUPPORT 8310211 BRACKET, SUPPORT 8310214 SPACER, RUBBER 8310238A SENSOR, SOLUTION LEVEL, KIT 8320201 RECOVERY TANK 8310237 FILTER, DUST 8310227 HINGE, WELDED 1513820 SCREW, HEX SOCKET, M8×20 8310226 HINGE, LEAF ICE RS26L+ / RS32L+...
- Page 23 PARTS LIST RECOVERY TANK COVER GROUP ICE RS26L+ / RS32L+...
- Page 24 BOLT, HEX HEAD, M6×10 1422616 LOCK WASHER, M6 1021820 BOLT, HEX HEAD, M8×20 1421824 FLAT WASHER, M8×∮24×2.0 8310203 PLATE, VACCUM MOTOR MNTG 8310208 ISOLATER, M6 8310209 BRACKET, VACCUM MOTOR 8310234 INSULATION 1311316 SCREW, SELF-TAPPING, ST4.8×16 8310206 SEAL, FAN ICE RS26L+ / RS32L+...
- Page 25 PARTS LIST CONTROL PANEL GROUP ICE RS26L+ / RS32L+...
- Page 26 COVER, LED LIGHT 1521410 SCREW, SOCKET HEAD, M4×10 8230400 LED LIGHT KIT 4010316 ICE LOGO 2010121 ICE LOGO, SMALL 8310755 GASKET, SWITCH PANEL 8313705 PLATE, LEFT SWITCH PANEL 8313707 DECAL, LEFT CONTROL PANEL 8310707 EMERGENCY STOP SWITCH ICE RS26L+ / RS32L+...
- Page 27 PARTS LIST MAIN CONTROLLER GROUP ICE RS26L+ / RS32L+...
-
Page 28: Rubber Grommet
FLAT WASHER M6×∮12×1 1023612 HEX BOLT M6 × 12, COPPER 1421409 FLAT WASHER, M4×∮9×0.8 1422411 LOCK WASHER, M4 1221416 SCREW, HEX HEAD, M4×16 8313421 CONNECT PLATE 8313420 RELAY, 24VDC 120A 8313400 MAIN CONTROLLER 8320453 BRCKET, MAIN CONTROLLER ICE RS26L+ / RS32L+... - Page 29 PARTS LIST SEAT GROUP ICE RS26L+ / RS32L+...
- Page 30 SCREW, HEX SOCKET, M8×20 8310133 RUBBER GROMMET 8310411 PLATE, SEAT MNTG 1123810 LOCK NUT M8 1421816 FLAT WASHER, M8×∮16×1.0 8310413 SUPPORT, SEAT 8310416 NYLON SPACER SLEEVE, ∮8.2×∮11×15 8310415 TORSION SPRING 8310414 1031830 BOLT, HEX HEAD, M8×30 8310460 SPACER ICE RS26L+ / RS32L+...
- Page 31 PARTS LIST BATTERY GROUP ICE RS26L+ / RS32L+...
- Page 32 1422821 SPRING LOCK WASHER, M8 1421824 FLAT WASHER, M8×∮24×2.0 8320103 SUPPORT, BATTERY, REAR N240600 LITHIUM-ION BATTERY, 240AH 8310407 PLATE 8320452 SUPPORT, BATTERY, FRONT 8320451 FIXED BOARD, BATTERY 8311741 BATTERY CONNECT CABLE 8210114 COVER 8134061 SCREEN, CHARGER ICE RS26L+ / RS32L+...
- Page 33 PARTS LIST SCRUB HEAD LIFTING GROUP ICE RS26L+ / RS32L+...
- Page 34 BRACKET, SCRUB HEAD LIFTING 1421020 FLAT WASHER, M10×∮20×2 8310307 BUSHING, FLANGE PIN, ∮16×57 1011025 BOLT, HEX HEAD, M10×25 8310312 SLEEVE, ∮16×∮18.6×25.4 1123012 LOCK NUT, M10 8310144 SLEEVE, ∮10.5×∮18.5×34 8310118 ARM, SCRUB HEAD LIFTING 8310306 8310308 SPRING ICE RS26L+ / RS32L+...
- Page 35 PARTS LIST SCRUB HEAD GROUP ICE RS26L+ / RS32L+...
- Page 36 FRONT SKIRT CLAMP, RS26L+ 8320303 RS32L+ FRONT SKIRT CLAMP 8320305 BRACKET, BUMPER WHEEL SLEEVE, ∮8×∮12.7×12.7 8310362 BUMPER WHEEL 8115404 1022800 BOLT, HEX HEAD, M8×100 8320362 BRACKET, RIGHT SIDE SKIRT 8320361 RIGHT BRACKET 8320363 TORSION SPRING, RIGHT ROTATED ICE RS26L+ / RS32L+...
- Page 37 PARTS LIST SQUEEGEE GROUP ICE RS26L+ / RS32L+...
- Page 38 REAR BLADE, LINATEX, RS32L+ 8311541 REAR BLADE, PU, RS26L+, OPTION 8310541 REAR BLADE, PU, RS32L+, OPTION 1021616 BOLT, HEX HEAD, M6×16 1123810 LOCK NUT M8 1421612 FLAT WASHER, M6×∮12×1.6 1421824 FLAT WASHER, M8×∮24×2.0 SLEEVE, ∮8×∮12.7×12.7 8116009 PROTECTIVE WHEEL 8115404 ICE RS26L+ / RS32L+...
- Page 39 SQUEEGEE HOSING, RS32L+ 8210518 KNOB, M8 8118300 RIGHT BRACKET 1123012 LOCK NUT, M10 1421020 FLAT WASHER, M10×∮20×2 8320506 PIVOT BRACKET, SQUEEGEE 8701003 SLEEVEE 8320507 BUSHING PIN, ∮12×100 8320502 BRACKET, SQUEEGEE 8310508 PIN, ∮16×150 8210309 PIN, COTTER 8310311 ICE RS26L+ / RS32L+...
- Page 40 PARTS LIST SOLUTION & DETERGENT SYSTEM ICE RS26L+ / RS32L+...
- Page 41 TIE, 3×80MM 8310467 FITTING 8310910 TUBING, ID=4MM L=100MM 1221310 SCREW, PAN HEAD, M3×10 8320911 BRACKET, PUMP 8320910K DETERGENT PUMP, KIT 1123305 LOCK NUT M3 1421409 FLAT WASHER, M4×∮9×0.8 1422411 LOCK WASHER, M4 1221412 SCREW, PAN HEAD, M4×12 ICE RS26L+ / RS32L+...
-
Page 42: Wear And Tear Parts
REAR BLADE, LINATEX, RS32L+ 8311534 FRONT BLADE, LINATEX, RS26L+ 8310534 FRONT BLADE, LINATEX, RS32L+ 9050013 BRUSH, 13 INCH, RS26L+ 9050016 BRUSH, 16 INCH, RS32L+ 9040013 PAD DRIVER, 13 INCH, RS26L+ 9040016 PAD DRIVER, 16 INCH, RS32L+ ICE RS26L+ / RS32L+... -
Page 43: Wiring Diagram
WIRING DIAGRAM ICE RS26L+ / RS32L+...
