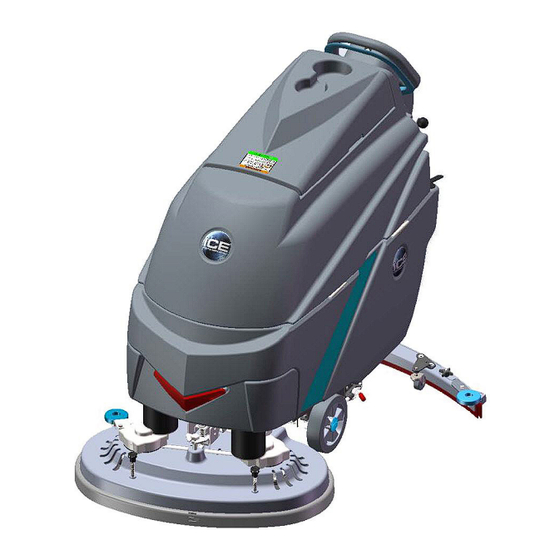

- Page 1 Operator & Parts Manual www.icecompanies.com i28BT i32BT 8210060 REV.06 (03-2017) INTELLIGENT CLEANING EQUIPMENT...
- Page 2 Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.
-
Page 3: Table Of Contents
OPERATOR MANUAL TABLE OF CONTENTS SAFETY PRECAUTIONS......................4 MACHINE COMPONENTS....................5 MACHINE SETUP & INSTALLATION..................6 MACHINE OPERATION....................7 WHILE OPERATING MACHINE..................7 TANK DRAINING........................8 BATTERY CHARGING......................9 PREVENTATIVE MAINTENANCE..................9 BASIC TROUBLESHOOTING....................11 TECHNICAL SPECIFICATION....................12 PARTS LIST........................13-36 WEAR AND TEAR PARTS....................37 WIRING DIAGRAM......................38 ICE i28BT / i32BT... -
Page 4: Safety Precautions
- Secure machine with wheel blocks prior to jacking the machine up. - Use approved jack or hoist to safely elevate the machine. - Disconnect batteries prior to working on machine. - Wear gloves when handling batteries or battery cables. ICE i28BT / i32BT... -
Page 5: Machine Components
38. Brush & Pad realease plunger 14. Caster, 2Inch, Squeegee Adjustment 39. Scrub Head adjusting bolt 15. Bumper Rollers 40. Scrub Head Skirt 16. Squeegee Assembly 41. Scrub Head Assembly 17. Ball Valve 42. Parking Brake (Option) ICE i28BT / i32BT... -
Page 6: Machine Setup & Installation
3. Connect the vacuum hose to the squeegee assembly. Loop the hose by using the hose clip provided. 4. Check the squeegee blades for proper adjustment. ICE i28BT / i32BT... -
Page 7: Machine Operation
WARNING: When battery meter is in the control switch to a desired flow rate. red, do not continue to operate the machine. NOTE: Solution will not begin to flow until the Battery damage may result. control handle bail is pulled. ICE i28BT / i32BT... -
Page 8: Tank Draining
"O" ring is in the correct position. WaRnInG: do not change the default Settings of the electromagnetic Brake mechanism unless authorized, otherwise it may cause machine damage or personal Injury. contact the authorized Service center for machine repairs. ICE i28BT / i32BT... -
Page 9: Battery Charging
BatteRy cHaRGeR (optIon) 6. Recharge the batteries. 1. Place charger and machine in a well ventilated 7. Check the condition of the squeegee blade area. wiping edge, rotate blade if worn. 2. Turn the machine off. ICE i28BT / i32BT... -
Page 10: Battery Maintenance
SODA / WATER SOLUTION TO ENTER THE BATTERY CELLS. 3. Use a wire brush with the baking soda solution to properly clean the battery posts and connctions. 4. Check battery connections for wear and loose terminals. replace if necessary. ICE i28BT / i32BT... -
Page 11: Basic Troubleshooting
Fully recharge batteries Defective batteries Replace batteries Batteries need maintenance See BATTERY MAINTENANCE Short run time Faulty battery charger Repair or replace battery charger Down pressure lever is set for extra scrub Lower down pressure lever head pressure ICE i28BT / i32BT... -
Page 12: Technical Specification
WateR lIft - aIR floW 65 in / 1,650 mm BatteRIeS 4 - 6V, 260AH @ 20 hr Run tIme peR cHaRGe 3.5~4 Hours VoltaGe dc decIBel RatInG at 68 dB(A) opeRatoR'S eaR, IndooRS GRade leVel, maX 5% (3°) ICE i28BT / i32BT... -
Page 13: Parts List
PARTS LIST RECOVERY TANK GROUP ICE i28BT / i32BT... -
Page 14: Recovery Tank Group
FLAT WASHER M8×16×1.6 8111007 RECOVERY TANK SUPPORT 8115404 SLEEVE, P/M 1021830 HEX BOLT M8×30 8111016 PLATE 1221512 SCREW M5×12 8111015 FLOAT, SHUT-OFF 8111014 FLOAT ADAPTER 8210201 RECOVERY TANK COVER SEAL 8011005 8210103 RECOVERY TANK COVER 8111022 WARNING LABEL ICE i28BT / i32BT... - Page 15 PARTS LIST SOLUTION TANK GROUP ICE i28BT / i32BT...
-
Page 16: Solution Tank Group
1962025 CLAMP 16-25mm 8210151 LABEL, LEFT SIDE 8210141 BATTERY CONNECT CABLE, BLACK 8113013 SPACER, BATTERY 8210105 BATTERY, 260AH @ 20Hr 8210107 BATTERY TRAY 8114751 JACKET, BATTERY TERMINAL, BLACK 8210104 COVER, FRONT 1321110 SELF-TAPPING SCREW ST3.5 ×10 ICE i28BT / i32BT... - Page 17 LOCK NUT M6 1123406 LOCK NUT M4 8210160 BATTERY CONNECT CABLE, ASSEMBLY 8210161 CONNECTOR, SB175-RED 1521635 SCREW, HEX SOCKET, M6 X 35 8210165 BATTERY CONNECT CABLE, ASSEMBLY 1021610 HEX BOLT M6 × 10 8210126 BRACKET, SOLENOID SWITCH ICE i28BT / i32BT...
- Page 18 PARTS LIST CONTROL CONSOLE GROUP ICE i28BT / i32BT...
-
Page 19: Control Console Group
TIMER 8114709 KEY SWITCH 8114752 8124717A POTENTIOMETER, KIT 8124718 KNOB, POTENTIOMETER 8210410 CONTROL PANEL 8210415 CONTROL PANEL DECAL, i28BT 8210412 CONTROL PANEL DECAL, i32BT 1221512 SCREW M5×12 1021616 HEX BOLT M6 X 16 1421618 PLAIN WASHER 6×18×1.6,SS 8124007 BUTTON,EMERGENCY STOP... - Page 20 8114306 SPRING 8114101 SHAFT 8134300 LEVER, BAIL 1123507 LOCK NUT M5 8124501 SPEED CONTROL BOARD 8134021 REAR PLATE, CONTROL CONSOLE 1421824 FLAT WASHER M8×24×2 1021820 HEX BOLT M8×20 1021535 SCREW, M5 × 35 8114707 RELAY, 40A ICE i28BT / i32BT...
- Page 21 PARTS LIST FRAME & TRANSAXLE GROUP ICE i28BT / i32BT...
- Page 22 HEX BOLT M8×20 8210115 ARM, SCRUB HEAD LIFTING 8210116 BUSHING 8210130 FRAME 1021855 HEX BOLT M8 × 55 1123012 LOCK NUT M10 8210138 SPACER (OPTION) 8210137 TOGGLE CLAMP, BRAKE (OPTION) 1021630 HEX BOLT M6 X 30 ICE i28BT / i32BT...
- Page 23 PARTS LIST SCRUB HEAD GROUP ICE i28BT / i32BT...
- Page 24 1421618 FLAT WASHER M6×18×1.6 8210861 RETAINER BAR 8210862 SPRING, G-400S 9000004 CLUTCH, G-400S 9050014 BRUSH ASSEMBLY, 14 INCH, i28BT, OPTION 9050016 BRUSH ASSEMBLY, 16 INCH, i32BT, OPTION 1321325 SELF-TAPPING SCREW, ST5 X 25 9000003 CENTER LOCK, #3 8116040 SPACER, 6.5×14.5×7.0...
- Page 25 PARTS LIST SCRUB HEAD LIFT GROUP ICE i28BT / i32BT...
- Page 26 FLAT WASHER 12×32×1.5 8210322 8210309 PIN, COTTER 8210318 SPRING 8210320 SLEEVE 8210321 BOLT, SHOULDER, 3/8 8210302 ACTUATOR, 24VDC 8210301 8210303 BRACKET, ACTUATOR MNTG 1421612 FLAT WASHER M6×12×1.6 1422616 LOCK WASHER M6 1021616 HEX BOLT M6 X 16 ICE i28BT / i32BT...
- Page 27 PARTS LIST SQUEEGEE GROUP, 46.5 INCH, OLD STYLE, i32BT OPTION ICE i28BT / i32BT...
- Page 28 CLAMP, FRONT BLADE 8210531 KNOB, M6 8210530 KNOB, M6 × 12 8118400 CASTER, 2 INCH 8118200 LEFT BRACKET 1121008 HEX NUT M10 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 1962050 CLAMP 8210510 SQUEEGEE ASSEMBLY, 46.5 INCH ICE i28BT / i32BT...
- Page 29 PARTS LIST SQUEEGEE GROUP, 46.5 INCH, NEW STYLE, i32BT STANDARD ICE i28BT / i32BT...
- Page 30 SQUEEGEE BLADE, FRONT, LINATEX 8230513 SQUEEGEE BLADE, FRONT, PU (OPTION) 8118400 CASTER, 2 INCH 8118200 LEFT BRACKET 1121008 HEX NUT M10 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 1962050 CLAMP 8230500 SQUEEGEE ASSEMBLY FOR i32BT, 46.5 INCH, STANDARD ICE i28BT / i32BT...
- Page 31 PARTS LIST SQUEEGEE GROUP, 44.5 INCH, i32BT OPTION ICE i28BT / i32BT...
- Page 32 FRONT CLAMP, LEFT 1121403 HEX NUT M4 1123406 LOCK NUT M4 1421409 FLAT WASHER M4×9×0.5 1211435 SCREW M4×35 8220515 FRONT CLAMP, LEFT 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 1962050 CLAMP 8220500 SQUEEGEE ASSEMBLY, 44.5 INCH ICE i28BT / i32BT...
- Page 33 PARTS LIST SQUEEGEE GROUP, 40.5 INCH, i28BT OPTION ICE i28BT / i32BT...
- Page 34 PARTS LIST SQUEEGEE GROUP, 40.5 INCH, i28BT OPTION PART DESCRIPTION NUMBER REQ'D 1123810 LOCK NUT M8 FLAT WASHER M8× ∮ 24×2.0 1421824 8116009 PROTECTIVE WHEEL 8115404 BEARING, JOURNAL 1021616 HEX BOLT M6×16 1421612 FLAT WASHER M6× ∮ 12×1.6 1121008 HEX NUT M10...
- Page 35 PARTS LIST SOLUTION GROUP ICE i28BT / i32BT...
-
Page 36: Parts List
ELBOW, TUBING BARB 8210903 TUBING ID=12MM L=120MM 1962016 CLAMP, 10-16mm 1221412 SCREW M4×12 1422411 LOCK WASHER M4 1421409 FLAT WASHER M4×9×0.8 8119003 SOLENOID VALVE,24VDC 1914300 TIE, NYLON, 5X300 8210904 TUBING ID=10MM L=180MM 8119008 FITTING, PLASTIC, TEE ICE i28BT / i32BT... -
Page 37: Wear And Tear Parts
8220523 SQUEEGEE BLADE, REAR, PU (OPTION) 8310536 SQUEEGEE BLADE, REAR, LINATEX 8310546 SQUEEGEE BLADE, REAR, PU (OPTION) 9050014 14" BRUSH , i28BT (OPTION) 9050016 16" BRUSH , i32BT (OPTION) 9040014 14" PAD HOLDER, i28BT 9040016 16" PAD HOLDER, i32BT ICE i28BT / i32BT... -
Page 38: Wiring Diagram
WIRING DIAGRAM ICE i28BT / i32BT...
