Summary of Contents for Ice IB2000

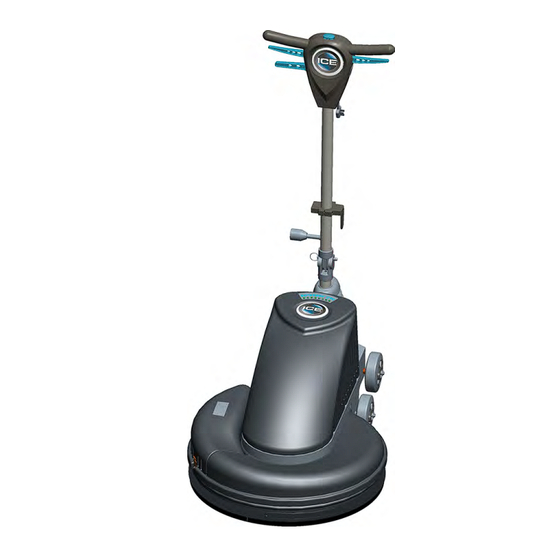

- Page 1 Operator & Parts Manual IB2000 5015011 REV.01(04-2014) INTERNATIONAL CLEANING EQUIPMENT...
- Page 3 Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.
-
Page 4: Table Of Contents
SPECIFICATIONS....... . . 15 WIRING DIAGRAM ........16 ICE IB2000... -
Page 5: Safety Precautions
– Use manufacturer supplied or approved replacement parts. To avoid electrical shock,please replace the power cord immediately if any damage is being detected. The replacement must be performed only by an authorized person or by our customer service center. ICE IB2000... -
Page 6: Machine Components
• Buffer device, quiet, easy operation 11. Air spring 12. Lock washer • Universal clutch plate • Safety lock-out switch 13. Big mouth 14. Pad holder, 20" • Security protection in an upright • Use Air Spring Adjustment Pad Pressure • 50' Cord ICE IB2000... -
Page 7: Machine Operating Instructions
4) Remove the pad center gripping device by unscrewing the thumbscrews. 5) Place a "ICE approved" burnishing pad on the pad driver and re-attach the c e n t e r g r i p p i n g d e v i c e . ( c h e c k w i t h y o u r I C E d i s t r i b u t o r f o r a p p r o v e d p a d s ) 6) Place machine back into its upright position. -
Page 8: Machine Maintenance & Storage
Never store a low speed machine with the pad driver or brush mounted STORAGE 1) Unplug machine from power source and wrap cord on handle. 2) Store in upright position in a dry area. ICE IB2000 ７... -
Page 9: Handle And Air Spring Installation
Air Spring and handle, keep both Air Spring Holder parallel , and they can rotate flexibly. Step1: Take out accessory, install the handle to on the housing. Step2: Take out Air Spring, and tighten with Air Spring Holder. ICE IB2000 ８... -
Page 10: Parts List
PARTLIST IB2000 HANDLE ASSEMBLY ICE IB2000 ９... - Page 11 1221412 SCREW M4X12 5011017 LEVELING ROD 4010314 5011004 COVER 4010318 CORD POWER SUPPLY 4010310 STRAIN RELIEF CORD WASHER PLAIN Ø6 1421616 1512635 SCREW M6 X 35 5015001 SERIAL NUMBER 1512625 SCREW M6 X 25 4010302 REAR COVER ICE IB2000 １０...
- Page 12 4010311 CLAMP CORE 1221406 SCREW M4X6 1123608 NUT LOCK M6 WASHER Ø6 1421612 4010403 CLAMP HOOK 4010215 CORD HANDLE 4010213 GROMMET 5011021 TUBING TOP BRACKET 5011018 TUBING TOP BASE 1644045 1221620 SCREW M6X20 φ 1422616 WASHER, LOCK, ICE IB2000 １１...
- Page 13 PARTLIST IB2000 BASE ASSEMBLY ICE IB2000 １２...
- Page 14 HEX SCREW, M6x12.7 WASHER, PLAIN φ12.5×φ25×1.5 1421625 4210116 WHEEL, 5" 5012406 FRONT AXLE 5012305 SPACER 5012308 DRIVING PULLEY 5012603 VEE BELT 5012205 KEY, DRIVEN SHAFT 1534608 SCREW, M6x8 5012306 KEY, MOTOR WASHER, PLAIN, Φ8xΦ30x5 5012303 φ 1422821 WASHER,LOCK, ICE IB2000 １３...
-
Page 15: Parts List
MOTOR POWER CORD 6150712 WIRE CLIP 4010110 SHAFT φ φ 1421516 WASHER, PLAIN, 1221515 SCREW M5X15 5014006 SPACER 5012102 COVER, DUST BAG 1113507 NUT,LOCK,M5 5015004 WARNING DECALL 1031845 SCREW, M8x45, HEX 5012113 COVER, DUST BAG BRACKET 8118003 HANDLE ICE IB2000 １４... -
Page 16: Wear & Tear Parts
4210116 WHEEL, 5" SPECIFICATIONS Model IB2000 Power 2 Hp Voltage 220 V Capacity 1.2 L Working Width 20" (51cm) Brush Speed 2000 rmp Cable Length 15 m Sound Level 62 dB(A） Weight 48.5 Kg Dimension L×W×H 98×62×52 cm ICE IB2000 １５... -
Page 17: Wiring Diagram
OPERATOR Wiring Diagram IB2000 RELAY Motor Running Capacitor 45 μ F/450V Startup Capacitor 200 μ F/250V ICE IB2000 １６...
