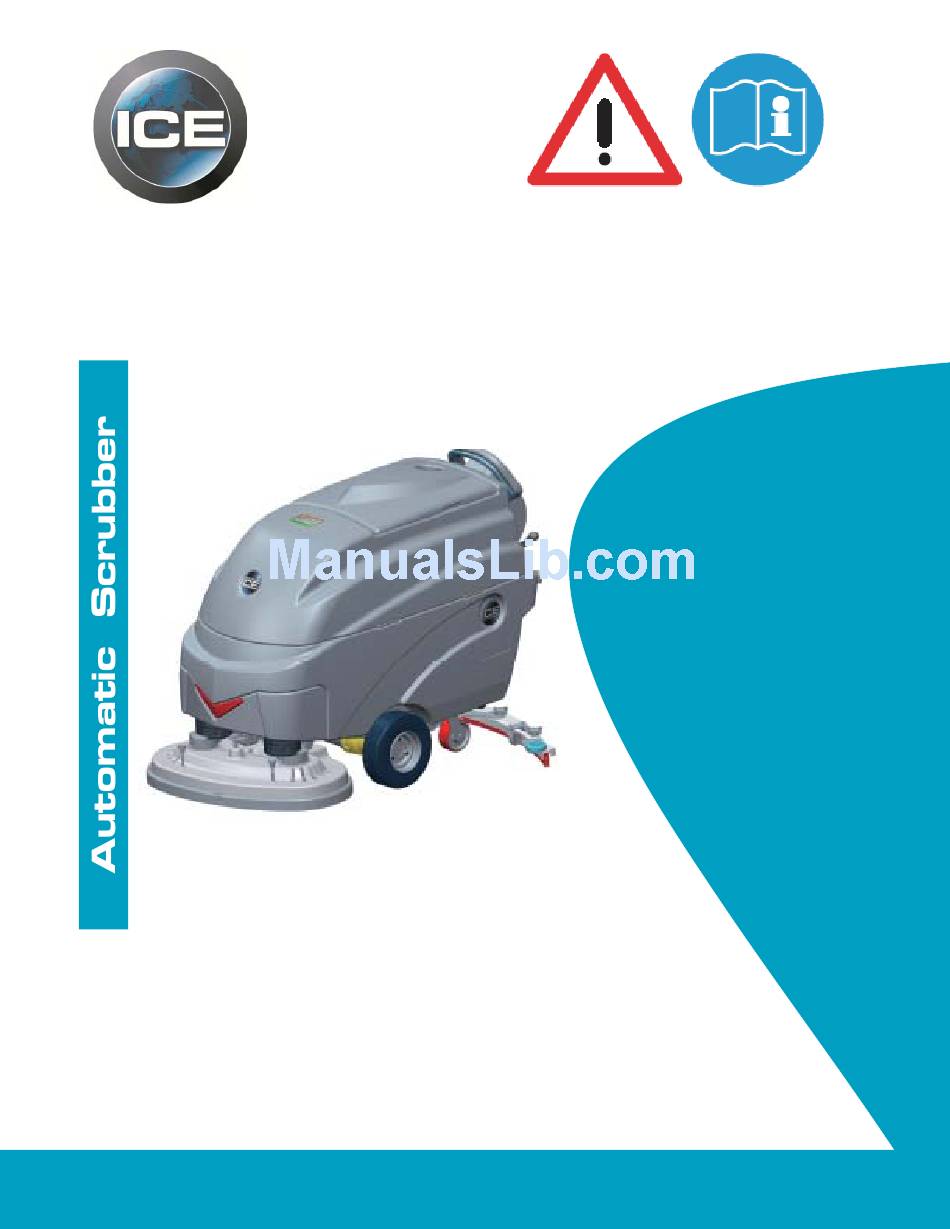

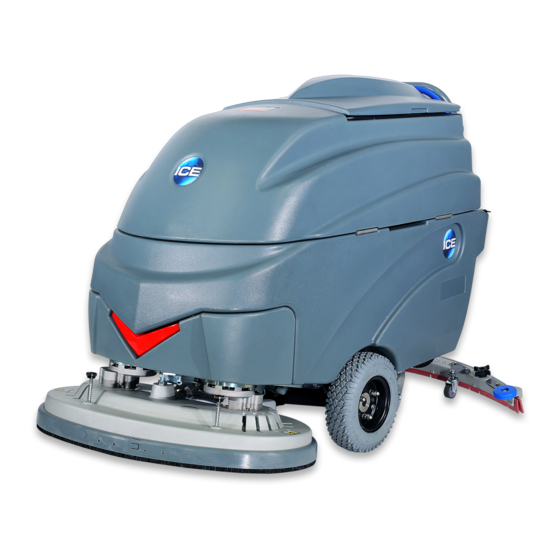

- Page 1 Operator & Parts Manual www.icecompanies.com i36BT 8230901 REV.02(08-2016) INTERNATIONAL CLEANING EQUIPMENT...
- Page 2 Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.
-
Page 3: Table Of Contents
OPERATOR MANUAL TABLE OF CONTENTS SAFETY PROCATIONS.......................4 MACHINE COMPONENTS....................5 MACHINE SETUP & INSTALLATION..................6 MACHINE OPERATION....................7 WHILE OPERATING MACHINE..................7 TANK DRAINING........................8 BATTERY CHARGING......................9 PREVENTATIVE MAINTENANCE..................9 BASIC TROUBLESHOOTING....................11 TECHNICAL SPECIFICATION....................12 PARTS LIST....................13-30 WEAR AND TEAR PARTS..............31 WIRING DIAGRAM..................32 ICE i36BT... -
Page 4: Safety Precautions
- Secure machine with wheel blocks prior to jacking the machine up. - Use approved jack or hoist to safely elevate the machine. - Disconnect batteries prior to working on machine. - Wear gloves when handling batteries or battery cables. ICE i36BT... -
Page 5: Machine Components
12. Drive Motor Circuit Breaker 37. Front Cover 13. On-board Charger 38. Batteries 14. Solution Tank Level / Drain Hose 39. Solution Tank 15. Bumper Rollers 40. Logo,ICE 16. Ball Valve 41. Caster, 2 Inch, Squeegee 17. Squeegee Assembly ICE i36BT... -
Page 6: Machine Setup & Installation
3. Connect the vacuum hose to the squeegee assembly. Loop the hose by using the hose clip provided. 4. Check the squeegee blades for proper adjustment. ICE i36BT... -
Page 7: Machine Operation
WARNING: When battery meter is in the control switch to a desired flow rate. red, do not continue to operate the machine. NOTE: Solution will not begin to fl ow until the Battery damage may result. control handle bail is pulled. ICE i36BT... -
Page 8: Tank Draining
"O" ring is in the correct bail be turned on. position. WARNING: Do Not Change the Default Settings of the Electromagnetic Brake Mechanism unless Authorized, otherwise it may cause Machine Damage or Personal Injury. Contact the Authorized Service center for machine repairs. ICE i36BT... -
Page 9: Battery Charging
NOTE: The machine will can not operate when charging. OFF-BOARD BATTERY CHARGER (OPTION) 1. Place charger and machine in a well ventilated area. 2. Turn the machine off. ICE i36BT... - Page 10 2. Keep battery tops and terminals free from corrosion. A strong solution of baking soda and water is the best way to keep the batteries corrosion free. DO NOT ALLOW THE BAKING SODA / WATER SOLUTION TO ENTER THE BATTERY CELLS. ICE i36BT...
-
Page 11: Basic Troubleshooting
Emergency stop button activated Reset Emergency stop botton Main PCB fuse blown Contact ICE service center Faulty key switch Contact ICE service center 1-STEP scrub head up/down switch is off Turn on the 1-STEP switch Battery meter lockout activated... -
Page 12: Technical Specification
WATER LIFT - AIR FLOW 6 - 6V, 260AH or 305AH @ 20 hr BATTERIES 4 or 4.5 Hours RUN TIME PER CHARGE VOLTAGE DC 10% (6°) GRADE LEVEL, MAX DECIBEL RATING AT 68 dB(A) OPERATOR'S EAR, INDOORS ICE i36BT... -
Page 14: Recovery Tank Group
LABEL, BATTERY INSTALLATION 8230126 ICE LOGO 4010316 WARNING LABEL 8111022 BRACKET 8111008 RECOVERY TANK SUPPORT 8111007 SLEEVE, P/M 8115404 HEX BOLT,M8 X 30 1021830 BRACKET,FILTER 8230210 FILTER,DUST 8310237 GASKET,FILTER 8310230 PLATE 8111016 SCREW,M5 X 10 1221510 PLATE 8230207 ICE i36BT... -
Page 16: Solution Tank Group
COVER, FRONT 1321110 SELF-TAPPING SCREW,ST3.5 X 10 1421409 FLAT WASHER,M4 X 9 X 0.8 8230750 LED LIGHT,36V,KIT 8133601 LED LIGHT MOUNTING BASE 1221520 SCREW,M5 X 20 8133602 LED LIGHT COVER 8210518 KNOB, M8 1535830 SET SCREW,M8 X 30 ICE i36BT... - Page 17 1422616 LOCK WASHER, M6 8230707 KIT,BATTERY CONNECT CABLE 8230714 8230714 CONNECTOR, SB175-GREY 1521635 SCREW, HEX SOCKET, M6 X 35 8230706 KIT,BATTERY CONNECT CABLE 1021610 HEX BOLT,M6 X 10 8144024 LABEL,CIRCUIT BREAKER 8230702 SOLENOID SWITCH,36VDC 8114705 STAND-OFF, M6, RED ICE i36BT...
- Page 19 HEX BOLT,M8 X 90 1021820 HEX BOLT,M8 X 20 1422821 LOCK WASHER,M8 1421828 FLAT WASHER,M8 X 28 X 2 8210115 ARM, SCRUB HEAD LIFTING 8210116 BUSHING 1021830 HEX BOLT,M8 X 30 8230105 8230105 FRAME FRAME 1021025 HEX BOLT,M10 X 25 ICE i36BT...
- Page 21 BRUSH MOTOR, 36VDC, 630W,KIT 1655025 KEY, 5 X 5 X 25 8210808 KNOB, M10 8210809 SPRING 8230301 HOUSING, SCRUB HEAD,i36BT 1421612 FLAT WASHER,M6 X 12 X 1.6 1422616 LOCK WASHER, M6 1021620 HEX BOLT,M6 X 20 8210805 HUB, BRUSH DRIVE 1421828 FLAT WASHER,M8 X 28 X 3.0...
- Page 23 FLAT WASHER,M 12 X 32 X 1.5 8210322 8210309 PIN, COTTER 8210318 SPRING 8230311 SLEEVE 8210321 BOLT, SHOULDER, 3/8 8230302 ACTUATOR, 36VDC 8210301 8210303 BRACKET, ACTUATOR MNTG 1421612 FLAT WASHER,M6 X 12 X 1.6 1422616 LOCK WASHER,M6 1021616 HEX BOLT,M6 X 16 ICE i36BT...
- Page 25 SQUEEGEE BLADE, REAR, PU (OPTIONAL) 8230502 RETAINER,SQUEEGEE 8230503 SQUEEGEE BLADE, FRONT, LINATEX 8230506 SQUEEGEE BLADE, FRONT, PU (OPTIONAL) 8118400 CASTER, 2 INCH 1121008 HEX NUT,M10 8118200 LEFT BRACKET 8230500 SQUEEGEE ASSEMBLY 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 1962050 CLAMP ICE i36BT...
- Page 27 SCREW ,M5 X 12 1422513 LOCK WASHER,M5 1421512 FLAT WASHER,M5 X 10 X 1 8230122 SOLENOID VALVE,36VDC 1914300 TIE, NYLON, 5X300 8230307 TUBING,ID=16 X 300MM 8310903 TUBING,ID=12 X 175MM 8230308 FITTING, PLASTIC, TEE 1962016 CLAMP, 10-16mm ICE i36BT ICE i36BT...
-
Page 29: Control Console Group
8114710 TIMER 8114709 KEY SWITCH 8124717 POTENTIOMETER 8124718 KNOB, POTENTIOMETER 8210410 CONTROL PANEL 8230701 CONTROL PANEL DECAL, i36BT 1221512 SCREW,M5 X 12 8230713 LIGHT BELT,36V 1021616 HEX BOLT,M6 X 16 1421618 PLAIN WASHER ,M6 X18 X 1.6,SS 8124007 BUTTON,EMERGENCY STOP... - Page 30 SET SCREW,M6 X 30 8114306 SPRING 8114101 SHAFT 8134300 LEVER, BAIL 1123507 LOCK NUT,M5 8230704 SPEED CONTROL BOARD,i36BT 8134021 REAR PLATE, CONTROL CONSOLE 1421824 FLAT WASHER,M8 X 24 X 2 1021820 HEX BOLT,M8 X 20 1021535 SCREW, M5 X 35 8114707...
-
Page 31: Parts List
WAER & TEAR PARTS LIST PART DESCRIPTION NUMBER REQ'D WHEEL, 12 INCH 8230129 PROTECTIVE WHEEL 8116009 CASTER, 5 INCH 8230119 SQUEEGEE BLADE, FRONT, LINATEX 8210513 SQUEEGEE BLADE, REAR, LINATEX 8210514 16" BRUSH 9050016 16" PAD HOLDER 9040016 ICE i36BT...
