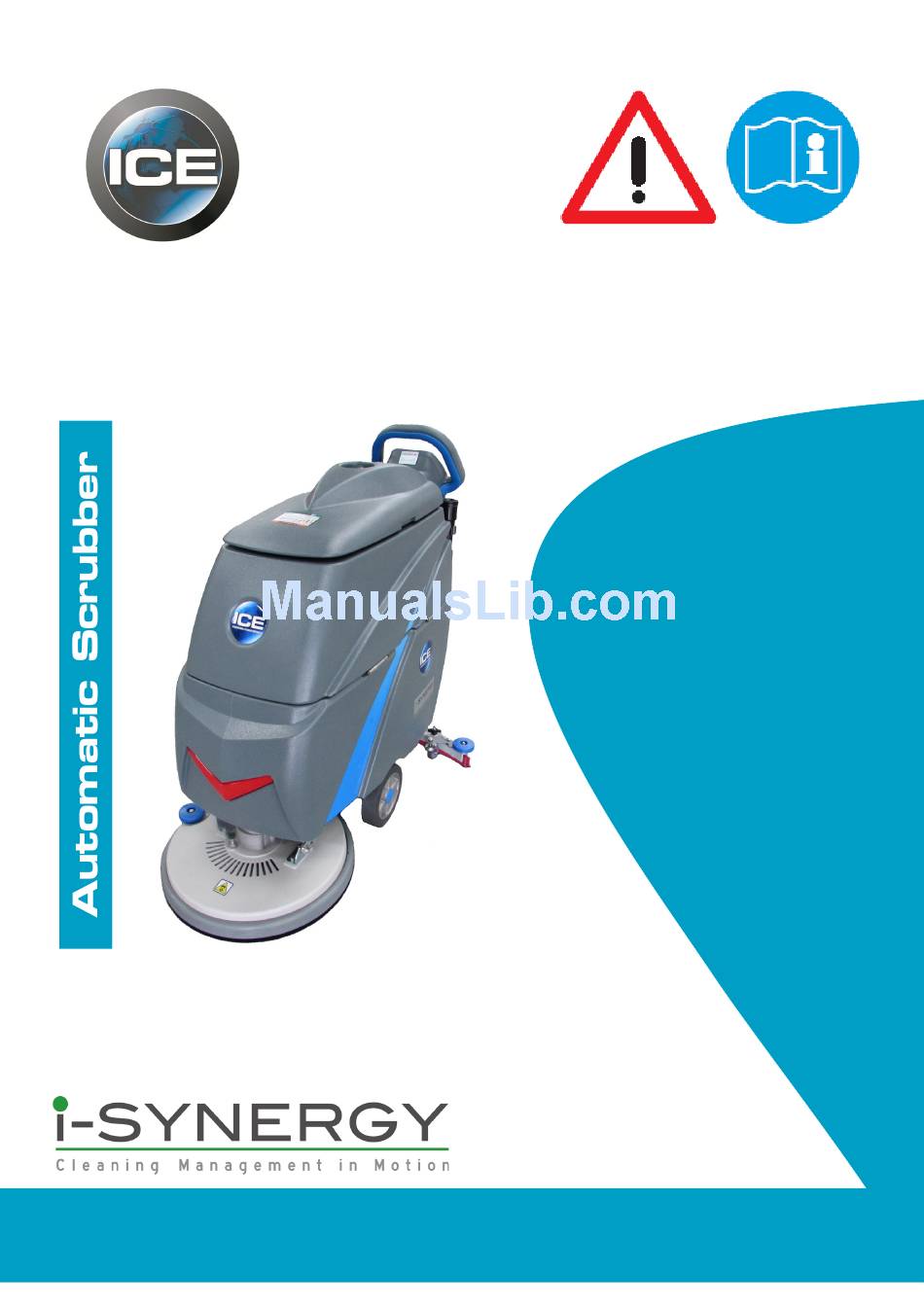

- Page 1 Operator & Parts Manual www.icerental.com i20NBL i20NBTL-OB i20NBTL i24BTL 8130060 REV.04 (03-2016) INTERNATIONAL CLEANING EQUIPMENT...
- Page 2 Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.
-
Page 3: Table Of Contents
INTRODUCTION....................7 MACHINE SETUP & INSTALLATION..................7 MACHINE OPERATION....................8 WHILE OPERATING MACHINE..................8 TANK DRAINING........................9 BATTERY CHARGING......................9 PREVENTATIVE MAINTENANCE..................10 FAULT CODE & SOLUTION....................11 BASIC TROUBLESHOOTING....................12 TECHNICAL SPECIFICATION....................13 PARTS LIST........................14-46 WEAR AND TEAR PARTS....................47 WIRING DIAGRAM......................48-49 ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 4: Safety Precautions
- Use approved jack or hoist to safely elevate the machine. - Disconnect batteries prior to working on machine. - Avoid moving parts. Do not wear loose fitting clothing while servicing machine. ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 5: Machine Components
15. Caster, 2 Inch, Squeegee Blade Adjustment 34. Power cord, on-board Battery charger 16. i-SYNERGY decal 35. Recovery Tank Drain Hose 17. ICE Logo 36. Recovery Tank 18. Hose Fill-Port 37. Recovery Tank Cover 19. Squeegee Storage Bracket ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 6: Panel Components
5. Solution flow indicator 13. Speed control button (-) 6. Solution flow control button (-) 14. Speed indicator 7. Solution flow control button (+) 15. Speed contorl button (+) 8. Fault message display area ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 7: I-Synergy Tm Introduction
INSTALLING PAD DRIVER OR BRUSH to the ICE server in case of any malfunction. 1. Ensure that the machine is turned off. ICE maintenance personnel will receive a 2. Step down on the scrub head lift pedal (see... -
Page 8: Machine Operation
7. i20NBL: Pull the control handle bail(see NOTE: See TANK DRAINING section to learn how machine components, item #2) backwards to to drain recovery and solution tanks. start scrubbing by moving the machine forward. ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 9: Tank Draining
5. The charger will automatically begin to charge and will automatically shut off once the batteries are fully charged. 6. Upon completion of charging, disconnect the AC power supply cord. ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 10: Preventative Maintenance
5. Check the machine for loose nuts and bolts. 7. Drain the recovery tank. 6. Check the machine for leaks. 8. Drain the solution tank of all fluid. ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 11: Fault Code & Solution
● ● Return Control Unit ● ● Contact service center, Replace Return Control Unit Bad Control Unit ● ● the Control Unit Return Control Unit ● ● Return Control Unit ● ● ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 12: Basic Troubleshooting
Fully recharge batteries Defective batteries Replace batteries Short run time Faulty battery charger Repair or replace battery charger Down pressure lever is set for extra scrub Lower down pressure lever head pressure ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 13: Technical Specification
45 in / 1,143 mm BATTERIES Lithium-ion batteries, 120AH RUN TIME PER CHARGE 3.5 Hours 3 Hours VOLTAGE DC DECIBEL RATE AT OPERATOR'S EAR, 68dB(A) <70dB(A) 68dB(A) INDOORS GRADE LEVEL, MAX 5% (3°) ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 14: Parts List
PARTS LIST RECOVERY TANK GROUP ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... - Page 15 FLAT WASHER M6× ∮ 12×1.6 4010316 ICE LOGO 8111008 BRACKET 1421816 FLAT WASHER M8× ∮ 16×1.6 8111007 RECOVERY TANK SUPPORT 8115404 SLEEVE, P/M 1021830 HEX BOLT M8×30 8111016 PLATE 1221412 SCREW M4×12 ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
-
Page 16: Parts List
PARTS LIST VACUUM FAN GROUP ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 17: Gasket
FLAT WASHER M6× ∮ 12×1.6 1421612 1123608 LOCK NUT M6 8112003 BRACKET 1021616 HEX BOLT M6×16 8132007 MUFFLER, VACUUM MOTOR 1914300 TIE, NYLON, 5X300 8112001 CHARGER COVER 8118003 KNOB M8 8112004 BRACKET ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 18: Solution Tank Group
PARTS LIST SOLUTION TANK GROUP ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... - Page 19 8133001 SOLUTION TANK 8119005 BALL VALVE, G1/2 8119007 ELBOW G1/2 8134750 CONNECTOR, GRID, BLUE 8113013 SPACER, BATTERY 9324101 LITHIUMS-ION BATTERIES, 110AH 1421510 FLAT WASHER M5×∮10×1 8119100 FILTER ASSEMBLY 8133025 LABEL, LEFT SIDE ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 20 ICE Logo 8133026 LABEL, RIGHT SIDE 1123305 LOCK NUT M3 8113010 BRACKET, CONNECTOR MTG 1434300 LOCK WASHER, TOOTH, M3 1211325 SCREW M3×25 1422513 LOCK WASHER M5 8133002 CAP, SOLUTION FILL 8113009 NYLON, CLAMP ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 21 PARTS LIST CONTROL CONSOLE GROUP（i20NBL） ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 22 8114005 CONNECTOR 1021840 HEX BOLT M8×40 1422821 LOCK WASHER M8 1421828 FLAT WASHER M8×∮28×3 1021630 HEX HEAD BOLT M6×30,SS 8134082 CABLE, SQGE LIFT 8014101 LIFTING ROPE SPACER 1021512 HEX HEAD BOLT M5×12,SS ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
-
Page 23: Drain Hose
SCREW M3 X 20 8134022 BRACKET,SWITCH 8114402 BRACKET, SPRING 1521616 SCREW M6X16, HEX SCOKET 1534608 SET SCREW M6 ×8 8134300 LEVER, BAIL 8114300 ACTUATOR 8114306 SPRING 1535630 SET SCREW M6 ×30 8114101 SHAFT ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... - Page 24 PARTS LIST CONTROL CONSOLE GROUP （i20NBTL/i24BTL） ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 25 BATTERY CHARGER POWER CORD, KIT 8134610A ON BOARD BATTERY CHARGER, 110VAC 8134062 CLAMP, BATTERY CHARGER 8114005 CONNECTOR 1021840 HEX BOLT M8×40 1422821 LOCK WASHER M8 1421828 FLAT WASHER M8×∮28×3 1021630 HEX HEAD BOLT M6×30,SS ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
-
Page 26: Cable
SCREW M3 X 20 8134022 BRACKET,SWITCH 8114402 BRACKET, SPRING 1521616 SCREW M6X16, HEX SCOKET 1534608 SET SCREW M6 ×8 8134300 LEVER, BAIL 8114300 ACTUATOR 8114306 SPRING 1535630 SET SCREW M6 ×30 8114101 SHAFT ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... - Page 27 PARTS LIST FRAME & WHEEL GROUP（i20NBL） ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
-
Page 28: Sleeve, P/M
BEARING, JOURNAL 8145001 BUSHING 1021840 HEX BOLT M8 ×40 1211325 SCREW M3×25 1434300 LOCK WASHER, TOOTH, M3 8014071 MICRO SWITCH 20A 8115500 CASTER, SWIVEL, 80MM 8210118 STATIC STRAP 8134709A PROXIMITY SENSOR, KIT ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... - Page 29 PARTS LIST FRAME & TRANSAXLE GROUP（i20NBTL/i24BTL） ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 30 BEARING, JOURNAL 8145001 BUSHING 1021840 HEX BOLT M8 ×40 1211325 SCREW M3×25 1434300 LOCK WASHER, TOOTH, M3 8014071 MICRO SWITCH 20A 8115500 CASTER, SWIVEL, 80MM 8210118 STATIC STRAP 8134709A PROXIMITY SENSOR, KIT ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 31 PARTS LIST SCRUB HEAD GROUP (i20NBL / i20NBTL) ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
-
Page 32: Plate
SCREW M14 × 20 8111023 WARNING LABEL 1121913 HEX NUT M14 8116204 SRPING 8116210 KNOB M6 8116009 PROTECTIVE WHEEL 8115404 SLEEVE, P/M FLAT WASHER M8× ∮ 24×2.0 1421824 1021825 HEX BOLT M8×25 ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 33: Ice I20Nbl / I20Nbtl / I20Nbtl-Ob / I24Btl
PARTS LIST ORBITAL HEAD GROUP (i20NBTL-OB) ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... - Page 34 PLATE 8146303 END CAP 3/8 8146302 PVC TUBING 8146305 PLASTIC CLAMP 1123507 LOCK NUT M5 8146301 TEE FITTING 3/8 8013007 TUBING FITTING 8146350 TUBING, ID=12mm, WIRE REINFORCED 1962016 CLAMP 8119012 TUBING FITTING ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 35 PARTS LIST SCRUB HEAD GROUP (i24BTL) ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 36 PROTECTIVE WHEEL 8115404 SLEEVE, P/M 1421824 FLAT WASHER M8× ∮ 24×2.0 1021825 HEX BOLT M8×25 8126202 8126205 GUIDE, M14X20 FLAT WASHER M14× ∮ 28×2.0 1421428 1121913 NUT M14 8116204 SPRING 8116210 KNOB M6 ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 37 PARTS LIST SCRUB HEAD LIFT GROUP (i20NBL / i20NBTL) ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 38 HEX BOLT M8 ×60 8117008 SPRING 8113109 BEARING, THRUST 1022845 HEX BOLT M8 ×45 8117004 ROLLER 1421612 FLAT WASHER M6×∮12×1.6 1422616 LOCK WASHER M6 1021616 HEX BOLT M6 ×16 8117009 SPRING 8117001 BRACKET, GUIDE ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 39 PARTS LIST ORBITAL HEAD LIFT GROUP (i20NBTL-OB) ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 40 BEARING, JOURNAL 8115405 SLEEVE, P/M 1022845 HEX HEAD BOLT M8 ×45 8117004 ROLLER 1021616 HEX HEAD BOLT M6 ×16 FLAT WASHER M6× ∮ 12×1.6 1422616 LOCK WASHER M6 1421612 8137010 BRACKET, GUIDE ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 41 PARTS LIST SCRUB HEAD LIFT GROUP (i24BTL) ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 42 LOCK WASHER M8 1021820 HEX BOLT M8×20 1022845 HEX BOLT M8 ×45 8117004 ROLLER 8126010 RIGHT BRACKET 1021616 HEX BOLT M6 ×16 1422616 LOCK WASHER M6 1421612 FLAT WASHER M6×∮12×1.6 8137001 BRACKET, GUIDE ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 43 PARTS LIST SQUEEGEE GROUP ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 44 LEFT BRACKET 1121008 HEX NUT M10 8118600A CLAMP ASSEMBLY 8118624 SPACER 8118623 SHAFT 1123507 LOCK NUT M5 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 8118000 SQUEEGEE ASSEMBLY, LINATEX 8118000-PU SQUEEGEE ASSEMBLY, PU ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 45 PARTS LIST SOLUTION GROUP ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
- Page 46 TUBING ID=12MM L=100MM 1221412 SCREW M4×12 1422411 LOCK WASHER M4 FLAT WASHER M4× ∮ 9×0.8 1421409 8119003 SOLENOID VALVE,24VDC 1962016 CLAMP, 10-16mm 8119203 TUBING ID=12MM L=135MM 8119204 TUBING ID=10MM L=360MM 8116100 WATER SUPPLY TUBE ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
-
Page 47: Wear And Tear Parts
9040019 19" PAD HOLDER, i20NBL/NBTL 9040019K 19" PAD HOLDER, i20NBL/NBTL (OPTIONAL) 9040011 11" PAD HOLDER, i24BTL 9040011K 11" PAD HOLDER, i24BTL (OPTIONAL) 8146116 ISOLATORS, M10 × 25, i20NBTL-OB 8146107 ISOLATORS, M10×25, i20NBTL-OB ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... -
Page 48: Wiring Diagram
EW: Solution solenoid valve switch LED1: Running lights SW3: Control handle start bail switch CHARGER: On board battery charger SW2: Safe switch, Scrub head lifting M1: Brush motor WP: Proximity switch M2: Vacuum motor ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL... - Page 49 WIRING DIAGRAM WIRING DIAGRAM（i20NBTL, i20NBTL-OB & i24BTL) ICE i20NBL / i20NBTL / i20NBTL-OB / i24BTL...
