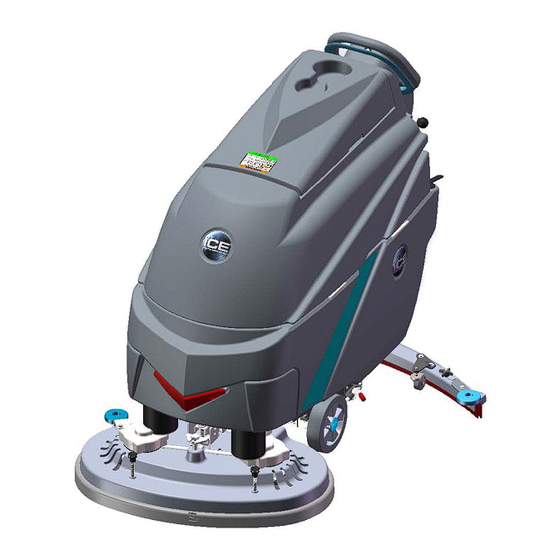

- Page 1 Operator & Parts Manual www.icerental.com i28BTL i32BTL 8210080 REV.03 (03-2017) INTELLIGENT CLEANING EQUIPMENT...
- Page 2 Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.
-
Page 3: Table Of Contents
MACHINE COMPONENTS....................5 PANEL COMPONENTS....................6 i-synergy INTRDUCTION....................7 MACHINE SETUP & INSTALLATION..................7 MACHINE OPERATION....................8 WHILE OPERATING MACHINE..................8 TANK DRAINING........................9 BATTERY CHARGING......................10 PREVENTATIVE MAINTENANCE..................10 FAULT CODE & SOLUTION....................11 BASIC TROUBLESHOOTING....................12 TECHNICAL SPECIFICATION....................13 PARTS LIST......................14-35 WEAR AND TEAR PARTS....................36 WIRING DIAGRAM......................37 ICE i28BTL / i32BTL... -
Page 4: Safety Precautions
- Use approved jack or hoist to safely elevate the machine. - Disconnect batteries prior to working on machine. - Avoid moving parts. Do not wear loose fitting clothing while servicing machine. ICE i28BTL / i32BTL... -
Page 5: Machine Components
30. Brush & Pad realease plunger 14. On-board battery charger 31. Scrub head adjusting bolt 15. Squeegee assembly 32. Scrub head skirt 16. Caster, 2 inch, Squeegee adjustment 33. Scrub head assembly 17. Control handle start bail 34. Parking brake (Option) ICE i28BTL / i32BTL... -
Page 6: Panel Components
5. Brsuh pressure indicator 14. Speed decrease button 6. Brush pressure decrease button 15. Speed indicator 7. Vacuum motor indicator 16. Speed increase button 8. Vacuum motor switch 17. Timer 9. Solution flow indicator 18. Fault code ICE i28BTL / i32BTL... -
Page 7: I-Synergy Tm Intrduction
(Panel components, item #12) and Raise the to the Ice server in case of any malfunction. Scrub head off the floor, then stop machine on Ice maintenance personnel will receive a the level surface, ensure the machine is turned SmS within minutes from the Ice server for off. -
Page 8: Machine Operation
(Panel components, item #10) Battery damage may result. to get a desired solution flow. NOTE: Solution will not begin to flow until the control handle bail is pulled. ICE i28BTL / i32BTL... -
Page 9: Tank Draining
"O" ring is in the correct position. WaRnInG: do not change the default Settings of the electromagnetic Brake mechanism unless authorized, otherwise it may cause machine damage or personal Injury. contact the authorized Service center for machine repairs. ICE i28BTL / i32BTL... -
Page 10: Battery Charging
Battery compartment propped open When damp towel. charging. 6. Recharge the batteries. only use Ice supplied or approved batteries 7. Check the condition of the squeegee blade charger, use unapproved charger may cause wiping edge, rotate blade if worn. damage to the batteries and machine. -
Page 11: Fault Code & Solution
Fault code (Panel components, item #18) & Fault If the fault is occurred frequently, or the fault can't message (Panel components, item #11) display be eliminated, please contact ICE service center. on the LED screen, and the Fault indicator (Panel components, item #1) will flash continuously, Please refer to the below table to determine the accompany an audible alarm Occasionally. -
Page 12: Basic Troubleshooting
Low battery charge Replace batteries Defective batteries See BATTERY MAINTENANCE Batteries need maintenance Short run time Repair or replace battery charger Faulty battery charger Down pressure lever is set for extra scrub Lower down pressure lever head pressure ICE i28BTL / i32BTL... -
Page 13: Technical Specification
0.8 hp / 0.6 KW WateR lIft - aIR floW 65 in / 1,650 mm BatteRIeS Lithium-ion batteries, 240AH Run tIme peR cHaRGe 3.5~4 Hours VoltaGe dc decIBel RatInG at 68 dB(A) opeRatoR'S eaR, IndooRS GRade leVel, maX 5% (3°) ICE i28BTL / i32BTL... -
Page 14: Parts List
PARTS LIST RECOVERY TANK GROUP ICE i28BTL / i32BTL... -
Page 15: Recovery Tank Group
FLAT WASHER M8×16×1.6 8111007 RECOVERY TANK SUPPORT 8115404 SLEEVE, P/M 1021830 HEX BOLT M8×30 8111016 PLATE 1221512 SCREW M5×12 8111015 FLOAT, SHUT-OFF 8111014 FLOAT ADAPTER 8210201 RECOVERY TANK COVER SEAL 8011005 8210103 RECOVERY TANK COVER 8111022 WARNING LABEL ICE i28BTL / i32BTL... - Page 16 PARTS LIST SOLUTION TANK GROUP ICE i28BTL / i32BTL...
-
Page 17: Solution Tank Group
8210104 COVER, FRONT 1321110 SELF-TAPPING SCREW ST3.5 ×10 1421409 FLAT WASHER M4×9×0.8 8133610 LED LIGHT KIT 8133601 LED LIGHT MNTG BASE 1221520 SCREW M5X20 8133602 LED LIGHT COVER 8210531 KNOB, M6 1535630 SET SCREW M6 ×30 ICE i28BTL / i32BTL... - Page 18 SEAL 8113002 COVER 8113007 STRAP 8210168 PLATE 8210163 CONNECTOR HOUSING 8210723 BATTERY CONNECT CABLE, RED 8210724 BATTERY CONNECT CABLE, BLACK 8210164 BRACKET, CONNECTOR 1422515 SPRING WASHER,M5 1021512 HEX HEAD SCREW, M5X12 1221525 PAN HEAD SCREW, M5X25 ICE i28BTL / i32BTL...
- Page 19 PARTS LIST CONTROL CONSOLE GROUP ICE i28BTL / i32BTL...
-
Page 20: Control Console Group
CONTROL CONSOLE GROUP PART DESCRIPTION NUMBER REQ'D 1221512 SCREW M5×12 1422513 LOCK WASHER M5 1421510 FLAT WASHER M5×10×1.0 8210486 CONTROL PANEL DECAL, i28BTL 8210487 CONTROL PANEL DECAL, i32BTL 8210481 CONTROL PANEL 8134015 GASKET 8210493 CONTROL PANEL PCB (LI/EN) 1221306 SCREW M3×6 8134005B... - Page 21 SCREW M3 X 20 1123305 LOCK NUT M3 8134022 BRACKET,SWITCH 8114402 BRACKET, SPRING 1521616 SCREW M6X16, HEX SCOKET 1534608 SET SCREW M6 ×8 8134300 LEVER, BAIL 8114300 ACTUATOR 8114306 SPRING 1535630 SET SCREW M6 ×30 8114101 SHAFT ICE i28BTL / i32BTL...
- Page 22 PARTS LIST FRAME & TRANSAXLE GROUP ICE i28BTL / i32BTL...
- Page 23 HEX BOLT M8 × 55 1123012 LOCK NUT M10 8210186 BRACKET, PROXIMITY SENSOR 8134709A PROXIMITY SENSOR，KIT 1021616 HEX BOLT M6 × 16 8210138 SPACER (OPTION) 8210137 TOGGLE CLAMP, BRAKE (OPTION) 1021630 HEX BOLT M6 X 30 ICE i28BTL / i32BTL...
- Page 24 PARTS LIST SCRUB HEAD GROUP ICE i28BTL / i32BTL...
- Page 25 1421618 FLAT WASHER M6×18×1.6 8210861 RETAINER BAR 8210862 SPRING, G-400S 9000004 CLUTCH, G-400S 9050014 BRUSH ASSEMBLY, 14 INCH, i28BTL (OPTION) 9050016 BRUSH ASSEMBLY, 16 INCH, i32BTL (OPTION) 1321325 SELF-TAPPING SCREW, ST5 X 25 9000003 CENTER LOCK, #3 8116040 SPACER, 6.5×14.5×7.0...
- Page 26 PARTS LIST SCRUB HEAD LIFT GROUP ICE i28BTL / i32BTL...
- Page 27 FLAT WASHER 12×32×1.5 8210322 8210309 PIN, COTTER 8210318 SPRING 8210320 SLEEVE 8210321 BOLT, SHOULDER, 3/8 8210302 ACTUATOR, 24VDC 8210301 8210303 BRACKET, ACTUATOR MNTG 1421612 FLAT WASHER M6×12×1.6 1422616 LOCK WASHER M6 1021616 HEX BOLT M6 X 16 ICE i28BTL / i32BTL...
- Page 28 PARTS LIST SQUEEGEE GROUP, 46.5INCH, OLD STYLE, i32BTL OPTION ICE i28BTL / i32BTL...
- Page 29 8210531 KNOB, M6 8210530 KNOB, M6 × 12 8118400 CASTER, 2 INCH 8118200 LEFT BRACKET 1121008 HEX NUT M10 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 1962050 CLAMP 8210510 SQUEEGEE ASSEMBLY FOR i32BTL, 46.5 INCH, OPTION ICE i28BTL / i32BTL...
- Page 30 PARTS LIST SQUEEGEE GROUP, 46.5 INCH, NEW STYLE, i32BTL STANDARD ICE i28BTL / i32BTL...
- Page 31 SQUEEGEE BLADE, FRONT, LINATEX 8230513 SQUEEGEE BLADE, FRONT, PU (OPTION) 8118400 CASTER, 2 INCH 8118200 LEFT BRACKET 1121008 HEX NUT M10 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 1962050 CLAMP 8230500 SQUEEGEE ASSEMBLY FOR i32BTL, 46.5 INCH, STANDARD ICE i28BTL / i32BTL...
- Page 32 PARTS LIST SQUEEGEE GROUP, 44.5 INCH, i32BTL OPTION ICE i28BTL / i32BTL...
- Page 33 1121403 HEX NUT M4 1123406 LOCK NUT M4 1421409 FLAT WASHER M4×9×0.5 1211435 SCREW M4×35 8220515 FRONT CLAMP, LEFT 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 1962050 CLAMP 8220500 SQUEEGEE ASSEMBLY FOR i32BTL, 44.5 INCH, OPTION ICE i28BTL / i32BTL...
- Page 34 PARTS LIST SQUEEGEE GROUP, 40.5 INCH , i28BTL STANDARD ICE i28BTL / i32BTL...
-
Page 35: Parts List
PARTS LIST SQUEEGEE GROUP, 40.5 INCH , i28BTL STANDARD PART DESCRIPTION NUMBER REQ'D 1123810 LOCK NUT M8 1421824 FLAT WASHER M8× ∮ 24×2.0 8116009 PROTECTIVE WHEEL 8115404 BEARING, JOURNAL 1021616 HEX BOLT M6×16 FLAT WASHER M6× ∮ 12×1.6 1421612 1121008... - Page 36 PARTS LIST SOLUTION GROUP ICE i28BTL / i32BTL...
- Page 37 ELBOW, TUBING BARB 8210903 TUBING ID=12MM L=120MM 1962016 CLAMP, 10-16mm 1221412 SCREW M4×12 1422411 LOCK WASHER M4 1421409 FLAT WASHER M4×9×0.8 8119003 SOLENOID VALVE,24VDC 1914300 TIE, NYLON, 5X300 8210904 TUBING ID=10MM L=180MM 8119008 FITTING, PLASTIC, TEE ICE i28BTL / i32BTL...
-
Page 38: Wear And Tear Parts
8220523 SQUEEGEE BLADE, REAR, PU (OPTION) 8310536 SQUEEGEE BLADE, REAR, LINATEX 8310546 SQUEEGEE BLADE, REAR, PU (OPTION) 9050014 14" BRUSH , i28BTL (OPTION) 9050016 16" BRUSH , i32BTL (OPTION) 9040014 14" PAD HOLDER, i28BTL 9040016 16" PAD HOLDER, i32BTL ICE i28BTL / i32BTL... -
Page 39: Wiring Diagram
WIRING DIAGRAM ICE i28BTL / i32BTL...
