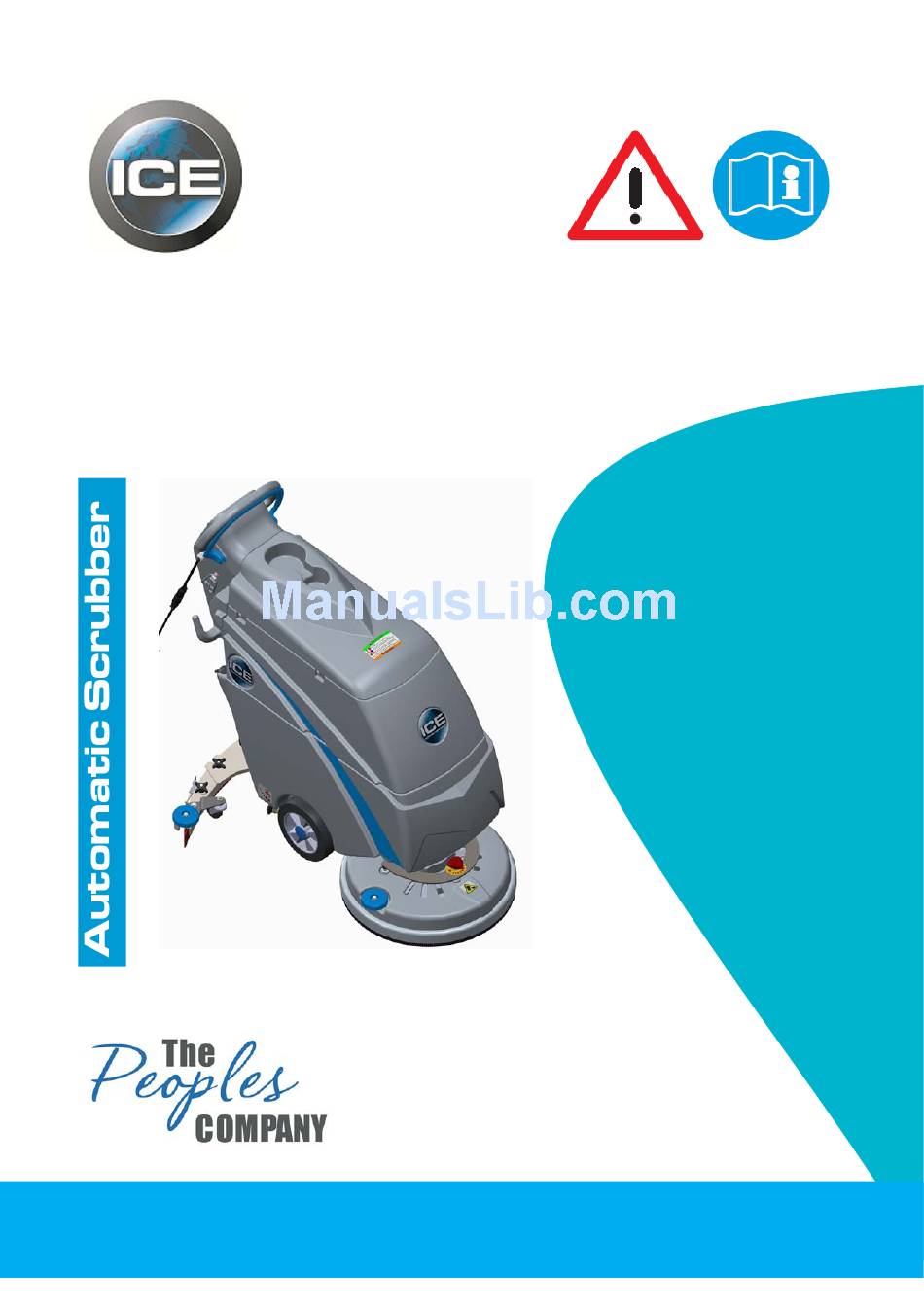

Serial Number : i18C-000107; 000124~000223; Except 000191.
www.icecompanies.com
OPERATOR & Parts Manual
I18B
I18C
8019009
REV.03(06-2014)
INTERNATIONAL CLEANING EQUIPMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I18B and is the answer not in the manual?

Questions and answers

Related Manuals for Ice I18B

Summary of Contents for Ice I18B

  • Page 1 Serial Number : i18C-000107; 000124~000223; Except 000191. www.icecompanies.com OPERATOR & Parts Manual I18B I18C 8019009 REV.03(06-2014) INTERNATIONAL CLEANING EQUIPMENT...

  • Page 2: How To Order Parts

    Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.
  • Page 3 ICE I18B/I18C...

  • Page 4: Safety Precautions

    OPERATOR MANUAL SAFETY PRECAUTIONS FOR I18B This machine is intended for commercial use. It replacement parts. LV GHVLJQHG H[FOXVLYHO\ WR VFUXE KDUG ÀRRUV LQ DQ – Secure machine with wheel blocks prior to indoor environment and is not constructed for any jacking the machine up.
  • Page 5 The replacement must be performed only by an authorized person or by our customer service center. Flammable materials can cause explosion or fire. Do not use flammable materials in tanks or pick them up. ICE I18B/I18C...

  • Page 6: Machine Components

    20. Switch for brush motor 21. Switch for vacuum motor 22*. Battey monitor 23. Circuit breaker 24*. Charger power cord 24**. Power cord 25. Adjustable wheel 26. Adjusting plunger I18B I18C 24* 24** * : only for I18B **:only for I18B ICE I18B/I18C...

  • Page 7: Machine Set Up & Installation

    1) Sweep the outside of the machine. 2) Check battery meter to make sure batteries are fully charged (see battery charging, only for I18B ). 3) Check that squeegee and brush / pad is properly installed. 4) The forward speed of machine can be controlled by turning the handle(10). Turn the handle clockwise to speed up machine.

  • Page 8: Machine Operation

    Any time scrubbing is completed, or when refilling solution tank, the recovery tank should be drained and cleaned. If the recovery tank is not drained when the solution tank has been refilled, foam or water may enter the float shut-off mechanism and cause damage to the vacuum motor. ICE I18B/I18C...
  • Page 9 ¿OWHU VFUHHQ 2 ULQJ ¿OWHU FRYHU BATTERY CHARGING (ONLY FOR I18B) Each machine was equipped with on-board charger and batteries, please use oringinal parts only. WARNNING: Fire or explosion hazard. Batteries may emit hydrogen gas. Keep sparks and open flame away. Keep battery compartment open when charging.

  • Page 10: Preventative Maintenance

    6) Unplug vacuum motor from power source and hose cuff & remove the drain hose from the holder prior to removing the recovery tank when performing maintenance. 7) Check the condition of the squeegee blade wiping edge, rotate blade or replace it if worn. ICE I18B/I18C...

  • Page 11: Monthly Maintenance

    OPERATOR MANUAL MONTHLY MAINTENANCE 1) Clean the battery tops to prevent corrosion (only for I18B). 2) Check for loose battery cable connections (only for I18B). 3) Inspect and clean the recovery tank cover seal. Replace it if damaged. 4) Lubricate all grease points and pivot points with silicon spay and approved grease.

  • Page 12: Basic Troubleshooting

    OPERATOR MANUAL BASIC TROUBLESHOOTING PROBLEM CAUSE SOLUTION The wiring not connected Check the wiring or contact ICE Distributor correctly or bad wiring No Power Bad brush motor Contact ICE Distributor Carbon brushes worn out Contact ICE Distributor The wiring not connected...

  • Page 13: Technical Specification

    Working Width Squeegee Width 1100 Ef¿ciency m²/h Brush Dia. Brush Speed Max Pad Pressure I18B: 24 / 550 Brush Motor V / W I18C: 110 / 550 I18B: 24 / 500 Vacuum Motor V / W I18C: 110 / 500...
  • Page 14 ICE I18B/I18C...
  • Page 15 PLAIN WASHER 4×9×0.8,SS 8111015 FLOAT CAGE 8111014 FLITER COUPLING 1021616 HEX HEAD BOLT M6×16 8111001 GASKET 8113007 RUBBER STRIP 1321110 AUTO TAPPING SCREW ST3.5×10 8131003 1123406 SELFLOCKING NUT M4, SS 8112008* CARBON BRUSH 8011022 CARBON BRUSH * ONLY FOR I18B ICE I18B/I18C...
  • Page 16 PART DESCRIPTION NO NUMBER REQ'D 8012001 COVER TANK 8111022* WARNING LABLE 8012003 WARNING LABLE 8011005 8012002 GASKET * ONLY FOR I18B ICE I18B/I18C...
  • Page 17 ICE I18B/I18C...
  • Page 18 HOSE CLAMP 8013004 DECAL,BALL VALVE 8013009 DECAL,RIGHT 1021616 HEX HEAD SCREW M6×16,SS 1422616 SPRING WASHER 6 SS 8013002 BACKET 1221510 PH SCREW M5×10,SS 1421510 PLAIN WASHER 5×10×1,SS 8113009 WIRE CLAMP 8114751* WIRING BOOT 8013008 DECAL,LEFT * ONLY FOR I18B ICE I18B/I18C...
  • Page 19 PART DESCRIPTION NUMBER REQ'D 8014062 REAR PANEL 1421512 PLAIN WASHRE 5×12×1.5 1211516 PH SCREW M5×16 1421409 PLAIN WASHER 4×9×0.8 8114707 RELAY 1113305 SELFLOCKING NUT M3 8014061 SWITCH BRACKET 1411309 PLAIN WASHER 3×9×0.8 ICE I18B/I18C...
  • Page 20 8014033 PLATE 1534608 SET SCREW M6×8 8014031 HEX BUSHING 8014032 SPRING ROD 8014035 SPRING 1211320 PH SCREW M3×20 1434300 WASHER WITH TOOTH 3 8114712 MICROSWITCH 1113507 SELFLOCKING NUT M5 8014076 RELAY 24VDC 30A 1123406 SELFLOCKING NUT M4, SS ICE I18B/I18C...
  • Page 21 PART DESCRIPTION NUMBER REQ'D 1421409 PLAIN WASHER 4×9×0.8 1211516 PH SCREW M5×16 1113305 SELFLOCKING NUT M3 1021820 HEX HEAD BOLT M8×20 1411824 PLAIN WASHER 8×24×2 1113507 SELFLOCKING NUT M5 8114030 FIXING BRACKET,CONTROL BOX 8113104 HANDLE ICE I18B/I18C...
  • Page 22 SPRING WASHER 4 8014033 PLATE 8014022 CONTROL TRIGGER 1534608 SET SCREW M6×8 8014031 HEX BUSHING 8014032 SPRING ROD 8014035 SPRING 1211325 PH SCREW M3×25 1411309 PLAIN WASHER 3×9×0.8 4010308 SWITCH 8014061 SWITCH BRACKET 8014002 REAR PANEL 8014034 BRACKET ICE I18B/I18C...
  • Page 23 ICE I18B/I18C...
  • Page 24 PLAIN WASHER 6×18×1.6,SS 1221510 SH SCREW M5×10 1212410 SH SCREW M4×10 8015060 WATER INLET 8015041 MOTOR BRACKET 8015005 BRUSH COVER 1222510 SH SCREW M5×10 1421518 PLAIN WASHER 5×18×2,SS 1422513 SPRING WASHER 5 1221515 PH SCREW M5×15 1221616 PH SCREW M6×16 ICE I18B/I18C...
  • Page 25 NYLON WASHER 10.5×30×2.5 8015121 SPACER 13×10.5×5.5 8015002 BRACKET 8116004 DETENT RING 1656432 KEY 6.35×32 8015003 SPACER 25.5×19.5×5 8115004 SPRING PART DESCRIPTION NO NUMBER REQ'D 9050018 %586+  9040017 3$' '5,9(5  9000001 BIG MOUTH * ONLY FOR I18B ICE I18B/I18C...
  • Page 26 ICE I18B/I18C...
  • Page 27 SQUEEGEE SUPPORT 1123115 SELFLOCKING NUTS M12 8017010 SQUEEGEE BRACKET 8117006 CUSHION 8115005 SPACER 16×12×6.5 8017002 SPRING 1644248 PIN 12×48 1645324 COTTER PIN 8017024 SUPPORTING PIPE 8017020 SQUEEGEE HOLDER 1221550 PH SCREW M5×50 8017005 BUSHING 1123507 SELF-LOCKING NUT M5 ICE I18B/I18C...
  • Page 28 HOSE CLAMP 8119100 WATER FILTER 8018002 HOSE 8013007 JOINT 8018006 BALL VALVE 8013006 90º JOINT 8119101 FILTER BODY 1622765 O RING 8119103 FILTER SCREEN 8119102 FILTER COVER 1421409 PLAIN WASHER 4×9×0.8,SS 1221412 PH SCREW M4×12, SS * FOR I18B ICE I18B/I18C...
  • Page 29 ICE I18B/I18C...
  • Page 30 REAR SQUEEGEE 8118002 REAR SQUEEGEE, PU (OPTIONAL) 8118012 REAR SQUEEGEE, CR (OPTIONAL) 8118021 FRONT SQUEEGEE, LINATEX 8118001 FRONT SQUEEGEE, PU (OPTIONAL) 8118011 FRONT SQUEEGEE, CR (OPTIONAL) 8118005 SQUEEGEE HOLDER 8118200 BRACKET,LEFT 1421816 PLAIN WASHER 8×16×1.6,SS 1123810 SELFLOCKING NUT M8 ICE I18B/I18C...
  • Page 31 8115200 8116009 8118022 8118021 9040017 9050018 ICE I18B/I18C...

  • Page 32: Wiring Diagram

    OPERATOR MANUAL WIRING DIAGRAM I18B ICE I18B/I18C...
  • Page 33 OPERATOR MANUAL WIRING DIAGRAM I18C ICE I18B/I18C...
