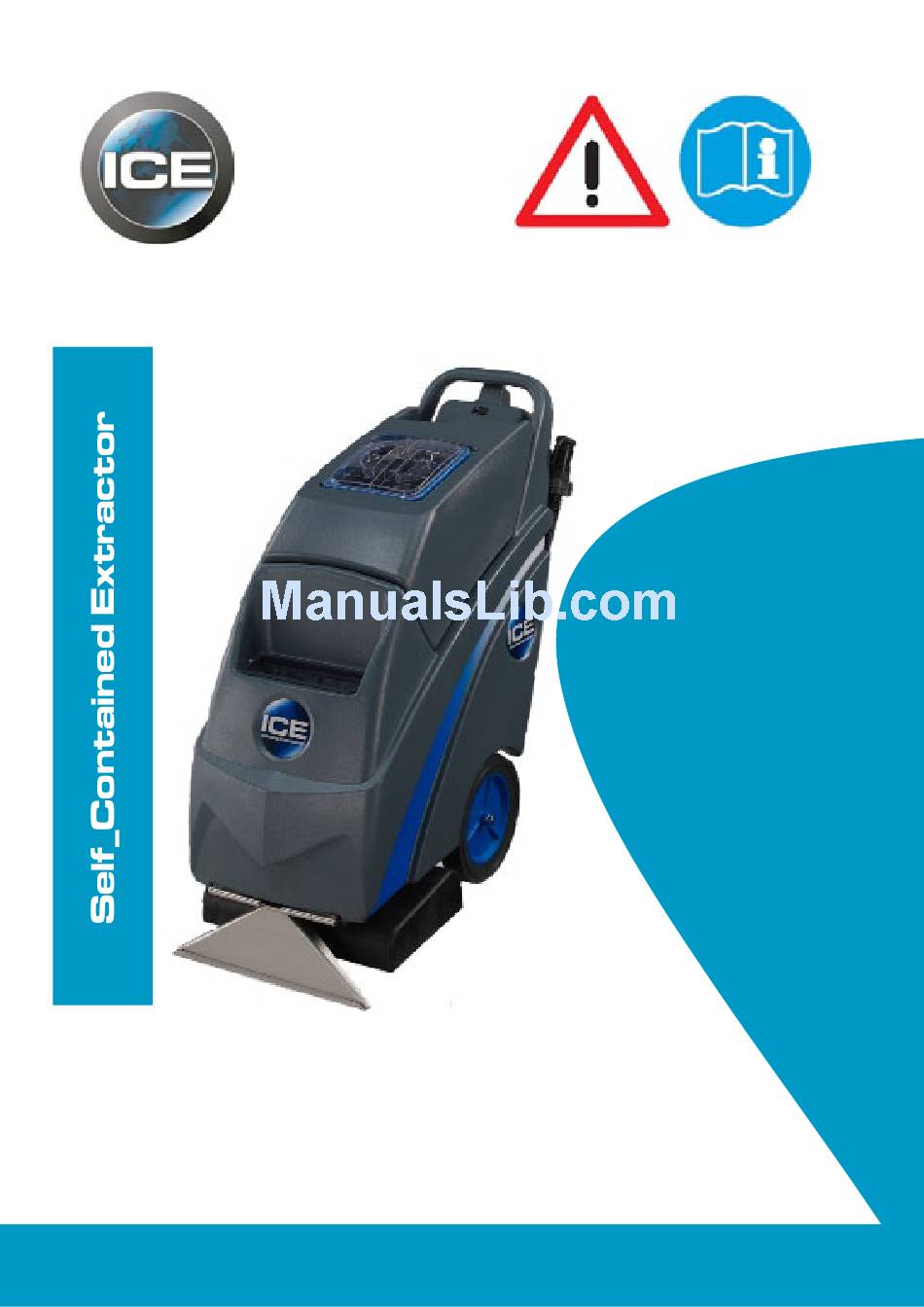

- Page 1 Operator & Parts Manual iE410 6210149U REV.05(11-2016) INTERNATIONAL CLEANING EQUIPMENT...
-
Page 2: Table Of Contents
WEAR & TEAR PARTS ........22 ICE iE410... -
Page 3: Safety Precaution
– Use manufacturer supplied or approved replacement parts. To avoid electrical shock,please replace the power cord immediately if any damage is being detected. The replacement must be performed only by an authorized person or by our customer service center. ICE iE410... -
Page 4: M A C H I N E S E T- U P
Read operators manual thoroughly prior to operating or servicing this machine!!! Carefully check the shipping carton for signs of damage. Report any carton damage to carrier immediately. Check carton contents to ensure carton is complete. Contact your ICE distributor if anything is missing. Contents: - Carpet Extractor - 50’... -
Page 5: Draining Tanks
1. Turn off machine, unplug and remove power cable. 2. Unhook drain hose off the back of the machine and remove drain hose stopper. 3. Drain dirty solution into floor drain. 4. Replace drain hose stopper and reattach hose to back of machine. ICE iE410... -
Page 6: Machine Maintenance & Storage
3. Remove recovery tank clear lid to allow for air circulation. If you are storing the machine in an area which can freeze, be sure both tanks and the solution plumbing are empty of all water and dry! ICE iE410... -
Page 7: Basic Troubleshooting
Plug into a grounded outlet work Faulty power cable Contact ICE Distributor Faulty extension power cable R e p l a c e w i t h n e w e x t e n s i o n power cable... -

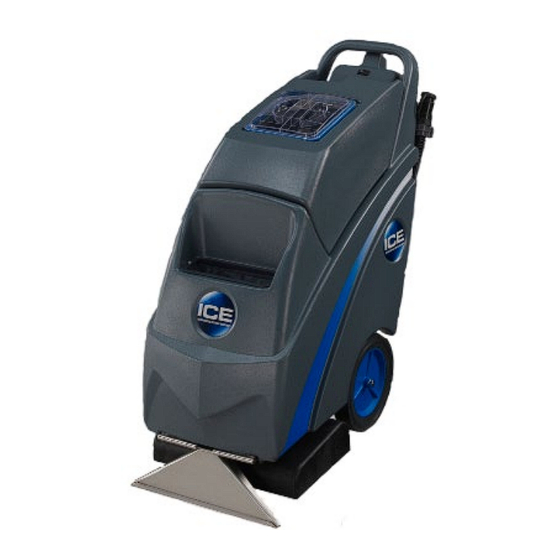

Page 8: Machine Components
2. Brush circuit breaker 3. Brush/spray ON/OFF switch 4. Drain hose 5. Accessory tool solution hookup 6. Brush raise and lower foot pedal 7. Spray jets 8. Brush assembly 9. Pickup head 10. Solution tank fill port 11. Clear dome ICE iE410... - Page 9 OPERATOR ICE iE410...
-
Page 10: Parts List
6210518 Power Cord 6210505 Elbow Corrugated Tubing Fitting 6210506 Corrugated Tubing 6210136 Barb, Right Angle 6210135 Tubing 6180163 Barb, Hose 6180126 Nut, Coupling 6120667 Washer, Lock, Internal Toooth 6160509 Gasket, Solution, Intake 6120276 Washer, Plain 6180125 Coupling 6110411 Strainer, Line ICE iE410... -
Page 11: Parts List
OPERATOR PARTS LIST PART DESCRIPTION NUMBER REQ'D 1962025 Clamp(16-25) 4010316 Logo 6210101 Solution Tank 6210107 Filter 1321310 Screw, ST4.8X9.5 6210102 Recovery Tank 8111015 Float, Shut-off 2320220 Bend 8014043 Cord Wrap 6210519U Power Cord 6210508 Circuit Breaker, 17A ICE iE410... - Page 12 OPERATOR ICE iE410...
- Page 13 6210105 Spacer 1222515 Screw, FH, M5X15, SST 6160406 Hinger,SST 4" 1222520 Screw,FH,SST, M5X20 1221616 Screw,SST,PH,M6X16 1962050 Clamp, Hose 2" 1421515 Washer,SST,PLAIN,Ø5XØ15X1 1422513 Washer, Lock, Ø5 1121505 Nut,SST,M5 6210140 Carpet Pick-up Tool 6210407 Spring 6210400U Mounting Base Assy, Brush ICE iE410...
- Page 14 1221515 Screw, RHM, M5X15, SST 1123507 Nut, Lock, SST, M5 2320209 Foot Step 1021625 Screw, RHM, M6X25, SST 6160113 Washer, Wheel, AL 2320228 Wheel, 10" 1113304 Kep nuts, M4 1221530 Screw,RHM,M5X30,SST 6210200 Bottom Plate Assy 6210505 Elbow Corrugated Tubing Fitting 1221616 Screw,SST,PH,M6X16(NYLOCK) ICE iE410...
- Page 15 OPERATOR ICE iE410...
- Page 16 6210415 Driven Pulley 6210402 Belt 6210432 Driving Pulley 6210426 Caps,Nozzle Bodies 6180574 Tip-Nozzle, Spray,SST 110 6210425 Adapters 6210436 Mounting Bracket,Motor 1421617 Washer,SST,Plain,Ø6XØ16X1.5 1422616 Washer, Lock, Ø6 1121605 Nut,SST,M6 2320403 Strain Relief 6210408 Power Cord 6160515 Gasket 6210410 Brush Assembly ICE iE410...
- Page 17 OPERATOR ICE iE410...
- Page 18 1421816 Washer, Plain, Ø8XØ16.5X1 6160531 Gasket 6180159 Nozzle, Spray Tip, 80º 6180105 Bushing, Brass 6180115 Elbow, Street, 45 Degrees 6110933 Trigger Valve 6180128 Barb, Hose 1962016 Clamp, Hose 3/8” 6185317 Solution Hose, 3/8” 6180241 Barb, Hose Mail Plug ICE iE410...
- Page 19 OPERATOR ICE iE410...
- Page 20 6160215 Cuff 1 1/2” 6210703 Hose, Vacuum 1914300 Tie, Cable 6180241 Hose Barb/Mail Plug, SST 1962016 Clamp, Hose, SST 3/8” 6210704 Hose, Solution,16”L 6180128 Hose Barb 6180208 Couple, Quick Connect 6210703A Vacuum Hose Assembly 6210704A Solution Hose Assembly ICE iE410...
-
Page 21: Specifications
Power 1680W Current Frequency 60Hz Solution Capacitor 10Gallon Recovery Capacitor 8Gallon Vacuum Motor 1200W Vacuum 3000mmH2O(120") Flow rate 2940L/Min(100CFM) Pump 100 P.S.I Brush Motor 150W Cleaning Path 16"(41CM) 1/5P 1400RPM Length of Power cord Weight 43KG Dimensions 92.9cm(L)X41.2cm(W)X89.5cm(H) ICE iE410... -
Page 22: Wiring Diagram
OPERATOR Wiring Diagram iE410 ICE iE410... -
Page 23: Wear &Tear Parts
OPERATOR WEAR &TEAR PARTS PART DESCRIPTION NUMBER REQ'D 2320228 Wheel, 10" 6210412 Brush 6210402 Belt ICE iE410...
