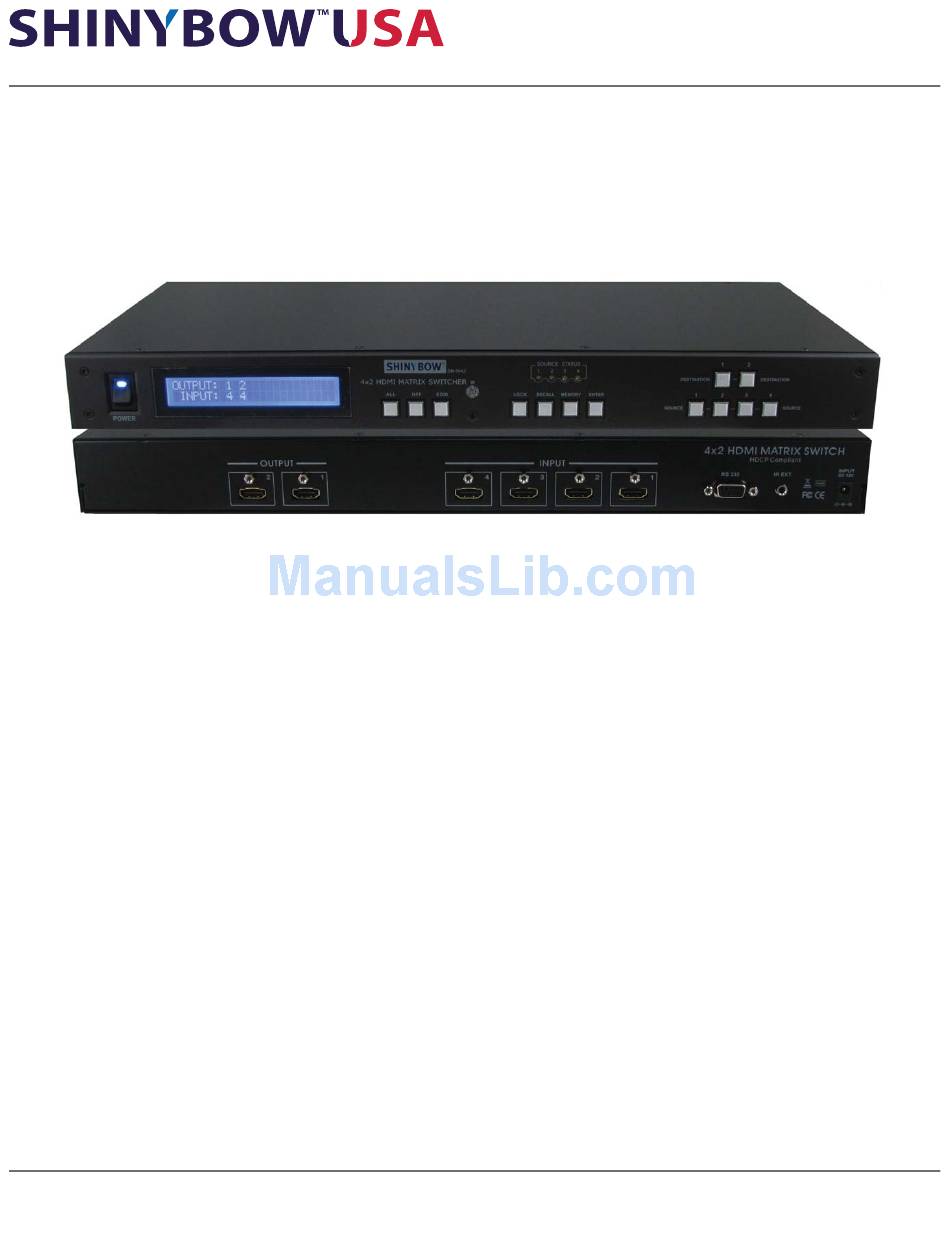

INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-5645LCM

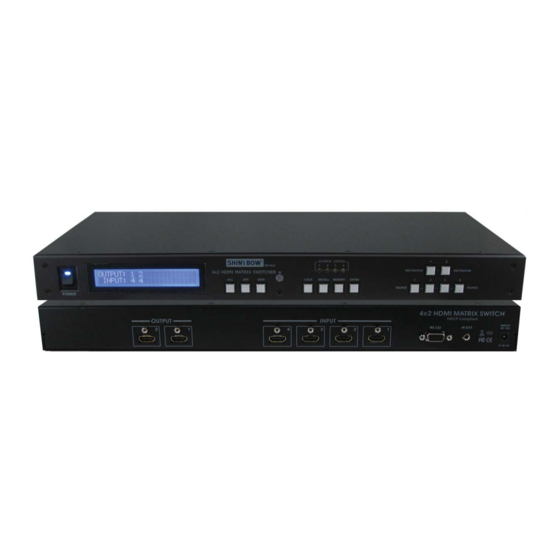

4x4 HDMI MATRIX SWITCHER
4x4 HDMI MATRIX SWITCHER
HDMI Matrix Switcher Series
Thank you for purchasing the SB-5645LCM 4x4 HDMI Matrix Switcher. You will fi nd this unit easy to install and
highly reliable but it is essential that you read this manual thoroughly before attempting to use 4x4 HDMI Matrix
switcher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-5645LCM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Shinybow USA SB-5645LCM

  • Page 1 HDMI Matrix Switcher Series Thank you for purchasing the SB-5645LCM 4x4 HDMI Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 4x4 HDMI Matrix...
  • Page 2: Safety Information

    SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
  • Page 3: Table Of Contents

    The SB-5645LCM is our next-generation 4x4 HDMI Matrix Routing Switch, designed for multiple sources and displays. There are four We assume no responsibility for any inaccuracies that may be (4) HDMI connections for inputs and four (4) HDMI connections for contained in this document.
  • Page 4: Features & Contents

    The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be invoked. PACKAGE CONTENTS Check that you have the following components; • SB-5645LCM Matrix Routing Switcher • Wireless Remote Control with batteries • Rack Mount Kit •...
  • Page 5: Specifications

    SPECIFICATIONS SPECIFICATIONS • Type of Switcher: 4x HDMI inputs To 4x HDMI Outputs Matrix Switcher • HDMI Support: HD 1080p-@60Hz, H36-bit Deep color, 3D (1.4a) formats • HDCP / CEC Support: HDCP 2.0 Compliant, CEC Compliant • Video Bandwidth: Double Data Rates: 225Mhz, Total 6.75Gbps bandwidth •...
  • Page 6: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER SWITCH The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be evoked. 2.
  • Page 7 FRONT PANEL FRONT PANEL 9. FUNCTION KEY - OFF Disables (mute) video to selected channels. Either destinations. - Press OFF button followed by any Destination channel. - Press 1 thru 2 output destination. The display will show “ 0 “ for the selected channel indicating no video selected. 10.
  • Page 8 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY The system will show store presets, up to a total of 6. Presets are stored in local memory using Source keys 1 thru 4 or Destination keys 1 thru 2 as the memory preset location. - Confi...
  • Page 9: Rear Panel

    REAR PANEL REAR PANEL 1. DC POWER INLET The Switcher is fi tted with a DC power plug input connector. Ensure Power Jack: DC Jack - Inner OD ᴓ 2.1mm (+ ) that the used is of an approved type and is of suffi cientcurrent carrying Outside OD ᴓ...
  • Page 10: Remote Control

    REMOTE CONTROL Before making any connections to the SB-5645LCM. Observe the following: > Ensure the mains voltage supply matches the label on the > Connect all audio video sources and destination equipment supplied plug- Pack (+/- 10%) > Power up all source and destination audio-visual sources >...
  • Page 11 REMOTE CONTROL IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES CUSTOM CODE : 1CE3 DATA CODE : POWER ON : 1CE3 A15E POWER OFF : 1CE3 A25D : 1CE3 B04F : 1CE3 B14E EDID : 1CE3 B748 LOCK : 1CE3 B54A RECALL...
  • Page 12: Rs-232 Serial Interface

    RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0.1 RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used Ground -------- Not used -------- Not used -------- Not used -------- Not used RS-232 PROTOCOL COMMANDS ( RS-232 Control driver V2.0.1 ) The Shinybow switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control...
  • Page 13: Edid Functions

    EDID FUNCTION EDID FUNCTION SETUP EDID Setup To change the EDID setup Step 1 . Press the EDID button The display will show the currently selected EDID mode Step 2 . Press SOURCE #1 or #2 button row The button will fl ash blue and the display will show the current Embedded EDID Status.
  • Page 14: Edid Function

    EDID FUNCTION Mode 6. H36-3D (1080p-36 bits) Audio Support : PCM 2CH Mode 7. H36-3D-M (1080p-36bits) Audio Support : MAT(MLP) 7.1CH, PCM 2CH, One Bit Audio 2CH, AC-3 5.1CH, DTS 5.1CH, PCM 7.1CH, Dolby Digital + 7.1CH, DTS-HD 7.1CH Mode 8. AUTO <Default> All Outputs will be set to the highest common resolution of all connected display devices.
  • Page 15 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER Learning EDID Single to Single Example : Learn Destination #2 EDID To Source #3. Step 1 . Press EDID button The button will fl ash blue and the display will show the current Embedded EDID Status. Step 2 .
  • Page 16: Typical Application

    TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receiver (SB-100) with SB-6335T & SB-6335R to control a projector. NOTE: 1. Control Projector Over CAT5e/6/7 Extender: SB-6335T HDMI CAT5e/6/7 Transmitter SB-6335R HDMI CAT5e/6/7 Receiver 2. Preview Output : Picture as same OUTPUT-1 3.
  • Page 17 TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receivers (SB-100) with SB-6335T and SB-6335R to control a Satellite Receiver. NOTE : 1. Control Satellite Receiver Over HDMI CAT5e/6/7 Extender from room: SB-6335T HDMI CAT5e/6/7 Transmitter SB-6335R HDMI CAT5e/6/7 Receiver 2.
  • Page 18: Ir Extender

    IR EXTENDER IR RECEIVER: 1. SB-100 IR 300M Receiver Device Cable (3C) IR Receiver (SB-100) R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . SB-100 SB-100 IR Receiver Set SB-100 Maximum Distance ~ 984 feet (300 meters) 2.
  • Page 19 IR EXTENDER IR EMITTER: 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300 meters) 2.
  • Page 20: Limited Warranty

    LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
  • Page 21 M ULT IM EDI A AUDIO AN D V IS UA L 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
