Instruction Manual
MODEL : SB-5642
4x2 HDMI MATRIX SWITCHER
HDMI Matrix Switcher Series
Thank you for purchasing the SB-5642 4x2 HDMI Matrix Switcher. You will find this unit easy to
install and highly reliable but it is essential that you read this manual throughly before attempting
to use 4x2 HDMI Matrix switcher.
Part No.: ENCL005642000A0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5642
Summary of Contents for Shinybow USA SB-5642
- Page 1 4x2 HDMI MATRIX SWITCHER HDMI Matrix Switcher Series Thank you for purchasing the SB-5642 4x2 HDMI Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use 4x2 HDMI Matrix switcher.
-
Page 2: Safety Information
SAFETY INFORMATION WARNING! CAUTION RISK OF ELECTRIC SHOCK TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. This symbol is intended to alert the user to the presence of uninsulated of uninsulated “dangerous voltage”... -
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION AND FEATURES SPECIFICATIONS EDID SETUP EDID LEARNING EDID FUNCTIONS CEC SETUP FRONT PANEL FRONT PANEL - CONTROL FUNCTIONS REAR PANEL TYPICAL APPLICATION- IR to Room TYPICAL APPLICATION- IR from Room IR EXTENDER REMOTE CONTROL REMOTE CONTROL - DATA CODE LIST RS-232 SERIAL INTERFACE PAGE 3... -
Page 4: Introduction And Features

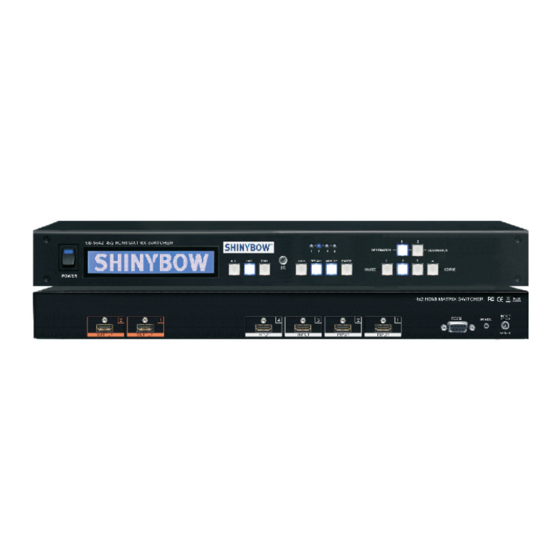

INTRODUCTION AND PACKAGE CONTENTS INTRODUCTION The SB-5642 is high-performance 4x2 matrix routing switcher for HDMI signals. This switcher supports data rates up to 6.75 Gbps, enabling 1080p HDMI formats and UXGA/WUXGA/DVI resolution to any HD display. High Definition Digital signals can be selected and distributed to any 2 outputs simultaneously. -
Page 5: Specifications
Power Consumption 2150 mA Maximum Safety Approvals CE, FCC, RoHS (2002/95/EC). Product Weight 1.55 Kgs / 2.58 lb As product improvement is continuous, specifications are subject to change and without notice or liability. PAGE 5 SB-5642 INSTRUCTION & OPERATION MANUAL... -
Page 6: Edid Setup
MAT(MLP) 7.1CH, PCM 2CH, One Bit Audio 2CH, AC-3 5.1CH, DTS 5.1CH, PCM 7.1CH, Dolby Digital + 7.1CH, DTS-HD 7.1CH Mode 8 . AUTO <Default> All Outputs will be set to the highest common resolution of all connected display devices. PAGE 6 SB-5642 INSTRUCTION & OPERATION MANUAL... -
Page 7: Edid Learning
Learning anyone 1~2 Destination EDID to all sources. Press destination button 1 thru 2 Press ALL button Learning selected destination EDID to all sources. Step 3 . To confirm entries. Step 4 . Press ENTER button PAGE 7 SB-5642 INSTRUCTION & OPERATION MANUAL... - Page 8 Destination device #1 will set to the highest common resolution and Audio of source #1 Example for multiple sources Destination device #1, #2 will be set to the highest common resolution and Audio available and source device #1 will output this same resolution. PAGE 8 SB-5642 INSTRUCTION & OPERATION MANUAL...
-
Page 9: Cec Setup
The pre-set configuration will execute. Not all device support CEC. Check with your Users Guide for additional information and specifications. To ensure stable operation, HDMI connections should only be made with switcher powered OFF. PAGE 9 SB-5642 INSTRUCTION & OPERATION MANUAL... -
Page 10: Front Panel
- Press ALL followed by OFF button. The display will show " 0 " indicating all destinations have no video selected. Option 2 - Press ALL followed by Source 1 thru 4. The display will show the Source selected. - Press ENTER The pre-set source selection will be assigned all destinations. PAGE 10 SB-5642 INSTRUCTION & OPERATION MANUAL... -
Page 11: Front Panel - Control Functions
- press EDID to select new EDID mode or select source row #1 or #2 for LINK source EDID again. 19 INCH EAR MOUNT PAIR Converts desktop to 19 inch rack mount. Bracket (part # 1U-440L) INCLUDED. Image shows rack mount bracket attached. PAGE 11 SB-5642 INSTRUCTION & OPERATION MANUAL... -
Page 12: Rear Panel
DVI digital video sources. With the proper adapters, the switcher HDMI Digital Video/Audio, Connector with fix screw can be used with DVI digital video signals Output 1 ~ Output 2 HDCP compliant. PAGE 12 SB-5642 INSTRUCTION & OPERATION MANUAL... -
Page 13: Typical Application- Ir To Room
Extender-Transmitter Blu-ray CAT5 out SB-100 IR in IR-Receiver SB-100 IR-Receiver IR Extender Cable SB-5688 IR PC RS232 Control Projector Remote Control Support HDBaseT Extender by SB-6335 Transmitter and SB-6335R Receiver via CAT5e/6/7 cable SB-5642 INSTRUCTION & OPERATION MANUAL PAGE 13... -
Page 14: Typical Application- Ir From Room
A R C T ARC Control Box SB-101 H D M I D I S P L IR Signal from Satellite Receiver Remote Control Support HDBaseT Extender by SB-6335 Transmitter and SB-6335R Receiver via CAT5e/6/7 cable PAGE 14 SB-5642 INSTRUCTION & OPERATION MANUAL... -
Page 15: Ir Extender
Tip Ring Tip:Signal Ring:VCC Sleeve:GND Sleeve Tip (center) Step 2 Step 3 Signal Cable Signal Cable Switcher IR EXT. In RoHS/95/EC INPUT DC 12V IR Receiver (SB-100) RS - 232 IR EXT. Cable PAGE 15 SB-5642 INSTRUCTION & OPERATION MANUAL... -
Page 16: Remote Control
2 Mode 2 : H24-3D 3 Mode 3 : H24M-3D 4 Mode 4 : H36 5 Mode 5 : H36M 6 Mode 6 : H36-3D 7 Mode 7 : H36M-3D 8 Mode 8 : AUTO PAGE 16 SB-5642 INSTRUCTION & OPERATION MANUAL... -
Page 17: Remote Control - Data Code List
Mode 4 : H36 : 1BE4 E31C Mode 5 : H36M : 1BE4 E41B Mode 6 : H36-3D : 1BE4 E51A Mode 7 : H36M-3D : 1BE4 E619 Mode 8 : AUTO : 1BE4 E718 PAGE 17 SB-5642 INSTRUCTION & OPERATION MANUAL... -
Page 18: Rs-232 Serial Interface
The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. When the unit recognises a complete command it will perform the requested action - there is no delimiter character required. 0 = the number O = the letter PAGE 18 SB-5642 INSTRUCTION & OPERATION MANUAL... -
Page 19: Limited Warranty
LIMITED WARRANTY LIMITED WARRANTY SHINYBOW WARRANTY SHINYBOW Technology warrants this product against defects in materials and workman ship for a period of 3 years from the date of purchase. Should this product, in SHINYBOW Technology's opinion, Prove defective within this warranty period, SHINYBOW Technology, at its option, will repair this product without charge, to whatever extent it shall deem necessary to restore said product to proper operation condition. - Page 20 M U L T I M E D I A A U D I O A N D V I S U A L www. shinybowUSA. com...
