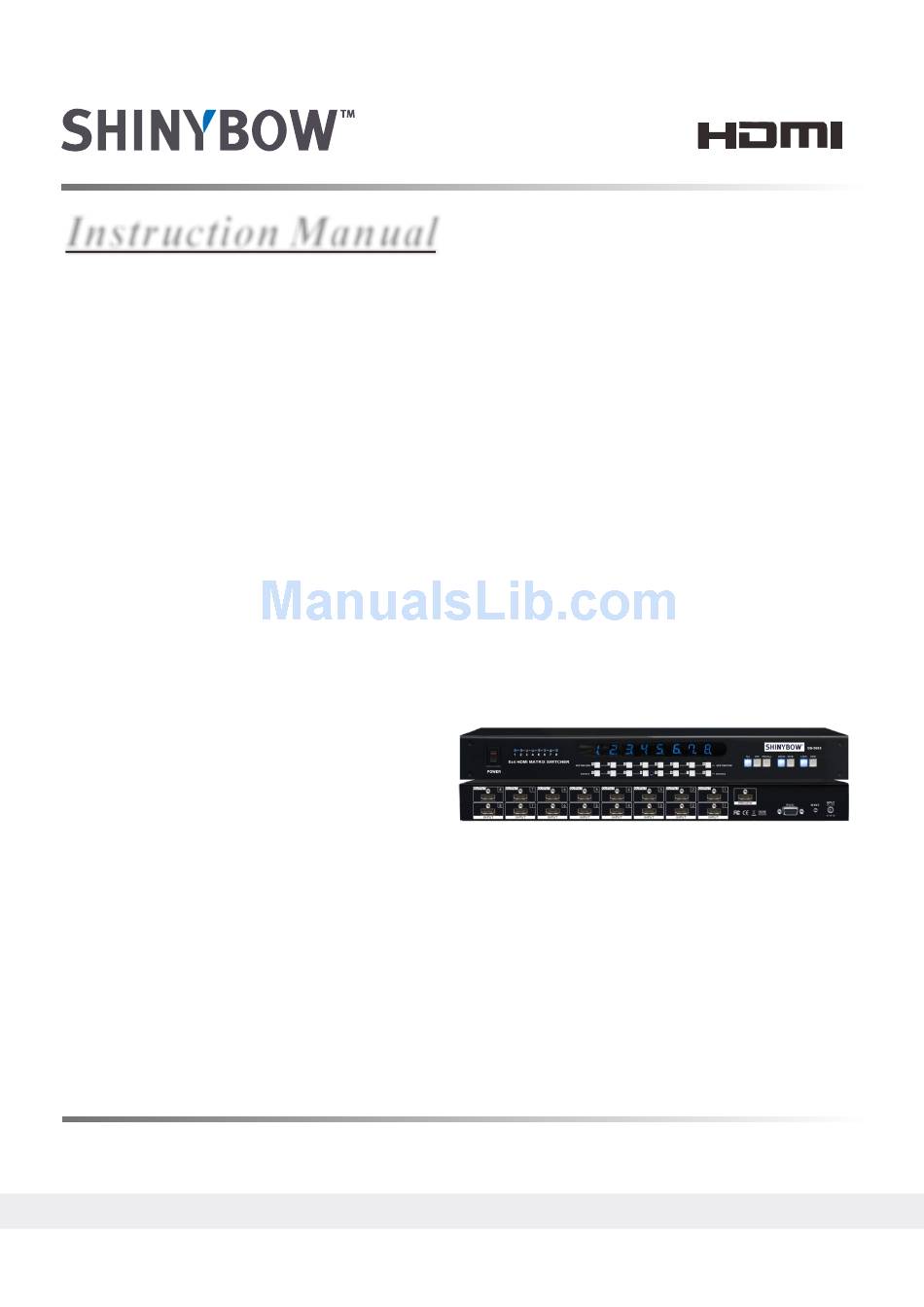

Instruction Manual
HIGH-DEFINITION MULTIMEDIA INTERFACE
M U L T I M E D I A A U D I O A N D V I S U A L
Instruction Manual
MODEL : SB-5645

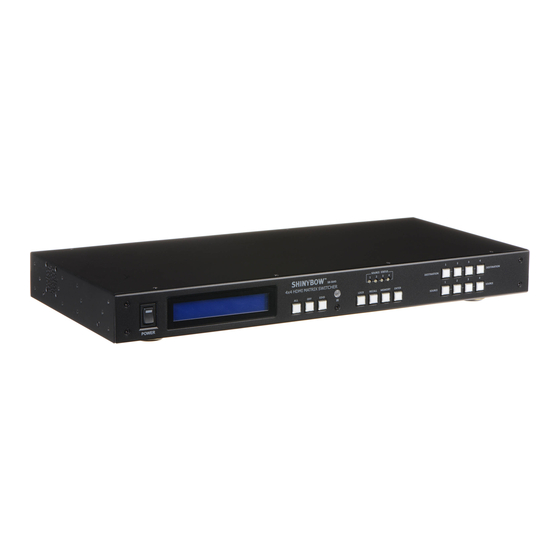

4x4 HDMI Matrix Switcher
HDMI Matrix Switcher Series
Thank you for purchasing the SB-5645 HDMI Matrix Switcher. You will find this unit easy to install
and highly reliable but it is essential that you read this manual throughly before attempting to
use 4x4 HDMI Matrix switcher.
Part No.: ENCL005645000A1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5645
Summary of Contents for Shinybow USA SB-5645
- Page 1 4x4 HDMI Matrix Switcher HDMI Matrix Switcher Series Thank you for purchasing the SB-5645 HDMI Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use 4x4 HDMI Matrix switcher.
- Page 2 SAFETY INFORMATION Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit, use only the original factory packing. Read all documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation.
-
Page 3: Table Of Contents
8. Power Supply 12VDC, 3A Universal Type 50/60Hz, 100~230 VAC The SB-5645 is high-performance 4x4 matrix routing switcher for HDMI signals This switcher supports data rates up to 6.75 Gbps, enabling 1080p HDMI formats and UXGA/WUXGA/DVI resolution to any HD display. -
Page 4: Specifications
DC12V / 3A (consumption 2580mA Maximum) Universal world wide Type 50/60Hz, 100~230 VAC 14 Product Weight : 2.50 Kg / 5.51 lb As product improvement is continuous, specifications are subject to change and without notice or liability. PAGE 4 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 5: Edid Functions
Step 1 . Press EDID button, the button will flash blue and the display will show the current EDID Status. Step 2 . Press Output button 1 thru 4 destination row on the affected display. PAGE 5 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 6: Front Panel
- Press ALL followed by OFF button. The display will show " 0 " indicating all destinations have no video selected. Option 2 - Press ALL followed by Source 1 thru 4. The display will show the Source selected. - Press PLAY The pre-set source selection will be assigned all destinations. PAGE 6 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 8: Rear Panel
DVI digital video sources. With the proper adapters, the switcher HDMI Digital Video/Audio, Connector with fix screw can be used with DVI digital video signals Output 1 ~ Output 4 HDCP compliant. PAGE 8 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 9: Typical Application
2. HDMI (HDCP Compliant) 3. HDMI (HDCP Compliant) 4. HDMI (HDCP Compliant) DC POWER INPUT : SUPPORT DC12V POWER INPUT SB-5645 SUPPORT EIGHT HDMI INPUTS TO EIGHT HDMI MATRIX OUTPUTS SUPPORT IR EXTENDER & RS232 CONTROLS. PAGE 9 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 10: Remote Control
- function selection button - function selection button EDID - function selection button LOCK - function selection button ENTER - function selection button MEMORY - function selection button RECALL - function selection button PAGE 10 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 11: Remote Control - Data Code List
S O U R C E # 3 : 5 6 4 5 4 3 B C S O U R C E # 4 : 5 6 4 5 4 4 B B PAGE 11 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 12: Ir Extender
*** When you plug the External IR extender into the switcher, the front panel IR receiver remains active. *** IR EXTENDER PACKAGE : HOW TO SETUP THE IR EXTENDER COMPONENTS Step 1 Step 2 Step 3 PAGE 12 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 13: Rs-232 Serial Interface
Input Number (1-8) Unit will respond with SBUD0XOY - Where X is Output Number (1-8) and Y is Input Number (1-8) Example : Send Input 4 to Output 3 SBI04O03 -Send SBUD04O3 -Rcvd PAGE 13 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 14: Rs-232 Serial Commands
- Reset every output to Input 1 Unit will respond with SBRSTACK - Unit has reset each Output to Input 1 Example : Reset all outputs to Input 1 SBALLRST -Send SBRSTACK -Rcvd PAGE 14 SB-5645 INSTALLATION & OPERATION MANUAL... - Page 15 Replace any cable exhibiting these problem. You also must use the highest quality cables if you want to achieve the best results. Poor quality cables provide will poor quality signals. PAGE 15 SB-5645 INSTRUCTION & OPERATION MANUAL...
- Page 16 M U L T I M E D I A A U D I O A N D V I S U A L w w w . s h i n y b o w . c o m...
