Summary of Contents for IEI Technology AFL3-W15C
- Page 1 AFL3-W15C/W19C-ULT3 Panel PC MODEL: AFL3-W15C/W19C-ULT3 Flat Bezel Panel PC with Intel® Core™ i5-6300U / Celeron® 3955U CPU, Touchscreen, Four USB 3.0, Dual GbE LAN, RS-232/422/485, HD Audio, Wi-Fi 802.11a/b/g/n/ac and RoHS User Manual User Manual Page I Rev. 1.00 - November 1, 2016...
- Page 2 AFL3-W15C/W19C-ULT3 Panel PC Revision Date Version Changes November 1, 2016 1.00 Initial release Page II...
-
Page 3: Safety Instructions
AFL3-W15C/W19C-ULT3 Panel PC Safety Instructions Warning! Read the user manual before connecting the system to the power source. Vorsicht! Bitte lesen Sie die Bedienungsanleitung, bevor Sie das System an eine Stromquelle anschließen. Attention! Avant de brancher le système à la source d'alimentation, consultez le mode d'emploi. - Page 4 AFL3-W15C/W19C-ULT3 Panel PC Warning! Use only the adapter and power cord approved for this system. Use of another type of adapter may risk fire or explosion. Please refer to the user manual for the power adapter specifications. Vorsicht! Nur zugelassene Netzteile und Netzkabel dürfen verwendet werden. Die Benutzung von anderen Netzteilen kann einen Brand oder eine Explosion zur Folge haben.
- Page 5 AFL3-W15C/W19C-ULT3 Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
- Page 6 AFL3-W15C/W19C-ULT3 Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.
-
Page 7: Table Of Contents
1.6 R ....................... 6 ANEL 1.7 S .................... 7 YSTEM PECIFICATIONS 1.8 D ......................10 IMENSIONS 1.8.1 AFL3-W15C-ULT3 Dimensions............... 10 1.8.2 AFL3-W19C-ULT3 Dimensions................11 2 UNPACKING ....................... 12 2.1 U ......................13 NPACKING 2.2 P ......................13 ACKING 2.3 O ...................... 15... - Page 8 AFL3-W15C/W19C-ULT3 Panel PC 3.11.2 ATX Power Mode ................... 32 3.12 M ..................33 OUNTING THE YSTEM 3.12.1 Wall Mounting....................33 3.12.2 Panel Mounting....................36 3.12.3 Cabinet and Rack Installation ............... 40 3.12.4 Arm Mounting ....................43 3.12.5 Stand Mounting ....................45 3.13 P...
- Page 9 AFL3-W15C/W19C-ULT3 Panel PC 4.3.8 USB Configuration................... 70 4.3.9 IEI Feature ....................... 71 4.4 C ........................72 HIPSET 4.4.1 System Agent (SA) Configuration ..............72 4.4.1.1 Graphics Configuration................73 4.4.1.1.1 LCD Control ..................75 4.4.1.2 Memory Configuration ................76 4.4.2 PCH-IO Configuration ..................76 4.4.2.1 PCI Express Configuration ...............
- Page 10 AFL3-W15C/W19C-ULT3 Panel PC 6.2.13 Power Button Connector (PW_BTN1)............98 6.2.14 Power LED Connector (PW_LED1).............. 98 6.2.15 RS-232 Serial Port Connector (COM3)............98 6.2.16 RS-232 Serial Port Connector (COM4)............99 6.2.17 SATA Connector (SATA1)................99 6.2.18 SPI Flash Connector (JSPI1)................. 99 6.2.19 Touch Panel Connector (TS1)..............
- Page 11 AFL3-W15C/W19C-ULT3 Panel PC B.2.2 Cleaning Tools ....................118 C BIOS MENU OPTIONS................... 120 D WATCHDOG TIMER ....................123 E HAZARDOUS MATERIALS DISCLOSURE ............126 Page XI...
- Page 12 AFL3-W15C/W19C-ULT3 Panel PC List of Figures Figure 1-1: AFL3-W15C/W19C-ULT3 Flat Bezel Panel PC ............2 Figure 1-2: Front View ........................4 Figure 1-3: AFL3-W15C-ULT3 Bottom Panel ................5 Figure 1-4: AFL3-W19C-ULT3 Bottom Panel ................5 Figure 1-5: AFL3-W19C-ULT3 Rear View ..................6 Figure 1-6: AFL3-W15C-ULT3 Dimensions (mm) ..............10 Figure 1-7: AFL3-W19C-ULT3 Dimensions (mm) ..............11...
- Page 13 AFL3-W15C/W19C-ULT3 Panel PC Figure 3-25: AFL3-W19C-ULT3 Cutout Dimensions..............37 Figure 3-26: Panel Mounting Kit Installation ................38 Figure 3-27: Securing Panel Mounting Brackets...............39 Figure 3-28: Rack Mounting Kit Installation ................41 Figure 3-29: Securing Rack Mounting Brackets................42 Figure 3-30: Install into a Rack/Cabinet ..................42 Figure 3-31: Arm Mounting Retention Screw Holes..............44...
- Page 14 AFL3-W15C/W19C-ULT3 Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: System Specifications....................9 Table 3-1: COM1 Pin 9 Setting Jumper Settings (JP5) .............29 Table 3-2: COM2 Pin 9 Setting Jumper Settings (JP4) .............29 Table 3-3: RS-232422/485 Selection Jumper Settings (COM1_SEL1) ........30 Table 3-4: RS-232/422/485 Selection Jumper Settings (JP3) ...........30...
- Page 15 AFL3-W15C/W19C-ULT3 Panel PC Table 6-25: USB Connector (RFID_USB1) Pinouts ..............101 Table 6-26: USB Connector (TOUCH_USB1) Pinouts ............102 Table 6-27: USB 2.0 Connector (USB20_CN1) Pinouts............102 Table 6-28: USB Power Connector (USB_PWR1) Pinouts............. 102 Table 6-29: Rear Panel Connectors ..................103 Table 6-30: Ethernet Connectors (LAN2 &...
- Page 16 AFL3-W15C/W19C-ULT3 Panel PC List of BIOS Menus BIOS Menu 1: Main ........................52 BIOS Menu 2: Advanced ......................53 BIOS Menu 3: ACPI Settings .......................54 BIOS Menu 4: F81866 Super IO Configuration ................55 BIOS Menu 5: Serial Port n Configuration .................55 BIOS Menu 6: F81866 H/W Monitor.....................60 BIOS Menu 7: RTC Wake Settings ....................61...
-
Page 17: Introduction
AFL3-W15C/W19C-ULT3 Panel PC Chapter Introduction Page 1... -
Page 18: Overview

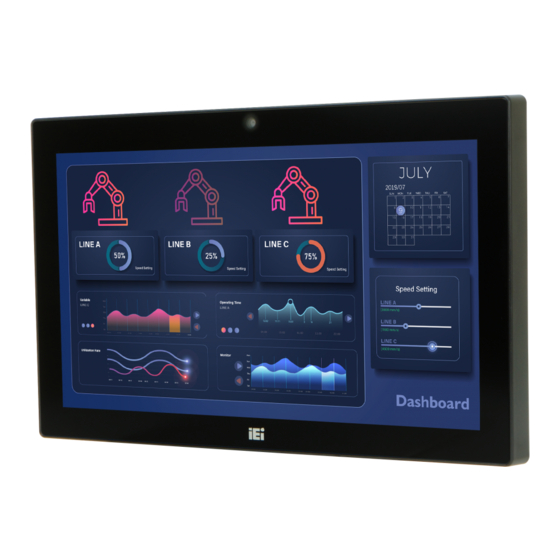

AFL3-W15C/W19C-ULT3 Panel PC 1.1 Overview Figure 1-1: AFL3-W15C/W19C-ULT3 Flat Bezel Panel PC ® ® The AFL3-W15C/W19C-ULT3 series is a quad-core Intel Core™ i5-6300U or Intel ® Celeron 3955U powered flat bezel touchscreen panel PC with a rich variety of functions and peripherals. -
Page 19: Model Variations
AFL3-W15C/W19C-ULT3 Panel PC 1.2 Model Variations There are several models in the AFL3-W15C/W19C-ULT3 series. The model numbers and model variations are listed below. Model Size Processor Touchscreen ® ® AFL3-W15C-ULT3-C/R/4G 15.6” Intel Celeron 3955U 5-wire resistive type ® ® 15.6”... -
Page 20: Front Panel
IP 64 compliant front panel 1.4 Front Panel The front side of the AFL3-W15C/W19C-ULT3 is a flat-bezel panel with a TFT LCD screen surrounded by a PC/ABS plastic frame (Figure 1-2). Figure 1-2: Front View There is a power LED indicator located on the front panel. The status descriptions of the power LED indicator are listed below. -
Page 21: Bottom Panel
AFL3-W15C/W19C-ULT3 Panel PC 1.5 Bottom Panel The bottom panel of the AFL3-W15C/W19C-ULT3 has the following connectors and switches (Figure 1-4). Figure 1-3: AFL3-W15C-ULT3 Bottom Panel Figure 1-4: AFL3-W19C-ULT3 Bottom Panel Page 5... -
Page 22: Rear Panel
AFL3-W15C/W19C-ULT3 Panel PC 1.6 Rear Panel The rear panel has two speakers and retention screw holes that support VESA mounting. The rear panel also has several retention screw holes for installing the optional barcode scanner and magnetic stripe card reader. -
Page 23: System Specifications
AFL3-W15C/W19C-ULT3 Panel PC 1.7 System Specifications The technical specifications for the AFL3-W15C/W19C-ULT3 systems are listed in Table 1-2. Specification AFL3-W15C-ULT3 AFL3-W19C-ULT3 15.6" (16:9) 18.5” (16:9) LCD Size Max. Resolution 1366 (W) x 768 (H) 1366 (W) x 768 (H) Brightness (cd/m... - Page 24 AFL3-W15C/W19C-ULT3 Panel PC One 2.5” SATA 3Gb/s HDD bay Audio Realtek ALC892 HD Audio codec Two 3 W Internal Speaker Camera 2-megapixel with low light function and digital microphone One 802.11a/b/g/n/ac wireless LAN module Wireless (half-size PCIe Mini card) Bluetooth v4.0...
-
Page 25: Table 1-2: System Specifications
AFL3-W15C/W19C-ULT3 Panel PC Input: 100 V ~ 240 V AC, 50 Hz ~ 60 Hz Output: 12 V DC, 8 A 9 V ~ 30 V DC Power Requirement Power Consumption 56 W, 12 V @ 4.6 A 86 W, 12 V @ 7.1 A... -
Page 26: Dimensions
AFL3-W15C/W19C-ULT3 Panel PC 1.8 Dimensions The following sections list the dimensions of each model. 1.8.1 AFL3-W15C-ULT3 Dimensions The AFL3-W15C-ULT3 dimensions are shown below. Figure 1-6: AFL3-W15C-ULT3 Dimensions (mm) Page 10... -
Page 27: Afl3-W19C-Ult3 Dimensions
AFL3-W15C/W19C-ULT3 Panel PC 1.8.2 AFL3-W19C-ULT3 Dimensions The AFL3-W19C-ULT3 dimensions are shown below. Figure 1-7: AFL3-W19C-ULT3 Dimensions (mm) Page 11... -
Page 28: Unpacking
AFL3-W15C/W19C-ULT3 Panel PC Chapter Unpacking Page 12... -
Page 29: Unpacking
If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the AFL3-W15C/W19C-ULT3 was purchased from or contact an IEI sales representative directly by sending an email to ales@ieiworld.com. - Page 30 AFL3-W15C/W19C-ULT3 Panel PC The AFL3-W15C/W19C-ULT3 flat bezel panel PC is shipped with the following components: Quantity Item Image AFL3-W15C/W19C-ULT3 panel PC 96 W power adapter (P/N: 63040-010096-100-RS) Power cord Screws for VESA mounting Screws for HDD installation Utility CD One Key Recovery CD...
-
Page 31: Optional Items
AFL3-W15C/W19C-ULT3 Panel PC 2.3 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image VESA 100 wall mount kit (P/N: AFLWK-19B) Panel mounting kit (P/N: AFL3PK-W07A-R10) Rack mounting kit (P/N: ARM-11-RS) (P/N: ARM-31-RS) - Page 32 AFL3-W15C/W19C-ULT3 Panel PC Item and Part Number Image Stand for VESA 100 (P/N: STAND-A19-RS) Stand for VESA 75/VESA 100 (P/N: STAND-C19-R10) Magnetic card reader (P/N: AFL3P-W10MSR-U-R10) Barcode scanner (P/N: AFL3-2D-R10) If any of these items are missing or damaged, contact the distributor or sales representative immediately.
-
Page 33: Installation
AFL3-W15C/W19C-ULT3 Panel PC Chapter Installation Page 17... -
Page 34: Anti-Static Precautions
AFL3-W15C/W19C-ULT3 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL3-W15C/W19C-ULT3. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the AFL3-W15C/W19C-ULT3 is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered to. -
Page 35: Installation And Configuration Steps
Remove the retention screws from the back cover. Two types of screw are used Step 1: for securing the plastic cover of the AFL3-W15C-ULT3. See Figure 3-1 for detail. Be aware of this for reinstalling the plastic cover. Figure 3-1: AFL3-W15C-ULT3 Back Cover Retention Screws... -
Page 36: Figure 3-2: Afl3-W19C-Ult3 Back Cover Retention Screws
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-2: AFL3-W19C-ULT3 Back Cover Retention Screws Lift the plastic back cover off the AFL3-W15C/W19C-ULT3. Step 2: Remove the retention screws from the internal aluminum cover. Two types of Step 3: screw are used for securing the aluminum cover. See the following diagrams for detail. -
Page 37: Figure 3-4: Afl3-W19C-Ult3 Aluminum Cover Retention Screws
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-4: AFL3-W19C-ULT3 Aluminum Cover Retention Screws Lift the aluminum cover off the AFL3-W15C/W19C-ULT3. A thermal pad is Step 4: attached under the center of the aluminum cover. To easily remove the cover, turn the cover in a clockwise direction first to detach the thermal pad before lifting the cover (Figure 3-5). -
Page 38: Module Installation
AFL3-W15C/W19C-ULT3 Panel PC 3.5 M.2 Module Installation The AFL3-W15C/W19C-ULT3 has an M.2 M-key slot for M.2 2280 module installation. To install an M.2 module into the AFL3-W15C/W19C-ULT3, please follow the steps below: Remove the plastic back cover and the internal aluminum cover. See Step 1: Section 3.4 above. -
Page 39: Figure 3-7: Inserting The M.2 Module Into The Slot At An Angle
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-7: Inserting the M.2 Module into the Slot at an Angle Secure the M.2 module with the previously removed retention screw Step 4: (Figure 3-8). Figure 3-8: Securing the M.2 Module Page 23... -
Page 40: Msata Module Installation (Full-Size)
AFL3-W15C/W19C-ULT3 Panel PC 3.6 mSATA Module Installation (Full-Size) To install an full-size mSATA module into the AFL3-W15C/W19C-ULT3, please follow the steps below: Remove the plastic back cover and the internal aluminum cover. See Step 1: Section 3.4 above. Locate the mSATA module slot. Remove the preinstalled retention screw on the Step 2: screw pillar as shown in Figure 3-9. -
Page 41: Figure 3-10: Removing The Retention Screw And Standoff
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-10: Removing the Retention Screw and Standoff Install the previously removed standoff to the screw hole for the full-size PCIe Step 4: Mini card (Figure 3-11). Figure 3-11: Installing the Standoff Line up the notch on the mSATA module with the notch on the connector. Slide Step 5: the PCIe Mini card into the socket at an angle of about 20º... -
Page 42: Figure 3-12: Installing An Msata Module
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-12: Installing an mSATA Module Secure the mSATA module with the retention screw. Push the other end of the Step 6: mSATA module down and secure the module with the previously removed retention screw (Figure 3-12). -
Page 43: Hdd Installation
AFL3-W15C/W19C-ULT3 Panel PC NOTE: To install a half-size mSATA module, simply remove the pre-installed retention screw of the PCIe Mini card slot and insert the half-size mSATA module into the socket. Then, secure the module with the previously removed retention screw. -
Page 44: Figure 3-15: Hdd Retention Screws
Connect the SATA cable to the rear of HDD from the motherboard. Step 4: Install the HDD into the AFL3-W15C/W19C-ULT3 by aligning the retention screw Step 5: holes in the HDD brackets with the retention screw holes on the chassis. Insert the four retention screws. -
Page 45: Serial Port Pin 9 Selection
AFL3-W15C/W19C-ULT3 Panel PC 3.8 DB-9 Serial Port Pin 9 Selection Pin 9 on the COM1 and COM2 DB-9 connectors can be set as the ring (RI) signal, +5 V or +12 V. The jumper selection options are shown in Table 3-1 and Table 3-2. -
Page 46: Rs-232/422/485 Serial Port Selection
AFL3-W15C/W19C-ULT3 Panel PC 3.9 RS-232/422/485 Serial Port Selection The COM1_SEL1 and JP3 jumpers set the communication protocol used by the COM1 DB-9 serial communication port as RS-232, RS-422 or RS-485. The RS-232/422/485 serial port selection settings are shown in Table 3-3 and Table 3-4. -
Page 47: Com1 Pinouts
Table 3-5: RS-232/422/485 Serial Port (COM1) Pinouts 3.10 Clear CMOS If the AFL3-W15C/W19C-ULT3 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, push the clear CMOS button for three seconds, then restart the system. The clear CMOS button location is shown in Figure 3-19. -
Page 48: At/Atx Mode Selection
AFL3-W15C/W19C-ULT3 Panel PC 3.11 AT/ATX Mode Selection AT or ATX power mode can be used on the AFL3-W15C/W19C-ULT3. The selection is made through an AT/ATX switch located on the bottom panel (Figure 3-20). Figure 3-20: AT/ATX Switch Location 3.11.1 AT Power Mode With the AT mode selected, the power is controlled by a central power unit rather than a power switch. -
Page 49: Mounting The System
AFL3-W15C/W19C-ULT3 Panel PC 3.12 Mounting the System The methods of mounting the AFL3-W15C/W19C-ULT3 are listed below. Wall mounting Panel mounting Rack mounting Arm mounting Stand mounting The mounting methods are described below. 3.12.1 Wall Mounting To mount the flat bezel panel PC onto the wall, please follow the steps below. -
Page 50: Figure 3-21: Wall-Mounting Bracket
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-21: Wall-mounting Bracket Insert the four monitor mounting screws provided in the wall mount kit into the Step 6: four screw holes on the real panel of the flat bezel panel PC and tighten until the screw shank is secured against the rear panel (Figure 3-22). -
Page 51: Figure 3-22: Chassis Support Screws
AFL3-W15C/W19C-ULT3 Panel PC Align the mounting screws on the monitor rear panel with the mounting holes on Step 7: the bracket. Carefully insert the screws through the holes and gently pull the monitor Step 8: downwards until the monitor rests securely in the slotted holes (Figure 3-22). -
Page 52: Panel Mounting
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-23: Secure the Panel PC 3.12.2 Panel Mounting To mount the AFL3-W15C/W19C-ULT3 flat bezel panel PC into a panel, please follow the steps below. Select the position on the panel to mount the panel PC. Step 1: Cut out a section corresponding to the size shown below. -
Page 53: Figure 3-25: Afl3-W19C-Ult3 Cutout Dimensions
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-25: AFL3-W19C-ULT3 Cutout Dimensions Slide the panel PC through the hole until the frame is flush against the panel. Step 3: Insert a M5*50 screw into the screw hole on the side of the panel mounting Step 4: bracket. -
Page 54: Figure 3-26: Panel Mounting Kit Installation
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-26: Panel Mounting Kit Installation Align the panel mounting bracket screw holes with the VESA mounting holes on Step 6: the rear of the panel PC. Secure the two panel mounting brackets to the rear of the panel PC by inserting... -
Page 55: Figure 3-27: Securing Panel Mounting Brackets
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-27: Securing Panel Mounting Brackets NOTE: The panel mounting kit described in this section is an optional item. To purchase it, please contact an IEI sales representative. Page 39... -
Page 56: Cabinet And Rack Installation
AFL3-W15C/W19C-ULT3 Panel PC 3.12.3 Cabinet and Rack Installation The AFL3-W15C/W19C-ULT3 flat bezel panel PC can be installed into a cabinet or rack. The installation procedures are similar to the panel mounting installation. To do this, please follow the steps below:... -
Page 57: Figure 3-28: Rack Mounting Kit Installation
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-28: Rack Mounting Kit Installation Align the rack mounting bracket screw holes with the VESA mounting holes on Step 4: the rear of the panel PC. Secure the two rack mounting brackets to the rear of the panel PC by inserting... -
Page 58: Figure 3-29: Securing Rack Mounting Brackets
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-29: Securing Rack Mounting Brackets Slide the panel PC with the attached rack/cabinet bracket into a rack or cabinet Step 6: (Figure 3-30). Figure 3-30: Install into a Rack/Cabinet Page 42... -
Page 59: Arm Mounting
75 mm or a 100 mm interface pad. To mount the AFL3-W15C/W19C-ULT3 on an arm, please follow the steps below. The arm is a separately purchased item. Please correctly mount the arm onto Step 1: the surface it uses as a base. -
Page 60: Figure 3-31: Arm Mounting Retention Screw Holes
AFL3-W15C/W19C-ULT3 Panel PC Figure 3-31: Arm Mounting Retention Screw Holes Secure the AFL3-W15C/W19C-ULT3 to the interface pad by inserting four Step 4: retention screws through the mounting arm interface pad and into the AFL3-W15C/W19C-ULT3.S t e p 0 : Figure 3-32: Arm Mounting... -
Page 61: Stand Mounting
AFL3-W15C/W19C-ULT3 Panel PC 3.12.5 Stand Mounting To mount the AFL3-W15C/W19C-ULT3 using the stand mounting kit, please follow the steps below. Locate the screw holes on the rear of the AFL3-W15C/W19C-ULT3. This is Step 1: where the bracket will be attached. -
Page 62: Powering On The System
AFL3-W15C/W19C-ULT3 Panel PC 3.13 Powering On the System To power on the system, follow the steps below: Connect the power cord to the power adapter. Connect the other end of the Step 1: power cord to a power source. Connect the power adapter to the power connector of the Step 2: AFL3-W15C/W19C-ULT3. -
Page 63: Reset The System
Visit the IEI website or contact technical support for the latest updates. All the drivers for the AFL3-W15C/W19C-ULT3 are on the utility CD that came with the system. The utility CD contains drivers for Windows 7, Windows 8 and Windows 10 operating systems. -
Page 64: Installing Windows 7 From Usb 3.0 Drives
USB 3.0 drivers. To install Windows 7 from a USB drive onto the AFL3-W15C/W19C-ULT3, please follow the steps described below. Create a USB flash drive installer. Use your Windows 7 DVD or ISO image to Step 1: create a bootable USB flash drive. -
Page 65: Bios Setup
AFL3-W15C/W19C-ULT3 Panel PC Chapter BIOS Setup Page 49... -
Page 66: Introduction
AFL3-W15C/W19C-ULT3 Panel PC 4.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice. -
Page 67: Getting Help
AFL3-W15C/W19C-ULT3 Panel PC Function Decrease the numeric value or make changes F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 key Load previous values. F3 key Load optimized defaults F4 key Save changes and Exit BIOS Esc key Main Menu –... -
Page 68: Main
AFL3-W15C/W19C-ULT3 Panel PC 4.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit BIOS Information... -
Page 69: Advanced
AFL3-W15C/W19C-ULT3 Panel PC System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year. System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. -
Page 70: Acpi Settings
AFL3-W15C/W19C-ULT3 Panel PC 4.3.1 ACPI Settings The ACPI Settings menu ( B IOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI... -
Page 71: F81866 Super Io Configuration
AFL3-W15C/W19C-ULT3 Panel PC 4.3.2 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 4) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced F81866 Super IO Configuration... -
Page 72: Serial Port 1 Configuration
AFL3-W15C/W19C-ULT3 Panel PC 4.3.2.1.1 Serial Port 1 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address. -
Page 73: Serial Port 2 Configuration
AFL3-W15C/W19C-ULT3 Panel PC Device Mode [RS232] Use the Device Mode option to select the Serial Port 3 signaling mode. Serial Port 3 signaling mode is RS-422 RS422 Serial Port 3 signaling mode is RS-232 RS232 EFAULT ... -
Page 74: Serial Port 3 Configuration
AFL3-W15C/W19C-ULT3 Panel PC 4.3.2.1.3 Serial Port 3 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address. -
Page 75: Serial Port 4 Configuration
AFL3-W15C/W19C-ULT3 Panel PC 4.3.2.1.4 Serial Port 4 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address. -
Page 76: F81866 H/W Monitor
AFL3-W15C/W19C-ULT3 Panel PC 4.3.3 F81866 H/W Monitor The F81866 H/W Monitor menu (BIOS Menu 6) contains the fan configuration submenus and displays operating temperature, fan speeds and system voltages. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced... -
Page 77: Rtc Wake Settings
AFL3-W15C/W19C-ULT3 Panel PC 4.3.4 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 7) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event. -
Page 78: Serial Port Console Redirection
AFL3-W15C/W19C-ULT3 Panel PC Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. 4.3.5 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 8) allows the console redirection options to be configured. -
Page 79: Legacy Console Redirection Settings
AFL3-W15C/W19C-ULT3 Panel PC 4.3.5.1 Legacy Console Redirection Settings The Legacy Console Redirection Settings menu ( B IOS Menu 9) allows the legacy console redirection options to be configured. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced Select a COM port to... -
Page 80: Console Redirection Settings
AFL3-W15C/W19C-ULT3 Panel PC 4.3.5.2 Console Redirection Settings The Console Redirection Settings menu ( B IOS Menu 10) allows the console redirection options to be configured. The option is active when Console Redirection option is enabled. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. -
Page 81: Data Bits [8]
AFL3-W15C/W19C-ULT3 Panel PC Bits per second [115200] Use the Bits per second option to specify the serial port transmission speed. The speed must match the other side. Long or noisy lines may require lower speeds. Sets the serial port transmission speed at 9600. -
Page 82: Cpu Configuration
AFL3-W15C/W19C-ULT3 Panel PC Stop Bits [1] Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet. Communication with slow devices may require more than 1 stop bit. -
Page 83: Intel ® Virtualization Technology [Disabled]
AFL3-W15C/W19C-ULT3 Panel PC Hyper Threading Function [Enabled] Use the Hyper Threading function to enable or disable the CPU hyper threading function. Disables the use of hyper threading technology Disabled Enables the use of hyper threading technology Enabled EFAULT ... -
Page 84: Sata Configuration
AFL3-W15C/W19C-ULT3 Panel PC CPU C State [Disabled] Use the CPU C State option to enable or disable CPU C state. Disables CPU C state. Disabled EFAULT Enables CPU C state. Enabled 4.3.7 SATA Configuration Use the SATA Configuration menu (BIOS Menu 12) to change and/or set the configuration of the SATA devices installed in the system. -
Page 85: Sata Mode Selection [Ahci]
AFL3-W15C/W19C-ULT3 Panel PC SATA Mode Selection [AHCI] Use the SATA Mode Selection option to configure SATA devices as AHCI devices. Configures SATA devices as AHCI device. AHCI EFAULT Configures SATA devices as RAID device. RAID NOTE: Before accessing the RAID configuration utility, ensure to set the Option ROM Messages BIOS option in the Boot menu to Force BIOS. -
Page 86: Usb Configuration
AFL3-W15C/W19C-ULT3 Panel PC 4.3.8 USB Configuration Use the USB Configuration menu (BIOS Menu 13) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support. -
Page 87: Iei Feature
AFL3-W15C/W19C-ULT3 Panel PC Legacy USB support enabled Enabled EFAULT Legacy USB support disabled Disabled Legacy USB support disabled if no USB devices are Auto connected 4.3.9 IEI Feature Use the IEI Feature menu (BIOS Menu 14) to configure One Key Recovery function. -
Page 88: Chipset
AFL3-W15C/W19C-ULT3 Panel PC 4.4 Chipset Use the Chipset menu (BIOS Menu 15) to configure the system chipset. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit > System Agent (SA) Configuration System Agent (SA) >... -
Page 89: Graphics Configuration
AFL3-W15C/W19C-ULT3 Panel PC VT-d [Disabled] Use the VT-d option to enable or disable VT-d support. Disable VT-d support. Disabled EFAULT Enable VT-d support. Enabled 4.4.1.1 Graphics Configuration Use the Graphics Configuration menu ( B IOS Menu 17) to configure the graphics settings. -
Page 90: Dvmt Pre-Allocated [256M]
AFL3-W15C/W19C-ULT3 Panel PC Internal Graphics [Enabled] Use the Internal Graphics option to enable or disable the internal graphics device. The internal graphics device is automatically detected Auto and enabled. Disable the internal graphics device. Disabled Enable the internal graphics device. The following... -
Page 91: Lcd Control
AFL3-W15C/W19C-ULT3 Panel PC 4.4.1.1.1 LCD Control Use the LCD Control submenu (BIOS Menu 18) to select a display device which will be activated during POST. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Chipset LCD Control Select the Video Device... -
Page 92: Memory Configuration
AFL3-W15C/W19C-ULT3 Panel PC 4.4.1.2 Memory Configuration Use the Memory Configuration submenu ( B IOS Menu 19) to display the memory information. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Chipset Memory Information Total Memory 4096 MB DIMM1 Not Present --------------------- : Select Screen... -
Page 93: Pci Express Configuration
AFL3-W15C/W19C-ULT3 Panel PC Restore AC Power Loss [Last State] Use the Restore AC Power BIOS option to specify what state the system returns to if there is a sudden loss of power to the system. The system remains turned off Power Off ... -
Page 94: Hd Audio Configuration
AFL3-W15C/W19C-ULT3 Panel PC Gen 2 Gen 3 Detect Non-Compliance Device [Disabled] Use the Detect Non-Compliance Device option to enable or disable detecting if a non-compliance PCI Express device is connected to the PCI Express slot. Disables to detect if a non-compliance PCI... -
Page 95: Security
AFL3-W15C/W19C-ULT3 Panel PC HD Audio [Enabled] Use the HD Audio BIOS option to enable or disable the High Definition Audio controller. The High Definition Audio controller is disabled. Disabled The High Definition Audio controller is enabled. Enabled EFAULT 4.5 Security... -
Page 96: Boot
AFL3-W15C/W19C-ULT3 Panel PC 4.6 Boot Use the Boot menu (BIOS Menu 24) to configure system boot options. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Select the keyboard... -
Page 97: Quiet Boot [Enabled]
AFL3-W15C/W19C-ULT3 Panel PC Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. Normal POST messages displayed Disabled OEM Logo displayed instead of POST messages Enabled EFAULT UEFI Boot [Disabled] Use the UEFI Boot option to enable or disable to boot from the UEFI devices. -
Page 98: Exit
AFL3-W15C/W19C-ULT3 Panel PC 4.7 Exit Use the Exit menu (BIOS Menu 25) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Boot Save &... -
Page 99: Save As User Defaults
AFL3-W15C/W19C-ULT3 Panel PC Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults. Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options. -
Page 100: System Maintenance
AFL3-W15C/W19C-ULT3 Panel PC Chapter System Maintenance Page 84... -
Page 101: System Maintenance Introduction
AFL3-W15C/W19C-ULT3 Panel PC 5.1 System Maintenance Introduction If the components of the AFL3-W15C/W19C-ULT3 fail they must be replaced. Please contact the system reseller or vendor to purchase the replacement parts. Back cover removal instructions for the AFL3-W15C/W19C-ULT3 are described below. -
Page 102: Turn Off The Power
Before any maintenance procedures are carried out on the system, make sure the system is turned off. 5.4 SO-DIMM Module Replacement The AFL3-W15C/W19C-ULT3 has one SO-DIMM module installed. To replace the SO-DIMM module, follow the instructions below. Follow all anti-static procedures. See Section 5.2. -
Page 103: Figure 5-1: So-Dimm Module Location
AFL3-W15C/W19C-ULT3 Panel PC Figure 5-1: SO-DIMM module Location Remove the DDR4 memory module by pulling both the spring retainer clips Step 5: outward from the socket. Grasp the DDR4 memory module by the edges and carefully pull it out of the Step 6: socket. - Page 104 AFL3-W15C/W19C-ULT3 Panel PC Reinstall the internal aluminum cover and the plastic back cover using the Step 9: previously removed retention screws. Step 0: WARNING: Failing to reinstall the cover may result in permanent damage to the system. Please make sure all coverings are properly installed.
-
Page 105: Interface Connectors
AFL3-W15C/W19C-ULT3 Panel PC Chapter Interface Connectors Page 89... -
Page 106: Peripheral Interface Connectors
AFL3-W15C/W19C-ULT3 Panel PC 6.1 Peripheral Interface Connectors The AFL3-W15C/W19C-ULT3 panel PC motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 6-1. The Pin 1 locations of the on-board connectors are also indicated in the diagram below. -
Page 107: Internal Peripheral Connectors
AFL3-W15C/W19C-ULT3 Panel PC 6.2 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the peripheral interface connectors on the motherboard. Pinouts of these connectors can be found in the following sections. -
Page 108: Audio Connector (Audio_Out1)
AFL3-W15C/W19C-ULT3 Panel PC Connector Type Label USB connectors 4-pin wafer BAR_USB1 BT_USB1 CAM_USB1 RFID_USB1 TOUCH_USB1 USB 2.0 connector 8-pin header USB20_CN1 USB power connector 2-pin wafer USB_PWR1 Table 6-1: Peripheral Interface Connectors 6.2.1 Audio Connector (AUDIO_OUT1) PIN NO. DESCRIPTION AMP_INL... -
Page 109: Battery Connector (Bat1)
AFL3-W15C/W19C-ULT3 Panel PC 6.2.3 Battery Connector (BAT1) PIN NO. DESCRIPTION VBATT Table 6-4: Battery Connector (BAT1) Pinouts 6.2.4 Debug Connector (DBG_PORT1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3S INT_SERIRQ LPC_AD3 LPC_AD2 LPC_AD1 LPC_AD0 FRAME# PLT_RST# PLT_CLK Table 6-5: Debug Connector (DBG_PORT1) Pinouts 6.2.5 Digital I/O Connector (DIO1) -
Page 110: Displayport Connector (Dp1)
AFL3-W15C/W19C-ULT3 Panel PC 6.2.6 DisplayPort Connector (DP1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DDI2_HPD DDI2_AUXP_R DDI2_AUXN_R AUX_CTRL_DET_D TMDS_TXR2_DP_R TMDS_TXR3_DP_R TMDS_TXN2_DP_R TMDS_TXN3_DP_R TMDS_TXR0_DP_R TMDS_TXR1_DP_R TMDS_TXN0_DP_R TMDS_TXN1_DP_R +V3.3S +V5S Table 6-7: DisplayPort Connector (DP1) Pinouts 6.2.7 Inverter Connector (INVERTER1) PIN NO. DESCRIPTION... -
Page 111: M-Key Slot (M2_M_Key)
AFL3-W15C/W19C-ULT3 Panel PC LVDS_A_TX3-P LVDS_A _TX3-N LVDS_B _TX0-P LVDS_B _TX0-N LVDS_B _TX1-P LVDS_B _TX1-N LVDS_B _TX2-P LVDS_B _TX2-N LVDS_B _TXCLK-P LVDS_B _TXCLK-N LVDS_B _TX3-P LVDS_B _TX3-N +LCD Vcc +LCD Vcc +LCD Vcc +LCD Vcc Table 6-9: LVDS Connector (LVDS1) Pinouts 6.2.9 M.2 M-key Slot (M2_M_KEY) -
Page 112: Mcu Connector (Hotkey_Cn1)
AFL3-W15C/W19C-ULT3 Panel PC PCIE_RXP2 PCIE_TXN1 PCIE_TXP1 PCIE_RXN1 PCIE_RXP2 PLT_RST# PCIeX4_CLKREQ CLK_PCIEX4_N LAN_WAKE# CLK_PCIEX4_P Table 6-10: M.2 M-key Slot (M2_M_KEY) Pinouts 6.2.10 MCU Connector (HOTKEY_CN1) PIN NO. DESCRIPTION AUTO_DIMMING VOL+ VOL- BRIGHT+ BRIGHT- LCD ON_OFF Page 96... -
Page 113: Microphone Connector (Dmic1)
AFL3-W15C/W19C-ULT3 Panel PC Table 6-11: MCU Connector (HOTKEY_CN1) Pinouts 6.2.11 Microphone Connector (DMIC1) PIN NO. DESCRIPTION DMIC_CLK DMIC_DATA +3.3V Table 6-12: Microphone Connector (DMIC1) Pinouts 6.2.12 PCIe Mini Connector, Full-Size/Half-size (M_PCIE1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# VCC3 1.5V... -
Page 114: Power Button Connector (Pw_Btn1)
AFL3-W15C/W19C-ULT3 Panel PC USBD7+ SATA_DET4_R_N 1.5V MSATA_SEL# VCC3 Table 6-13: PCIe Mini Connector (M_PCIE1) Pinouts 6.2.13 Power Button Connector (PW_BTN1) PIN NO. DESCRIPTION PW_BN Table 6-14: Power Button Connector (PW_BTN1) Pinouts 6.2.14 Power LED Connector (PW_LED1) PIN NO. DESCRIPTION PW_LED +5V... -
Page 115: Serial Port Connector (Com4)
AFL3-W15C/W19C-ULT3 Panel PC 6.2.16 RS-232 Serial Port Connector (COM4) PIN NO. DESCRIPTION PIN NO. DESCRIPTION -NDCD4 -NDSR4 NSIN4 -NRTS4 NSOUT4 -NCTS4 -NDTR4 -XRI4 Table 6-17: RS-232 Serial Port Connector (COM4) Pinouts 6.2.17 SATA Connector (SATA1) PIN NO. DESCRIPTION Table 6-18: SATA Connector (SATA1) Pinouts 6.2.18 SPI Flash Connector (JSPI1) -
Page 116: Touch Panel Connector (Ts1)
AFL3-W15C/W19C-ULT3 Panel PC 6.2.19 Touch Panel Connector (TS1) DESCRIPTION PIN NO. 8-Wire 4-Wire 5-Wire Right Sense Left Sense Bottom Sense TOP Sense Sense(S) Right Excite Right LR(X) Left Excite Left LL(L) Bottom Excite Bottom UR(H) Top Excite UL(Y) Table 6-20: Touch Panel Connector (TS1) Pinouts 6.2.20 TTL Serial Connector, COM6 (NFC_COM6) -
Page 117: Usb Connector (Bt_Usb1)
AFL3-W15C/W19C-ULT3 Panel PC 6.2.22 USB Connector (BT_USB1) PIN NO. DESCRIPTION +V5A HUB_D1F- HUB_D1F+ Table 6-23: USB Connector (BT_USB1) Pinouts 6.2.23 USB Connector (CAM_USB1) PIN NO. DESCRIPTION +V5A HUB_D2F- HUB_D2F+ Table 6-24: USB Connector (CAM_USB1) Pinouts 6.2.24 USB Connector (RFID_USB1) PIN NO. -
Page 118: Usb Connector (Touch_Usb1)
AFL3-W15C/W19C-ULT3 Panel PC 6.2.25 USB Connector (TOUCH_USB1) PIN NO. DESCRIPTION +V5A DATA4- DATA4+ Table 6-26: USB Connector (TOUCH_USB1) Pinouts 6.2.26 USB 2.0 Connector (USB20_CN1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +V5A DATA8- DATA9+ DATA8+ DATA9- +5VA Table 6-27: USB 2.0 Connector (USB20_CN1) Pinouts 6.2.27 USB Power Connector (USB_PWR1) -
Page 119: External Interface Panel Connectors
AFL3-W15C/W19C-ULT3 Panel PC 6.3 External Interface Panel Connectors The table below lists the rear panel connectors on the AFL3MB-ULT3 motherboard. Pinouts of these connectors can be found in the following sections. Connector Type Label Ethernet connector RJ-45 LAN2 Ethernet connector... -
Page 120: Hdmi Connector (Hdmi1)
AFL3-W15C/W19C-ULT3 Panel PC 6.3.2 HDMI Connector (HDMI1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2+ HDMI_CLK# HDMI_DATA2#- HDMI_DATA1+ HDMI_SCL HDMI_DATA1#- HDMI_SDA HDMI_DATA0+ +5VCC HDMI_DATA0#- HDMI_HPD HDMI_CLK+ Table 6-31: HDMI Connector (HDMI1) Pinouts 6.3.3 Power Connector (PWR1) Table 6-32: Power Connector (PWR1) Pinouts 6.3.4 RS-232/422/485 DB-9 Serial Port (COM1) -
Page 121: Rj-45 Serial Port (Com2)
AFL3-W15C/W19C-ULT3 Panel PC 6.3.5 RS-232 RJ-45 Serial Port (COM2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION NDCD2 NDSR2 NSIN2 NRTS2 NSOUT2 NCTS2 NRTS2 XRI2 Table 6-34: RS-232 RJ-45 Serial Port (COM2) Pinouts 6.3.6 USB 3.0 Connectors (USB_CON1) PIN NO. DESCRIPTION PIN NO. -
Page 122: Usb 3.0 Connectors (Usb_Con2)
SSTX2+ SSTX3+ Table 6-36: USB 3.0 Connectors (USB_CON2) Pinouts 6.4 Preconfigured Jumper Settings CAUTION: following jumpers preconfigured AFL3-W15C/W19C-ULT3. Users should not change these jumpers (Table 6-37). Jumper Name Type Label LVDS voltage selection 3-pin header J_VLVDS1 LVDS panel resolution selection... -
Page 123: Lvds Panel Voltage Selection Jumper (J_Vlvds1)
AFL3-W15C/W19C-ULT3 Panel PC 6.4.1 LVDS Panel Voltage Selection Jumper (J_VLVDS1) Description Short 1-2 +3.3 V Short 3-4 +5 V (Default) Short 5-6 +12 V Table 6-38: LVDS Voltage Selection Jumper (J_VLVDS1) Settings 6.4.2 LVDS Panel Resolution Selection Jumper (SW1) * ON=0, OFF=1; Single=S, Dual=D... -
Page 124: A Regulatory Compliance
AFL3-W15C/W19C-ULT3 Panel PC Appendix Regulatory Compliance Page 108... - Page 125 AFL3-W15C/W19C-ULT3 Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive (2004/108/EC, 2014/30/EU) Low-Voltage Directive (2006/95/EC, 2014/35/EU) RoHS II Directive (2011/65/EU, 2015/863/EU) Ecodesign Directive 2009/125/EC If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
- Page 126 AFL3-W15C/W19C-ULT3 Panel PC Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ...
- Page 127 AFL3-W15C/W19C-ULT3 Panel PC Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 2014/53/EU. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU.
- Page 128 AFL3-W15C/W19C-ULT3 Panel PC FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference ...
- Page 129 AFL3-W15C/W19C-ULT3 Panel PC CHINA ROHS The label on the product indicates the estimated “Environmentally Friendly Use Period” (EFUP). This is an estimate of the number of years that these substances would “not leak undergo abrupt change.” This product contain replaceable sub-assemblies/components which have a shorter EFUP such as batteries and lamps.
-
Page 130: B Safety Precautions
AFL3-W15C/W19C-ULT3 Panel PC Appendix Safety Precautions Page 114... -
Page 131: Safety Precautions
Make sure the power is turned off and the power cord is disconnected whenever the AFL3-W15C/W19C-ULT3 is being installed, moved or modified. To prevent the risk of electric shock, make sure power cord is unplugged from wall socket. To fully disengage the power to the unit, please disconnect the power cord from the AC outlet. -
Page 132: Anti-Static Precautions
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL3-W15C/W19C-ULT3. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the AFL3-W15C/W19C-ULT3 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to. -
Page 133: Product Disposal
AFL3-W15C/W19C-ULT3 Panel PC B.1.3 Product Disposal CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method. -
Page 134: Maintenance And Cleaning Precautions
Always make sure your hands are dry when unplugging the power cable. B.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the AFL3-W15C/W19C-ULT3, please read the details below. Except for the LCD panel, never spray or squirt liquids directly onto any other components. - Page 135 AFL3-W15C/W19C-ULT3 Panel PC Cloth– Although paper towels or tissues can be used, a soft, clean piece of cloth is recommended when cleaning the device. Water or rubbing alcohol–A cloth moistened with water or rubbing alcohol can be used to clean the device.
-
Page 136: Cbios Menu Options
AFL3-W15C/W19C-ULT3 Panel PC Appendix BIOS Menu Options Page 120... - Page 137 AFL3-W15C/W19C-ULT3 Panel PC System Date [xx/xx/xx] ......................53 System Time [xx:xx:xx] .......................53 ACPI Sleep State [S3 (Suspend to RAM)]................54 Serial Port [Enabled]......................56 Change Settings [Auto] .......................56 Device Mode [RS232]......................57 Serial Port [Enabled]......................57 Change Settings [Auto] .......................57 ...
- Page 138 AFL3-W15C/W19C-ULT3 Panel PC Internal Graphics [Enabled] ....................74 DVMT Pre-Allocated [256M] ....................74 DVMT Total Gfx Mem [MAX]....................74 Primary IGFX Boot Display [VBIOS Default] ..............75 Restore AC Power Loss [Last State] .................77 PCIe Speed [Auto]........................77 ...
-
Page 139: D Watchdog Timer
AFL3-W15C/W19C-ULT3 Panel PC Appendix Watchdog Timer Page 123... - Page 140 AFL3-W15C/W19C-ULT3 Panel PC NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working. The system may stop working because of external EMI or software bugs.
- Page 141 AFL3-W15C/W19C-ULT3 Panel PC NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown.
-
Page 142: E Hazardous Materials Disclosure
AFL3-W15C/W19C-ULT3 Panel PC Appendix Hazardous Materials Disclosure Page 126... - Page 143 AFL3-W15C/W19C-ULT3 Panel PC The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
- Page 144 AFL3-W15C/W19C-ULT3 Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T 11363-2006 (现由 GB/T 26572-2011 取代) 标准规定的限量要求以下。...
Need help?
Do you have a question about the AFL3-W15C and is the answer not in the manual?
Questions and answers
