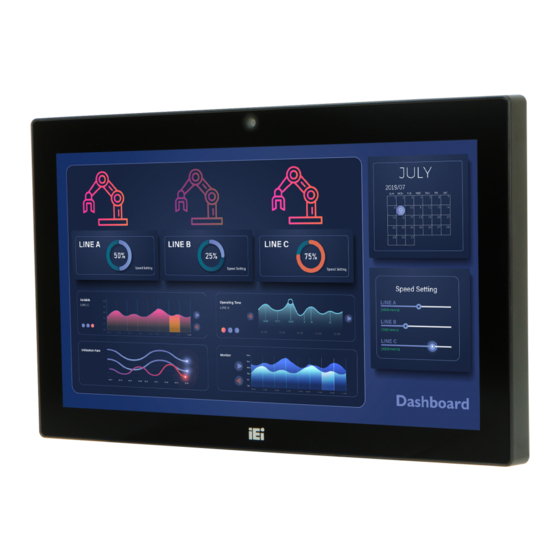

AFL3-W15C/W19C/W22C-ULT5 Panel PC
MODEL:
AFL3-W15C/W19C/W22C-ULT5
Flat Bezel Panel PC with Intel® Core™ i5-8365UE CPU,
Touchscreen, Four USB 3.2 Gen 2, Dual PoE GbE LAN,
RS-232/422/485, Bluetooth, Wi-Fi 802.11a/b/g/n/ac and RoHS
Rev. 1.00 - February 6, 2020
User Manual
User Manual
Page I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFL3-W15C-ULT5-P-PC-4G and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology AFL3-W15C-ULT5-P-PC-4G

Summary of Contents for IEI Technology AFL3-W15C-ULT5-P-PC-4G

  • Page 1 AFL3-W15C/W19C/W22C-ULT5 Panel PC MODEL: AFL3-W15C/W19C/W22C-ULT5 Flat Bezel Panel PC with Intel® Core™ i5-8365UE CPU, Touchscreen, Four USB 3.2 Gen 2, Dual PoE GbE LAN, RS-232/422/485, Bluetooth, Wi-Fi 802.11a/b/g/n/ac and RoHS User Manual User Manual Page I Rev. 1.00 - February 6, 2020...
  • Page 2 AFL3-W15C/W19C/W22C-ULT5 Panel PC Revision Date Version Changes February 6, 2020 1.00 Initial release Page II...
  • Page 3 AFL3-W15C/W19C/W22C-ULT5 Panel PC Safety Instructions Warning! Read the user manual before connecting the system to the power source. Vorsicht! Bitte lesen Sie die Bedienungsanleitung, bevor Sie das System an eine Stromquelle anschließen. Attention! Avant de brancher le système à la source d'alimentation, consultez le mode d'emploi.
  • Page 4 AFL3-W15C/W19C/W22C-ULT5 Panel PC Warning! Use only the adapter and power cord approved for this system. Use of another type of adapter may risk fire or explosion. Please refer to the user manual for the power adapter specifications. Vorsicht! Nur zugelassene Netzteile und Netzkabel dürfen verwendet werden. Die Benutzung von anderen Netzteilen kann einen Brand oder eine Explosion zur Folge haben.
  • Page 5 AFL3-W15C/W19C/W22C-ULT5 Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 6 AFL3-W15C/W19C/W22C-ULT5 Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. NOTE These messages inform the reader of essential but non-critical information.

  • Page 7: Table Of Contents

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Table of Contents 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 F ......................4 RONT ANEL 1.5 B ......................5 OTTOM ANEL 1.6 R .......................
  • Page 8 AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.10 F .............. 34 LASH ESCRIPTOR ECURITY VERRIDE 3.11 C CMOS ......................35 LEAR 3.12 AT/ATX M ..................36 ELECTION 3.12.1 AT Power Mode ....................36 3.12.2 ATX Power Mode ................... 36 3.13 M ..................37 OUNTING THE YSTEM 3.13.1 Wall Mounting ....................
  • Page 9 AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.3.7.1 Legacy Console Redirection Settings ............68 4.3.7.2 Console Redirection Settings ..............69 4.3.8 USB Configuration ................... 71 4.3.9 NVMe Configuration ..................72 4.3.10 IEI Feature ..................... 73 4.4 C ........................74 HIPSET 4.4.1 System Agent (SA) Configuration ..............74 4.4.1.1 Memory Configuration ................
  • Page 10 AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.2.11 Power LED Connector (PW_LED1) ............100 6.2.12 SATA Connector (SATA1) ................100 6.2.13 SPI Flash Connector (JSPI1) ............... 101 6.2.14 USB Connector (BT_USB1) ................. 101 6.2.15 USB Connector (TOUCH_USB1) ..............101 6.2.16 USB Connector (RFID_USB1) ..............102 6.2.17 USB Connector (WEBCAM_USB1) .............
  • Page 11 AFL3-W15C/W19C/W22C-ULT5 Panel PC List of Figures Figure 1-1: AFL3-W15C/W19C/W22C-ULT5 Flat Bezel Panel PC ..........2 Figure 1-2: Front View ........................4 Figure 1-3: Bottom Panel ....................... 5 Figure 1-4: AFL3-W15C-ULT5 Rear View ..................5 Figure 1-5: Side View........................6 Figure 1-6: AFL3-W15C-ULT5 Dimensions (mm) ..............10 Figure 1-7: AFL3-W19C-ULT5 Dimensions (mm) ..............
  • Page 12 AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-24: Chassis Support Screws ..................39 Figure 3-25: Secure the Panel PC ....................40 Figure 3-26: AFL3-W15C-ULT5 Cutout Dimensions ..............40 Figure 3-27: AFL3-W19C-ULT5 Cutout Dimensions ..............41 Figure 3-28: AFL3-W22C-ULT5 Cutout Dimensions ..............41 Figure 3-29: Panel Mounting Kit Installation ................42 Figure 3-30: Securing Panel Mounting Brackets ...............
  • Page 13 AFL3-W15C/W19C/W22C-ULT5 Panel PC List of Tables Table 1-1: Model Variations ......................3 Table 1-2: Supported E-Window Modules ..................6 Table 1-3: System Specifications ....................9 Table 3-1: RS-232/422/485 Serial Port (COM1) Pinouts ............33 Table 3-2: COM1 Pin 9 Setting Jumper Settings (JP5) ............. 33 Table 3-3: Flash Descriptor Security Override Jumper Settings ..........
  • Page 14 AFL3-W15C/W19C/W22C-ULT5 Panel PC Table 6-26: USB 3.2 Gen 2 Connectors (USB_CON1, USB_CON2) Pinouts ......105 Page XIV...
  • Page 15 AFL3-W15C/W19C/W22C-ULT5 Panel PC List of BIOS Menus BIOS Menu 1: Main ........................57 BIOS Menu 2: Advanced ......................58 BIOS Menu 3: CPU Configuration ....................59 BIOS Menu 4: PCH-FW Configuration ..................61 BIOS Menu 5: ACPI Settings ....................... 62 BIOS Menu 6: RTC Wake Settings ....................

  • Page 17: Introduction

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Chapter Introduction Page 1...

  • Page 18: Overview

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 1.1 Overview Figure 1-1: AFL3-W15C/W19C/W22C-ULT5 Flat Bezel Panel PC ® The AFL3-W15C/W19C/W22C-ULT5 series is a quad-core Intel Core™ i5-8365UE powered flat bezel touchscreen panel PC with a rich variety of functions and peripherals. The flat-bezel design is ideal for easy and simplified integration into various applications. ®...

  • Page 19: Model Variations

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 1.2 Model Variations There are several models in the AFL3-W15C/W19C/W22C-ULT5 series. The model numbers and model variations are listed below. Model Size Panel Spec. AFL3-W15C-ULT5-i5/P/PC/4G 15.6" 300 cd/m , 1366x768 AFL3-W19C-ULT5-i5/P/PC/4G 18.5" 250 cd/m , 1366x768 AFL3-W22C-ULT5-i5/P/PC/4G 21.5"...

  • Page 20: Front Panel

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 1.4 Front Panel The front side of the AFL3-W15C/W19C/W22C-ULT5 is a flat-bezel panel with a TFT LCD screen surrounded by a PC/ABS plastic frame (Figure 1-2). Figure 1-2: Front View There is a power LED indicator located on the front panel. The status descriptions of the power LED indicator are listed below.

  • Page 21: Bottom Panel

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 1.5 Bottom Panel The bottom panel of the AFL3-W15C/W19C/W22C-ULT5 has the following connectors and switches. Figure 1-3: Bottom Panel 1.6 Rear Panel The rear panel has two speakers and retention screw holes that support VESA mounting. The rear panel also has several retention screw holes for installing the optional barcode scanner and magnetic stripe card reader.

  • Page 22: Side Panel

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 1.7 Side Panel The right side panel has one E-Window that supports a variety of IEI modules to provide additional connector interface. Figure 1-5: Side View The E-Window modules supported by the AFL3-W15C/W19C/W22C-ULT5 are listed below. All listed E-Window modules are for ATO (assembly-to-order) only. Part No.

  • Page 23: System Specifications

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 1.8 System Specifications The technical specifications for the AFL3-W15C/W19C/W22C-ULT5 systems are listed in Table 1-3. Specification AFL3-W15C-ULT5 AFL3-W19C-ULT5 AFL3-W22C-ULT5 LCD Size 15.6" (16:9) 18.5" (16:9) 21.5" (16:9) Max. Resolution 1366 (W) x 768 (H) 1366 (W) x 768 (H) 1920 (W) x 1080 (H) Brightness (cd/m Contrast Ratio...
  • Page 24 AFL3-W15C/W19C/W22C-ULT5 Panel PC Camera 2-megapixel with low light function and digital microphone Wireless & Bluetooth 802.11a/b/g/n/ac WLAN and Bluetooth v4.1 supported by the pre-installed M.2 2230 A+E-key WLAN module E-Window Expansion One full-size PCIe Mini slot (PCIe, USB) RFID Reader Mifare 13.56 MHz card reader (optional) Card Reader Magnetic stripe card reader (optional)

  • Page 25: Table 1-3: System Specifications

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Safety/EMC CE, FCC Class A ErP 2009/125/EC I/O Ports and Switches 1 x RS-232/422/485 serial port (DB-9 connector) 1 x RS-232 serial port (DB-9 connector) 2 x PoE GbE LAN* (RJ-45 connector) 1 x GbE LAN (RJ-45 connector) 4 x USB 3.2 Gen 2 (10 Gb/s) connectors 1 x HDMI output connector 1 x Power button...

  • Page 26: Dimensions

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 1.9 Dimensions The following sections list the dimensions of each model. 1.9.1 AFL3-W15C-ULT5 Dimensions The AFL3-W15C-ULT5 dimensions are shown below. Figure 1-6: AFL3-W15C-ULT5 Dimensions (mm) Page 10...

  • Page 27: Afl3-W19C-Ult5 Dimensions

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 1.9.2 AFL3-W19C-ULT5 Dimensions The AFL3-W19C-ULT5 dimensions are shown below. Figure 1-7: AFL3-W19C-ULT5 Dimensions (mm) Page 11...

  • Page 28: Afl3-W22C-Ult5 Dimensions

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 1.9.3 AFL3-W22C-ULT5 Dimensions The AFL3-W22C-ULT5 dimensions are shown below. Figure 1-8: AFL3-W22C-ULT5 Dimensions (mm) Page 12...

  • Page 29: Unpacking

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Chapter Unpacking Page 13...

  • Page 30: Unpacking

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 2.1 Unpacking To unpack the flat bezel panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the flat bezel panel PC has been properly installed.

  • Page 31: Optional Items

    AFL3-W15C/W19C/W22C-ULT5 Panel PC The AFL3-W15C/W19C/W22C-ULT5 flat bezel panel PC is shipped with the following components: Quantity Item Image AFL3-W15C/W19C/W22C-ULT5 panel PC 96 W power adapter Power cord Screws (M4*6) for VESA mounting Screws (M3*4) for HDD installation 2.3 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image...
  • Page 32 AFL3-W15C/W19C/W22C-ULT5 Panel PC Item and Part Number Image VESA 100 wall mount kit (P/N: AFLWK-19B) Panel mounting kit (P/N: AFL3PK-W15A-R10 for W15C) (P/N: AFL3PK-W19C-R10 for W19C & W22C) Rack mounting kit (P/N: AFL3RK-W15B-R10 for W15C) (P/N: ARM-11-RS) (P/N: ARM-31-RS) Stand for VESA 100 (P/N: STAND-A19-RS) Page 16...
  • Page 33 AFL3-W15C/W19C/W22C-ULT5 Panel PC Item and Part Number Image Stand for VESA 75/VESA 100 (P/N: STAND-C19-R10) Magnetic card reader (P/N: AFL3P-W10MSR-U-R10) Barcode scanner (P/N: AFL3-2D-R11) If any of these items are missing or damaged, contact the distributor or sales representative immediately. Page 17...

  • Page 34: Installation

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Chapter Installation Page 18...

  • Page 35: Anti-Static Precautions

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.1 Anti-static Precautions WARNING: Failure to take ESD precautions during the maintenance of the AFL3-W15C/W19C/W22C-ULT5 may result in permanent damage to the AFL3-W15C/W19C/W22C-ULT5 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL3-W15C/W19C/W22C-ULT5.

  • Page 36: Installation And Configuration Steps

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Anti-static Discharge: If a user open the rear panel of the flat bezel panel PC,  to configure the jumpers or plug in added peripheral devices, ground themselves first and wear an anti-static wristband. 3.3 Installation and Configuration Steps The following installation steps must be followed.

  • Page 37: Figure 3-1: Afl3-W15C-Ult5 Back Cover Retention Screws

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-1: AFL3-W15C-ULT5 Back Cover Retention Screws Figure 3-2: AFL3-W19C-ULT5 Back Cover Retention Screws Page 21...

  • Page 38: Figure 3-3: Afl3-W22C-Ult5 Back Cover Retention Screws

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-3: AFL3-W22C-ULT5 Back Cover Retention Screws Step 2: Lift the plastic back cover off the AFL3-W15C/W19C/W22C-ULT5. Step 3: Remove the retention screws from the internal metal cover. Two types of screw are used for securing the metal cover. See the following diagrams for detail. Be aware of this for reinstalling the metal cover.

  • Page 39: Figure 3-4: Afl3-W15C-Ult5 Metal Cover Retention Screws

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-4: AFL3-W15C-ULT5 Metal Cover Retention Screws Figure 3-5: AFL3-W19C-ULT5 Metal Cover Retention Screws Figure 3-6: AFL3-W22C-ULT5 Metal Cover Retention Screws Page 23...

  • Page 40: Figure 3-7: Lift The Metal Cover

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Step 4: Lift the metal cover off the AFL3-W15C/W19C/W22C-ULT5. A thermal pad is attached under the center of the metal cover. To easily remove the cover, turn the cover in a clockwise direction first to detach the thermal pad before lifting the cover (Figure 3-7).

  • Page 41: Module Installation

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.5 M.2 Module Installation The AFL3-W15C/W19C/W22C-ULT5 has an M.2 M-key slot for M.2 2280 module installation. To install an M.2 module into the AFL3-W15C/W19C/W22C-ULT5, please follow the steps below: Step 1: Remove the plastic back cover and the internal metal cover. See Section 3.4 above.

  • Page 42: Figure 3-9: Inserting The M.2 Module Into The Slot At An Angle

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-9: Inserting the M.2 Module into the Slot at an Angle Step 4: Secure the M.2 module with the previously removed retention screw (Figure 3-10). Figure 3-10: Securing the M.2 Module Page 26...

  • Page 43: Pcie Mini Module Installation

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.6 PCIe Mini Module Installation To install a full-size PCIe Mini module into the AFL3-W15C/W19C/W22C-ULT5, please follow the steps below: Step 1: Remove the plastic back cover and the internal metal cover. See Section 3.4 above. Step 2: Locate the PCIe Mini module slot.

  • Page 44: Figure 3-12: Removing The Retention Screw

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-12: Removing the Retention Screw Step 4: Line up the notch on the PCIe Mini module with the notch on the connector. Slide the PCIe Mini card into the socket at an angle of about 20º (Figure 3-13). Figure 3-13: Installing a PCIe Mini Module Step 5: Secure the PCIe Mini module with the retention screw.

  • Page 45: Figure 3-14: Securing The Pcie Mini Module

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-14: Securing the PCIe Mini Module Step 6: Step 0: Re-install the metal cover and the plastic back cover. Page 29...

  • Page 46: Hdd Installation

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.7 HDD Installation To install the HDD into the system, please follow the steps below: Step 1: Remove the plastic back cover and the internal metal cover. See Section 3.4 above. Step 2: Remove the four HDD bracket retention screws and lift the HDD bracket off the panel PC.

  • Page 47: Figure 3-16: Hdd Retention Screws

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-16: HDD Retention Screws Step 4: Connect the SATA cable to the rear of HDD from the motherboard. Step 5: Install the HDD into the AFL3-W15C/W19C/W22C-ULT5 by aligning the retention screw holes in the HDD brackets with the retention screw holes on the chassis.

  • Page 48: Poe Pd Module Installation (Optional)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.8 PoE PD Module Installation (Optional) An IEI PoE module must be installed before start using the panel PC as a PoE powered device (PD). To install the optional PoE module, follow the steps below. Step 1: Remove the plastic back cover and the internal metal cover.

  • Page 49: Rs-232/422/485 Serial Port (Com1) Selection

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.9 RS-232/422/485 Serial Port (COM1) Selection The bottom panel of the AFL3-W15C/W19C/W22C-ULT5 has one D-sub 9 male connectors for RS-232/422/485 connection. The serial communication mode selection can be made through the BIOS options. Please refer to Section 4.3.6.1.1 for detail information.

  • Page 50: Flash Descriptor Security Override

    AFL3-W15C/W19C/W22C-ULT5 Panel PC The COM1 Pin 9 Setting jumper location is shown in Figure 3-19 below. Figure 3-19: COM1 Pin 9 Setting Jumper Location 3.10 Flash Descriptor Security Override The Flash Descriptor Security Override jumper (ME_FLASH1) allows to enable or disable the ME firmware update.

  • Page 51: Clear Cmos

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-20: Flash Descriptor Security Override Jumper Location To update the ME firmware, please follow the steps below. Step 1: Before turning on the system power, short the Flash Descriptor Security Override jumper. Step 5: Update the BIOS and ME firmware, and then turn off the system power. Step 2: Remove the metal clip on the Flash Descriptor Security Override jumper.

  • Page 52: At/Atx Mode Selection

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.12 AT/ATX Mode Selection AT or ATX power mode can be used on the AFL3-W15C/W19C/W22C-ULT5. The selection is made through an AT/ATX switch located on the bottom panel (Figure 3-22). Figure 3-22: AT/ATX Switch Location 3.12.1 AT Power Mode With the AT mode selected, the power is controlled by a central power unit rather than a power switch.

  • Page 53: Mounting The System

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.13 Mounting the System The methods of mounting the AFL3-W15C/W19C/W22C-ULT5 are listed below. Wall mounting  Panel mounting  Rack mounting  Arm mounting  Stand mounting  The mounting methods are described below. 3.13.1 Wall Mounting To mount the flat bezel panel PC onto the wall, please follow the steps below.

  • Page 54: Figure 3-23: Wall-Mounting Bracket

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-23: Wall-mounting Bracket Step 6: Insert the four monitor mounting screws provided in the wall mount kit into the four screw holes on the real panel of the flat bezel panel PC and tighten until the screw shank is secured against the rear panel (Figure 3-24).

  • Page 55: Figure 3-24: Chassis Support Screws

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Step 7: Align the mounting screws on the monitor rear panel with the mounting holes on the bracket. Step 8: Carefully insert the screws through the holes and gently pull the monitor downwards until the monitor rests securely in the slotted holes (Figure 3-24). Ensure that all four of the mounting screws fit snugly into their respective slotted holes.

  • Page 56: Panel Mounting

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-25: Secure the Panel PC 3.13.2 Panel Mounting To mount the AFL3-W15C/W19C/W22C-ULT5 flat bezel panel PC into a panel, please follow the steps below. Step 1: Select the position on the panel to mount the panel PC. Step 2: Cut out a section corresponding to the size shown below.

  • Page 57: Figure 3-27: Afl3-W19C-Ult5 Cutout Dimensions

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-27: AFL3-W19C-ULT5 Cutout Dimensions Figure 3-28: AFL3-W22C-ULT5 Cutout Dimensions Step 3: Slide the panel PC through the hole until the frame is flush against the panel. Step 4: Insert a M5*50 screw into the screw hole on the side of the panel mounting bracket.

  • Page 58: Figure 3-29: Panel Mounting Kit Installation

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Step 5: Repeat Step 4 to install the other three screws into the sides of the two panel mounting brackets. Figure 3-29: Panel Mounting Kit Installation Step 6: Align the panel mounting bracket screw holes with the VESA mounting holes on the rear of the panel PC.

  • Page 59: Figure 3-30: Securing Panel Mounting Brackets

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-30: Securing Panel Mounting Brackets NOTE: The panel mounting kit described in this section is an optional item. To purchase it, please contact an IEI sales representative. Page 43...

  • Page 60: Cabinet And Rack Installation

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.13.3 Cabinet and Rack Installation The AFL3-W15C/W19C/W22C-ULT5 flat bezel panel PC can be installed into a cabinet or rack. The installation procedures are similar to the panel mounting installation. To do this, please follow the steps below: NOTE: When purchasing the cabinet/rack installation bracket, make sure it is compatible with both the AFL3-W15C/W19C/W22C-ULT5 flat bezel...

  • Page 61: Figure 3-31: Rack Mounting Kit Installation

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-31: Rack Mounting Kit Installation Step 4: Align the rack mounting bracket screw holes with the VESA mounting holes on the rear of the panel PC. Step 5: Secure the two rack mounting brackets to the rear of the panel PC by inserting the four retention screws into the VESA mounting holes and tightening them (Figure 3-32).

  • Page 62: Figure 3-32: Securing Rack Mounting Brackets

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-32: Securing Rack Mounting Brackets Step 6: Slide the panel PC with the attached rack/cabinet bracket into a rack or cabinet (Figure 3-33). Figure 3-33: Install into a Rack/Cabinet Page 46...

  • Page 63: Arm Mounting

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Step 7: Once the panel PC with the attached rack/cabinet bracket has been properly inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the rack or cabinet (Figure 3-33). NOTE: The rack mounting kit described in this section is an optional item.

  • Page 64: Figure 3-34: Arm Mounting Retention Screw Holes

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Figure 3-34: Arm Mounting Retention Screw Holes Step 4: Secure the AFL3-W15C/W19C/W22C-ULT5 to the interface pad by inserting four retention screws through the mounting arm interface pad and into the AFL3-W15C/W19C/W22C-ULT5.S t e p 0 : Figure 3-35: Arm Mounting Page 48...

  • Page 65: Stand Mounting

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.13.5 Stand Mounting To mount the AFL3-W15C/W19C/W22C-ULT5 using the stand mounting kit, please follow the steps below. Step 1: Locate the screw holes on the rear of the AFL3-W15C/W19C/W22C-ULT5. This is where the bracket will be attached. Step 2: Align the bracket with the screw holes.

  • Page 66: Powering On The System

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.14 Powering On the System To power on the system, follow the steps below: Step 1: Connect the power cord to the power adapter. Connect the other end of the power cord to a power source. Step 2: Connect the power adapter to the power connector of the AFL3-W15C/W19C/W22C-ULT5.

  • Page 67: Reset The System

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 3.15 Reset the System The reset button enables user to reboot the system when the system is on. The reset button location is shown in Figure 3-38. Press the reset button to reboot the system. Figure 3-38: Reset Button Location 3.16 Software Installation All the drivers for the AFL3-W15C/W19C/W22C-ULT5 are available on IEI Resource Download Center (https://download.ieiworld.com).

  • Page 68: Driver Download

    AFL3-W15C/W19C/W22C-ULT5 Panel PC NOTE: The panel PC with projected capacitive type touchscreen and Windows 7 (or later) OS does not require touch driver installation. This is because there is a HID touch digitizer built-in driver in Windows 7 or later. 3.16.1 Driver Download To download drivers from IEI Resource Download Center, follow the steps below.
  • Page 69 AFL3-W15C/W19C/W22C-ULT5 Panel PC Step 3: Click the driver file name on the page and you will be prompted with the following window. You can download the entire ISO file ( ), or click the small  arrow to find an individual driver and click the file name to download ( ...

  • Page 70: Bios Setup

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Chapter BIOS Setup Page 54...

  • Page 71: Introduction

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 72: Getting Help

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Function Decrease the numeric value or make changes F1 key General help, only for Status Page Setup Menu and Option Page Setup Menu F2 key Load previous values. F3 key Load optimized defaults F4 key Save changes and Exit BIOS Esc key Main Menu –...

  • Page 73: Main

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit BIOS Information BIOS Vendor American Megatrends Set the Date.

  • Page 74: Advanced

    AFL3-W15C/W19C/W22C-ULT5 Panel PC System Date [xx/xx/xx]  Use the System Date option to set the system date. Manually enter the day, month and year. System Time [xx:xx:xx]  Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 75: Cpu Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced CPU Configuration When enabled, a VMM can utilize the additional Type Intel(R) Core(TM)
  • Page 76 AFL3-W15C/W19C/W22C-ULT5 Panel PC Active Processor Cores [All]  Use the Active Processor Cores BIOS option to enable numbers of cores in the processor package.  Enable all cores in the processor package. EFAULT  Enable one core in the processor package. ...

  • Page 77: Pch-Fw Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.3.2 PCH-FW Configuration The PCH-FW Configuration menu (BIOS Menu 4) allows Intel® Active Management Technology (AMT) options to be configured. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced Unconfigure ME [Disabled] OEMFlag Bit 15: Unconfigure ME with resetting MEBx password to default.

  • Page 78: Acpi Settings

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.3.3 ACPI Settings The ACPI Settings menu (BIOS Menu 5) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI sleep state the system ACPI Sleep State [S3 (Suspend to RAM] will enter when the...

  • Page 79: Rtc Wake Settings

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.3.4 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 6) configures RTC wake event. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event.

  • Page 80: Iwdd H/W Monitor

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. 4.3.5 iWDD H/W Monitor The iWDD H/W Monitor menu (BIOS Menu 7) contains the fan configuration submenus and displays operating temperature, fan speeds and system voltages.

  • Page 81: F81866 Super Io Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC +V3.3A +V1.05A +VCCSA 4.3.6 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 8) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced F81866 Super IO Configuration Set Parameters of Serial...

  • Page 82: Serial Port N Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.3.6.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 9) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced Serial Port 1 Configuration Enable or Disable Serial Port (COM) Serial Port [Enabled]...

  • Page 83: Serial Port 2 Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.3.6.1.2 Serial Port 2 Configuration Serial Port [Enabled]  Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enabled Enable the serial port EFAULT 4.3.7 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 10) allows the console redirection options to be configured.

  • Page 84: Legacy Console Redirection Settings

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Console Redirection [Disabled]  Use Console Redirection option to enable or disable the console redirection function.  Disabled Disabled the console redirection function EFAULT  Enabled Enabled the console redirection function 4.3.7.1 Legacy Console Redirection Settings The Legacy Console Redirection Settings menu (BIOS Menu 11) allows the legacy console redirection options to be configured.

  • Page 85: Console Redirection Settings

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.3.7.2 Console Redirection Settings The Console Redirection Settings menu (BIOS Menu 12) allows the console redirection options to be configured. The option is active when Console Redirection option is enabled. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced COM1 Emulation: ANSI:...
  • Page 86 AFL3-W15C/W19C/W22C-ULT5 Panel PC Bits per second [115200]  Use the Bits per second option to specify the serial port transmission speed. The speed must match the other side. Long or noisy lines may require lower speeds.  9600 Sets the serial port transmission speed at 9600. ...

  • Page 87: Usb Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Stop Bits [1]  Use the Stop Bits option to specify the number of stop bits used to indicate the end of a serial data packet. Communication with slow devices may require more than 1 stop bit. ...

  • Page 88: Nvme Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Legacy USB Support [Enabled]  Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 89: Iei Feature

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.3.10 IEI Feature Use the IEI Feature menu (BIOS Menu 15) to configure One Key Recovery function. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function [Disabled] system automatically within 10 min, when OS...

  • Page 90: Chipset

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.4 Chipset Use the Chipset menu (BIOS Menu 16) to configure the system chipset. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit > System Agent (SA) Configuration System Agent (SA) >...

  • Page 91: Memory Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC VT-d [Disabled]  Use the VT-d option to enable or disable VT-d support.  Disabled Disable VT-d support. EFAULT  Enabled Enable VT-d support. 4.4.1.1 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 18) to display the memory information.

  • Page 92: Graphics Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.4.1.2 Graphics Configuration Use the Graphics Configuration menu (BIOS Menu 19) to configure the graphics settings. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset Graphics Configuration Select DVMT 5.0 Pre-Allocated (Fixed) DVMT Pre-Allocated [32M] Graphics Memory size used DVMT Total Gfx Mem [MAX]...

  • Page 93: Pch-Io Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC  EFAULT Primary IGFX Boot Display [VBIOS Default]  Use the Primary IGFX Boot Display option to select the display device used by the system when it boots. VBIOS Default  EFAULT HDMI1  LVDS  Backlight Control [LED] ...
  • Page 94 AFL3-W15C/W19C/W22C-ULT5 Panel PC Restore AC Power Loss [Last State]  Use the Restore AC Power BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.  Power Off The system remains turned off ...

  • Page 95: Pci Express Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.4.2.1 PCI Express Configuration Use the PCI Express Configuration submenu (BIOS Menu 21) to configure the PCI Express slots. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset PCI Express Configuration PCI Express Root Port Settings.

  • Page 96: Sata And Rst Configuration

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Detect Non-Compliance Device [Disabled]  Use the Detect Non-Compliance Device option to enable or disable detecting if a non-compliance PCI Express device is connected to the PCI Express slot.  Disabled Disables to detect if a non-compliance PCI EFAULT Express device is connected to the PCI Express slot.
  • Page 97 AFL3-W15C/W19C/W22C-ULT5 Panel PC SATA Mode Selection [AHCI]  Use the SATA Mode Selection option to configure how the SATA controller(s) operate.  AHCI Configures SATA devices as AHCI device. EFAULT  Intel RST Configures SATA devices as RAID device. Premium NOTE: Before accessing the RAID configuration utility, ensure to set the Option ROM Messages BIOS option in the Boot menu to Force...

  • Page 98: Security

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.5 Security Use the Security menu (BIOS Menu 23) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Password Description Set Administrator Password If ONLY the Administrator’s password is set, then this only limits access to Setup and is...

  • Page 99: Boot

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.6 Boot Use the Boot menu (BIOS Menu 24) to configure system boot options. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Select the keyboard Bootup NumLock State [On] NumLock state...
  • Page 100 AFL3-W15C/W19C/W22C-ULT5 Panel PC Quiet Boot [Enabled]  Use the Quiet Boot BIOS option to select the screen display when the system boots.  Disabled Normal POST messages displayed  Enabled OEM Logo displayed instead of POST messages EFAULT Launch PXE OpROM [Disabled] ...

  • Page 101: Exit

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 4.7 Exit Use the Exit menu (BIOS Menu 25) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Security Boot Save &...
  • Page 102 AFL3-W15C/W19C/W22C-ULT5 Panel PC Save as User Defaults  Use the Save as User Defaults option to save the changes done so far as user defaults. Restore User Defaults  Use the Restore User Defaults option to restore the user defaults to all the setup options. Page 86...

  • Page 103: System Maintenance

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Chapter System Maintenance Page 87...

  • Page 104: System Maintenance Introduction

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 5.1 System Maintenance Introduction If the components of the AFL3-W15C/W19C/W22C-ULT5 fail they must be replaced. Please contact the system reseller or vendor to purchase the replacement parts. Back cover removal instructions for the AFL3-W15C/W19C/W22C-ULT5 are described below. 5.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the maintenance of the...

  • Page 105: Turn Off The Power

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 5.3 Turn off the Power WARNING: Failing to turn off the system before opening it can cause permanent damage to the system and serious or fatal injury to the user. Before any maintenance procedures are carried out on the system, make sure the system is turned off.

  • Page 106: Figure 5-2: So-Dimm Installation

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Step 5: Remove the DDR4 memory module by pulling both the spring retainer clips outward from the socket. Step 6: Grasp the DDR4 memory module by the edges and carefully pull it out of the socket. Step 7: Install the new DDR4 memory module by pushing it into the socket at a 20º...

  • Page 107: Interface Connectors

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Chapter Interface Connectors Page 91...

  • Page 108: Peripheral Interface Connectors

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.1 Peripheral Interface Connectors The AFL3-W15C/W19C/W22C-ULT5 panel PC motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 6-1. The Pin 1 locations of the on-board connectors are also indicated in the diagram below.

  • Page 109: Internal Peripheral Connectors

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.2 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the peripheral interface connectors on the motherboard. Pinouts of these connectors can be found in the following sections.

  • Page 110: Audio Out Connector (Audio_Out2)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.2.1 Audio Out Connector (AUDIO_OUT2) PIN NO. DESCRIPTION SPK_OUT_P_L SPK_OUT_N_L SPK_OUT_N_R SPK_OUT_P_R Table 6-2: Audio Out Connector (AUDIO_OUT2) Pinouts 6.2.2 Battery Connector (BAT1) PIN NO. DESCRIPTION VBATT Table 6-3: Battery Connector (BAT1) Pinouts 6.2.3 Digital I/O Connector (DIO1) PIN NO.

  • Page 111: Inverter Connector (Inverter1)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.2.4 Inverter Connector (INVERTER1) PIN NO. DESCRIPTION +12V +12V ENABKL BRIGHTNESS Table 6-5: Inverter Connector (INVERTER1) Pinouts 6.2.5 LVDS Connector (LVDS1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION LVDS_A_TX0-P LVDS_A _TX0-N LVDS_A_TX1-P LVDS_A _TX1-N LVDS_A_TX2-P LVDS_A _TX2-N LVDS_A_TXCLK-P LVDS_A _TXCLK-N LVDS_A_TX3-P LVDS_A _TX3-N...

  • Page 112: A-Key Slot (M2_A1)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.2.6 M.2 A-Key Slot (M2_A1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +V3.3A USB+ +V3.3A USB- Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key PCIE_TX+ PCIE_TX- PCIE_RX+ PCIE_RX- CLK_PCIE+ CLK_PCIE- BUF_PLT_RST# Pull Up +V3.3A PCIE_WAKE#...

  • Page 113: M-Key Slot (M2_M2)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC +V3.3A +V3.3A Table 6-7: M.2 A-Key Slot (M2_A1) Pinouts 6.2.7 M.2 M-key Slot (M2_M2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3VA +3.3VA PCIE_RX- PCIE_RX+ +3.3VA PCIE_TX- +3.3VA PCIE_TX+ +3.3VA +3.3VA PCIE_RX- +3.3VA PCIE_RX+ PCIE_TX- PCIE_TX+ PCIE_RX- PCIE_RX+ PCIE_TX- PCIE_TX+ SATA_SLP...

  • Page 114: Microphone Connector (Dmic1)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC PCIE_RX+ PCIE_RX- PCIE_TX- PCIE_TX+ PCIE_RST# PCIE_CLKREQ CLK_PCIE_M2_M- LAN_WAKE# CLK_PCIE_M2_M+ M2_IFDET +3.3VA +3.3VA +3.3VA Table 6-8: M.2 M-key Slot (M2_M2) Pinouts 6.2.8 Microphone Connector (DMIC1) PIN NO. DESCRIPTION DMIC_CLK DMIC_DATA +3.3V Table 6-9: Microphone Connector (DMIC1) Pinouts Page 98...

  • Page 115: Pcie Mini Connector, Full-Size (Mini_Pcie1)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.2.9 PCIe Mini Connector, Full-size (MINI_PCIE1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# +3.3V +1.5V CLK- CLK+ +3.3V PCIRST# PCIE_RX- 3VDual PCIE_RX+ +1.5V SMBCLK PCIE_TX- SMBDATA PCIE_TX+ USBD- USBD+ +3.3V +3.3V RF_LINK# BLUELED# +1.5V +3.3V Table 6-10: Full-size PCIe Mini Connector (MINI_PCIE1) Pinouts Page 99...

  • Page 116: Power Button Connector (Pw_Btn1)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.2.10 Power Button Connector (PW_BTN1) PIN NO. DESCRIPTION PW_BN Table 6-11: Power Button Connector (PW_BTN1) Pinouts 6.2.11 Power LED Connector (PW_LED1) PIN NO. DESCRIPTION PW_LED +5V SUS PW LED +5V Table 6-12: Power LED Connector (PW_LED1) Pinouts 6.2.12 SATA Connector (SATA1) PIN NO.

  • Page 117: Spi Flash Connector (Jspi1)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.2.13 SPI Flash Connector (JSPI1) PIN NO. DESCRIPTION +V3.3M_SPI_CON SPI_CS#0_CN SPI_SO_SW SPI_CLK_SW SPI_SI_SW Table 6-14: SPI Flash Connector (JSPI1) Pinouts 6.2.14 USB Connector (BT_USB1) PIN NO. DESCRIPTION +V5A HUB_D1F- HUB_D1F+ Table 6-15: USB Connector (BT_USB1) Pinouts 6.2.15 USB Connector (TOUCH_USB1) PIN NO.

  • Page 118: Usb Connector (Rfid_Usb1)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.2.16 USB Connector (RFID_USB1) PIN NO. DESCRIPTION +V5A HUB_D3F- HUB_D3F+ Table 6-17: USB Connector (RFID_USB1) Pinouts 6.2.17 USB Connector (WEBCAM_USB1) PIN NO. DESCRIPTION +V5A HUB_D4F- HUB_D4F+ Table 6-18: USB Connector (CAM_USB1) Pinouts 6.3 External Interface Panel Connectors The table below lists the rear panel connectors on the AFL3MB-ULT5 motherboard.

  • Page 119: Ethernet Connectors (Lan1, J1, J2)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Connector Type Label USB 3.2 Gen 2 connectors USB 3.2 Gen 2 port USB_CON1 USB_CON2 Table 6-19: Rear Panel Connectors 6.3.1 Ethernet Connectors (LAN1, J1, J2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDIA0+ MDIA2- MDIA0- MDIA1- MDIA1+ MDIA3+ MDIA2+ MDIA3-...

  • Page 120: Hdmi Connector (Hdmi1)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.3.2 HDMI Connector (HDMI1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2+ HDMI_CLK# HDMI_DATA2#- HDMI_DATA1+ HDMI_SCL HDMI_DATA1#- HDMI_SDA HDMI_DATA0+ +5VCC HDMI_DATA0#- HDMI_HPD HDMI_CLK+ Table 6-23: HDMI Connector (HDMI1) Pinouts 6.3.3 RS-232/422/485 DB-9 Serial Port (COM1) RS-232 RS-422 RS-485 DCD1 TXD422- TXD485-...

  • Page 121: Rj-45 Serial Port (Com2)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC 6.3.4 RS-232 RJ-45 Serial Port (COM2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DCD2 DSR2 SIN2 RTS2 SOUT2 CTS2 RTS2 Table 6-25: RS-232 RJ-45 Serial Port (COM2) Pinouts 6.3.5 USB 3.2 Gen 2 Connectors (USB_CON1) PIN NO. DESCRIPTION PIN NO.

  • Page 122: A Regulatory Compliance

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Appendix Regulatory Compliance Page 106...
  • Page 123 AFL3-W15C/W19C/W22C-ULT5 Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive (2014/30/EU)  Low-Voltage Directive (2014/35/EU)  RoHS II Directive (2011/65/EU, 2015/863/EU)  If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 124 AFL3-W15C/W19C/W22C-ULT5 Panel PC Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/EU.
  • Page 125 AFL3-W15C/W19C/W22C-ULT5 Panel PC Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 2014/53/EU. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU.
  • Page 126 AFL3-W15C/W19C/W22C-ULT5 Panel PC FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and  This device must accept any interference received, including interference ...
  • Page 127 AFL3-W15C/W19C/W22C-ULT5 Panel PC CHINA ROHS The label on the product indicates the estimated “Environmentally Friendly Use Period” (EFUP). This is an estimate of the number of years that these substances would “not leak undergo abrupt change.” This product contain replaceable sub-assemblies/components which have a shorter EFUP such as batteries and lamps.

  • Page 128: B Safety Precautions

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Appendix Safety Precautions Page 112...

  • Page 129: Safety Precautions

    AFL3-W15C/W19C/W22C-ULT5 Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the AFL3-W15C/W19C/W22C-ULT5. B.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: B.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times.

  • Page 130: Anti-Static Precautions

    AFL3-W15C/W19C/W22C-ULT5 Panel PC If considerable amounts of dust, water, or fluids enter the device, turn off  the power supply immediately, unplug the power cord, and contact the AFL3-W15C/W19C/W22C-ULT5 vendor. DO NOT:  Drop the device against a hard surface. Strike or exert excessive force onto the LCD panel.

  • Page 131: Product Disposal

    AFL3-W15C/W19C/W22C-ULT5 Panel PC B.1.3 Product Disposal CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. Outside the European Union–If you wish to dispose of used electrical and ...

  • Page 132: Maintenance And Cleaning Precautions

    AFL3-W15C/W19C/W22C-ULT5 Panel PC B.2 Maintenance and Cleaning Precautions When maintaining or cleaning the AFL3-W15C/W19C/W22C-ULT5, please follow the guidelines below. WARNING: For safety reasons, turn-off the power and unplug the panel PC  before cleaning. If you dropped any material or liquid such as water onto the panel ...
  • Page 133 AFL3-W15C/W19C/W22C-ULT5 Panel PC Cloth– Although paper towels or tissues can be used, a soft, clean piece of  cloth is recommended when cleaning the device. Water or rubbing alcohol–A cloth moistened with water or rubbing alcohol  can be used to clean the device. Using solvents–The use of solvents is not recommended when cleaning the ...

  • Page 134: Cbios Menu Options

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Appendix BIOS Menu Options Page 118...
  • Page 135 AFL3-W15C/W19C/W22C-ULT5 Panel PC System Date [xx/xx/xx] ......................58 System Time [xx:xx:xx] ....................... 58 ® Intel (VMX) Virtualization Technology [Disabled] ............59 Active Processor Cores [All] ....................60 Hyper-threading [Enabled] ....................60 ® Intel SpeedStep™ [Enabled] ..................... 60 C State [Disabled] ........................ 60 Unconfigure ME [Disabled] ....................
  • Page 136 AFL3-W15C/W19C/W22C-ULT5 Panel PC PCIe Speed [Auto] ........................ 79 Detect Non-Compliance Device [Disabled] ............... 80 STAT Controller(s) [Enabled] ....................80 SATA Mode Selection [AHCI] ....................81 PCIe Storage Dev On Port M2_M2 [Not RST Controlled] ..........81 Administrator Password ..................... 82 User Password ........................

  • Page 137: D Watchdog Timer

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Appendix Watchdog Timer Page 121...
  • Page 138 AFL3-W15C/W19C/W22C-ULT5 Panel PC NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working. The system may stop working because of external EMI or software bugs. The Watchdog Timer ensures that standalone systems like ATMs will automatically attempt to restart in the case of system problems.
  • Page 139 AFL3-W15C/W19C/W22C-ULT5 Panel PC NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown. EXAMPLE PROGRAM: ;...

  • Page 140: E Error Beep Code

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Appendix Error Beep Code Page 124...

  • Page 141: Pei Beep Codes

    AFL3-W15C/W19C/W22C-ULT5 Panel PC E.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available E.2 DXE Beep Codes...

  • Page 142: F Hazardous Materials Disclosure

    AFL3-W15C/W19C/W22C-ULT5 Panel PC Appendix Hazardous Materials Disclosure Page 126...

  • Page 143: Rohs Ii Directive (2015/863/Eu)

    AFL3-W15C/W19C/W22C-ULT5 Panel PC F.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 144: China Rohs

    AFL3-W15C/W19C/W22C-ULT5 Panel PC F.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 128...
