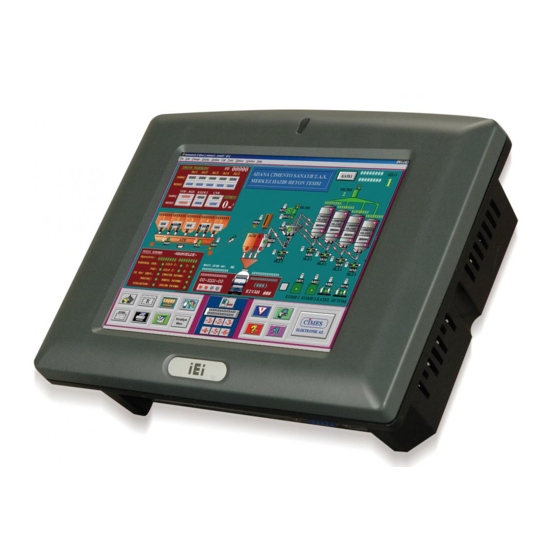

IEI Technology AFL-056A-LX User Manual

Fanless all-in-one panel pc with amd geode lx-800 cpu tft lcd, wireless lan, touch screen and ip 64 protection
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AFOLUX LX Panel PC
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFL-056A-LX and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology AFL-056A-LX

Summary of Contents for IEI Technology AFL-056A-LX

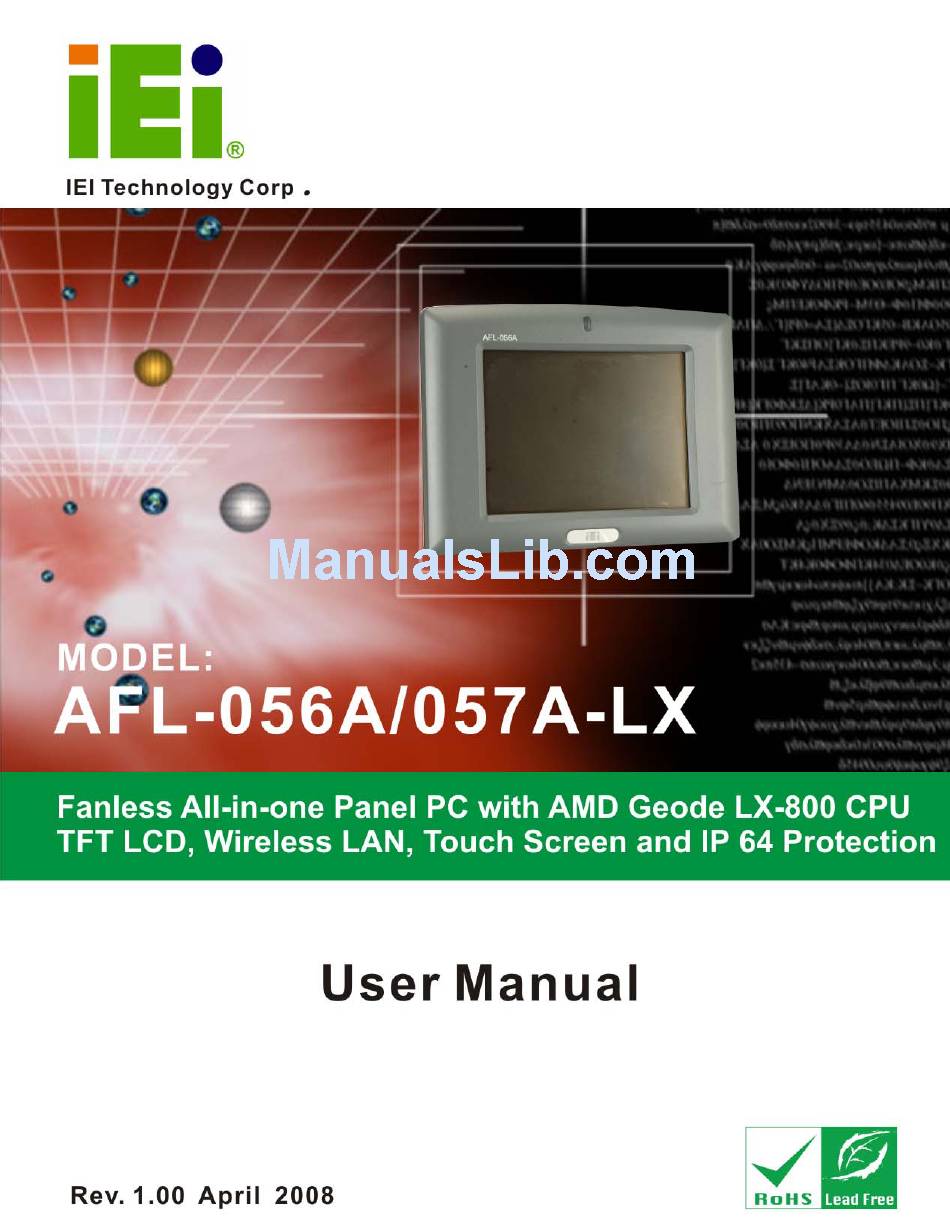

  • Page 1 AFOLUX LX Panel PC Page i...
  • Page 2 AFOLUX LX Panel PC Revision Date Version Changes April, 2008 1.00 Initial release Page ii...
  • Page 3 AFOLUX LX Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Manual Conventions

    AFOLUX LX Panel PC Manual Conventions WARNING! Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. Warnings are easy to recognize. The word “warning” is written as “WARNING,” both capitalized and bold and is followed by text.
  • Page 5 AFOLUX LX Panel PC NOTE: These messages inform the reader of essential but non-critical information. These messages should be read carefully as any directions or instructions contained therein can help avoid making mistakes. Notes are easy to recognize. The word “note” is written as “NOTE,”...

  • Page 6: Packing List

    NOTE: If any of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the AFOLUX LX from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.

  • Page 7: Table Of Contents

    AFOLUX LX Panel PC Table of Contents 1 INTRODUCTION......................1 1.1 AFOLUX LX F PC O ..............2 ANEL VERVIEW 1.1.1 Model Variations ....................2 1.1.2 Applications ....................... 3 1.1.3 Standard Features ....................3 1.2 E ....................4 XTERNAL VERVIEW 1.2.1 General Description...................
  • Page 8 AFOLUX LX Panel PC 2.5.2 Features ......................20 2.6 P ......... 21 ERIPHERAL EVICE NTERFACES ONNECTORS LOTS 2.6.1 OEM Options ....................21 2.6.2 Internal Slots....................21 2.6.3 Internal Peripheral Device Connectors............21 2.6.4 External Peripheral Device Connectors............21 3 INSTALLATION ......................23 3.1 I ...................
  • Page 9 AFOLUX LX Panel PC 5.1.3 Getting Help..................... 47 5.1.4 Main BIOS Menu ..................... 48 5.2 S CMOS F .................. 50 TANDARD EATURES 5.2.1 IDE Primary Master/Slave ................51 5.3 A BIOS F ..................54 DVANCED EATURES 5.4 A ................60 DVANCED HIPSET EATURES...
  • Page 10 AFOLUX LX Panel PC G ADDRESS MAPPING ....................95 G.1 IO A ....................96 DDRESS G.2 1 MB M ................97 EMORY DDRESS G.3 IRQ M ....................97 APPING ABLE G.4 DMA C ................98 HANNEL SSIGNMENTS H HAZARDOUS MATERIALS DISCLOSURE ............99 H.1 H IPB P AZARDOUS...
  • Page 11 AFOLUX LX Panel PC List of Figures Figure 1-1: AFOLUX LX........................2 Figure 1-2: Front View ........................4 Figure 1-3: Rear View ........................5 Figure 1-4: Top View........................5 Figure 1-5: Side View........................6 Figure 1-6: AFOLUX LX Bottom View ...................6 Figure 1-7: Dimensions (units in mm) ..................13 Figure 3-1: Back Cover Retention Screws .................27 Figure 3-2: CF Card Location ......................28 Figure 3-3: AT/ATX Switch Location...................28...
  • Page 12 AFOLUX LX Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page xii...
  • Page 13 AFOLUX LX Panel PC List of Tables Table 1-1: Model Variations ......................2 Table 1-2: AFOLUX LX System Specifications ................8 Table 1-3: Motherboard Specifications ..................9 Table 1-4: TFT LCD Monitor Specifications ................10 Table 1-5: Touch Panel Specifications ..................10 Table 1-6: Bluetooth Module Specifications................11 Table 1-7: Wi-Fi Module Specifications ..................12 Table 2-1: Geode LX Graphics Features ..................19 Table 5-1: BIOS Navigation Keys ....................47...
  • Page 14 AFOLUX LX Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page xiv...
  • Page 15 AFOLUX LX Panel PC BIOS Menus BIOS Menu 1: Award BIOS CMOS Setup Utility ................48 BIOS Menu 2: Standard CMOS Features..................50 BIOS Menu 3: Advanced BIOS Features ..................54 BIOS Menu 4: Advanced Chipset Features................60 BIOS Menu 5: Integrated Peripherals ..................62 BIOS Menu 6: Power Management Setup ..................65 BIOS Menu 7: PnP/PCI Configurations..................66 Page xv...
  • Page 16 AFOLUX LX Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page xvi...

  • Page 17: Introduction

    AFOLUX LX Panel PC Chapter Introduction Page 1...

  • Page 18: Afolux Lx Flat Panel Pc Overview

    AFOLUX LX Panel PC 1.1 AFOLUX LX Flat Panel PC Overview Figure 1-1: AFOLUX LX The AFOLUX LX flat panel PC is a flexible, multi-functional and fanless flat panel PC that can be applied in diverse operational environments and implemented in multi-faceted applications.

  • Page 19: Applications

    AFOLUX LX Panel PC 1.1.2 Applications The AFOLUX LX all-in-one panel PC is designed for multiple applications. Its durability and strength makes it an ideal choice for public access computers. Some possible applications include: Vehicle Interior device Truck PC Logistic car PC General computing PC based testing center Distance learning...

  • Page 20: External Overview

    AFOLUX LX Panel PC Bluetooth module Wireless LAN integrated with PIFA antenna Dual 10/100Mbps Ethernet support One CompactFlash® Type I/II slot Simplified installation process RoHS compliance 1.2 External Overview 1.2.1 General Description The AFOLUX LX is a stylish flat panel PC that comprises of a screen, rear panel, top panel, bottom panel and two side panels (left and right).

  • Page 21: Rear Panel

    AFOLUX LX Panel PC 1.2.3 Rear Panel The rear panel provides access to retention screw holes that support the wall mounting. Refer to Figure 1-3. Figure 1-3: Rear View 1.2.4 Top Panel and Side Panels The top panel and side panels of AFOLUX LX provides access to slots that support panel mount and rack mount (Figure 1-4 and Figure 1-5).

  • Page 22: Bottom Panel

    AFOLUX LX Panel PC Figure 1-5: Side View 1.2.5 Bottom Panel The bottom panel of the AFOLUX LX has the following I/O interfaces (Figure 1-6): 1 x RS-232 serial port connector 1 x RS-232 or RS-422/485 serial port connector (selected by a jumper) 1 x AC power adapter connector 1 x RJ-45 Gigabit Ethernet connectors 2 x USB 2.0 connectors...

  • Page 23: Internal Overview

    AFOLUX LX Panel PC 1.3 Internal Overview The AFOLUX LX internal components are protected in a plastic back cover. An AT/ATX switch is in the left side of the aluminum chassis inside the plastic cover. Other internal components, the motherboard, wireless LAN module and DDR memory module, are installed in the aluminum chassis on a metal sheet that protects the rear of the TFT LCD screen.

  • Page 24: Table 1-2: Afolux Lx System Specifications

    AFOLUX LX Panel PC SPECIFICATION AFL-056-LX AFL-057-LX Brightness 350 cd/m 400 cd/m Contrast Ratio 400:1 500:1 Colors 262K Pixel Pitch (H x V) 0.118 x 0.362 0.06 x 0.18 Viewing Angle (H-V) 100/60 140/100 Backlight MTBF 30000 hrs 50000 hrs Touch Screen 4-wire resistive type Extension...

  • Page 25: Motherboard Specifications

    1.4.4 Flat Panel Screen Specifications The AFOLUX LX come with a TFT LCD monitor at the front of the flat panel PC (see Figure 1-2). The specifications for the LCD monitor are shown in Table 1-4 below. SPECIFICATION AFL-056A-LX AFL-057A-LX Model DATA IMAGE...

  • Page 26: Touch Screen Specifications

    AFOLUX LX Panel PC SPECIFICATION AFL-056A-LX AFL-057A-LX Brightness (cd/m Contrast Ratio 400:1 300:1 Response Time (ms) 15(Tr) / 20(Tf) 15(Tr) / 35(Tf) Supply Voltage (V) Backlight 1 CCFL 1 CCFL Backlight MTBF (hrs.) 30000 30000 Dimensions (mm) 126.5 x 100 x 11.1 127 x 98.43 x 7...

  • Page 27: Bluetooth Module Specifications

    AFOLUX LX Panel PC 1.4.6 Bluetooth Module Specifications The AFOLUX LX are all integrated with a Bluetooth module. The Bluetooth module enables the transmission between various peripheral devices through a Bluetooth network. The peripheral devices may include: Headsets Barcode readers Printers Cell phones Keyboard and mouse...

  • Page 28: Table 1-7: Wi-Fi Module Specifications

    AFOLUX LX Panel PC The technical specifications of the Wi-Fi module are listed in Table 1-7. Specification Wi-Fi Module Standards IEEE 802.11b (11 Mb/s) IEEE 802.11g (54 Mb/s) Frequency Band 2.4 – 2.5 GHz Data Rate Automatically modulated 6, 9, 12, 18, 24, 36, 48 or 54 Mb/s for IEEE 802.11g 1, 2, 5.5 or 11 Mb/s for IEEE 802.11b Security 64/128 bit WEP...

  • Page 29: Dimensions

    AFOLUX LX Panel PC 1.5 Dimensions The dimensions of the AFL-056A-LX and AFL-057-LX flat panel PC are shown in Figure 1-7 below. Figure 1-7: Dimensions (units in mm) Page 13...
  • Page 30 AFOLUX LX Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 14...

  • Page 31: Motherboard

    AFOLUX LX Panel PC Chapter Motherboard Page 15...

  • Page 32: Introduction

    AFOLUX LX Panel PC 2.1 Introduction The AFOLUX LX flat screen PC contains the AFLMB-LX2-R10 motherboard. The motherboard is the heart of any computer and is responsible for transmitting, receiving and processing data as well as driving the different onboard devices. This chapter gives a brief introduction to the AFLMB-LX2-R10 motherboard.

  • Page 33: System Chipset

    AFOLUX LX Panel PC 1.8W Typical (3.9W TDP) @ 500MHz GeodeLink active hardware power management Hardware support for standard ACPI software power management I/O companion SUSP#/SUSPA# power controls Lower power I/O Wakeup on SMI/INTR 2.3 System Chipset The AFLMB-LX2-R10 motherboard has a preinstalled AMD Geode™ CS5536 system chipset.

  • Page 34: Graphics Support

    AFOLUX LX Panel PC IR Communication Port System Management Bus (SMB) Controller LPC (Low Pin Count) Port General Purpose I/Os (GPIOs) 8 Multi-Function General Purpose Timers (MFGPTs) Real-Time Clock (RTC) with CMOS RAM Power Management Controller ACPI v2.0 compliant 2.4 Graphics Support The Geode LX processor’s Graphics Processor is a BitBLT/vector engine that supports pattern generation, source expansion, pattern/source transparency, 256 ternary raster operations, alpha blenders to support alpha- BLTs, incorporated BLT FIFOs, a GeodeLink...

  • Page 35: Table 2-1: Geode Lx Graphics Features

    AFOLUX LX Panel PC Feature AMD Geode™ LX Processor Bresenham Lines Patterned (stippled) Lines Screen to Screen BLT Screen to Screen BLT with mono expansion Memory to Screen BLT Yes (throttled rep movs writes) Accelerated Text Pattern Size (Mono) 8x8 pixels Pattern Size (Color) 8x8 pixels Monochrome Pattern...

  • Page 36: Ethernet Controller Specifications

    AFOLUX LX Panel PC 2.5 Ethernet Controller Specifications 2.5.1 Overview The Realtek RTL8100BL is a single-chip Fast Ethernet controller. It is enhanced with an ACPI (Advanced Configuration Power Interface) management function for PCI that provides efficient power management for operating systems with OSPM (Operating System Directed Power Management).

  • Page 37: Peripheral Device Interfaces, Connectors, And Slots

    Many of the peripheral device connectors listed below are not connected to any devices. These connectors are reserved for OEM customizations. For a customized option, please contact the vendor, reseller or IEI sales representative. 2.6.2 Internal Slots The slots listed below can all be found on the AFLMB-LX2-R10 motherboard.
  • Page 38 AFOLUX LX Panel PC 1 x Power connector Page 22...

  • Page 39: Installation

    AFOLUX LX Panel PC Chapter Installation Page 23...

  • Page 40: Installation Precautions

    AFOLUX LX Panel PC 3.1 Installation Precautions When installing the flat panel PC, please follow the precautions listed below: Power turned off: When installing the flat panel PC, make sure the power is off. Failing to turn off the power may cause severe injury to the body and/or damage to the system.

  • Page 41: Unpacking

    AFOLUX LX Panel PC Unpack the flat panel PC Step 1: Install CF card Step 2: Mount the flat panel PC Step 3: Connect peripheral devices to the bottom panel of the flat panel PC Step 4: Configure the systemStep 0: Step 5: 3.4 Unpacking To unpack the flat panel PC, follow the steps below:...

  • Page 42: Packing List

    AFOLUX LX Panel PC 3.4.1 Packing List The AFOLUX LX flat panel PC is shipped with the following components: Quantity Item Image Standard AFOLUX LX Power adapter Power cord User manual CD and driver CD Touch pen RJ-45 to D-sub 9-pin connector Bluetooth adapter driver CD Optional Wall mounting kit...

  • Page 43: Cf Card Installation

    AFOLUX LX Panel PC Quantity Item Image 128MB CompactFlash® card with Windows CE 5.0 pre-installed and SDK 1GB CompactFlash® card with Windows XPE pre-installed If any of these items are missing or damaged, contact the distributor or sales representative immediately. 3.5 CF Card Installation The AFOLUX LX has one CF Type II slot inside the rear panel.

  • Page 44: At/Atx Mode Selection

    AFOLUX LX Panel PC Locate the CF slot. Insert a CF card into the slot (Figure 3-2). Step 3: Figure 3-2: CF Card Location Replace the plastic back cover. A bit of force is needed when pushing the bottom Step 4: part of the cover down to the chassis.

  • Page 45: At Power Mode

    AFOLUX LX Panel PC 3.6.1 AT Power Mode With the AT mode selected, the power is controlled by a central power unit rather than a power switch. The AFOLUX LX panel PC turns on automatically when the power is connected. The AT mode benefits a production line to control multiple panel PCs from a central management center and other applications including: Self-service kiosk Plant environment monitoring system...

  • Page 46: Wall Mounting

    AFOLUX LX Panel PC Panel mounting Arm/Stand mounting The four mounting methods are described below. 3.7.1 Wall Mounting To mount the flat panel PC onto the wall, please follow the steps below. Select the location on the wall for the wall-mounting bracket. Step 1: Carefully mark the locations of the four brackets screw holes on the wall.

  • Page 47: Figure 3-5: Chassis Support Screws

    AFOLUX LX Panel PC Insert the four monitor mounting screws provided in the wall mounting kit into the Step 6: four screw holes on the real panel of the flat panel PC and tighten until the screw shank is secured against the rear panel (Figure 3-5). Align the mounting screws on the monitor rear panel with the mounting holes on Step 7: the bracket.

  • Page 48: Panel Mounting

    AFOLUX LX Panel PC NOTE: In the diagram below the bracket is already installed on the wall. Secure the panel PC by fastening the retention screw of the wall-mounting Step 1: bracket. (Figure 3-6).Step 0: Figure 3-6: Secure the Panel PC 3.7.2 Panel Mounting To mount the AFOLUX LX flat panel PC into a panel, please follow the steps below.

  • Page 49: Figure 3-7: Panel Opening

    AFOLUX LX Panel PC than the overall size of the metal frame that surrounds the flat panel PC but just large enough for the rear panel of the flat panel PC to fit through (Figure 3-7). Figure 3-7: Panel Opening Slide the flat panel PC through the hole until the aluminum frame is flush against Step 11: the panel.

  • Page 50: Arm/Stand Mounting

    AFOLUX LX Panel PC Figure 3-8: Tighten the Panel Mounting Clamp Screws 3.7.3 Arm/Stand Mounting The AFOLUX LX is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 75mm interface pad. To mount the AFOLUX LX on an arm, please follow the steps below.

  • Page 51: Bottom Panel Connectors

    AFOLUX LX Panel PC Once the mounting arm/stand has been firmly attached to the surface, lift the flat Step 2: panel PC onto the interface pad of the mounting arm. Align the retention screw holes on the mounting arm interface with those in the Step 3: flat panel PC.

  • Page 52: Serial Device Connection

    AFOLUX LX Panel PC Figure 3-10: LAN Connection Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN Step 3: cable RJ-45 connector into the onboard RJ-45 connector. Step 0: 3.8.2 Serial Device Connection The AFOLUX LX has two serial device connectors on the bottom panel. The two serial device slots (RJ-45) connect to a cable with a standard DB-9 connector at the other end (cables included).

  • Page 53: Usb Device Connection

    AFOLUX LX Panel PC Figure 3-11: Serial Device Connector Secure the connector. Secure the serial device connector to the external Step 4: interface by tightening the two retention screws on either side of the connector. Step 0: 3.8.3 USB Device Connection There are two external USB 2.0 connectors.

  • Page 54: Figure 3-12: Usb Device Connection

    AFOLUX LX Panel PC Figure 3-12: USB Device Connection Insert the device connector. Once aligned, gently insert the USB device Step 3: connector into the onboard connector. Step 0: Page 38...

  • Page 55: System Maintenance

    AFOLUX LX Panel PC Chapter System Maintenance Page 39...

  • Page 56: System Maintenance Introduction

    4.2 Motherboard Replacement A user cannot replace the motherboard. If the motherboard fails it must be shipped back to IEI to be replaced. If the system motherboard has failed, please contact the system vendor, reseller or an IEI sales person directly.

  • Page 57: Figure 4-1: Motherboard Retention Screws

    AFOLUX LX Panel PC Inverter To remove the motherboard for parts replacement, follow the steps below. Remove the motherboard retention screws holding down the motherboard Step 1: (Figure 4-1). Figure 4-1: Motherboard Retention Screws Remove the two retention screws holding the bottom panel (Figure 4-2). Step 2: Figure 4-2: Aluminum Back Cover Retention Screws Page 41...

  • Page 58: Memory Module Replacement

    AFOLUX LX Panel PC Remove the two hexagonal pillars on the bottom panel (Figure 4-3). Step 3: Figure 4-3: Two Hexagonal Pillars on the Bottom Panel Push the external interface connector apart from the aluminum cover and lift the Step 4: aluminum cover off the AFL-07A-LX.

  • Page 59: Figure 4-4: So-Dimm Socket Location

    AFOLUX LX Panel PC Figure 4-4: SO-DIMM Socket Location Remove the DDR memory module by pulling both the spring retainer clips Step 4: outward from the socket. Grasp the DDR memory module by the edges and carefully pull it out of the Step 5: socket.

  • Page 60: Figure 4-5: Ddr So-Dimm Module Installation

    AFOLUX LX Panel PC Figure 4-5: DDR SO-DIMM Module Installation Page 44...

  • Page 61: Bios Setup

    AFOLUX LX Panel PC Chapter BIOS Setup Page 45...

  • Page 62: Introduction

    AFOLUX LX Panel PC 5.1 Introduction A licensed copy of Phoenix Award BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 63: Getting Help

    AFOLUX LX Panel PC Function General help, only for Status Page Setup Menu and Option Page Setup Menu Item help Previous values for the page menu items Fail-safe defaults for the current page menu items Optimized defaults for the current page menu items Menu in BIOS Save changes and Exit BIOS Table 5-1: BIOS Navigation Keys...

  • Page 64: Main Bios Menu

    AFOLUX LX Panel PC 5.1.4 Main BIOS Menu Once the BIOS opens, the main menu (BIOS Menu 1) appears. BIOS Menu 1: Award BIOS CMOS Setup Utility NOTE: The following sections will completely describe the menus listed below and the configuration options available to users. The following menu options are seen in BIOS Menu 1.
  • Page 65 AFOLUX LX Panel PC Load Fail-Safe Defaults Use the Load Fail-Safe Defaults option to load failsafe default values for each BIOS parameter in the setup menus. Press F6 for this operation on any page. Load Optimized Defaults Use the Load Optimized Defaults option to load optimal default values for each BIOS parameter in the setup menus.

  • Page 66: Standard Cmos Features

    AFOLUX LX Panel PC 5.2 Standard CMOS Features Use the Standard CMOS Features BIOS menu (BIOS Menu 2) to set basic BIOS configuration options. BIOS Menu 2: Standard CMOS Features Date [Day mm:dd:yyyy] Use the Date option to set the system date. Time [hh/mm/ss] Use the Time option to set the system time.

  • Page 67: Ide Primary Master/Slave

    AFOLUX LX Panel PC IDE device configurations are changed or set in the IDE Configuration menu. If an IDE device is detected, and one of the above listed two BIOS configuration options is selected, the IDE configuration options shown in Section 5.2.1 appear. Base Memory: The Base Memory is NOT user configurable.
  • Page 68 AFOLUX LX Panel PC Channel 1 Slave If no drives are connected to the IDE channel select this None option. Once set, this channel becomes inaccessible and any drives attached to it are undetected. (Default) Setting this option allows the device to be automatically Auto detected by the BIOS.
  • Page 69 AFOLUX LX Panel PC Cylinder The Cylinder specification indicates how many cylinders (tracks) are on the HDD installed in the system. Head The Head specification indicates how many logical heads are on the HDD installed in the system. Precomp The Precomp specification indicates on what track the write precompensation begins. Landing Zone The Landing Zone specification indicates where the disk head will park itself after the system powers off.

  • Page 70: Advanced Bios Features

    AFOLUX LX Panel PC 5.3 Advanced BIOS Features Use the Advanced BIOS Features menu (BIOS Menu 3) to configure the CPU and peripheral device configuration options. BIOS Menu 3: Advanced BIOS Features Virus Warning [Disabled] NOTE: Many disk diagnostic programs can cause the above warning message to appear when the program attempts to access the boot sector table.
  • Page 71 AFOLUX LX Panel PC Activates automatically when the system boots up Enabled causing a warning message to appear when anything attempts to access the boot sector or HDD partition table. (Default) No warning message appears when there is an attempt Disabled to access the boot sector or HDD partition table.
  • Page 72 AFOLUX LX Panel PC Boot Device configuration options are: LS120 HDD-0 SCSI CDROM HDD-1 USB-FDD USB-ZIP USB-CDROM USB-HDD Disabled Boot Other Device [Enabled] Use the Boot Other Device option to determine whether the system uses a second or third boot device if the first boot device is not found. The system does not look for second and third boot Disabled devices if the first one is not found.
  • Page 73 AFOLUX LX Panel PC enabled, the BIOS reports as before, but it then waits a moment, and, if the key is still held down, it begins to report that the key has been pressed repeatedly. This feature accelerates cursor movement with the arrow keys. (Default) Disables the typematic rate.
  • Page 74 AFOLUX LX Panel PC Security Option [Setup] Use the Security Option to limit access to both the system and Setup, or just Setup. (Default) The system does not boot and access to Setup is denied Setup if the correct password is not entered at the prompt. The system boots, but access to Setup is denied if the System correct password is not entered at the prompt.
  • Page 75 AFOLUX LX Panel PC feature on support hard disk drives. Delay For HDD (Secs) Use the Delay For HDD option to specify how long the system should wait before trying to access the main drive. If this option is set too low, the system will try to access the disk before it has had adequate time to spin up and become accessible.

  • Page 76: Advanced Chipset Features

    AFOLUX LX Panel PC 5.4 Advanced Chipset Features Use the Advanced Chipset Features menu (BIOS Menu 4) to change chipset configuration options. BIOS Menu 4: Advanced Chipset Features CPU Frequency [500MHz] Use the CPU Frequency option to set the CPU frequency. The CPU Frequency options are: Auto 200MHz...
  • Page 77 AFOLUX LX Panel PC Auto (Default) 100MHz 133MHz 166MHz 200MHz Video Memory Size [32M] Use the Video Memory Size option to determine how much memory is allocated to the video graphics device. The Video Memory Size options are: None 32M (Default) 128M 254M Output Display [Panel &...

  • Page 78: Integrated Peripherals

    AFOLUX LX Panel PC 5.5 Integrated Peripherals Use the Integrated Peripherals menu (BIOS Menu 5) to change the configuration options for the attached peripheral devices. BIOS Menu 5: Integrated Peripherals On-Chip IDE Channel 1 [Enabled] Use the On-Chip IDE Channel 1 option to specify if the system uses the integrated primary IDE channel or not.
  • Page 79 AFOLUX LX Panel PC PIO mode 0 selected with a maximum transfer rate of 3.3MBps. Mode 0 PIO mode 1 selected with a maximum transfer rate of 5.2MBps. Mode 1 PIO mode 2 selected with a maximum transfer rate of 8.3MBps. Mode 2 PIO mode 3 selected with a maximum transfer rate of 11.1MBps.
  • Page 80 AFOLUX LX Panel PC Onboard Serial Port 1 [3F8/IRQ4] Use the Onboard Serial Port 1 option to select the I/O address and IRQ for the onboard serial port 1. The serial port can be disabled or the I/O address and the IRQ can be automatically selected by the BIOS.

  • Page 81: Power Management Setup

    AFOLUX LX Panel PC Touch controller Use IRQ [IRQ7] Use the Touch controller Use IRQ option to select the IRQ for the onboard touch panel controller port. The touch panel controller port can be disabled or the IRQ can be automatically selected by the BIOS.

  • Page 82: Pnp/Pci Configurations

    AFOLUX LX Panel PC Soft-Off by PWR-BTN [Instant-Off] Use the Soft-Off by PWR-BTN BIOS option to specify how the system turns off. These options are only available for ATX mode. (Default) The system turns off immediately when the power Instant-Off button is pressed.
  • Page 83 AFOLUX LX Panel PC specifications, BIOS configures all the devices in the system. Set this option if the system is running Plug and Play aware operating systems. The operating system changes the interrupt, I/O, and DMA settings. Reset Configuration Data [Disabled] Use the Reset Configuration Data option to reset the Extended System Configuration Data (ESCD) when exiting setup if booting problems occur after a new add-on is installed.
  • Page 84 AFOLUX LX Panel PC The above options all have the following default options. (Default) The IRQ is assigned to legacy ISA for devices compliant PCI Device with the original PC AT bus specification, PCI/ISA PNP for devices compliant with the Plug and Play standard whether designed for PCI or ISA bus architecture.

  • Page 85: A Safety Precautions

    AFOLUX LX Panel PC Appendix Safety Precautions Page 69...

  • Page 86: Safety Precautions

    AFOLUX LX Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the AFOLUX LX. A.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: A.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times.

  • Page 87: Anti-Static Precautions

    AFOLUX LX Panel PC A.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the AFOLUX LX may result in permanent damage to the AFOLUX LX and sever injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFOLUX LX.

  • Page 88: Cleaning Tools

    AFOLUX LX Panel PC The interior of the AFOLUX LX does not require cleaning. Keep fluids away from the AFOLUX LX interior. Be cautious of all small removable components when vacuuming the AFOLUX LX. Turn the AFOLUX LX off before cleaning the AFOLUX LX. Never drop any objects or liquids through the openings of the AFOLUX LX.

  • Page 89: Bbios Options

    AFOLUX LX Panel PC Appendix BIOS Options Page 73...
  • Page 90 AFOLUX LX Panel PC Below is a list of BIOS configuration options in the BIOS chapter. Load Fail-Safe Defaults .......................49 Load Optimized Defaults.....................49 Set Supervisor Password....................49 Set User Password ......................49 Save & Exit Setup ........................49 Exit Without Saving ......................49 Date [Day mm:dd:yyyy] .......................50 Time [hh/mm/ss] ........................50 IDE Master and IDE Slave....................50 Base Memory: ........................51...
  • Page 91 AFOLUX LX Panel PC Delay For HDD (Secs) ......................59 Small Logo (EPA) Show [Disabled]..................59 CPU Frequency [500MHz] ....................60 Memory Frequency [Auto] ....................60 Video Memory Size [32M]....................61 Output Display [Panel & CRT] ....................61 OnBoard Audio [Enabled] ....................61 On-Chip IDE Channel 1 [Enabled] ..................62 Drive PIO Mode [Auto]......................62 IDE UDMA [Auto]........................63 IDE DMA transfer access [Enabled]...................63...
  • Page 92 AFOLUX LX Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 76...

  • Page 93: C Software Drivers

    AFOLUX LX Panel PC Appendix Software Drivers Page 77...

  • Page 94: Remote Management Tool

    AFOLUX LX series. For information about configuring the operating system, adding remote management tools or additional software and drivers, refer to the software user manuals on IEI AFOLUX LX Utility CD that came with the AFOLUX LX flat panel PC.
  • Page 95 AFOLUX LX Panel PC Insert the driver CD that came with the AFOLUX series into the CD drive. Step 1: Once the CD drive is installed, the screen in Figure C-1 appears. Step 2: Figure C-1: Driver CD Pop Up Screen Select the operating system installed on the system from the menu on the Step 3: screen.
  • Page 96 AFOLUX LX Panel PC Figure C-2: Welcome Screen The license agreement shown in Figure C-3 appears. Agree to the license by Step 5: selecting “I accept the terms in the license agreement”. Figure C-3: License Agreement Click N and the Installshield Wizard is ready to install the program (Figure Step 6: C-4).
  • Page 97 AFOLUX LX Panel PC Figure C-4: Ready to Install the Program Click I to continue. The Installing PenMount DMC9000 screen appears Step 7: NSTALL as the program is installed (Figure C-5). Figure C-5: Installing PenMount DMC9000 The user is then prompted to select to restart the computer now or later (Figure Step 8: C-6).

  • Page 98: Touch Panel Driver Configuration

    AFOLUX LX Panel PC Figure C-6: Reboot the Computer C.2.3 Touch Panel Driver Configuration To configure the touch panel driver options, refer to the PenMount user manual located on the driver installation CD. Page 82...

  • Page 99: D Terminology

    AFOLUX LX Panel PC Appendix Terminology Page 83...
  • Page 100 AFOLUX LX Panel PC Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® AC ’97 in 1997. Advanced Configuration and Power Interface (ACPI) is an OS-directed ACPI configuration, power management, and thermal management interface. Advanced Host Controller Interface (AHCI) is a SATA Host controller AHCI register-level interface.
  • Page 101 AFOLUX LX Panel PC Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory. Dual Inline Memory Modules are a type of RAM that offer a 64-bit data DIMM bus and have separate electrical contacts on each side of the module. The digital inputs and digital outputs are general control signals that control the on/off circuit of external devices or TTL devices.
  • Page 102 AFOLUX LX Panel PC Liquid crystal display (LCD) is a flat, low-power display device that consists of two polarizing plates with a liquid crystal panel in between. Low-voltage differential signaling (LVDS) is a dual-wire, high-speed LVDS differential electrical signaling system commonly used to connect LCD displays to a computer.

  • Page 103: E Digital I/O Interface

    AFOLUX LX Panel PC Appendix Digital I/O Interface Page 87...

  • Page 104: Introduction

    AFOLUX LX Panel PC E.1 Introduction The DIO connector on the AFOLUX LX is interfaced to GPIO ports on the IT8712F Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 105: Assembly Language Samples

    AFOLUX LX Panel PC E.3 Assembly Language Samples E.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input AX, 6F08H Initiates the INT 15H BIOS call E.3.2 Enable the DIO Output Function...
  • Page 106 AFOLUX LX Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 90...

  • Page 107: F Watchdog Timer

    AFOLUX LX Panel PC Appendix Watchdog Timer Page 91...
  • Page 108 NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 109 AFOLUX LX Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...
  • Page 110 AFOLUX LX Panel PC THIS PAGE IS INTENTIONALLY LEFT BLANK Page 94...

  • Page 111: G Address Mapping

    AFOLUX LX Panel PC Appendix Address Mapping Page 95...

  • Page 112: Io Address Map

    AFOLUX LX Panel PC G.1 IO Address Map I/O address Range Description 000-01F DMA Controller 020-021 Interrupt Controller 040-043 System time 060-06F Keyboard Controller 070-07F System CMOS/Real time Clock 080-09F DMA Controller 0A0-0A1 Interrupt Controller 0C0-0DF DMA Controller 0F0-0FF Numeric data processor 1F0-1F7 Primary IDE Channel 2F8-2FF...

  • Page 113: St Mb Memory Address Map

    AFOLUX LX Panel PC G.2 1 MB Memory Address Map Memory address Description 00000-9FFFF System memory A0000-BFFFF VGA buffer F0000-FFFFF System BIOS 1000000- Extend BIOS Table G-2: 1 MB Memory Address Map G.3 IRQ Mapping Table IRQ0 System Timer IRQ8 RTC clock IRQ1 Keyboard...

  • Page 114: Dma Channel Assignments

    AFOLUX LX Panel PC G.4 DMA Channel Assignments Channel Function Available Available Floppy disk (8-bit transfer) Available Cascade for DMA controller 1 Available Available Available Table G-4: IRQ Mapping Table Page 98...

  • Page 115: H Hazardous Materials Disclosure

    AFOLUX LX Panel PC Appendix Hazardous Materials Disclosure Page 99...

  • Page 116: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    AFOLUX LX Panel PC H.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 117 AFOLUX LX Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply Assemblies Battery This toxic or hazardous substance is contained in all of the homogeneous materials for the part is...
  • Page 118 AFOLUX LX Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出...
  • Page 119 AFOLUX LX Panel PC Index Page 103...
  • Page 120 AFOLUX LX Panel PC ABS/PC plastic frame ........4 Ethernet connectors........21 AC power adapter........6 ACPI power management ......20 Active Area...........9 Geode™ LX 800 ........16 AMD® Geode LX-800........3 Graphics Processor ........18 anti-static precautions anti-static pad ........74 anti-static wristband.......74 handling ..........74 HDD ............ 54, 55 self-grounding........74 Audio..........9, 17, 63 IDE .............65...
  • Page 121 AFOLUX LX Panel PC Reset button ..........8 Resolution............9 external USB device connection ...38 Response Time..........10 USB 2.0......... 4, 6, 8, 17 RJ-45 connection........36 USB connectors .........21 single connector ........36 USB device connection......38 RoHS ............4 single connector ........38 Safety Precautions........73 Vibration............8 Serial Device Viewing Angle ..........8 connection ..........37...
