Burst

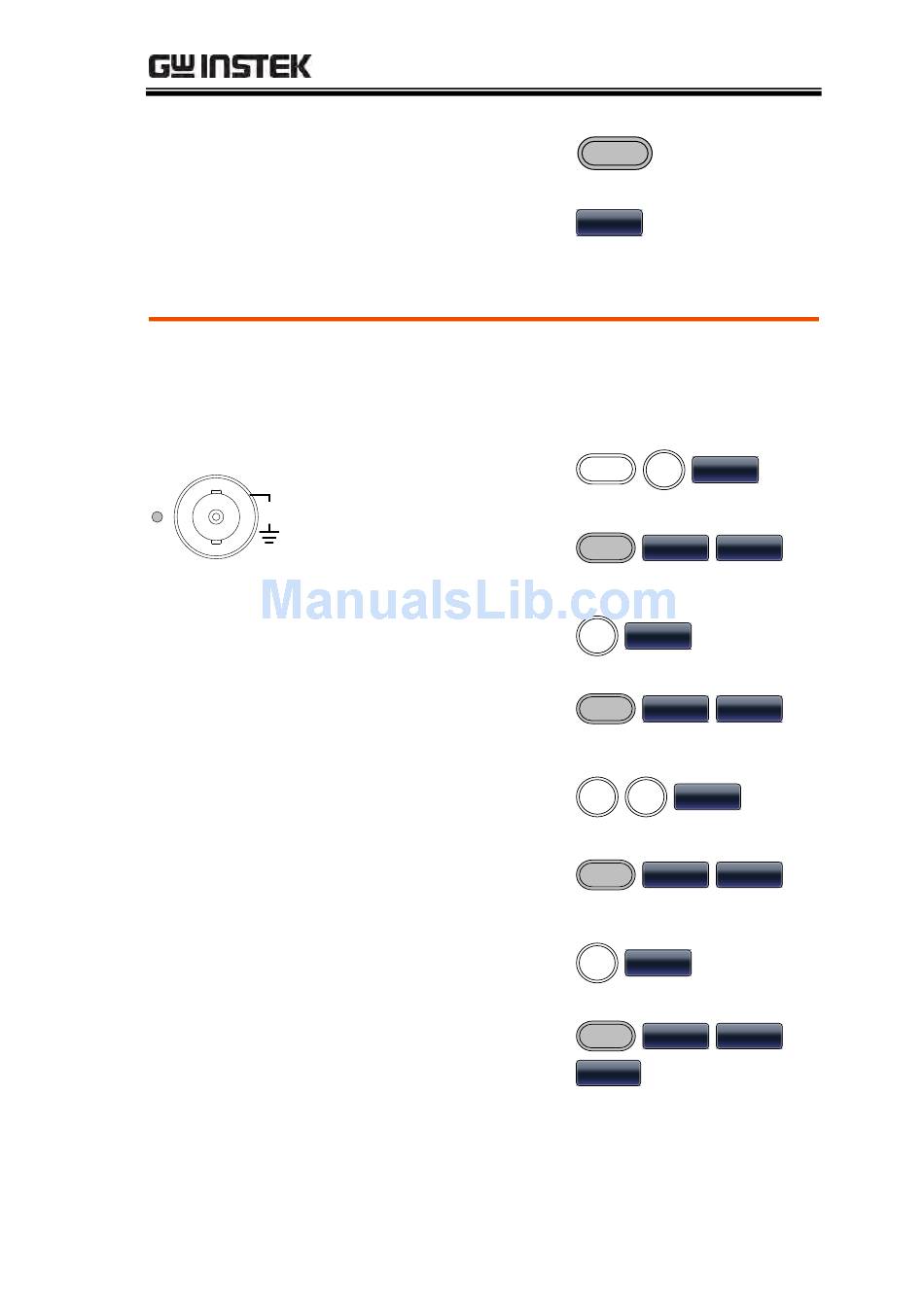

Example: Burst mode, N-Cycle (Internally triggered), 1kHz burst
frequency, burst count = 5, 10 ms burst period, 0˚ burst phase,
internal trigger, 10 us delay.
Output
Input: N/A
nd Quality Products Online at:
9. Press the output key.
10. Press Trigger (F1).
1. Press FREQ/Rate 1
kHz (F5).
CH1
42V
MAX
2. Press Burst, N Cycle
W
50
(F1), Cycles (F1).
3. Press 5 + Cyc (F5).
4. Press Burst, N Cycle
(F1), Period (F4).
5. Press 1 + 0 + msec
(F2).
6. Press Burst, N Cycle
(F1), Phase (F3).
7. Press 0 + Degree (F5).
8. Press Burst, N Cycle
(F1), TRIG Setup (F5),
INT (F1).
GlobalTestSupply
www.
QUICK REFERENCE
Output
Trigger
1 kHz
FREQ/Rate
N Cycle Cycles

Burst

5 Cyc
N Cycle Period
Burst
1 0 mSEC
N Cycle Phase
Burst
0 Degree
N Cycle Trig Setup
Burst
INT
