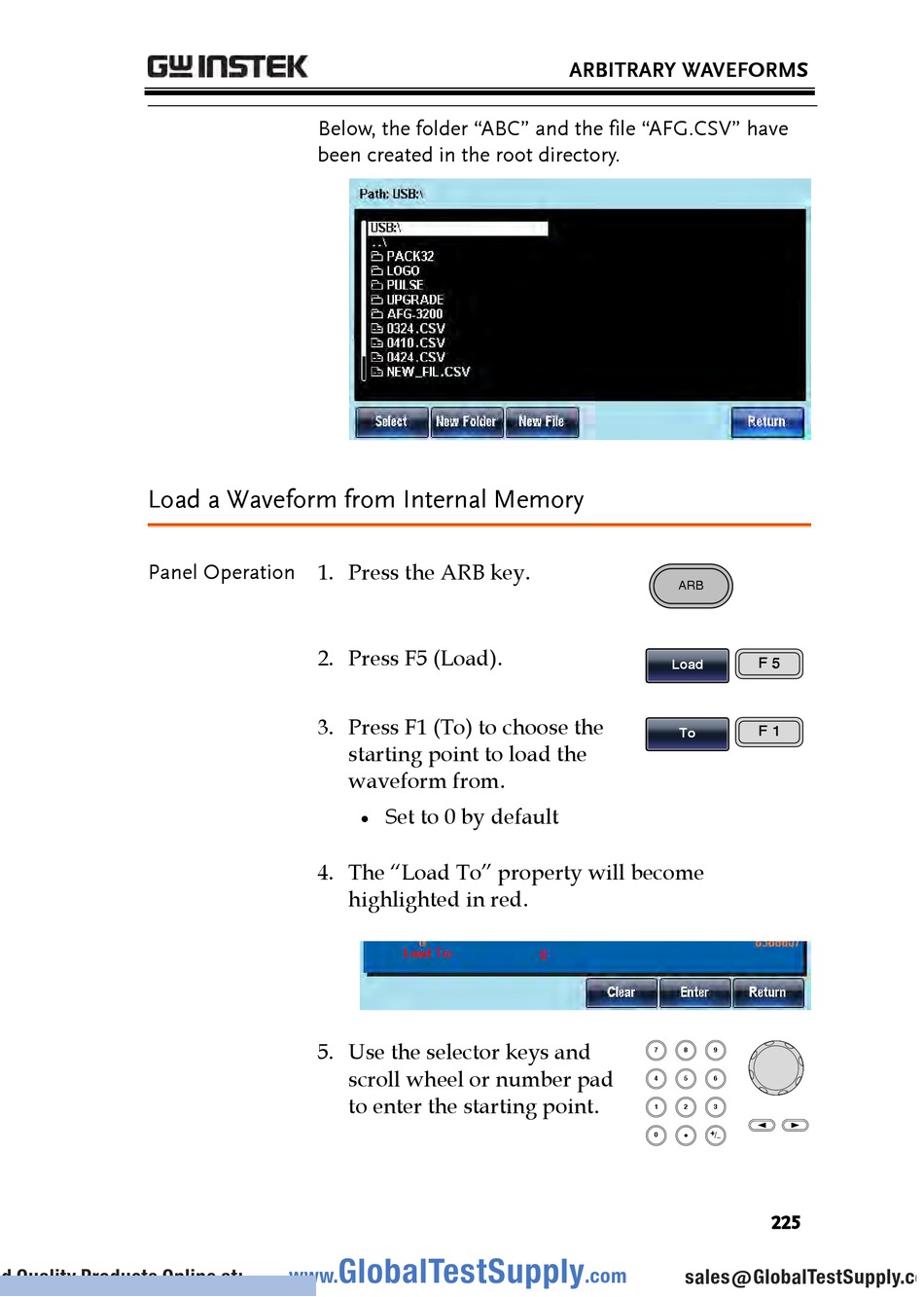

Load a Waveform from Internal Memory

Panel Operation 1. Press the ARB key.
nd Quality Products Online at:
Below, the folder "ABC" and the file "AFG.CSV" have
been created in the root directory.
2. Press F5 (Load).
3. Press F1 (To) to choose the
starting point to load the
waveform from.
Set to 0 by default

4. The "Load To" property will become
highlighted in red.
5. Use the selector keys and
scroll wheel or number pad
to enter the starting point.
