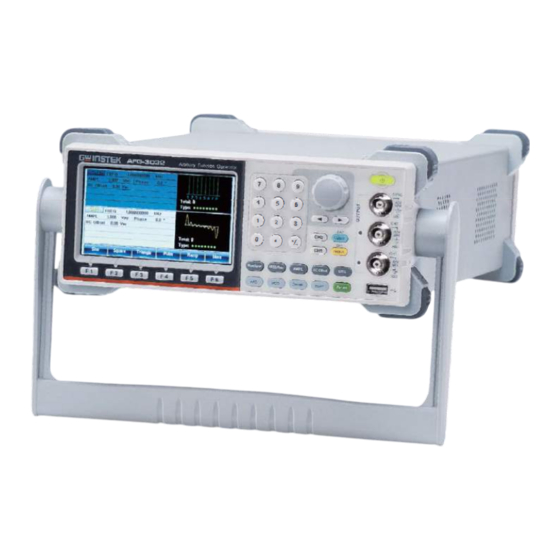

GW Instek dataTec AFG-3000 Series Manual
Arbitrary function generator
Hide thumbs
Also See for dataTec AFG-3000 Series:
- Manual (299 pages) ,
- User manual and text book (124 pages) ,
- Programming manual (119 pages)
Table of Contents
Advertisement
Quick Links

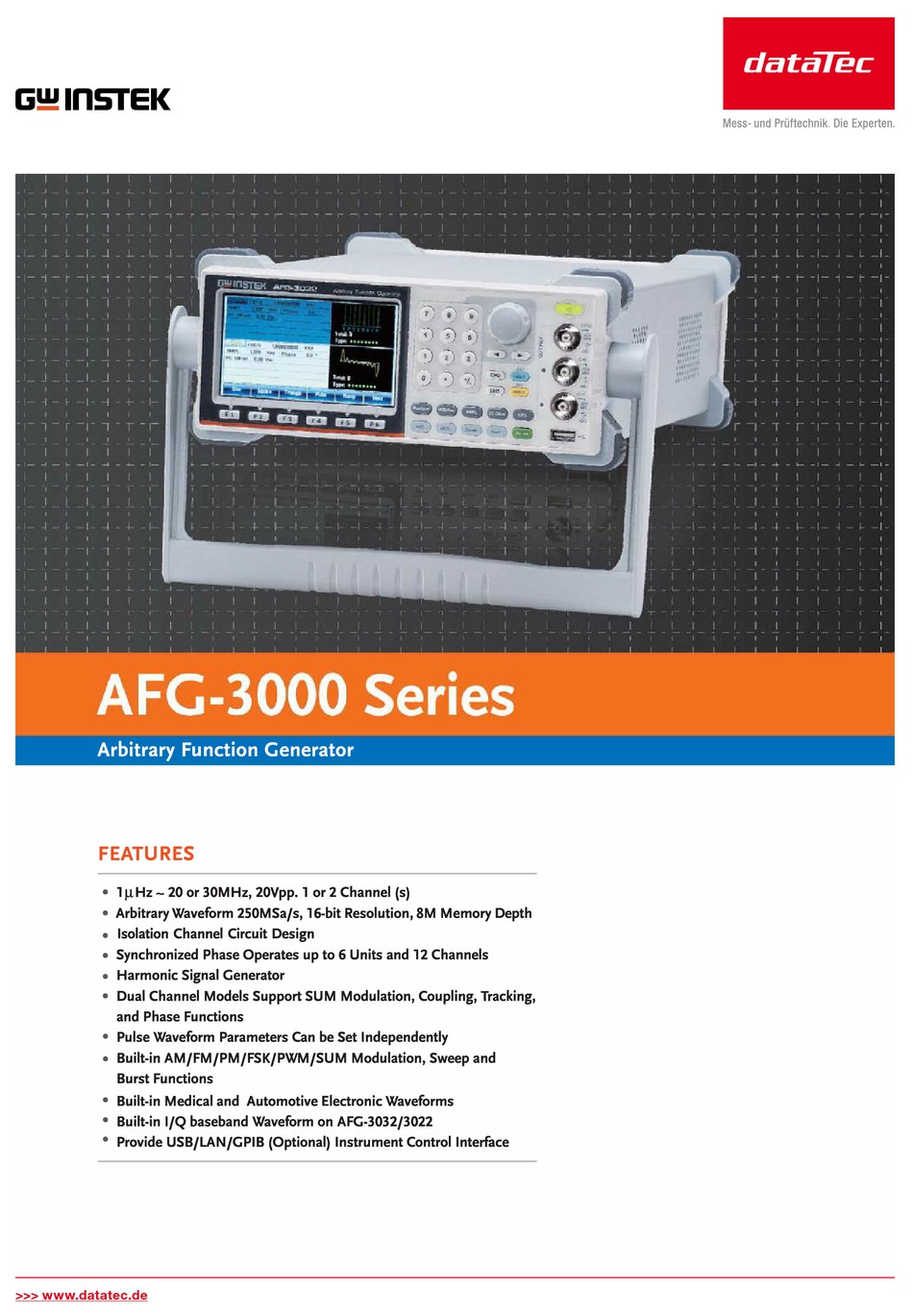

Arbitrary Fu nction Generator
FEATURES
•
l µHz~ 20 or 30MHz, 20Vpp. l or 2 Channel (s)
•
Arbitrary Waveform 250MSa/s, 16-bit Resolution, 8M Memory Depth
Isolation Channel Circuit Design
•
Synchronized Phase Operates up to 6 Units and 12 Channels
•
Harmonie Signal Generator
•
•
Dual Channel Models Support SUM Modulation, Coupling, Tracking,
and Phase Functions
•
Pulse Waveform Parameters Can be Set lndependently
Built-in AM/FM/PM/FSK/PWM/SUM Modulation, Sweep and
•
Burst Functions
•
Built-in Medical and Automotive Electronic Waveforms
•
Built-in 1/Q baseband Waveform on AFC-3032/3022
•
Provide USB/LAN/CPIB (Optional) Instrument Control Interface
>>> www.datatec.de
.
�
;)
'i)
�
2
� " J
'L
Advertisement
Table of Contents
Related Manuals for GW Instek dataTec AFG-3000 Series
Summary of Contents for GW Instek dataTec AFG-3000 Series
- Page 1 � � � " J Arbitrary Fu nction Generator FEATURES • l µHz~ 20 or 30MHz, 20Vpp. l or 2 Channel (s) • Arbitrary Waveform 250MSa/s, 16-bit Resolution, 8M Memory Depth Isolation Channel Circuit Design • Synchronized Phase Operates up to 6 Units and 12 Channels •...
-
Page 2: Panel Introduction
PANEL INTRODUCTION AFG-3032/3022 1. TFT LCD Panel 2. Number Panel 3. Scroll Knob & Selection Key 4. Power Switch 5. Output Terminals 6. Main Output Switch 7. Function Keys 8. Operation Keys 9. USB Host 10. Trigger & Modulation Input 11. - Page 3 The series features sample rate of 250MSa/s, 16-bit resolution, and 8M point memory depth arbitrary waveform characteristics. Users can rebuild maximum 8M memory depth waveforms through using a GW Instek digital storage oscilloscope with the built-in DSOLink function of the AFG-3000 Series.
- Page 4 HARMONIC SIGNAL GENERATOR PULSE GENERATOR Harmonic Signal Generator Harmonic Signal Pulse Generator Pulse Signal Harmonic signal generator simulates the harmonic signal of The output frequency for pulse reaches 25 MHz and its duty switching power supplies and conducts characteristics tests on cycle is from 0.017% to 99.983%.
-
Page 5: Modulation Function
MODULATION FUNCTION Amplitude Modulation Frequency Modulation Phase Modulation Frequency-shift Keying Modulation Pulse Width Modulation Sum Modulation The series supports AM, FM, PM, FSK, PWM and SUM Applications include the baseband of communications modulation. Modulation source can be from inside or outside. systems, motor control and light adjustment, etc. - Page 6 FLEXIBLE ARBITRARY WAVEFORM EDITING Four methods to obtain arbitrary waveforms Front Panel Operation CSV file Upload Supports CSV file Via single unit's panel, arbitrary waveforms can be selected, Support CSV file upload produced by MATLAB and Excel. edited, stored, recalled, output, triggered from 65 built-in waveforms.
-
Page 7: Specifications
SPECIFICATIONS AFG-3031 AFG-3032 AFG-3021 AFG-3022 CHANNELS Connector shells for channel output(s), Sync output, 10MHz REF Input, Mod Input and Mod output are isolated FEATURES I/O Signal Ground for the Instrument Chassis from the instrument's chassis. Maximum allowable voltage on isolated connector shells is ±42 Vpk. (DC + AC Peak) Each of the Signal Ground Isolated Isolated... -
Page 8: Ordering Information
SPECIFICATIONS AFG-3031 AFG-3032 AFG-3021 AFG-3022 Frequency Range DC ~ 30 MHz DC ~ 20 MHz Source Internal / External Carrier Waveforms Sine, Triangle, Ramp, Pulse, Noise ADDITIVE Modulating Waveforms Sine, Square, Triangle, Up/Dn Ramp MODULATION 0% ~ 100% of carrier amplitude, 0.01% resolution Ratio (SUM) Modulating Frequency...
