Page 2: Panel Introduction

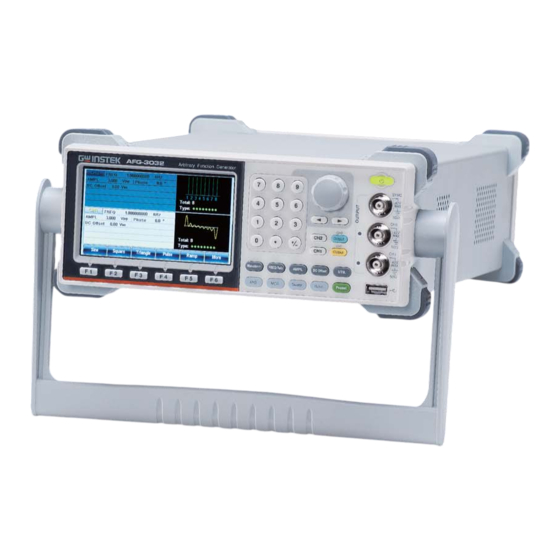

PANEL INTRODUCTION AFG-3032/3022 1. TFT LCD Panel 2. Number Panel 3. Scroll Knob & Selection Key 4. Power Switch 5. Output Terminals 6. Main Output Switch 7. Function Keys 8. Operation Keys 9. USB Host 10. Trigger & Modulation Input 11. - Page 3 The series features sample rate of 250MSa/s, 16-bit resolution, and 8M point memory depth arbitrary waveform characteristics. Users can rebuild maximum 8M memory depth waveforms through using a GW Instek digital storage oscilloscope with the built-in DSOLink function of the AFG-3000 Series.
-
Page 4: Pulse Generator
HARMONIC SIGNAL GENERATOR Harmonic Signal Generator Harmonic Signal Harmonic signal generator simulates the harmonic signal of harmonic signals to obtain desired signals. The following switching power supplies and conducts characteristics tests on diagrams show 8th harmonic signal. EMI power filter. Users can set order number and phase for PULSE GENERATOR Pulse Generator Pulse signal... -
Page 5: Modulation Function
MODULATION FUNCTION Amplitude Modulation Frequency Modulation Phase Modulation Frequency-shift Keying Modulation Pulse Width Modulation Sum Modulation The series supports AM, FM, PM, FSK, PWM and SUM Applications include the baseband of communications modulation. Modulation source can be from inside or outside. systems, motor control and light adjustment, etc. - Page 6 FLEXIBLE ARBITRARY WAVEFORM EDITING Four methods to obtain arbitrary waveforms Front Panel Operation CSV file Upload Supports CSV file Via single unit's panel, arbitrary waveforms can be selected, Support CSV file upload produced by MATLAB and Excel. edited, stored, recalled, output, triggered from 65 built-in waveforms.
-
Page 7: Specifications

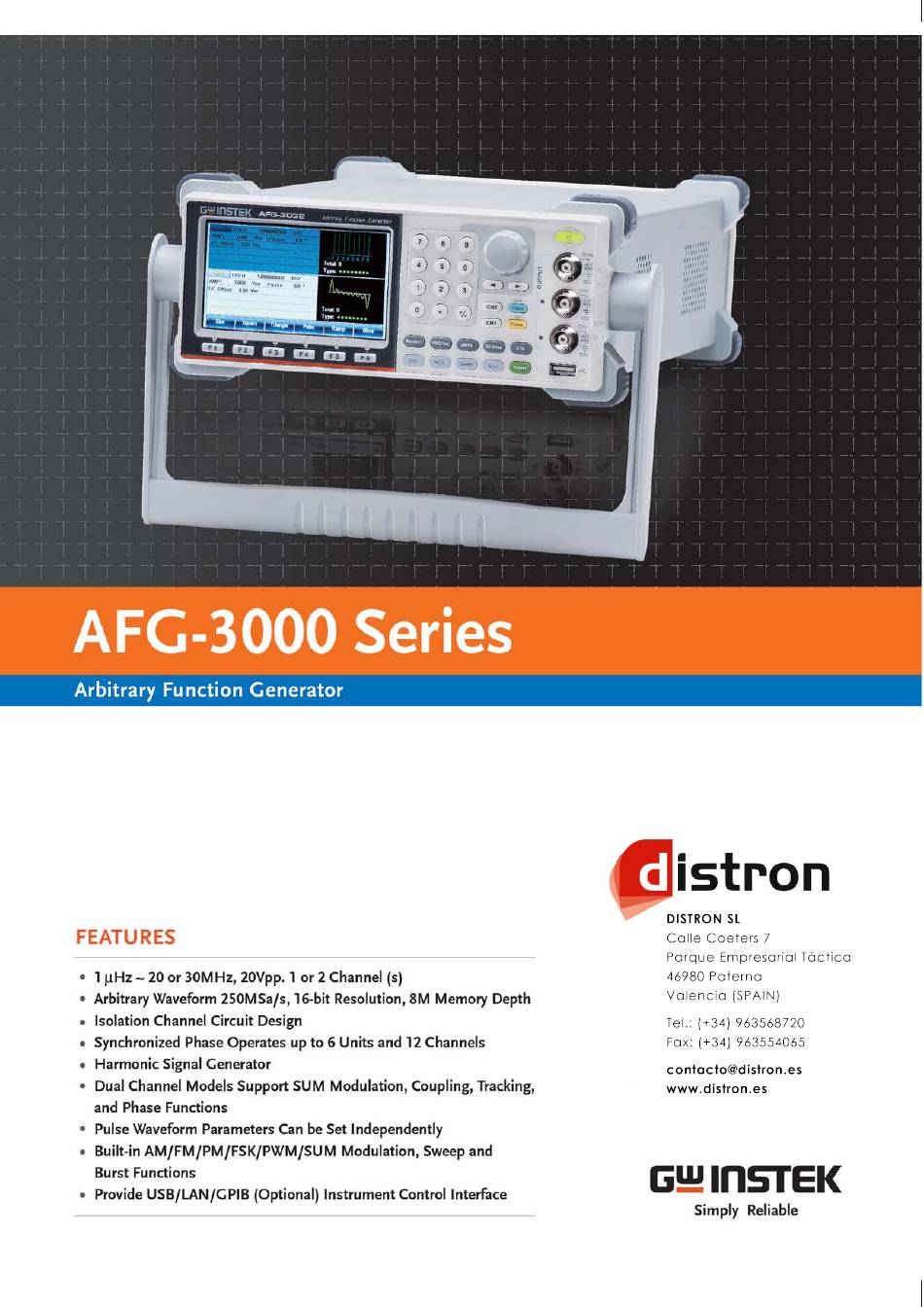

SPECIFICATIONS AFG-3031 AFG-3032 AFG-3021 AFG-3022 CHANNELS Connector shells for channel output(s), Sync output, 10MHz REF Input, Mod Input and Mod output are isolated I/O Signal Ground for the FEATURES from the instrument's chassis. Maximum allowable voltage on isolated connector shells is ±42 Vpk. (DC + AC Peak) Instrument Chassis Each of the Signal Ground Isolated... -
Page 8: Ordering Information
SPECIFICATIONS AFG-3031 AFG-3032 AFG-3021 AFG-3022 Frequency Sweep : Sine, Square, Triangle, Ramp; Amplitude Sweep : Sine, Square, Triangle, SWEEP Waveforms Ramp, Pulse, Noise, ARB Type Frequency, Amplitude Functions Linear or Logarithmic Direction Up or Down Start F / Stop FREQ Any frequency within the waveform's range Sweep Time 1 ms ~ 500 s (1 ms resolution)
