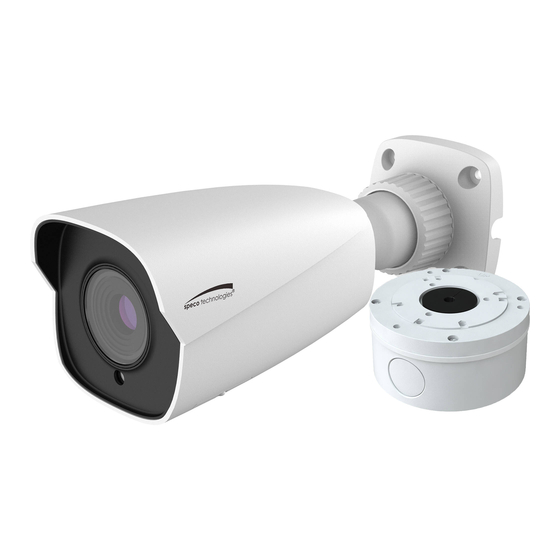

- Page 1 User Manual 2MP IP Camera O2VB1N/O2VB1VN /O2VT1N /O2VT1VN Please read this instruction carefully before operating the unit and keep it for further reference...
- Page 2 Important Safeguards and Warnings 1. Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class2 power supply only. Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.
- Page 3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Note: Before installation, check the package and make sure that all components are included. Contact your rep or Speco customer service department immediately if something is broken or missing in the package. Accessory name Amount...
-
Page 4: Table Of Contents
Table of Contents Introduction ..................................1 Web Access and Login ................................ 2 Live View ................................... 3 Camera Configuration ................................ 5 4.1 System Configuration ..................................5 4.1.1 System Information ................................5 4.1.2 Date and Time ..................................5 4.1.3 Local Recording ..................................6 4.1.4 Storage .................................... - Page 5 5.2.1 Local Video Search................................16 5.2.2 SD Card Video Search ................................18 Appendix ....................................20 Appendix 1 Troubleshooting ..............................20 Appendix 2 Specifications ................................. 21...
-
Page 6: Introduction
Thank you for purchasing this network camera! Please read this manual carefully before operating the unit and retain it for further reference. Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516. Main Features ⚫ Built-in PoE (Power over Ethernet) ⚫... -
Page 7: Web Access And Login
2 Web Access and Login The IP camera settings can be accessed via a web browser through the LAN. ⚫ Access through IP Scanner Network connection: ①Make sure the PC and IP-Cam are connected on the same local network. The camera is set to DHCP by default and will be assigned an IP address by the DHCP server. -
Page 8: Live View
3 Live View The window below will be shown after logging in. The following table describes the icons on the live view interface Icon Description Icon Description Original size of resolution Start/stop local recording Zoom/Focus control (for motorized Fit (correct scale) models) Auto (fill the window) SD card recording indicator... - Page 9 Icon Description Icon Description Zoom - Zoom + Focus - Focus + One key focus (used when image is out of focus after manual adjustment)
-
Page 10: Camera Configuration
4 Camera Configuration Press the “Setup” button to go to the configuration interface. Note: Wherever applicable, click the “Save” button to save the settings. System Configuration 4.1.1 System Information In the “System Information” interface, the system information of the device is listed. 4.1.2 Date and Time To set the time and date, go to System→Date and Time. -
Page 11: Local Recording
4.1.3 Local Recording Go to System→Local Recording to set up the storage path of captured pictures and recorded videos on the local PC. There is also an option to enable or disable the bitrate display in the recorded files. For the model with built-in MIC, there is also an option to enable or disable audio recording. 4.1.4 Storage Go to System→Storage to go to the interface as shown below. - Page 12 2. Set record stream, pre-record time and cycle writing. Pre Record Time: Set the time to record before the actual recording begins. 3. Set schedule recording. Check “Enable Schedule Record” and set the schedule. Weekly schedule Set the alarm time from Monday to Sunday for a single week. Each day is divided in one hour increments. Green means scheduled. Blank means unscheduled.
-
Page 13: Video Configuration
Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here. Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. -
Page 14: Video / Audio Configuration
Sharpness: Set the resolution level of the image plane and the sharpness level of the image edge. Noise Reduction: Decrease the noise and make the image more thorough. Increasing the value will make the noise reduction effect better but it will reduce the image resolution. Defog: Activating this function and setting an appropriate value as needed in foggy, dusty, smoggy or rainy environment to get clear images. -
Page 15: Osd Configuration
Three video streams can be adjustable. Resolution: The size of image. Frame rate: The higher the frame rate, the video is smoother. Bitrate type: CBR and VBR are optional. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. -
Page 16: Video Mask
Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the “Save” button to save the settings. 4.2.4 Video Mask Go to Image→Video Mask interface as shown below. A maximum of 4 zones can be set up. To set up video mask: 1. -
Page 17: Zoom/Focus
higher bitrate than the rest of the image, resulting in better image quality for the identified area. 1. Check “Enable” and then click the “Draw Area” button. 2. Drag the mouse to set the ROI area. 3. Set the level. 4. -
Page 18: Other Alarms
1. Check “Enable” check box to activate motion based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video. Trigger Snapshot: If selected, the system will capture images on motion detection and save the images on an SD card. Trigger SD Recording: If selected, video will be recorded on an SD card on motion detection. -
Page 19: Alarm Server
detection chapter for details. ⚫ SD Card Error When there are some errors in writing to SD card, the corresponding alarms will be triggered. 1. Go to Event Setup→Anomaly→SD Card Error as shown below. 2. Click “Enable” and set the alarm holding time. 3. - Page 20 Enable object removal detection and then select the detection type. Enable Left Detection: Alarms will be triggered if there are items left in the pre-defined area. Enable Item Missing Detection: Alarms will be triggered if there are items missing in the pre-defined alarm area. Set the alarm holding time and alarm trigger options.
-
Page 21: Abnormality
Try not to enable object removal detection when light changes greatly in the scene. Try not to enable object removal detection if there are complex and dynamic environments in the scene. Adequate light and clear scenery are very important to object removal detection. 4.4.2 Abnormality This function can detect changes in the surveillance environment affected by the external factors. - Page 22 1. Enable line crossing alarm and set the alarm holding time. 2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details. 3. Click “Save” button to save the settings. 4.
-
Page 23: Intrusion
4.4.4 Intrusion Intrusion: Alarms will be triggered if the target intrudes into the defined areas. Go to Analytics→Intrusion interface as shown below. 1. Enable region intrusion detection alarm and set the alarm holding time. 2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details. -
Page 24: Network Configuration
6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate detection. 7. Adequate light and clear scenery are crucial to line crossing detection. Network Configuration 4.5.1 TCP/IP Go to Network→TCP/IP interface as shown below. There are two ways for network connection. Use IP address (take IPv4 for example)-obtain a local IP address automatically through DHCP. -
Page 25: Port
Trigger FTP: when the IP address of the device is changed, the new IP address will be sent to FTP server that has been set up. 4.5.2 Port Go to Network→Port interface as shown below. HTTP port, Data port and RTSP port can be set. HTTP Port: The default HTTP port is 80. -
Page 26: 802.1X
4.5.5 802.1x If it is enabled, the camera’s data can be protected. When the camera is connected to the network protected by the IEE802.1x, user authentication is needed. To use this function, the camera shall be connected to a switch supporting 802.1x protocol. The switch can be reckoned as an authentication system to identify the device in a local network. -
Page 27: Upnp
Sub stream: The address format is “rtsp://IP address: rtsp port/profile2?transportmode=mcast”. Third stream: The address format is “rtsp://IP address: rtsp port/profile3?transportmode=mcast”. Audio: Having entered the main/sub stream in a media player (like VLC), the video and audio will play automatically. If “Allow anonymous login…” is checked, there is no need to enter the username and password to view the video. If “auto start”... -
Page 28: Https
Go to Network →FTP. Server Name: The name of the FTP server. Server Address: The IP address or domain name of the FTP. Upload Path: The directory where files will be uploaded to. Port: The port of the FTP server. Use Name and Password: The username and password that are used to login to the FTP server. -
Page 29: Qos
* Click “Create a private certificate” to enter the following creation interface. Click the “Create” button to create a private certificate. Enter the country (only two letters available), domain (camera’s IP address/domain), validity date, password, province/state, region and so on. Then click “OK” to save the settings. * Click “Create a certificate request”... - Page 30 Add user: 1. Click “Add” to pop up the following textbox. 2. Enter user name in “User Name” textbox. 3. Enter letters or numbers in “Password” and “Confirm Password” textbox. 4. Choose the user type. Administrator has all permissions. Normal user can only view the live video. Advanced user has the same permissions as an Administrator except for;...
-
Page 31: Online User
4.6.2 Online User Go to Security→Online User to view the user who is viewing the live video. An administrator user can kick out all the other users (including other administrators). 4.6.3 Block and Allow Lists Go to Security→Block and Allow Lists as shown below. The setup steps are as follows: Check the “Enable address filtering”... -
Page 32: Reboot
Import & Export Settings ⚫ Configuration settings of the camera can be exported form a camera into another camera. 1. Click “Browse” to select the save path for import or export information on the PC. 2. Click the “Import Setting” or “Export Setting” button. Default Settings ⚫... -
Page 33: Search
2. Select the main type, sub type, start and end time. 3. Click “Search” to view the operation log. 4. Click “Export” to export the operation log. 5 Search Image Search In the Setup interface, click Search to go to the interface as shown below. Images that are saved on the PC or SD card can be found here. - Page 34 ⚫ Local Image Search 1. Choose “Picture”—“Local”. 2. Set time: Select date and choose the start and end time. 3. Click to search the images. 4. Double click a file name in the list to view the captured photos as shown above. Click to return to the previous interface.
-
Page 35: Video Search
2. Set time: Select date and choose the start and end time. 3. Choose the alarm events at the bottom of the interface. 4. Click to search the images. 5. Double click a file name in the list to view the captured photos. Click to return to the previous interface. - Page 36 1. Choose “Record”—“Local”. 2. Set search time: Select the date and choose the start and end time. 3. Click to search the images. 4. Double click on a file name in the list to start playback. Icon Description Icon Description Play button.
-
Page 37: Sd Card Video Search
Icon Description Icon Description Watermark Speed up display Enable / disable audio; drag the slider to adjust the volume after enabling audio. (only some models support this function) 5.2.2 SD Card Video Search Click Search to go to the interface as shown below. Videos that were recorded on the SD card can be played in this interface. 1. - Page 38 The time table can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons. Video clip and downloading 1. Search the video files according to the above mentioned steps. 2. Select the start time by clicking on the time table. 3.
-
Page 39: Appendix
Appendix Appendix 1 Troubleshooting IP Scanner does not show any device. Make sure that the PC that’s running IP Scanner is on the same local network as the devices. Internet Explorer cannot download ActiveX control. IE browser may be set up to block ActiveX. Follow the steps below. 1. -
Page 40: Appendix 2 Specifications
Appendix 2 Specifications Specification /Model O2VB1N Image Sensor 1/2.8＂CMOS Image Size 1920×1080 Electronic Shutter 1s~1/100000s Iris Type Fixed Iris Min. llumination 0.009lux@F1.6,AGC ON;0 lux with IR Camera Lens 2.8mm@F1.6, horizontal field of view: 103.7° Lens Mount Day&Night 3D DNR Digital NR... - Page 41 Specification /Model O2VB1VN Image Sensor 1/2.8＂CMOS Image Size 1920×1080 Electronic Shutter 1s~1/100000s Iris Type Fixed Iris Min. llumination 0.009lux@F1.6,AGC ON;0 lux with IR Camera Lens 2.8~12mm@F1.4, motorized zoom lens, horizontal FoV: 93.5-31.9° Lens Mount Ø14 Day&Night Digital WDR Digital NR 3D DNR Angle Adjustment Pan: 0°~360°;...
- Page 42 Specification /Model O2VT1N Image Sensor 1/2.8＂CMOS Image Size 1920×1080 Electronic Shutter 1s~1/100000s Iris Type Fixed Iris Min. llumination 0.009lux@F1.6,AGC ON;0 lux with IR Camera Lens 2.8mm@F1.6, horizontal field of view: 103.7° Lens Mount Day&Night 120dB Digital NR 3D DNR Angle Adjustment Pan: 0°~360°;...
- Page 43 Approx. 1.47lbs Installation Wall mounting; ceiling mounting Models: O2VB1N/O2B1VN/O2VT1N /O2VT1VN Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
