Quick Start Guide
2MP IP Camera
O2VLB7 / O2VLB8 / O2VLD7 / O2VLD7J / O2VLD8
Version 1.0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O2VLD7J and is the answer not in the manual?

Questions and answers

Summary of Contents for Speco O2VLD7J

  • Page 1 Quick Start Guide 2MP IP Camera O2VLB7 / O2VLB8 / O2VLD7 / O2VLD7J / O2VLD8 Version 1.0.1...
  • Page 2 Thank you for purchasing this Network camera! This manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support.
  • Page 3 Important Safeguards and Warnings 1.Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class 2 power supply only. Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.
  • Page 4 Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included. Contact your rep or Speco customer service department immediately if something is broken or missing in the package. Accessory Name...
  • Page 5: Table Of Contents

    Table of Contents Device Installation ........................1 Installation ........................1 IP Scanner – Web Login ........................ 4 Overview ......................... 4 Operation ........................4 Web Operation ..........................5 Login and Main Interface ....................5...
  • Page 6: Device Installation

    1 Device Installation 1.1 Installation Note: Before installation, please make sure the installation surface can support a minimum of 3 times the weight  of the camera Figure 1-1 Bullet Camera...

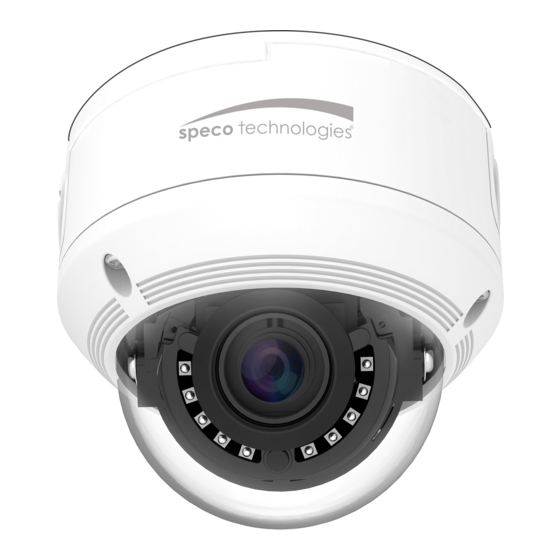

  • Page 7 (O2VLD7J) Figure 1-2 Dome Camera 1. Put the installation template on the designated surface where the device will be installed (wall or ceiling). 2. Drill holes according to position of the holes on the installation template and then insert the expansion bolts in the holes.
  • Page 8 3. Put the main body of waterproof connector on the network port and rotate it clockwise to lock the network port and waterproof connector firmly. 4. Put the waterproof locking cover on the main body of waterproof connector and rotate it clockwise to lock the waterproof connector and waterproof locking cover firmly.
  • Page 9: Ip Scanner - Web Login

    2 IP Scanner – Web Login 2.1 Overview IP Scanner can search for the device on the local network. Please note that only devices that are on the same subnet can be discovered. 2.2 Operation Open up IP Scanner. Figure 2-1 In the device list, you can view the IP address, model number, and MAC address of each device.
  • Page 10: Web Operation

    3 Web Operation This device supports viewing and management via a web browser on a PC. 3.1 Login and Main Interface Open the browser and input network camera address in the address bar or double click the device in IP Scanner. See Figure 3-1.
