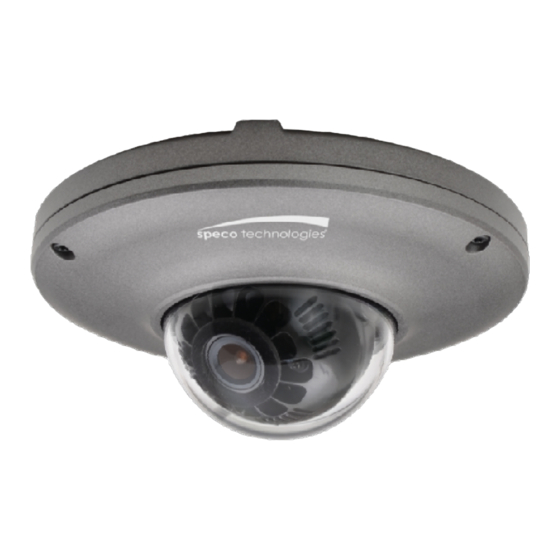

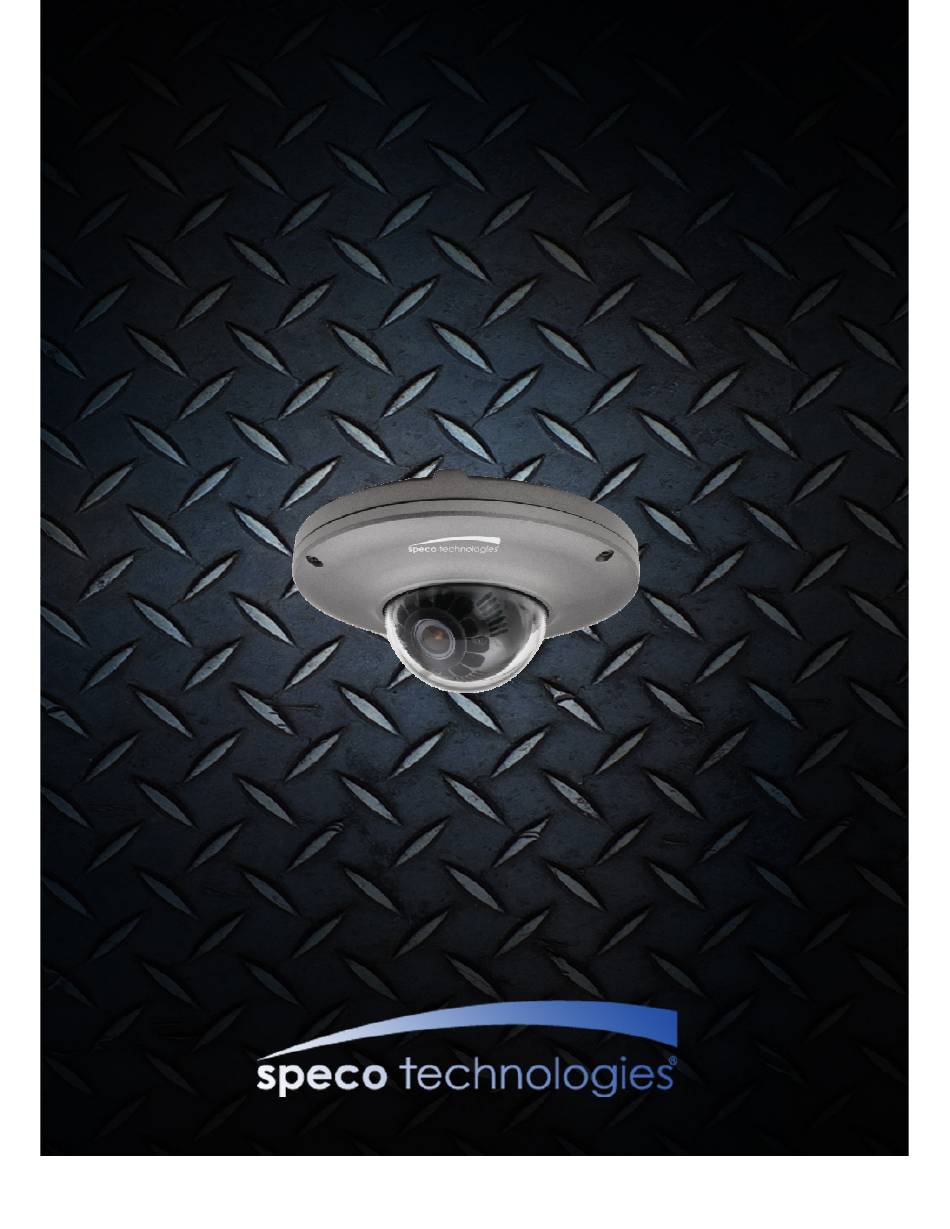

- Page 1 O2iMD1 O2iMD1 ® Intensifier IP Full Full HD Megapixel Indoor/Outdoor xel Indoor/Outdoor Miniature Dome IP Camera Miniature Dome IP Camera...
- Page 2 ’ ’ Directions Be careful not to cause any physical damage by dropping or throwing the camera. Especially keep the device out of reach from children. Do not disassemble the camera. No after service is assumed when disassembled. Use only power adapters compatible with the unit. Be careful to prevent moisture or water penetration into the unit.
- Page 3 ’ ’ Revision History Date Revision Details Feb 25 , 2014 First manual revision creation. Rev.1.0 (Feb. 2015)
-
Page 4: Table Of Contents
Quick Installation Guide ........................16 4.2.1. Connect PC and O2iMD1 to network..................16 4.2.2. Install Speco-NVR and set IP parameters on O2iMD1 ............16 4.2.3. Remote video connection to O2iMD1 ..................18 4.2.4. Additional settings through connection to the Admin Page ............20 Troubleshooting ............................ -
Page 5: Introduction
’ ’ 1. Introduction 1.1. Overview The ONSIP O2iMD1 is a state-of-the-art mega-pixel, dual-codec (H.264, MJPEG) IP/network camera built with embedded software and hardware technology. It enables real time transmission of synchronized video of Full HD resolution and audio data. Remote clients can connect to ONSIP O2iMD1 for the real time video/audio data through various client solutions running on PC, PDA or mobile phones. -
Page 6: Specifications
’ ’ 1.2. Specifications Camera Image sensor Progressive scan 1/3 inch CMOS 2M pixels Full resolution 1,920 x 1,080 pixels (Full HD) Sync System Internal Lens 2.9mm fixed (3.6mm, 6mm optional) Day & Night AUTO, DAY, NIGHT Sensitivity Intensifier Max – 0.0005 Lux Back Light Compensation ON / OFF White Balance... - Page 7 Network Protocol - RTP, RTSP, SDP, HTTP, SMTP, FTP, DHCP, UPnP - NTP, DNS, DynDNS Dynamic IP Speco DDNS (free of charge) - User ID & Password protection, IP address filtering Security - Digest Authentication, User Access Log - RTSP streaming with proprietary format for control information...
-
Page 8: Applications Of O2Imd1
’ ’ 1.3. Applications of O2iMD1 Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.) Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.) Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting Weather and environmental observation Rev.1.0 (Feb. 2015) -
Page 9: Product Description
Quick installation guide, Guide pattern 2.2. Product Preview O2iMD1 ONSIP Installer VMS Software (Speco NVR) PC software to view and PC software to view and record the A/V streaming data transmitted from A/V streaming data transmitted from PC software to allocate an IP... -
Page 10: Physical Description
’ ’ 2.3. Physical description 2.3.1. External View Figure 2-1. External view of O2iMD1 2.3.2. Dimensions Unit : mm Figure 2-2. Dimensions Rev.1.0 (Feb. 2015) -
Page 11: External Connector
’ ’ 2.3.3. External Connector Sensor Input: white(+), Red(-) Relay Output: Black(+), Yellow(-) Line Output Network (LAN) Power Mic/Line Input Figure 2-3. Connector for external connection 2.3.4. Factory Default Switch Factory default switch is provided for returning the IP camera to factory default state. Unscrew the cover to access the switch. -
Page 12: Functional Description
’ ’ 2.4. Functional Description Power : Power input for supplying Power input for supplying 12V DC power. Caution : If O2iMD1 O2iMD1 is powered by PoE, do not plug in DC Jack with active DC is powered by PoE, do not plug in DC Jack with active DC power into DC power connector. - Page 13 ’ ’ Sensor Input Connect external alarm sensor. Examples of sensing devices are infrared sensor, motion sensor, heat/smoke sensor, magnetic sensor, etc. Connect the two wires of the sensors to “Sensor Input”. The sensor type (NC/NO) can be set in admin page. Multiple sensor devices can be connected in parallel. NO/NC Type Open Collector Type Photo Coupler...
-
Page 14: On Site Installation
’ ’ 3. On Site Installation Use cables and conduits that are suitable for the installation. Particular attention should be paid in the Use cables and conduits that are suitable for the installation. Particular attention should be paid in the Use cables and conduits that are suitable for the installation. -
Page 15: Getting Started
’ ’ 4. Getting Started Brief information for first time operation of O2iMD1 is provided in this chapter. 4.1. PC Requirement Audio/Video streaming data received from O2iMD1 can be displayed or stored in a PC running client programs. Minimum requirement of the PC is described below: ITEM Minimum Requirement Recommended Specification... -
Page 16: Quick Installation Guide
IP parameters on O2iMD1 Speco-NVR is a multi-channel VMS program for the IP camera. Install Speco channel VMS program for the IP camera. Install Speco-NVR on remote PC to NVR on remote PC to connect to these products. It is needed to assign connection information to Speco e products. - Page 17 ’ ’ Follow the sequence below for setting the IP parameter Follow the sequence below for setting the IP parameter Run ONSIP installer Click (1) in ONSIP installer window.> Double click on (2) > Fill in (4) > make a selection in (5) > Fill (1) in ONSIP installer window.>...
-
Page 18: Remote Video Connection To O2Imd1
Active-X module. Most convenient way of X module. Most convenient way of installing the Active-X module is installing X module is installing Speco-NVR which is available from the CD or our m the CD or our web site. - Page 19 When you exit Speco-NVR, you have to input the ID/PW, admin/1234. Details for Speco NVR, you have to input the ID/PW, admin/1234. Details for Speco-NVR can be found in NVR can be found in [Speco-NVR User’s Guide].
-
Page 20: Additional Settings Through Connection To The Admin Page
’ ’ 4.2.4. Additional settings through connection to the Admin Page All parameters of the camera are factory default out of the box. For a more sophisticated target application, parameters need to be changed through the admin page. The admin page can be connected through “http://IP_Address:Port_Number/admin.htm”... -
Page 21: Troubleshooting
’ ’ 5. Troubleshooting 5.1. No power is applied In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. 2. The LAN switch supports standard PoE. Make sure that both the IP camera and the LAN switch support standard PoE (IEEE 802.3af) In case of DC adapter If PoE is not applied, the power and network connection should be made through separate cables. -
Page 22: Cannot Connect To The Video
’ ’ 5.2. Cannot connect to the Video Check the status of the network connection through PING test. Try the following on your PC : Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~” message is returned ( in the figure below), the network connection is in normal ①... -
Page 23: Windows Vista Or Windows 7
Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video capture in Speco proper recording and still video capture in Speco-NVR and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration 1. - Page 24 ’ ’ <Windows 7> 1. UAC (User Access Control) configuration 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel click “User Accounts” in control panel 2) Double-click “Change User Account C click “Change User Account Control setting” 3) Set to “Never notify”...
- Page 25 ’ ’ 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties” 2) Click right mouse button and select “properties” 3) Check “Privilege Level” in “Compatibility” tab 3) Check “Privilege Level” in “Compatibility” tab...
-
Page 26: Technical Assistance
’ ’ 5.4. Technical Assistance If you need any technical assistance, please contact If you need any technical assistance, please contact technical support. For immediate service please . For immediate service please provide the following information. Model name 1 . 1 . 1 . 1 . MAC address and Registration number MAC address and Registration number 2 . -
Page 27: Appendix A - Important Notice In Exchanging Sd Card (Micro Sd)
’ ’ Appendix A – Important Notice in Exchanging SD Card (Micro SD) SD Card is a non-volatile memory device for storing video and audio data on the product. Note that continuous recording to the SD Card will cause the memory cell to wear out, eventually resulting in failure. When you plug out the SD Card for replacement or other purpose, follow the steps below in order to prevent data loss or crash of the SD Card.
