  • Page 1 ’ ’ ONSIP O2T6 Rev.1.1 (May,2013)
  • Page 2 ’ ’ Directions Be careful not to cause any physical damage by dropping or throwing ONSIP O2T6. Especially keep the device out of reach from children. Do not disassemble ONSIP O2T6. No after service is assumed when disassembled. Use only the power adapter provided with ONSIP O2T6.
  • Page 3 ’ ’ Caution Any changes or modifications to this device could void the warranty. Revision History Date Revision Details May 13 , 2013 First manual revision creation. May 24 , 2013 Text revisions Rev.1.1 (May,2013)

  • Page 4: Table Of Contents

    Contents ................... 4 1. Introduction ................... 5 1.1. Overview ....................5 1.2. Specification ....................6 1.3. Applications of ONSIP O2T6 ................. 8 2. Product Description................. 9 2.1. Contents ....................9 2.2. Product Preview ..................10 2.3. Physical description .................. 11 2.4.

  • Page 5: Introduction

    It enables real time transmission of synchronized video of up to 2 Megapixels and audio data. Remote clients can connect to ONSIP O2T6 for the real time video/audio data through various client solutions running on PC, PDA or mobile phones. Real time 2-way communication is available through bidirectional audio communication feature.

  • Page 6: Specification

    Upgrade Firmware upgrade over IP network Administration Remote administration over IP network Web Viewer Simple viewing over internet explorer Client & Viewer Speco-NVR Standard VMS software Dynamic IP support DDNS support Supported Video/Audio stream encryption ID and Password protection Security...
  • Page 7 ’ ’ Sync to PC Synchronize to PC Manual Manual time setting Time management Internet Time Server Synchronize to Time Server Daylight Savings Active-X SDK support HTTP Rev.1.1 (May,2013)

  • Page 8: Applications Of Onsip O2T6

    ’ ’ 1.3. Applications of ONSIP O2T6  Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.)  Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.)  Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting ...

  • Page 9: Product Description

    2.1. Contents The product package contains followings: Contents Description Remarks ONSIP O2T6 IP camera (ONSIP O2T6 ) main unit Standard mount bracket, Anchor 3EA, Accessory Screw 4x30L 3EA, C-Mount, L-Wrench, Iris connect, RCA Cable Software & User’s Guide Quick Reference Guide Quick installation guide Rev.1.1 (May,2013)

  • Page 10: Product Preview

    ’ ’ 2.2. Product Preview VMS Software ONSIP O2T6 IP-Installer (Speco-NVR) PC software to view and record the A/V streaming data transmitted Megapixel IP Camera PC software to allocate an IP from IP camera. *lens not included address to the IP Camera...

  • Page 11: Physical Description

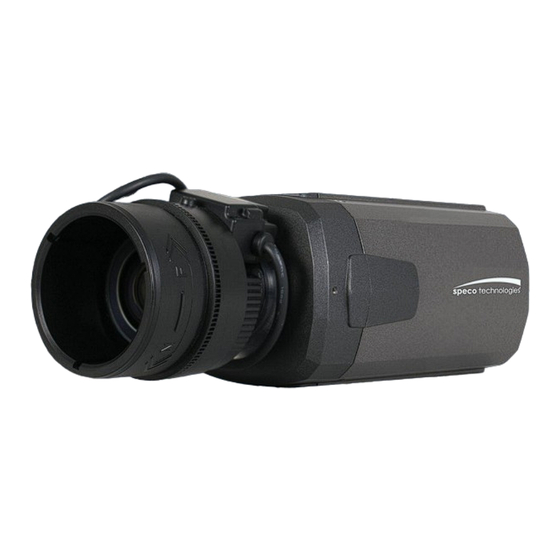

    ’ ’ 2.3. Physical description 2.3.1. External View Figure 2-1. External view of ONSIP O2T6 2.3.2. Rear panel Figure 2-2. Rear panel of ONSIP O2T6 Rev.1.1 (May,2013)

  • Page 12: Functional Description

    ’ 2.4. Functional Description  DC 12V: Power input for supplying 12V DC power. Caution: If ONSIP O2T6 is powered by PoE, do not plug in DC Jack with active DC power into DC power connector.  MIC/LINE IN Connect external audio source or microphone.
  • Page 13 Ground of RS-232C  ALARM IN/OUT and Composite Video Output Terminal block for the I/O Connection Figure 2-3 of ONSIP O2T6 Used for connecting P/T device, sensor, and composite video output. Pin assignments are as follows. Description Misc. Ground connection for Composite output of analog...
  • Page 14 ’ ’  RS-485 Used for connecting Pan/Tilt devices having RS-485 interface standard.  SNS IN Examples of sensing devices are infrared sensors, motion sensors, heat/smoke sensors, magnetic sensor, etc. Connect the two wires of the sensors to “SNS In”. The sensor type (NC/NO) can be set in Administrative mode.
  • Page 15 A switch provided for returning the IP camera to factory default state. Press the switch for a few seconds while power is applied. Figure 2-6 Factory Default switch of ONSIP O2T6 Restoring the factory default will erase all settings. Rev.1.1 (May,2013)

  • Page 16: On Site Installation

    ’ ’ 3. On Site Installation 3.1. Please follow through the following procedures for the installation on the wall or ceiling. 1. Fix the mounting bracket and bracket holder on the wall or the ceiling using screws. Insert the bolt on the bracket into the bracket hole and rotate the bolt clockwise to install the IP camera on the bracket...

  • Page 17: Getting Started

    Brief information for first time operation of ONSIP O2T6 is provided in this chapter. 4.1. PC Requirement Audio/Video streaming data received from ONSIP O2T6 can be displayed or stored in a PC running client programs. Minimum requirement of the PC is described below:...

  • Page 18: Quick Installation Guide

    (PC is needed to assign IP address to ONSIP O2T6) 2) In case of using PoE, connect the PC and ONSIP O2T6 to the network using one of the following ways. If your LAN Switch does not support standard PoE, connect...
  • Page 19 ’ ’ 2. Install Speco-NVR Speco-NVR is a multi-channel VMS program for to IP camera or Video server. Install Speco-NVR on remote PC to connect to these products. It is needed to assign connection information to Speco-NVR program before connection.
  • Page 20 ’ ’ Click on the field in ③ for sorting and rearranging the list. Select network mode that best suits from the drop down list in ⑤. You can choose either Static or ADSL and Auto (DHCP), respectively. If ADSL and Auto are selected, the fields in ⑥ is deactivated.
  • Page 21 3. Remote video connection to ONSIP O2T6 1) Connection through Web Viewer Web Viewer offers the simplest way of video connection to ONSIP O2T6. For video connection, enter the IP address of ONSIP O2T6 in the URL window of Internet Explorer as: Port 80 (default) can be [e.g.] Port 80...
  • Page 22 ’ 2) Connection through Speco-NVR Speco-NVR is a multi-channel VMS program for to IP camera or Video server. Install Speco-NVR on remote PC to connect to these products. It is needed to assign connection information to Speco-NVR program before connection. Details for the Speco-NVR can be found in [Speco-NVR User’s Guide].
  • Page 23 ’ ’ 4. Additional settings through connection to the Admin Page All the parameters of the camera are factory default out of the box. For a more sophisticated target application, parameters need to be changed through the admin page. The admin page can be connected through ”http://IP_address:HTTP_port_number”/admin.htm ID and password of the administrator are required.

  • Page 24: Troubleshooting

    If PoE is not applied, the power and network connection should be made through separate cables. It is recommended to use DC adapter supplied by Speco Technology for the feeding of the power. In case of replacing the DC power supply, make sure that the power supply meets with the power requirement of the IP camera to prevent damage or malfunction.

  • Page 25: Cannot Connect To The Video

    ’ ’ 5.2. Cannot connect to the Video Check the status of the network connection through PING test. Try the following on your PC: Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~”...

  • Page 26: Windows Vista Or Windows 7

    5.3. Windows Vista or Windows 7 Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video capture in Speco-NVR and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts”...
  • Page 27 ’ ’ <Windows 7> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel 2) Double-click “Change User Account Control setting” 3) Set to “Never notify” Rev.1.1 (May,2013)
  • Page 28 ’ ’ 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties” 3) Check “Privilege Level” in “Compatibility” tab Rev.1.1 (May,2013)

  • Page 29: Technical Assistance

    ’ ’ 5.4. Technical Assistance If you need any technical assistance, please contact your dealer. For immediate service please provide the following information. 1. Model name 2. MAC address and Registration number 3. Purchase date 4. Description of the problem 5.
