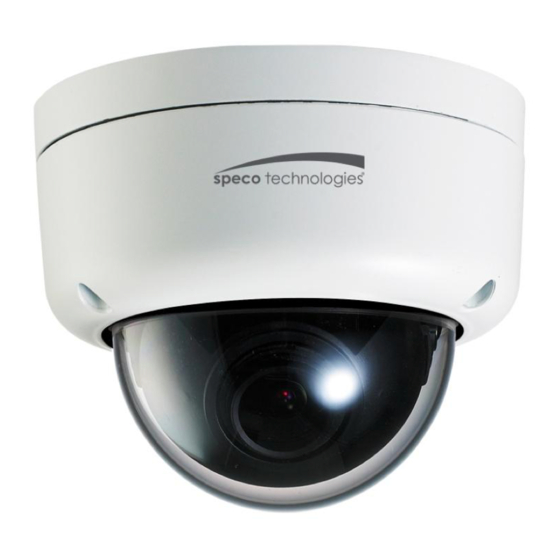

Intensifier® Technology IP Dome Camera
QUICK INSTALLATION GUIDE
O2iD9
Please read this manual carefully before installation and operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O2iD9 and is the answer not in the manual?

Questions and answers

Summary of Contents for Speco O2iD9

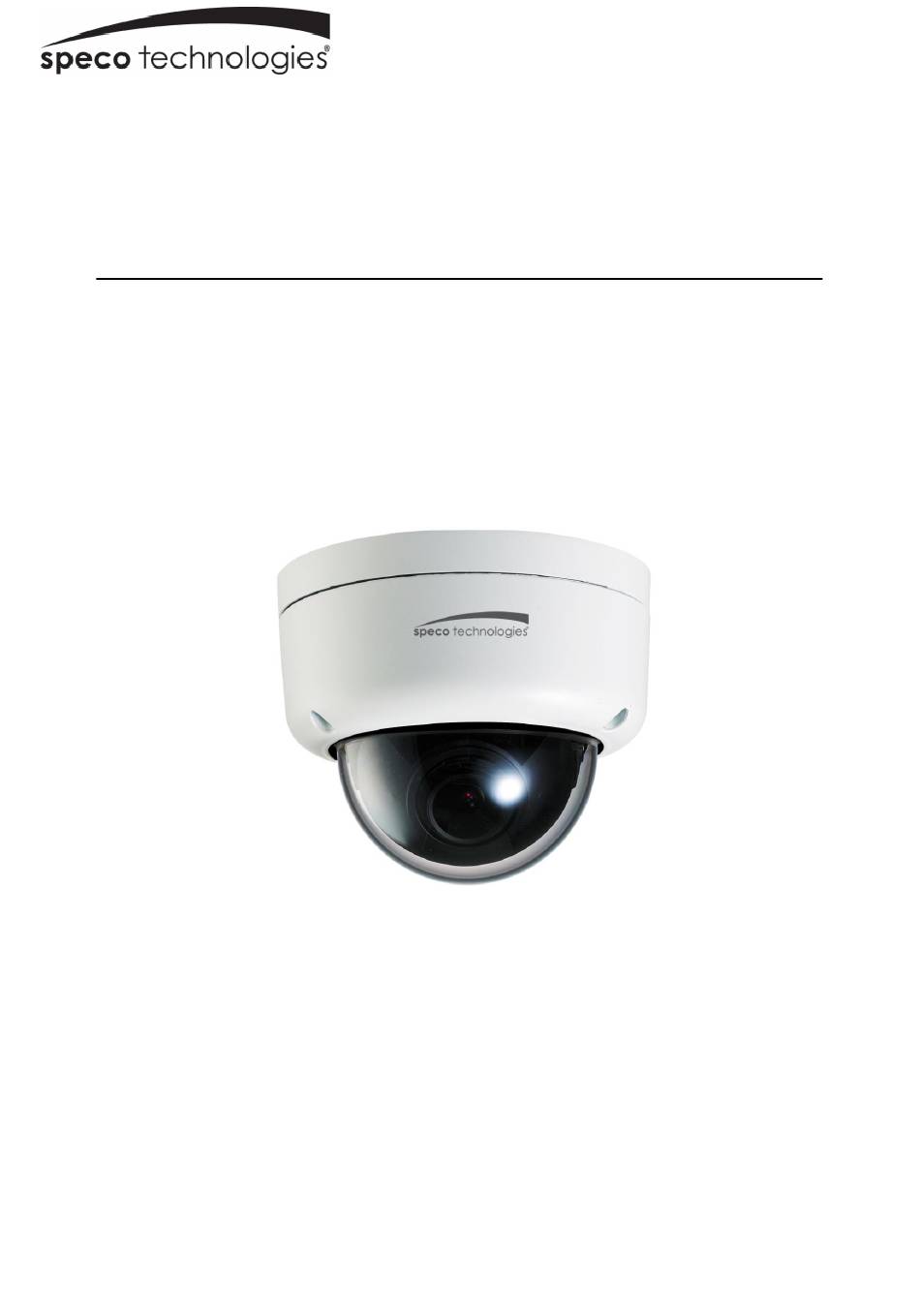

  • Page 1 Intensifier® Technology IP Dome Camera QUICK INSTALLATION GUIDE O2iD9 Please read this manual carefully before installation and operation of the product.
  • Page 2 Thank you for purchasing this product. This guide is designed to be a reference tool for the product. Please read it carefully before operating the product and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support. CAUTION...
  • Page 3: Limitation Of Liability

    safety regulations.  If any liquid or solid matter gets into the housing, immediately disconnect the camera from power supply and have it checked by your authorized dealer before reusing.  Avoid installing the camera at extremely hot or cold places. ...
  • Page 4: Specification

     Triple Streaming of H.264 and M-JPEG  Up to 30 frames per second at all image resolutions  Supports image resolutions Full HD (1920 x 1080)  Integrated motion detection with pre- and post-alarm image / video buffering  Supports CBR (Constant Bit Rate) and VBR (Variable Bit Rate) modes ...
  • Page 5: Name And Function Of Each Part

    Power Source DC 12V / 1.5A, POE (Power Over Ethernet) : 802.3af Power Consumption Max. 3.0W Net Weight 570g (Camera Only) LED's Power, Network Connection Dimension(mm) 121.2(Ø) x 96.3(H) Operating Temperature -10 degree ~ 50 degree Celsius (-14F ~ 122F) Environment Storage Temperature -20 degree ~ 60 degree Celsius (-4F ~ 140F)
  • Page 6: Installation

    ITEM DESCRIPTION Power Connector DC12V Network and POE (Power over Ethernet) and LAN cable POE Connector Lens 2.8mm Fixed Lens 3. INSTALLATION 3.1 Adjust Pan, tilt and Rotation and the View Angle - Pan, Tilt, Rotate (3-Axis mechanism) makes easy to monitor the desired view ...
  • Page 7 Ceiling Tile Drilling template Plastic Anchor x 3 Camera Ass'y Tapping Screw (4 x 30) x 3 Safety Wire Dome Cover Ass'y Torx Screw (3 x 15) x 3 Torx L-Wrench ① Paste a Drilling Template on the ceiling. (or wall) ②...
  • Page 8 Tapping Screw (6 x 50) x 4 Wall Mount Bracket Plastic Anchor x 4 Adaptor Plate Camera Ass'y Safety Wire Dome Cover Ass'y Torx Screw (3 x 15) x 3 Torx L-Wrench Machine Screw x 2 3.3 INSTALLATION EXAMPLE 3.3.1 Installation Example...
  • Page 9 LAN Switch Router Internet Remote Access Local Access E-Mail / FTP 3.3.2 Connecting to the Network Open up IP Scanner. IP Scanner can search for the device on the local network. Please note that only devices that are on the same subnet can be discovered. The device is set to DHCP mode by default.
  • Page 10: Dimension (Mm)

    Enter the IP address here 2) Enter the user name and password when prompted. 3) Default user name is admin and password is 1234. 4) If prompted for installation of the Active-X plug-in, allow the installation. Active-X is needed to view video from Internet Explorer.
