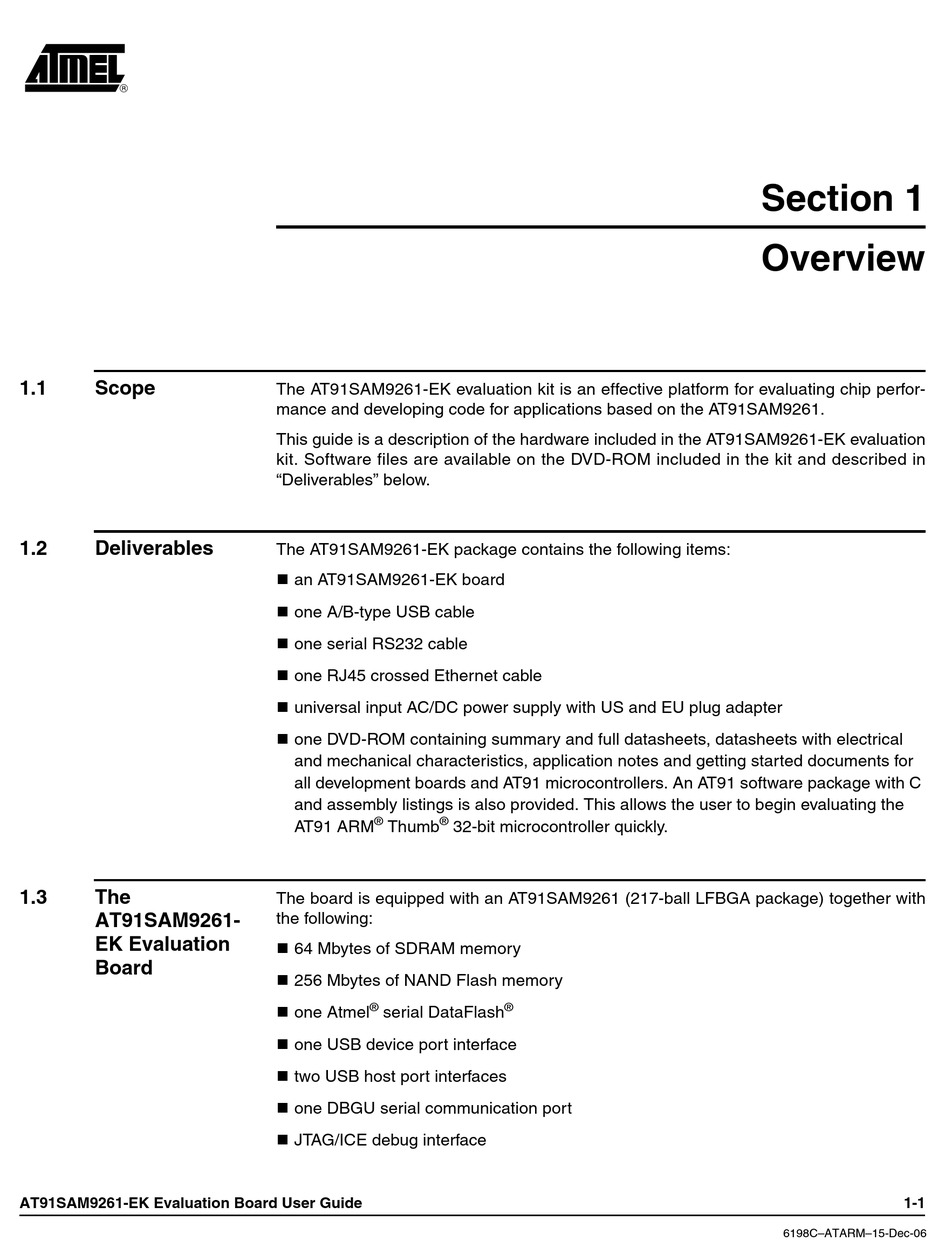

1.1

Scope

1.2

Deliverables

1.3 The
AT91SAM9261-
EK Evaluation
Board
AT91SAM9261-EK Evaluation Board User Guide
The AT91SAM9261-EK evaluation kit is an effective platform for evaluating chip perfor-
mance and developing code for applications based on the AT91SAM9261.
This guide is a description of the hardware included in the AT91SAM9261-EK evaluation
kit. Software files are available on the DVD-ROM included in the kit and described in
"Deliverables" below.
The AT91SAM9261-EK package contains the following items:
! an AT91SAM9261-EK board
! one A/B-type USB cable
! one serial RS232 cable
! one RJ45 crossed Ethernet cable
! universal input AC/DC power supply with US and EU plug adapter
! one DVD-ROM containing summary and full datasheets, datasheets with electrical
and mechanical characteristics, application notes and getting started documents for
all development boards and AT91 microcontrollers. An AT91 software package with C
and assembly listings is also provided. This allows the user to begin evaluating the
® ®
AT91 ARM Thumb 32-bit microcontroller quickly.
The board is equipped with an AT91SAM9261 (217-ball LFBGA package) together with
the following:
! 64 Mbytes of SDRAM memory
! 256 Mbytes of NAND Flash memory
! one Atmel ®
serial DataFlash
! one USB device port interface
! two USB host port interfaces
! one DBGU serial communication port
! JTAG/ICE debug interface
®
Section 1

Overview

1-1
6198C–ATARM–15-Dec-06
