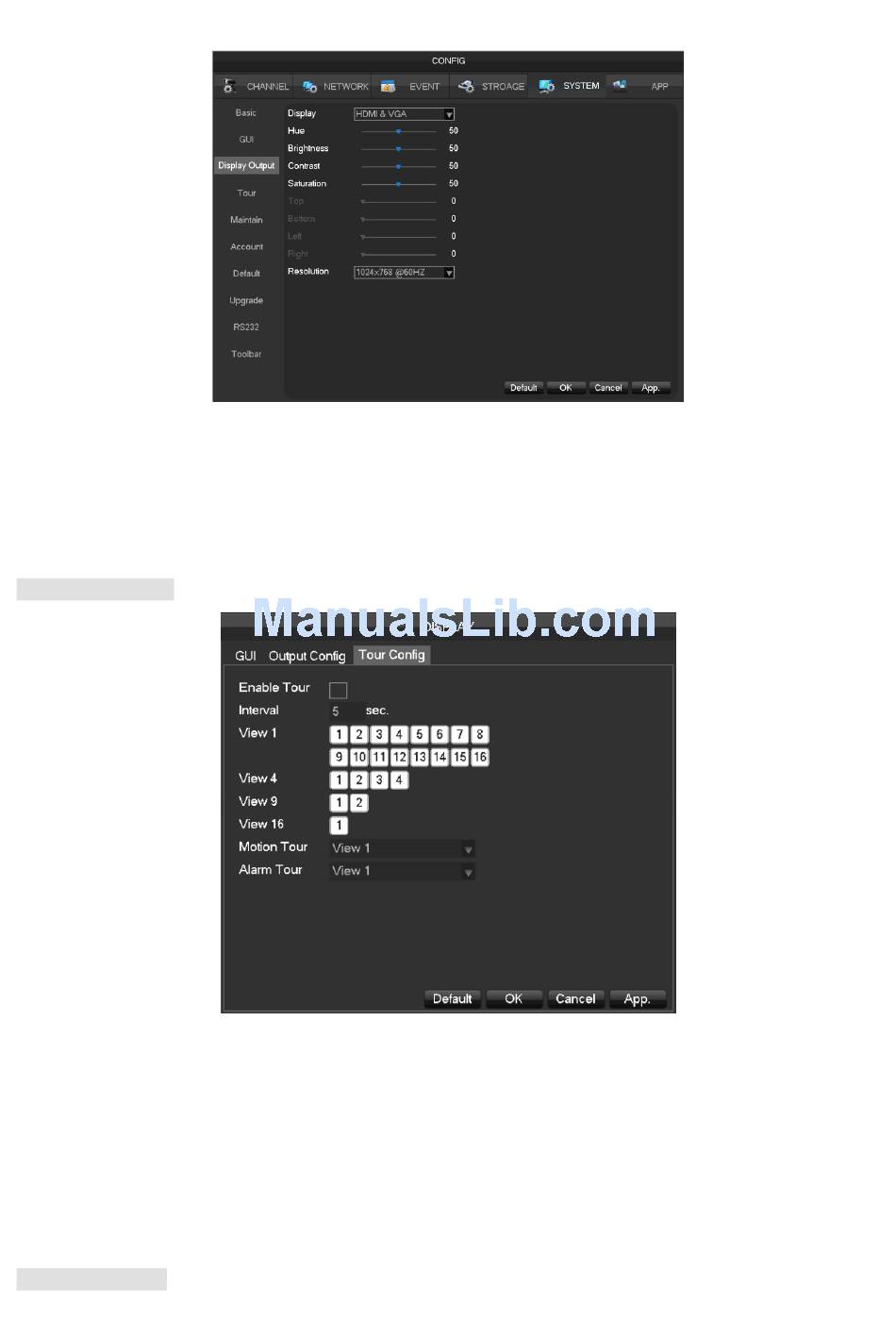

[Display]CVBS/HDMI&VGA
Under CVBS mode, user can adjust the monitor or TV hue, brightness, contrast and saturation. You can also adjust
the right TV output area when the displayed image is not full or beyond the scope of the monitor. Under
HDMI&VGA mode, user can only adjust the monitor hue, brightness, contrast and saturation.
[Resolution]select the VGA output resolution and refresh rate, total includes 1024× 720@60Hz 、
1024× 768@60Hz、1280× 1024@60Hz、1366× 768@60Hz and 1920× 1080@60Hz five choices.
Tour Configuration
[Enable Tour]Enable switch
[Interval] Ttour interval time is 5-120s
[View]It includes single screen, four-, nine-, sixteen-screen.
[Motion Tour]Set the motion detection tour mode
[Alarm Tour]Set the alarm tour mode
7.6.3 Storage management
HDD management
