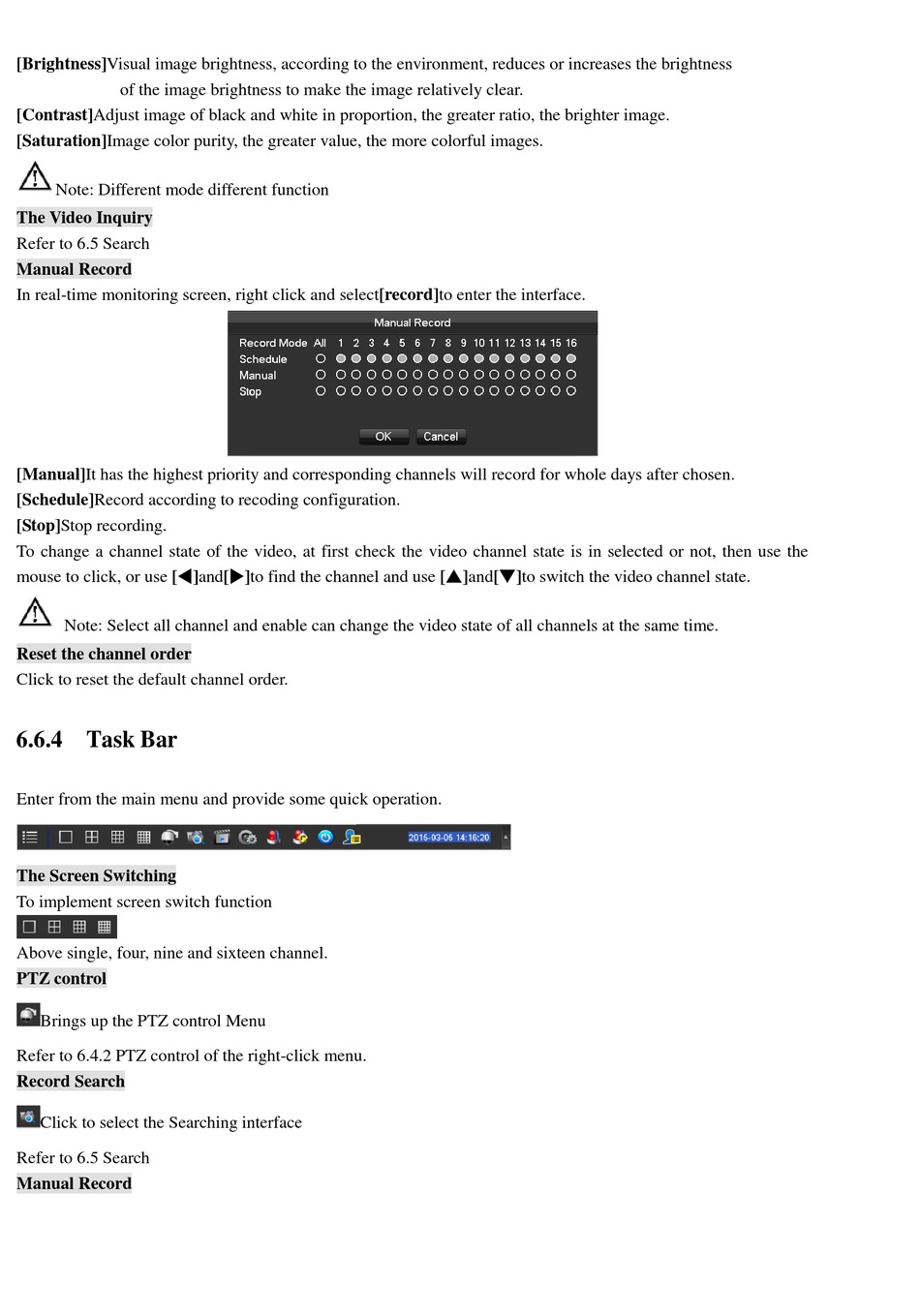

4Task Bar - CPcam CP-NVR-8CH User Manual

[Brightness]Visual image brightness, according to the environment, reduces or increases the brightness
of the image brightness to make the image relatively clear.
[Contrast]Adjust image of black and white in proportion, the greater ratio, the brighter image.
[Saturation]Image color purity, the greater value, the more colorful images.
Note: Different mode different function
The Video Inquiry
Refer to 6.5 Search
Manual Record
In real-time monitoring screen, right click and select[record]to enter the interface.
[Manual]It has the highest priority and corresponding channels will record for whole days after chosen.
[Schedule]Record according to recoding configuration.
[Stop]Stop recording.
To change a channel state of the video, at first check the video channel state is in selected or not, then use the
mouse to click, or use []and[]to find the channel and use []and[]to switch the video channel state.
Note: Select all channel and enable can change the video state of all channels at the same time.
Reset the channel order
Click to reset the default channel order.
6.6.4 Task Bar
Enter from the main menu and provide some quick operation.
The Screen Switching
To implement screen switch function
Above single, four, nine and sixteen channel.
PTZ control
Brings up the PTZ control Menu
Refer to 6.4.2 PTZ control of the right-click menu.
Record Search
Click to select the Searching interface
Refer to 6.5 Search
Manual Record
