CPcam CP-NVR-8CH User Manual page 24

[control IPC]Click the prompt whether restart the IPC，[OK]Restart the IPC，[Cancel]Return.

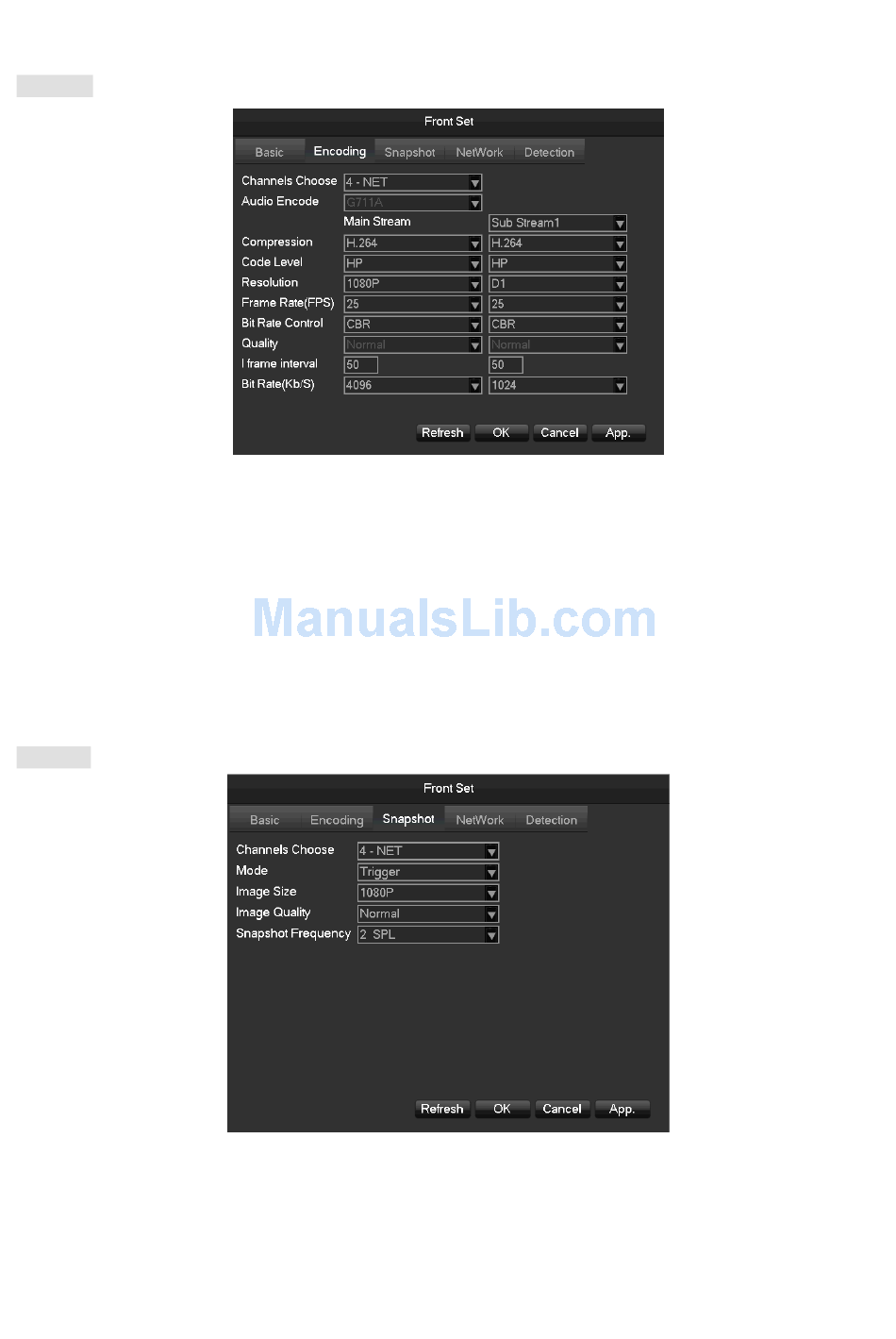

Encoding
[Channels Choose]Choose one channel.
[Audio coding]Select the current audio encoding
[Code Level]H.264
[Resolution]choose main resolution and sub resolution.
[Frame Rate] 1～25FPS/PAL,1～30FPS/NTSC
[Bit Rate Control]Choose CBR or VBR. When choose CBR, bit rate can be set. When choose VBR, image
quality can be set.
[Picture Quailty]Choose the picture quailty by the Variable stream，there are 6 range to choose.
[I frame interval]Set interval of adjacent frames. Max is 150.
[Bit Rate]Choose 1280,1536,1792,2048,3072,4096,5120,6144,7168,8192 or set by yourself.
Snapshot
[Choose Channel]Choose the channel to be modified.
[Shopshot Mode]trigger the two mode of shopshot and timing shopshot,the timing shopshot that you must be
selected.
[Picture resolution]Set the captured picture resolution.
[Picture Quailty]Choose the picture quailty，there are 6 range to choose.
