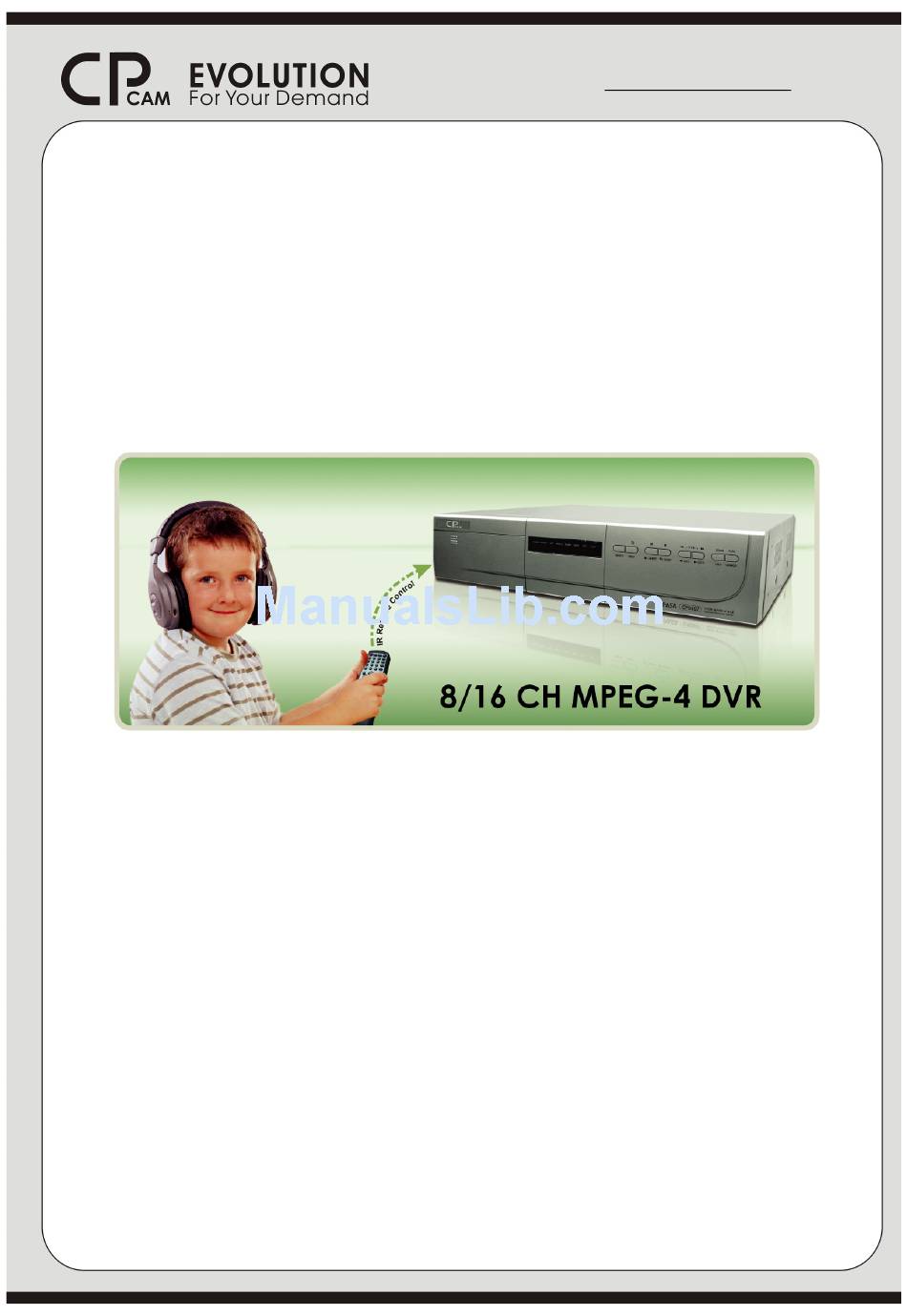

  • Page 1 http://www.viakom.cz Digital Video Recorder Digital Video Recorder User ’ s Manual User ’ s Manual Please read instructions thoroughly before operation and retain it for future reference. Please read instructions thoroughly before operation and retain it for future reference. CPD507 V0.983 CPD507 V0.983...
  • Page 2 Thank-You Note Before You Get Start First of all, we would like to express our gratitude to you for purchasing this product. This product is designed to meet your personal needs with our great industry-designing ability and our everlasting perseverance to the quality of all our products. This manual will introduce to you how to install this apparatus.
  • Page 3 IMPORTANT SAFEGUARD IMPORTANT SAFEGUARD CAUTION CAUTION RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK CAUTION: CAUTION: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label. Failure to do so may cause injury or death by electric shock and invalidates the warranty.

  • Page 4: Table Of Contents

    CONNECT TO AP VIA IE BROWSER ---------------------------------------------------------------------- RETR ---------------------------------------------------------------------------------------------------------------- GPRS ---------------------------------------------------------------------------------------------------------------- 6.10 OPTIONAL PHERIPHERALS -------------------------------------------------------------------------------- TROUBLE SHOOTING TROUBLE SHOOTING 7.1 FAQ ------------------------------------------------------------------------------------------------------------------- 7.2 CPCAM GLOBAL SERVICE ----------------------------------------------------------------------------------- APPENDIX #1 APPENDIX #1 INSTALL THE HDD ---------------------------------------------------------------------- APPENDIX #2 APPENDIX #2 PIN CONFIGURATION -----------------------------------------------------------------...

  • Page 5: Parts And Features

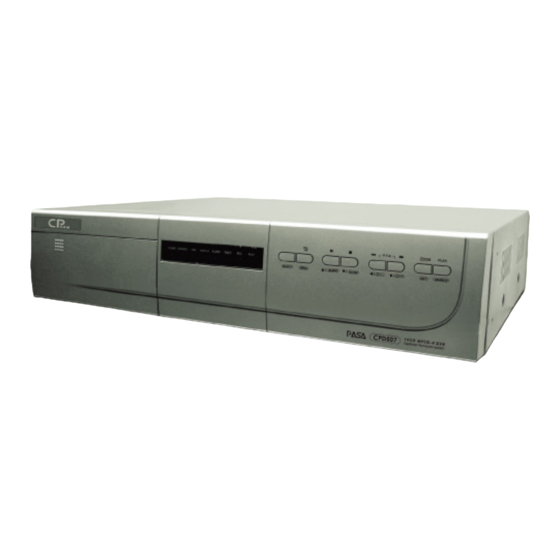

    PARTS AND FEATURES PARTS AND FEATURES 1.1 FEATURES 1.1 FEATURES DVR Features DVR Features MPEG-4 real time compression format High resolution recording (For 16 channels): Frame: 720 480 pixels with 120 IPS N TSC / 720 576 pixels with 100 IPS P AL ×...

  • Page 6: Specification

    1.3 SPECIFICATION 1.3 SPECIFICATION Video System NTSC / PAL (switch able) Video Compression Format MPEG 4 16 / 8 Channels. Composite video signal 1 Vp-p 75 Video Input Ω Video Loop Out 16 / 8 Channels. Composite video signal 1 Vp-p 75 Ω...
  • Page 7 Specification Continued… Backup Device USB1.1 backup, and network backup USB Interface Support 2 USB 1.1 ports (front panel * 1, back panel * 1) R.E.T.R. Support Remote Event Trigger Recording Web Transmitting Compression Motion JPEG Format 10/100 Base-T. Support remote control and live view via Ethernet. Ethernet Mobile Surveillance Support GPRS to access the system via mobile phone (require...

  • Page 8: Front Panel

    1.4 FRONT PANEL 1.4 FRONT PANEL POWER: (a) Press “POWER” button to turn on/ turn off the DVR. (Under recording mode, please stop record before turn off the DVR) MENU: (b) Press “MENU” button to enter main menu. ENTER / RECORD : (c) Press “ENTER”...
  • Page 9 “ ”: (i) Press “ ” button to pause the play back files. “ ”: (j) Press “ ” button to stop the play back files. 10) “ “: (k) Under playback mode, press “ ” button to fast rewind. 11) “...

  • Page 10: Rear Panel

    1.5 REAR PANEL 1.5 REAR PANEL (Take 16 channels as an example.) (Take 16 channels as an example.) DISK ARRAY PORT: Connect to disk array for extend HDD capacity. Connect to IR receiver. RS485: Connect to external device (such as PTZ camera) with RS485-A and RS485-B. EXTERNAL I/O PORT: Connect to external device.
  • Page 11 10) POWER: Connect to provided adapter. 11) FAN: For ventilation. 12) VIDEO INPUT (CHANNEL 1 - 16 / CHANNEL 1 - 8) : Connect to video source, such as camera. 13) LOOP (CHANNEL 1 - 16 / CHANNEL 1 - 8): Video output.

  • Page 12: Installation And Connection

    INSTALLATION AND CONNECTION INSTALLATION AND CONNECTION 2.1 PHYSICAL CONNECTION 2.1 PHYSICAL CONNECTION Connecting all the devices to construct a surveillance system, as shown below. (Take 16 channels as an example.) (Take 16 channels as an example.) Install HDDs: The HDDs must be installed before the DVR is turned on. Connect cameras.

  • Page 13: Getting Started

    2.2 GETTING STARTED 2.2 GETTING STARTED Before using the DVR, please have the HDDs installed ready. (refer to Appendix #1 for installation of HDDs). Connect the AC power cord to power adapter and plug into an electrical outlet. The standby LED light will turn to red. Press the “POWER”...

  • Page 14: Advanced Functions

    ADVANCED FUNCTIONS ADVANCED FUNCTIONS “Advanced Motion Detection Setting” allows users to adjust different sensitivity factors base on different environment. And “Network Backup” allows users to use licensed software AP to backup the recorded files to PC, and playback the backup files. 3.1 MOTION DETECTION SETTING 3.1 MOTION DETECTION SETTING LS : The sensitivity of comparing two different images.

  • Page 15: Network Backup

    3.2 NETWORK BACKUP 3.2 NETWORK BACKUP Users could easily use the licensed software AP to backup the recorded files to PC. And then playback the backup files. BASIC OPERATION BASIC OPERATION 4.1 RECORDING 4.1 RECORDING The DVR offers three recording modes, manual record, event recording, and timer record.

  • Page 16: Playback

    4.2 PLAYBACK 4.2 PLAYBACK Press “ PLAY ” button, the DVR will display the last recording video. FAST FORWARD (F.F. ) & FAST REWIND (REW): You can increase speed for fast forward and rewind on the DVR. In the playback mode, ＊...

  • Page 17: Detailed Menu Configuration

    DETAILED MENU CONFIGURATION DETAILED MENU CONFIGURATION 5.1 MENU TREE 5.1 MENU TREE MENU MENU TITLE TITLE ADVANCE RECORD TIMER ADVANCE RECORD TIMER DATE DATE BRIG BRIG CONT CONT CAMERA CAMERA DATE: DATE: SATU SATU MANUAL RECORD DATE MANUAL RECORD DATE YEAR MONTH DAY YEAR MONTH DAY ENABLE...

  • Page 18: Access Menu

    5.2 ACCESS MENU 5.2 ACCESS MENU Press “MENU” button to enter the main menu list. The default password is 0000. Enter the default password and press “ENTER”. (Users could alter the password later, please refer to “Section 5.12 ADVANCE MENU_SYSTEM”) Tip: The default password is “0000”, users could just press “ENTER”...

  • Page 19: Main Menu Options_ Record

    5.3 MAIN MENU OPTIONS___RECORD 5.3 MAIN MENU OPTIONS___RECORD (MENU) ► RECORD RECORD TIMER DATE ADVANCE Move the cursor to the “RECORD”, and press ”ENTER”, then the screen will show the following options. RECORD RECORD MANUAL RECORD ENABLE EVENT RECORD ENABLE TIMER RECORD ENABLE OVERWRITE RECORD IMG SIZE...

  • Page 20: Main Menu Options_ Timer

    EVENT RECORD IPS: Recording is activated by event (alarm and motion trigger). Select the images per second for event record, The options are as the followings: NTSC: FRAME: 120, 60, 30, 15 PAL: FRAME: 100, 50, 25, 12 NTSC CIF: 480, 240, 120, 60 CIF: 400, 200, 100, 50 TIMER RECORD IPS: Recording is activated by timer schedule.

  • Page 21: Main Menu Options_ Date

    DATE: A scheduled record date (SUN/MON/TUE/ WED/ THU/ FRI/ SAT/ MON–FRI / SAT-SUN / DAILY/OFF) could be set to activate the timer recording. NOTE 1 : Specific date could be changed by “＋” or “－” button. NOTE 2 : If you plan to set the timer recording across the midnight, there are two ways for setting the timer recording schedule, please following the instructions below.

  • Page 22: Main Menu Options_ Advance

    5.6 MAIN MENU OPTIONS___ADVANCE 5.6 MAIN MENU OPTIONS___ADVANCE (MENU) RECORD TIMER DATE ► ADVANCE ADVANCE Move the cursor to the “ADVANCE”, and press ”ENTER”, then the screen will show the following options. ADVANCE ADVANCE CAMERA DETECTION DISPLAY ALERT REMOTE SYSTEM NETWORK BACKUP HDD INFO...

  • Page 23: Advance Menu_ Detection

    TITLE: Move the cursor to the title which you want to change, and press “ENTER” to access the setting screen. Assign each channel a title (up to six characters (letters or symbols…)), the default title is the channel number. BRIG / CONT / SATU / HUE: Adjust the Brightness/Contrast/Saturation/Hue of each channel.
  • Page 24 TITLE: Show the title of each channel of the camera. DET: Select “ON” to activate the motion detect function of each channel. Select “OFF” to inactivate the motion detect function of each channel. AREA: Press the “ENTER” button to set detection area. Pink blocks represent the area that is not being detected.

  • Page 25: Advance Menu_ Display

    TS : The sensitivity towards how long the object gets triggered. The smaller the value is, the higher sensitivity for motion detection. The highest sensitivity setting is 00, and the lowest sensitivity setting is 15. The default setting is 02. RE : The value of RE is a reference for detection.

  • Page 26: Advance Menu_ Alert

    DWELL DURATION (SEC): Set the duration time of each channel for CALL MONITOR (2, 4, 8, 16 sec.) DE-INTERLACE: Set the “DE-INTERLACE” function on / off. 5.10 ADVANCE MENU ___ALERT 5.10 ADVANCE MENU ___ALERT Move the cursor to the “ALERT”, and press ”ENTER”, then the screen will show the following options.

  • Page 27: Advance Menu_ Remote

    5.11 ADVANCE MENU ___REMOTE 5.11 ADVANCE MENU ___REMOTE Move the cursor to “REMOTE”, and press ”ENTER”, then the screen will show the following options. REMOTE REMOTE TITLE DEVICE PROTOCOL RATE P - D 02400 CAMERA NORMAL 02400 CAMERA NORMAL 02400 CAMERA NORMAL 02400...

  • Page 28: Advance Menu_ System

    5.12 ADVANCE MENU ___SYSTEM 5.12 ADVANCE MENU ___SYSTEM Move the cursor to the “SYSTEM”, and press ”ENTER”, then the screen will show the following options. SYSTEM SYSTEM SERIAL TYPE RS - 485 BAUD RATE 02400 HOST ID PASSWORD 0000 RESET DEFAULT RESET CLEAR HDD MASTER...

  • Page 29: Advance Menu_ Network

    LANGUAGE: Press “ENTER”, and select the language of the OSD. VERSION: The firmware version information will be shown on the screen. VIDEO FORMAT: The information of the DVR’s video format will be shown on the screen. 5.13 ADVANCE MENU ___NETWORK 5.13 ADVANCE MENU ___NETWORK Move the cursor to the “NETWORK”, and press ”ENTER”, then the screen will show the following options.

  • Page 30: Advance Menu_ Backup

    5.14 ADVANCE MENU ___ BACKUP 5.14 ADVANCE MENU ___ BACKUP Move the cursor to the “BACKUP”, and press ”ENTER”, then the screen will show the following options. BACKUP BACKUP USB BACKUP Select “USB BACKUP” and then press “Enter”. USB BACKUP USB BACKUP START TIME 2005-10-27 11 : 25 : 46...

  • Page 31: Advance Menu_ Hdd Info

    5.15 ADVANCE MENU ___HDD INFO 5.15 ADVANCE MENU ___HDD INFO You can get all the capacity information of the connected HDD. HDD INFO HDD INFO HDD NUM HDD SIZE HDD NUM HDD SIZE MASTER 400.517 SLAVE NO HDD EXT001 400.517 EXT 002 400.517 EXT003...

  • Page 32: Additional Operation

    ADDITIONAL OPERATION ADDITIONAL OPERATION 6.1 SEARCH 6.1 SEARCH Press “ ” + “ ” buttons on the front panel of the DVR to enter the search mode. Then the screen will show the following options. SEARCH SEARCH MASTER FULL LIST RECORD LIST SYSTEM...

  • Page 33: Digital Zoom

    6.2 2X DIGITAL ZOOM 6.2 2X DIGITAL ZOOM Press “ZOOM” button on the front panel of the DVR to enlarge the picture of selected channel (2X digital zoom). You will have ¼ view size of the enlarged ▲ ▼ ▲ ▼ ▲ ▼ ▲ ▼ ◄ ► ◄►...

  • Page 34: Usb Upgrade

    6.5 USB UPGRADE 6.5 USB UPGRADE Users can use USB for upgrade. Please format the USB memory device first. Get the upgrade files from your distributor. Save the upgrade files in your USB device (Do not change the file name). Go to the “MAIN MENU –...
  • Page 35 Software Operation: Software Operation Connect DVR with PC via RJ45 network line. LAN Setting : LAN Setting : The default DVR IP is “192.168.1.10”, and default “username” and “password” are both “admin”. Users should set PC IP address as “IP:192.168.1. XXX (1~255, except 10)”...
  • Page 36 Introduction of Basic Operation : Video Web Server Control Panel. Digital Device Control Panel ~ 16CH DVR Digital Device Control Panel ~ 16CH DVR e f g h 219.85.22.168 Image Transfer Rate Per Second Data Transfer Rate Connect / Disconnect Resolution: NTSC: 320 ×...
  • Page 37 Record : press this button, the video web server will start to record, and press this button again to stop record. The recording files will be saved to PC. Each recording file can up to 18,000 frames. When the recording file capacity is full, the new recorded file will be saved to the second file.
  • Page 38 Digital Device Control Panel ~ PTZ Digital Device Control Panel ~ PTZ 219.85.22.168 Hot Point: You can control your PTZ camera screen to a specific Preset 1 ~ 16 point by using cursor. AUTO Zoom Tele Zoom Wide Focus Near Focus Far Max Zoom In Max Zoom Out...
  • Page 39 Playback Operation. Snapshot Stop Pause Fast Rewind (1X, 2X, 4X, 8X, 16X) Slow Rewind (1X, 1/2X, 1/4X, 1/8X, 1/16X) PLAY (1X) Slow Playback (1X, 1/2X, 1/4X, 1/8X, 1/16X) Fast Forward (1X, 2X, 4X, 8X, 16X) OSD ( show / hide ) Config.

  • Page 40: Network Network

    Advanced Setting: Advanced Setting 219.85.22.168 Press “System Config ” button to enter the system setting page. In this system setting page, you can select the function which you want to set up. After setting, please press “APPLY” button to save the settings. System setting includes: Network, DDNS, Account, Online User, Alarm, Mail, FTP, Alarm Database, File Path, Device, Detection, Camera, and Toolbox.
  • Page 41 DDNS DDNS DDNS is a service for transforming dynamic IP to corresponding to a specific “Hostname”. Enable the DDNS function. Key in the “DDNS username” into “username”. Key in the “DDNS password” into “password”. Key in the “Hostname” into “Domain”. Choose the “DDNS system name”.
  • Page 42 DDNS Hostname created. YourHostName YourHostName.dyndns.org Account Account Set up the user’s account ( Max 5 accounts) , password, life time, and authority level ( Max 5 accounts on Max 5 accounts on line at the same time). line at the same time User’s level: SUPERVISOR —...

  • Page 43: Online User

    Online User Online User You can get all the online users’ information here (Name, IP Address, Authority Level, Resolution, and Image Quality). Alarm Alarm Alarm Trigger: Enable or disable Email and FTP notification function. Alarm Method: Two selections—Email or FTP. Post Number: MJPEG pictures (1-10 pictures).
  • Page 44 Mail Mail When alarm is triggered, the Video Web Server will capture the instant picture (10 JPEG pictures max), and e-mail it to the assigned recipients. You can get information (SMTP server) from your e-mail system supplier. You can add the email addresses where motion trigger captured pictures or film will be sent to by setting “Modify alarm...

  • Page 45: File Path

    Alarm Database Alarm Database It’s a database, which precisely lists all alarm triggered events, with IP address of Video Web Server, alarm triggered time, and number of frames. You can directly play, delete, or clear all alarm recording events with ease. Click on the “Refresh”...
  • Page 46 Device Device You can edit all the external device in this Windows. Select the device, and then press “Edit” button to set up “Device Type”, “ID No.”, “Protocol Type” and “Baud Rate” to control the equipments via Video Web Server. This video web server supports different AP screens for control the following peripherals:...
  • Page 47 Camera Camera You can get the setting information of the connected cameras in the window. You can select a specific camera and press “Edit” button to set the brightness / contrast / saturation / hue of the camera. After setting, press “OK”...
  • Page 48 Network Backup Network Backup Users could backup the recorded files to the PC from DVR via network. Set backup information, and then press “Start” button to backup and play the backup file. After backup, users will see one backup files and one converted backup files on the PC.

  • Page 49: Connect To Ap Via Ie Browser

    6.7 CONNECT TO AP VIA IE BROWSER 6.7 CONNECT TO AP VIA IE BROWSER You can also connect to the video Web Server E via IE browser. This function is suitable in both Windows 2000 and Windows XP. This function is suitable in both Windows 2000 and Windows XP. Step 1: Type IP address into the URL address box and press “enter”.
  • Page 50 Step 4: Choose “Windows Offline Installation” or “Windows Online Installation”. Step 4 • Windows Offline Installation • Windows Online Installation Step 5: Take “Windows Offline Installation” as a example. Step 5 Save the setup file “jre-1_5_0_04-windows-i586-p” on the desktop of PC. Click “...

  • Page 51: Retr

    6.8 R.E.T.R. 6.8 R.E.T.R. Before you activated the R.E.T.R. function, please set the detection area and activated the motion detection function first. There are three way to activate the Remote Event Trigger Recording function. DVR Front Panel: Press “Menu” + “ ”...

  • Page 52: Trouble Shooting

    TROUBLE SHOOTING TROUBLE SHOOTING 7.1 FAQ 7.1 FAQ Please refer to the FAQ table below for easy trouble shooting. The table below describes some typical problems and also their solutions. Please check them before calling your DVR dealer. PROBLEM SOLUTION Check power cord connections No power Confirm that there is power at the outlet...

  • Page 53: Cpcam Global Service

    7.2 CPCAM GLOBAL SERVICE 7.2 CPCAM GLOBAL SERVICE...

  • Page 54: Install The Hdd

    APPENDIX #1 APPENDIX #1 APPENDIX #1 – INSTALL THE HDD APPENDIX #1 – INSTALL THE HDD Carefully following the steps to ensure correct installation. *** Note: If you want to install two HDDs, please set one HDD to “Master Mode” or “Single Mode”, and the other one to “Slave Mode”.

  • Page 55: Appendix #2 Pin Configuration

    APPENDIX #2 APPENDIX #2 APPENDIX #2 – PIN CONFIGURATION APPENDIX #2 – PIN CONFIGURATION PIN 1. GROUND PIN 2. ~ PIN 9. ALARM INPUT ALARM INPUT To connect wire from ALARM INPUT ( PIN 2 -- 9 ) to GND ( PIN 1 ) connector, DMR will start recording and buzzer will be on.

  • Page 56: Appendix # 3 Recording Time Table

    APPENDIX #3 APPENDIX #3 APPENDIX #3 – RECORDING TIME TABLE APPENDIX #3 – RECORDING TIME TABLE Take NTSC system and outdoor environment as an example. Recording time varies depending on the following factors: * Different camera quality * Different picture composition (such as frequency of the object movement) Record Quality 500GB record time(hour)
  • Page 57 APPENDIX #4 APPENDIX #4 APPENDIX #4 – COMPATIBLE USB BRAND APPENDIX #4 – COMPATIBLE USB BRAND NOTE: Please upgrade the firmware of the DVR to ensure the accuracy of following table. Device Name Device Name Flash Size Flash Size Transcend 256MB Transcend 512MB...
  • Page 58 APPENDIX #5 APPENDIX #5 APPENDIX #5 – COMPATIBLE HDD BRAND APPENDIX #5 – COMPATIBLE HDD BRAND NOTE: Please upgrade the firmware of the DVR to ensure the accuracy of following table. Brand Name Model Capacity Rotation Brand Name Model Capacity Rotation HITACHI Deskstar 180 GXP...
