4 CH Digital Video System
User's Manual
Please read this instructions thoroughly before operation and keep
the manual in a safe place for further reference.
CPD571 V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 CH Digital Video System and is the answer not in the manual?

Questions and answers

Summary of Contents for CPcam 4 CH Digital Video System

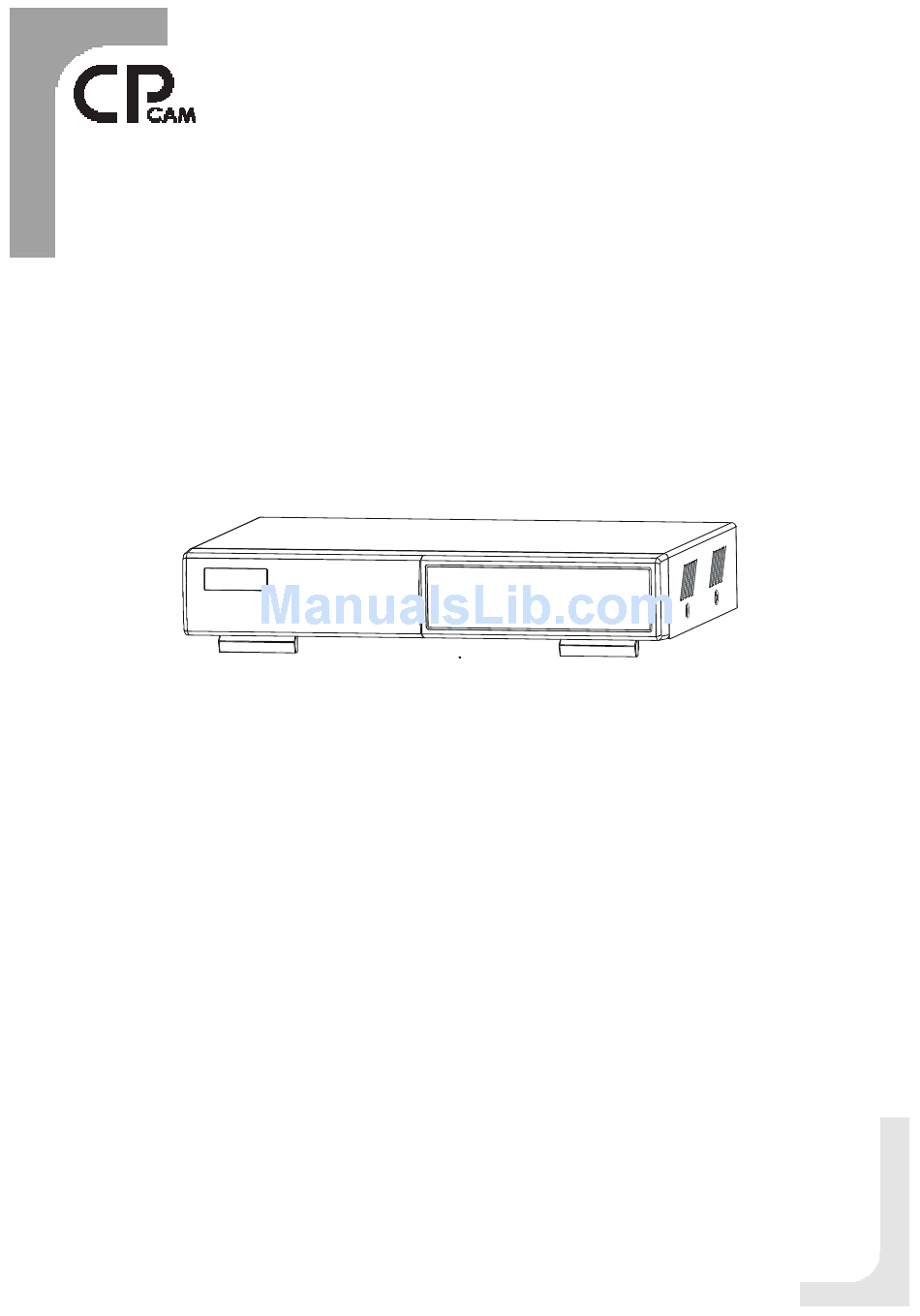

  • Page 1 Evolution for your Demand 4 CH Digital Video System User’s Manual Please read this instructions thoroughly before operation and keep the manual in a safe place for further reference. CPD571 V 1.0...
  • Page 2 WARNING WARNING All the safety and operating instructions should be read before operation. The improper operation may cause permanent damage. • This adaptor is only for this machine. Do not use it for other electronic products or it may damage other products.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS What do you get What do you get • FEATURES ---------------------------------------------------------------------------------------- • PACKAGE CONTENT -------------------------------------------------------------------------- Before Operation Before Operation • INSTALLATION GUIDE ------------------------------------------------------------------------ • FRONT PANEL ----------------------------------------------------------------------------------- • REAR PANEL ------------------------------------------------------------------------------------- Basic Operation Basic Operation •...
  • Page 4: Features

    What do you get ? FEATURES FEATURES DVS Features • Support Manual / Timer / Alarm / Motion recording mode. • Wavelet compression format replaces Time-Lapse VCR + Multiplexer / Quad • On Screen Display and Remote Control via Video Server & PC •...
  • Page 5: Before Operation

    Before Operation INSTALLATION GUIDE INSTALLATION GUIDE 1. Connect cameras and monitor to the DVS. 2. Shown below is an example of connecting the DVS to your existing Observation System. 3. Install HDD (The compatible HDD Brands are listed in the following table.) Please refer to page 19.
  • Page 6: Front Panel

    FRONT PANEL FRONT PANEL The LED Light is ON under following condition. LED LIGHT •HDD : HDD is reading or recording. •HDD Full : HDD is full •ALARM : To turn off the ALARM LED light. Please refer to page.13 and set the ALARM mode as OFF. •TIMER : When Timer is Enabled •PLAY : Playing mode •REC : Recording mode...
  • Page 7 FF / •FF : Play video fast forward. (Press FF button again to ► adjust speed from 1, 2, 4, 8, 16, 32 times) • ► : Under setup mode, it works as Right button. REW / •REW : Play video fast backward. (Press REW button ◄...
  • Page 8: Rear Panel

    REAR PANEL REAR PANEL MAIN CALL EXTERNAL I/O DC 19V 1. EXTERNAL I/O •Controlled remotely by an external device or control system like Video Web Server. •Alarm input, external I / O expansion. 2. VIDEO INPUT (1-4) Connect to video source, such as camera. 3.
  • Page 9: Basic Operation

    Basic Operation GETTING STARTED GETTING STARTED Before using the DVS, please have a HDD installed ready, or it will function as 4 CH multiplexer (refer to Appendix #1 for installation the HDD ). 1. Connect the AC power cord and plug into an electrical outlet. The POWER LED will turn into orange color, and other red LED indicators will turn ON.
  • Page 10: Play Back

    PLAY BACK Press “ PLAY ” button, the DVS will show the last recording. 1. FAST FORWARD (F.F.) & FAST REWIND (F.R.) You can increase the speed of Fast Forward and Rewind on the DVS. In the Play mode, press “ ► ” once to get 2X speed forward and press twice to get 4X speed,… and the maximum speed can reach 32X.
  • Page 11: Detailed Menu Setup

    Detailed Menu Setup MAIN MENU MAIN MENU There are 11 options available in the Main Menu: (MENU) TIMER TIMER ---------- Program Timer Recording CAMERA CAMERA ------- Camera Setup RECORD RECORD ------- Recording Mode Setup ALARM ALARM --------- Alarm Setup DWELL DWELL --------- Dwell time Setup PIP --------------- Picture in Picture Setup MOTION...
  • Page 12: Remote User

    6. MESSAGE LATCH (SYSTEM) To select whether the DVS messages will disappear after 10 BUZZER seconds or remain on screen. NO is the default setting which the EXT ALARM messages will disappear after 10 sec. VLOSS ALARM KEY MUTE NOTE : Video loss, and Alarm messages will be shown HDD OVERWRITE the same as Alarm Duration time.
  • Page 13 (TIMER) 2. START DAY START END IPS QLT MODE Set the time to start the recording. DAILY 01:00 22:00 BEST Q-FR 00:00 00:00 BEST Q-FI 00:00 00:00 BEST Q-FI 3. END 00:00 00:00 BEST Q-FR Set the time to end the recording. 00:00 00:00 BEST Q-FR 00:00 00:00...
  • Page 14 3. REC (RECORD) Set up which channel you want to record. ON : when alarm input is triggered, DVS will record alarming channel more frequently. For example : when CH01 is triggered, the record method will become 1-2-1-3-1-4…. OFF : DVS will not record. 4.
  • Page 15 (ALARM) 3. REC IPS ALARM ENABLE ALARM DURATION 15 MIN Select the images per second of recording during an ALARM. RECORD IPS The options are as following: QUALITY NORMAL NTSC-30、15、8、4、2、1 RECORD MODE QUAD-FRAME PAL-25、12、6、3、2、1 4. QUALITY There are four recording quality settings during an ALARM : BASIC, BEST, HIGH, NORMAL.
  • Page 16 5. AREA Press the ENTER button on this option to set the Pixel-based (MOTION) Motion Detection Area for each channel. Red targets represent MD-NUM RE DET CAM1 AREA where the target is (Figure 1-1). Green targets represent the CAM2 OFF AREA Motion Detection Area(Figure 1-2), and Purple targets represent CAM3 AREA...
  • Page 17: Title Display

    NOTE: The trigger recording time will depend on ALARM DURATION mode setting (Please refer to page.13 for ALARM DURATION) and it will record from the last trigger time. For example, when the alarm duration setting is 1 min, the recording time is from 9:00:00 to 9:01:00. If the motion detection trigged again at 9:00:40, the trigged recording time will from 9:00:00 to 9:00:40 and 9:00:40 to 9:01:40.
  • Page 18 (MENU) USER TIMER CAMERA RECORD 1. USER ALARM To set up the user account for controlling. It DWELL allows 8 users setting. MOTION Supervisor – Control all the functions. DISPLAY Other Users – View all functions except the (USER) REMOTE menu setting.
  • Page 19: Advanced Operation

    Advanced Operation OPERATION OPTIONS OPERATION OPTIONS VIDEO LOSS Screen will display “VLOSS” in the center of display picture, if the video input is not connected properly. SEARCH 1. LAST RECORD LAST RECORD Play the last recorded piece of video. FULL LIST ALARM LIST 2.
  • Page 20: Rs-232 Protocol

    232 REMOTE PROTOCOL 232 REMOTE PROTOCOL You can use the PC keyboard to simulate DVS keypad. DATA: REMOTE PROTOCOL using 8 bit data、1 start bit、1stop bit F UNCT ION CODE AS CII F UNCT ION CODE AS CII KEY_MENU 0x4D KEY_PLAY 0x50 KEY_SEARCH...
  • Page 21: Specifications

    SPECIFICATIONS SPECIFICATIONS NTSC/EIA or PAL/CCIR Video format IDE type, UDMA 66, supported 500 GB HDD Hard disk storage Manual / Timer / Alarm / Motion Record mode Camera Input Signal Composite video signal 1 Vp-p 75 Ω BNC, 4 channels Main Monitor Output Composite video signal 1 Vp-p 75 Ω...
  • Page 22: Appendix #1 - Install The Hdd

    APPENDIX #1 – INSTALL THE HDD APPENDIX #1 – INSTALL THE HDD Follow these steps carefully in order to ensure correct installation. HDD Bracket HDD Power Cable HDD Power Cable Fig.1 Fig.2 Fig.3 Step 1 Remove the lid and unscrew the screws from HDD bracket module . Step 2 Insert the HDD into the HDD bracket and screw the four screws.
  • Page 23: Appendix #3 - Pin Configurations

    APPENDIX #3 – PIN CONFIGURATIONS APPENDIX #3 – PIN CONFIGURATIONS 15 pin com port • • • • 9 pin com port • • •...
  • Page 24 PIN 1. RS232-TX : RS-232 DVS can be controlled remotely by an external device or control system, such as a control keyboard, using RS- 232 serial communications signals. PIN 2. RS232-RX : RS-232 DVS can be controlled remotely by an external device or control system, such as a control keyboard, using RS- 232 serial communications signals.
  • Page 25: Appendix #4 - Recording Speed

    APPENDIX #4 – RECORDING SPEED APPENDIX #4 – RECORDING SPEED The Record Time is different based on Recording Speed, Recording Quality and Recording Mode. Please refer to following table. The HDD capability is 250GB. NTSC SYSTEM Best 50hr 100hr 187hr 375hr 750hr 1500hr...
  • Page 26: Appendix #5 - Network Application

    APPENDIX #5 – NETWORK APPLICATION APPENDIX #5 – NETWORK APPLICATION Video Web Server Features • Compatible with most of CCTV Products; empower any video output device watching and controlling on the Internet or LAN • Auto Network Reconnection (ANR) • Upgrade firmware & AP from FTP site via Video Web Server •...
