6.4.4 Equipment Abnormal
Provide multiple equipment abnormal monitoring function, and it can do the corresponding alarm linkage of
equipment abnormal events.

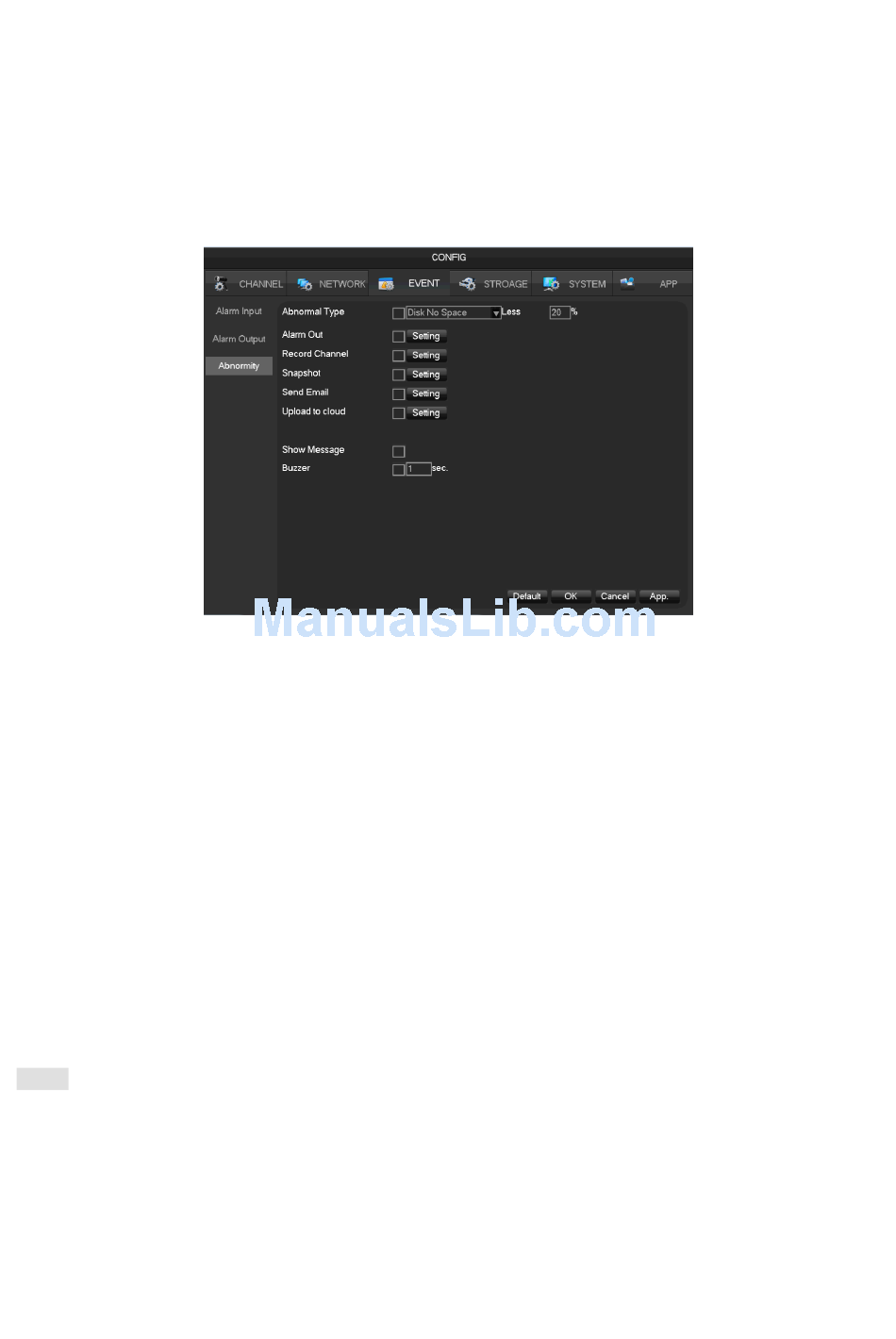

[main menu]-[Event]-[Abnormity]Enter the configuration interface as shown in the figure below：
[Exception type]
[No Disk]Alarm when HDD is not present or cannot be detected.
[Disk low Space]Alarm when hard disk capacity is lower than setting.
[Network Failure]Alarm when network is not connected.
[IP Conflict]Alarm when IP address conflict.
[Disk Error]Alarm when there is error in reading and writing hard disk.。
Process
[Alarm Output]、 [linkage record]、 [snapshot]、 [Send Email]、 [show message]、 [Send to network drive]、
[buzzer]
Show in the appendix 9.1 about set alarm linkage.

6.5 Log in/Log out

Log in
Right click to log in menu. Enter username and password.
