•Fault Retry (Setting：19)
•See "Fault restart function" (Cn-24) on page 52. Upon restart, the multi-function
output terminal is ON.
•RS-485 Communication Fault (Setting：20)
•See page 106.
•Timer Function Output
•If the multi-function input terminals
(Sn-25－28= 19)，the signal will be output through the corresponding multi-
function output terminals with the specified ON-delay and OFF-delay, as shown
below. See "Timer function" on page 44.
input terminal
output terminal

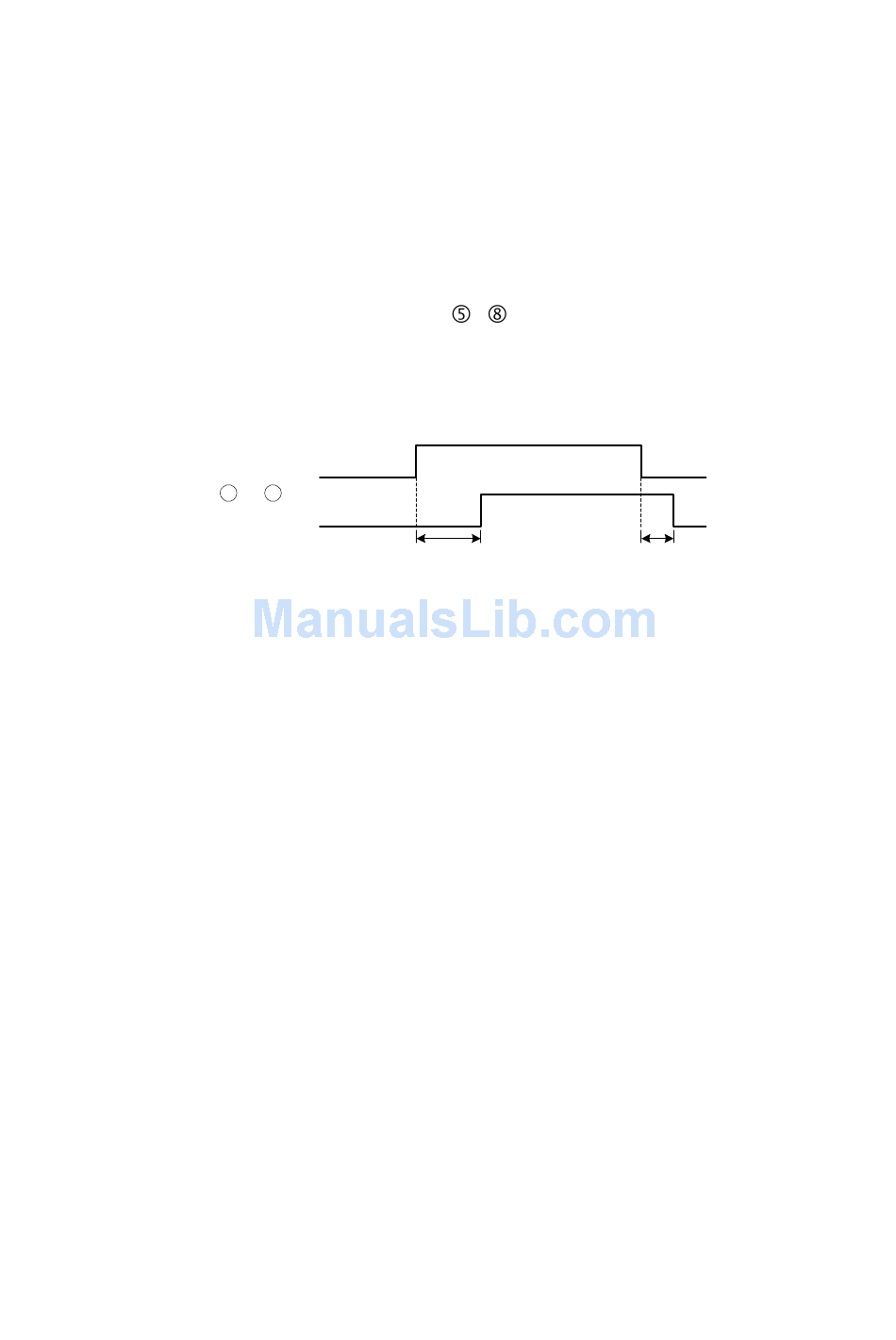

Fig. 47The input/output signal in 'Timer' function application
•RS-485 Communication Application (Setting:22)
•In the application that the control commands are executed through the RS-485
communication port, the multi-function output terminals can be used as the PLC
Extension Output Contact Terminals. For more details, Please refer to '7200MA
RS-485 MODBUS/PROFIBUS Application Manual'.
(Setting：21)
~
5 8
~ are set as the timer input terminals
ON delay
(Bn-37)
92
OFF delay
(Bn-38)
