(44) Auto_Run Mode Selection (Sn-44)

(45) Auto_Run Mode Setting Selection (Sn-45~Sn-60)

•A PLC operation mode is ready to use with the following setting of the multi-step
frequency command1~16 (An-01~An-16), Auto_Run mode time setting (Bn-
21~Bn-36) under the auto_run mode selection (Sn-44). The FWD/REV direction
can be set with the setting of Sn45~60.
•In the auto_Run mode, the multi-step frequency command 1∼4 derived from the
multi-function input terminals

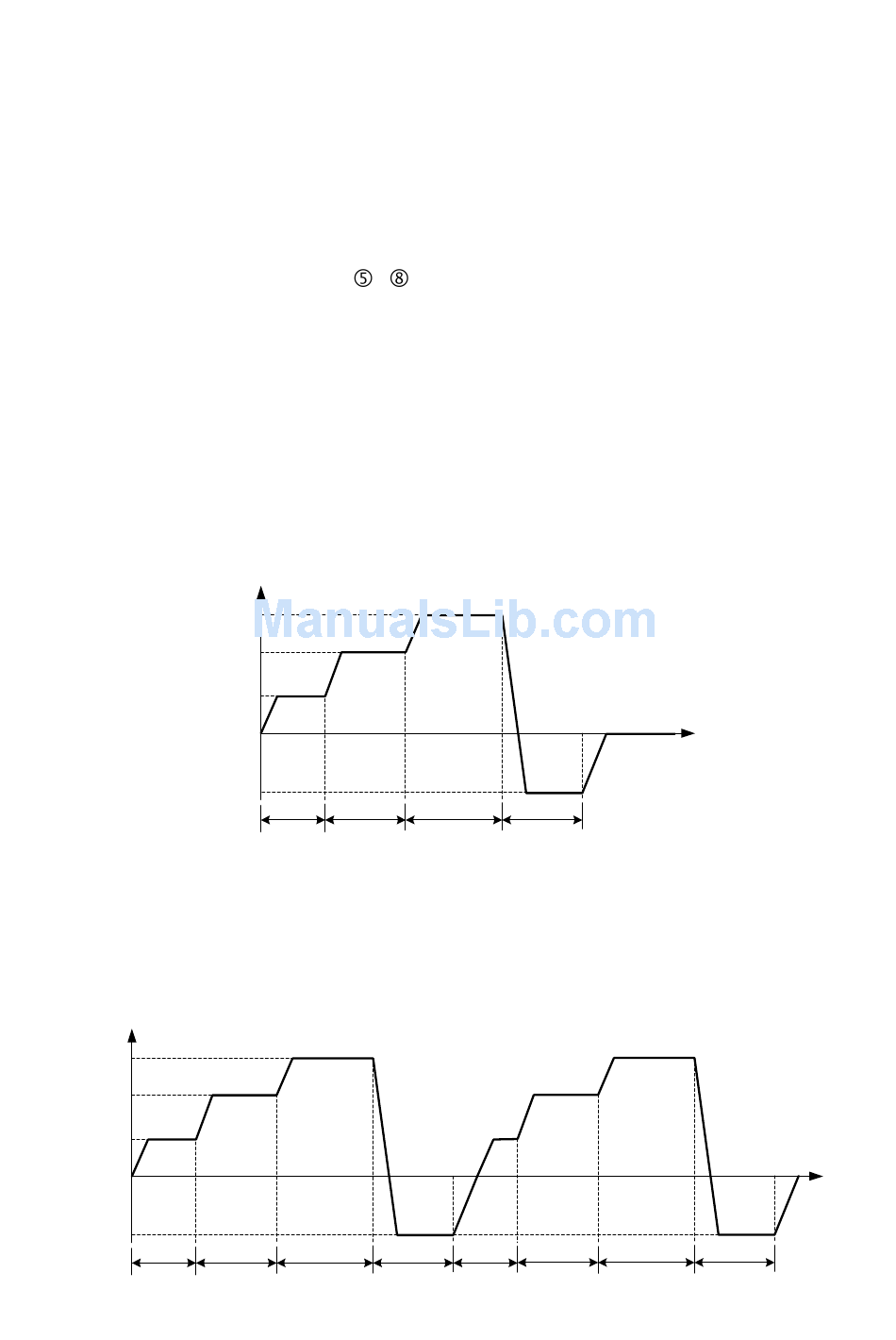

•Some example in auto_run mode：
(A) Single Cycle Running (Sn-44= 1, 4)
The inverter will run for a single full cycle based upon the specified setting
mode. Then, it will stop.
For example :
Sn-44＝1
An-01＝15Hz
Bn-21＝20s
An-05~16＝0Hz
(B) Periodic Running (Sn-44＝2, 5)
The inverter will repeat the same cycle periodically.
For example :
Sn-44 ＝ 2
An-01∼16, Bn-21∼36, Sn-45-60 ： same setting as the example (A)
Freq.
50 Hz
30 Hz
An-01
15 Hz
20 Hz
20s
(Bn-21) (Bn-22)
Sn-45~47=1
An-02＝30Hz
Bn-22＝25s
Bn-25~36＝0s
Freq.
50 Hz
An-02
30 Hz
An-01
15 Hz
20 Hz
25s
20s
(Bn-21) (Bn-22)
An-03
An-02
25s 30s
(Bn-23)
~ are ineffective.
Sn-48=2
(FWD)
An-03＝50Hz
Bn-23＝30s
An-03
An-04
30s 40s
(Bn-23) (Bn-24)
An-02
An-01
An-04
40s 20s
25s
(Bn-24) (Bn-21)
(Bn-22)
96
Sn-49~60＝0
(REV)
An-04＝20Hz
Bn-24＝40s
An-03
An-04
40s
30s
(Bn-23) (Bn-24)
