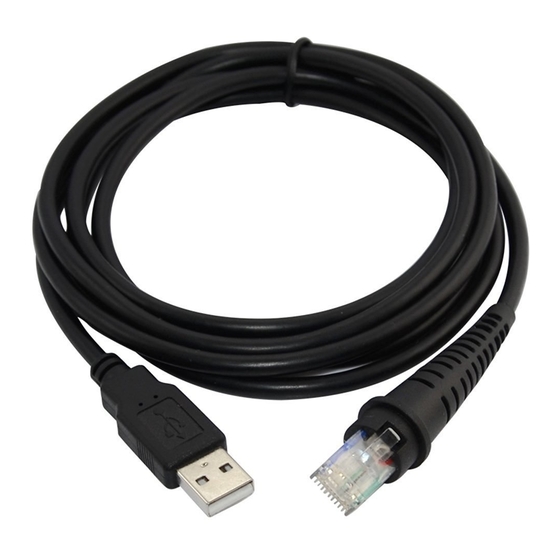

JN5-CM-USB connection cable instruction
JN5-CM-USB instruction manual
1. Model number and specification
1.1 Model number and function instruction
JN5-CM-USB can transform the communication format from USB to RS485. Inverter can
communicate with PC or other devices via USB communication port.

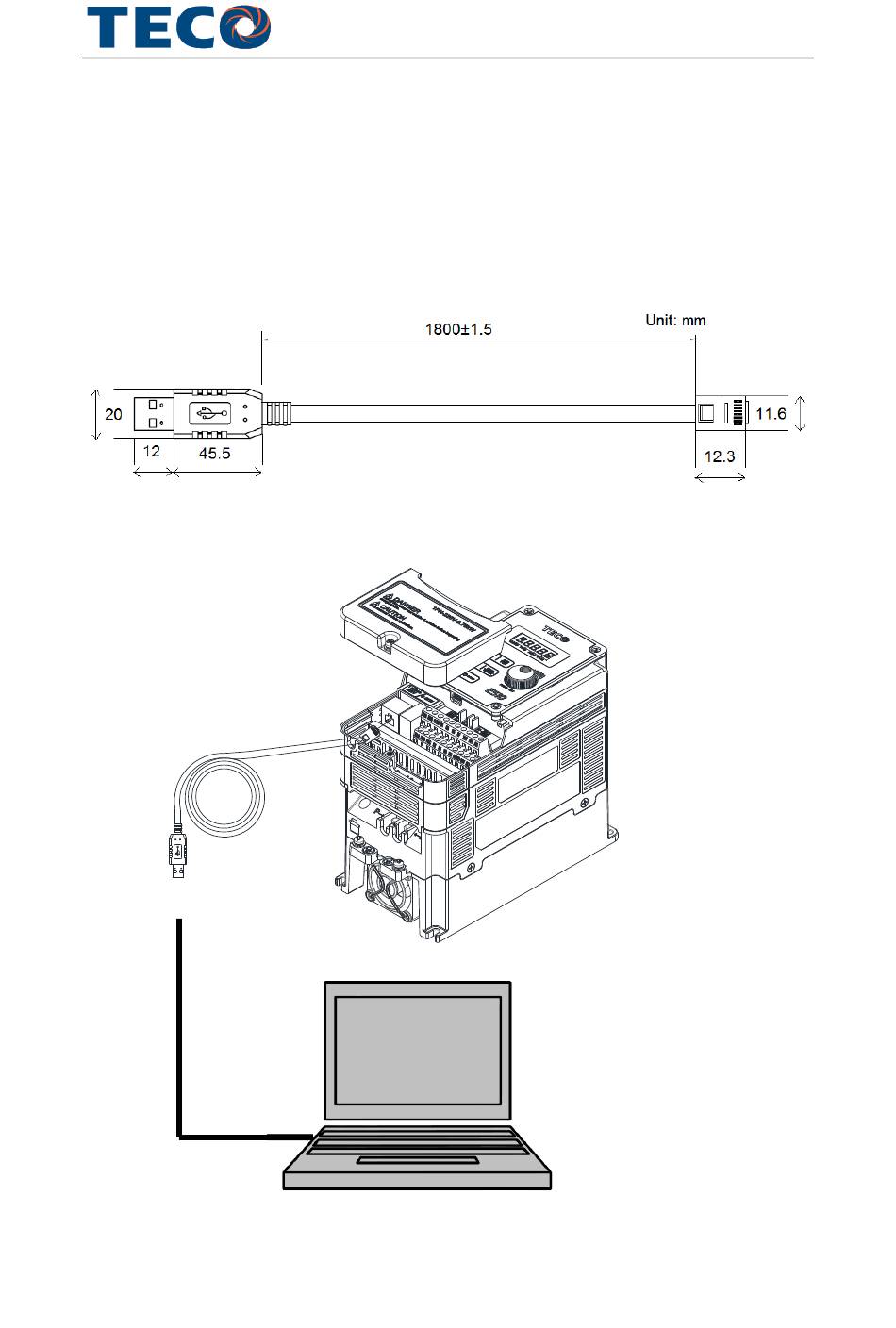

1.2 Dimensions of JN5-CM-USB
1.3 Connection between inverter and computer.
Page 1 of 2
4KA72X323 Ver:01 2012/05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TECO JN5-CM-USB
Summary of Contents for TECO JN5-CM-USB
- Page 1 JN5-CM-USB instruction manual 1. Model number and specification 1.1 Model number and function instruction JN5-CM-USB can transform the communication format from USB to RS485. Inverter can communicate with PC or other devices via USB communication port. 1.2 Dimensions of JN5-CM-USB 1.3 Connection between inverter and computer.
- Page 2 JN5-CM-USB connection cable instruction 2. Communication port and pin define instruction 2.1 USB communication port pin define of pc side. Inverter can communicate with PC or other devices via USB communication port RS485 communication port pin define of inverter side.
