Key's Functions; 3 Operating Status Diagram - TECO speecon 7200ma Instruction Manual

Key Name
PRGM/DRIVE
PRGM
DRIVE
key
DSPL DSPL key
JOG
JOG key
FWD/REV
FWD
REV
key
RESET key
RESET
INCREMENT
key
DECREMENT
key
EDIT/ENTER
EDIT
ENTER key
RUN RUN key
STOP
STOP key
RUN，STOP indicator lights or blinks to indicate the 3 operating status:
Inverter output frequency
Frequency setting

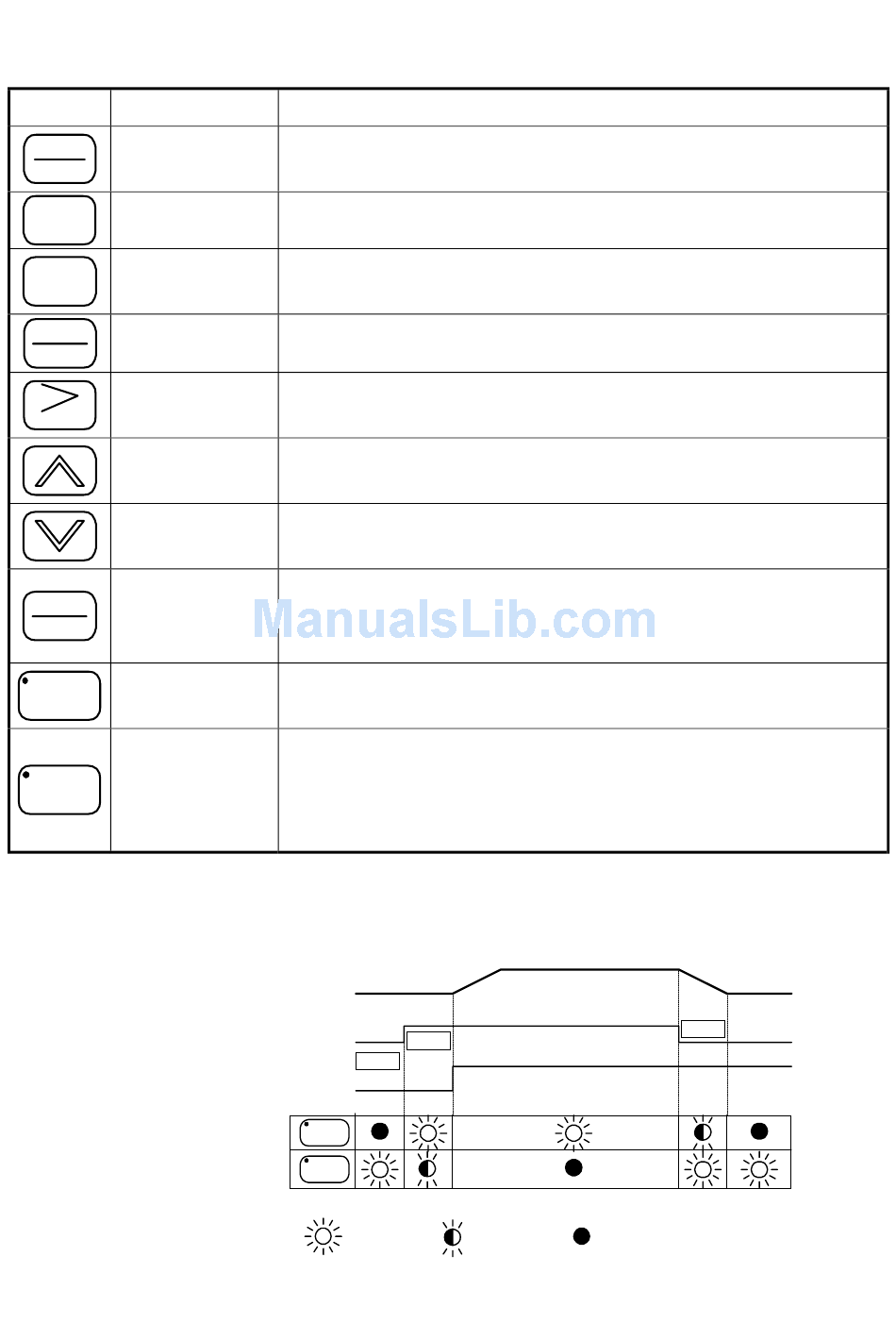

Table 7 Key's functions
Switches over between program mode (PRGM) and drive
mode (DRIVE).
Display operation status
Enable jog operation from LCD digital operator in operation
(DRIVE).
Select the rotation direction from LCD digital operator.
Set the number of digital for user constant settings. Also It
acts as the reset key when a fault has occurred.
Select the menu items, groups, functions, and user constant
name, and increment set values.
Select the menu items, groups, functions, and user constant
name, and decrement set values.
Select the menu items, groups, functions, and user constants
name, and set values (EDIT). After finishing the above
action, press the key (ENTER).
Start inverter operation in (DRIVE) mode when the digital
operator is used. The LED will light.
Stop 7200MA operation from LCD digital operator. The
STOP key can be enabled or disabled by setting the
parameter Sn-07 when operating from the control circuit
terminal.
RUN
STOP
RUN
STOP
ON
29
Function
OFF
Blink
STOP
