■ Analog operator

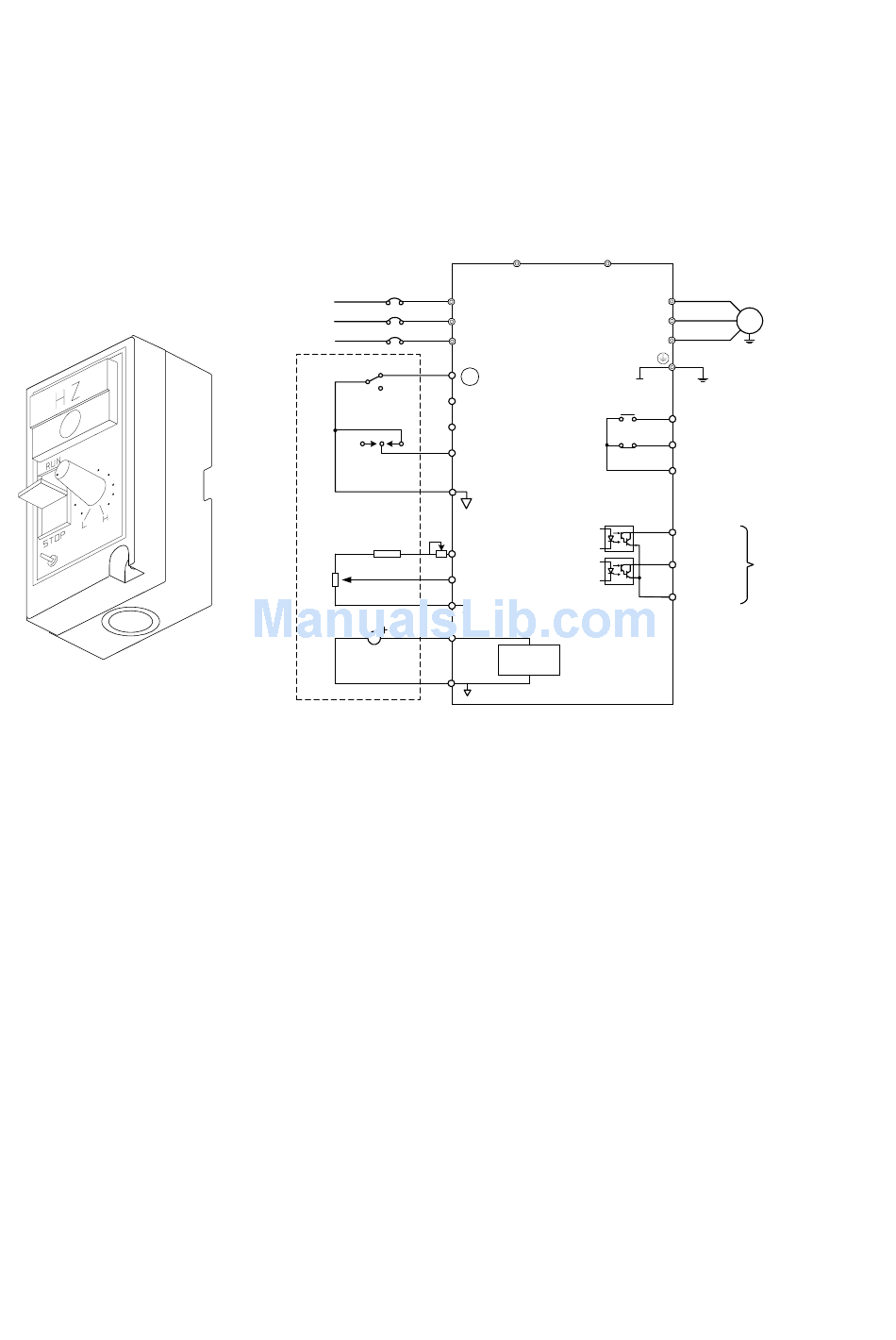

All 7200MA have the digital LCD digital operator. Moreover, an analog operator
as JNEP-16 (shown in fig. 9) is also available and can be connected through wire as
a portable operator. The wiring diagram is shown below.

■ PROFIBUS Communication Card

•Code No. : 4H300D0290009
•Please refer to the appendix D and "7200MA PROFIBUS-DP Communication
Application manual" for communication interface.
BREAKER
R/L1 R/L1
S/L2 S/L2
T/L3 T/L3
FWD RUN
1
STOP
SC
Master Freq. Ref.
(+15V, 20 mA)
976 Ω, 1/4 W
15V Power Supply
0 ~ 10V
2kΩ
VIN Master Speed
FM
A01
GND
Analog Operator
(JNEP-16)
Fig. 9 Analog Operator
27
B2
B1/P
7200MA U/T1
V/T2
W/T3
DO1
DO2
.
for Speed Ref
DOG
GND 0V
ANALOG
OUTPUT
IM
RA
Multi-Function
Contact Output
RB
250V AC, max. 1A
RC
30V DC, max. 1A
During
Running
Multi-Function
Speed
Output 1, 2
Agree
(Open Collector
48V/50mA)
