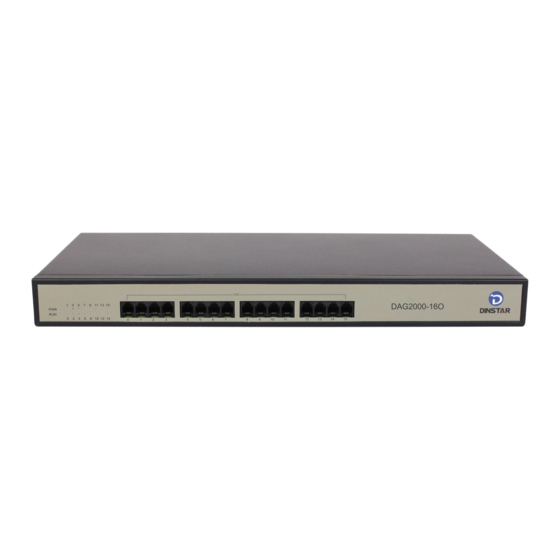

Dag1000/2000 series fxs analog voice gateway
Hide thumbs Also See for DAG1000:

Advertisement


DAG1000&2000 Series FXO Voice Gateway
User Manual V2.0
Dinstar Technologies Co., Ltd.
Address: Floor 6 Guoxing Building Changxing Road Nanshan District Shenzhen
China518052
Telephone: 86-755-26456664
Fax:
86-755-26456659
Email:
sales@dinstar.com, support@dinstar.com
Website:
www.dinstar.com



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAG1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dinstar DAG1000

  • Page 1   DAG1000&2000 Series FXO Voice Gateway User Manual V2.0 Dinstar Technologies Co., Ltd. Address: Floor 6 Guoxing Building Changxing Road Nanshan District Shenzhen China518052 Telephone: 86-755-26456664 Fax: 86-755-26456659 Email: sales@dinstar.com, support@dinstar.com Website: www.dinstar.com    ...
  • Page 2   Revision Records File Name DAG1000/2000 Series FXO Voice Gateway User Manual Document Version Firmware Version 2.11.05.03 Date 2012/03/16 Revised by Technical Support Department    ...
  • Page 3: Table Of Contents

      Table of Contents Equipment Introduction  ..................  1     1.1 Overview ......................  1   1.2 Equipment appearance ................  1   1.3 Power supply ....................  2   1.4Network Applications ..................  2   1.5 Functions and Features  ................  3   1.5.1Protocol standard supported  .............  3  ...
  • Page 4   4.3.1 System Information  .................  1 1   4.3.2 Registration Information  ..............  1 2   4.3.3 TCP/UDP Statistics  ................  1 2   4.3.4 RTP Session Statistics ..............  1 2   4.4 Quick Setup Wizard ..................  1 3   4.5 Network Configuration ................  1 3  ...
  • Page 5   4.11 Maintenance ....................  4 2   4.11.1 syslog Parameter ................  4 2   4.11.2 Firmware Upload ................  4 3   4.11.3 Data Backup  ...................  4 4   4.11.4 Data Restore ..................  4 4   4.11.5 Ping Test ..................  4 4   4.11.6 Tracert Test  ..................  4 5  ...
  • Page 6: Equipment Introduction

    1. Equipment Introduction 1.1 Overview Thanks for purchasing Dinstar DAG1000/2000 ( hereinafter referred to as the DAG ) series FXS analog voice gateway.DAG1000/2000 series FXO analog gateway is access gateway based on IP network. It can provide low cost, simple operation VoIP solutions for small enterprise, the family office, remote office and branch enterprise.
  • Page 7: Power Supply

    DAG100 00&2000 Ser ries FXO Voice e Gateway Us ser Manual   3 Power s supply G1000-4/8O is Cassette e equipment t with place ed on desk, and adopts s AC 110-24 40 V wer supply, w with the pow wer adapter convert to 1 12VDC powe wer paramete ers: Inpu...
  • Page 8: Functions And Features

    No current take out stitches detection • Voice interrupted detection • One stage dialing • Two stage dialing • PSTN exterior ports polling • Polarity Reversal • FAS( Fake billing correction ) • DC/AC impedance config • 3  Dinstar Technologies Co., Ltd.  ...
  • Page 9: Basic Operations

    FXO port unit equipment linked together and set up calls not registered. Elements necessary to completing a direct IP call: Both DAG serial and other VoIP Device, have public IP addresses; 4  Dinstar Technologies Co., Ltd.  ...
  • Page 10: Call Features

    View the WAN port IP address *114# Inquire port account *150* Set the way of obtain IP address *157* Set network method *152* Set IP address *153* Set Subnet mask *156* Set default gateway IP address 5  Dinstar Technologies Co., Ltd.  ...
  • Page 11: Sending And Receiving Fax

    Access Voice mail flash/hook will switch a Switch between incoming calls, If not in session, Flash/Hook new channel for new call. 2.3Sending and Receiving Fax 2.3.1 DAG(FXO)support four fax modes: 1)T.38(FoIP) 2)Pass-Through 3)Modem 4)adaptive 6  Dinstar Technologies Co., Ltd.  ...
  • Page 12: 38 And Pass-Through

    1) Configure dynamic IP address by DHCP: Dial fixed line number; Dial “*150*2#” after voice prompt or dial tone; Onhook; equipment hint success, after seconds, restart equipment.(Power-off then power-on) 2) Configure Static IP address 7  Dinstar Technologies Co., Ltd.  ...
  • Page 13: Web Configuration

    DHCP. Advice to modify the IP address of the local computer equipment and ensure that are on the same IP segment, with Windows 7 as an example, the local computer IP address change for 192.168.11.10: 8  Dinstar Technologies Co., Ltd.  ...
  • Page 14: Login Web

    Open web browser, then input IP address of device, Press “Enter”, it pop up logging on identity authentication interface. Figure 4.1-1 DAG FXS Login Interface Default username and password: admin/admin, click “OK” to entry into web interface. 9  Dinstar Technologies Co., Ltd.  ...
  • Page 15: Navigation Tree

    Choose navigation tree in order to entry into the configuration interface. Figure 4.2-1 Navigation Tree When device is in bridge mode, navigation tree won’t display "routing configuration" items and the following "DHCP service", "DMZ host", "forward rules" and "static routing" and "ARP" etc. 10  Dinstar Technologies Co., Ltd.  ...
  • Page 16: State And Statistics

    System Uptime Time elapsed from device power on to now. Network Traffic Statics Total bytes of message received and sent by network port. Version Includes: product mode, software version, hardware version and built time etc. 11  Dinstar Technologies Co., Ltd.  ...
  • Page 17: Registration Information

    Figure 4.3-4 RTP Session Statistics Figure 4.3-4 display real-time RTP conversation flow data information, includes: Port, voice codec, packet period, local port, peer IP, peer port, sent packets, receive packets, lost packets, jitter and duration. 12  Dinstar Technologies Co., Ltd.  ...
  • Page 18: Quick Setup Wizard

    When it set to bridge mode, only need to configure WAN port IP address and DNS.If set to route mode, default LAN port IP will display and it can be change by users. Note: DAG2000-16O just supports bridge mode. DAG1000-4/8O supports bridge and route mode.
  • Page 19 When select “PPPoE”, please fill in account and password offered by ISP in internet • account and password. 【Notes】 : 1) If select DHCP to obtain IP address, please ensure DHCP server in network and work normally. 2) After configuration, restart device configuration validation. 14  Dinstar Technologies Co., Ltd.  ...
  • Page 20: Vlan Parameter

    IEEE 802.1p describes no admission control protocols. It would be possible to give Network Control priority to all packets and the network would be easily congested. There are three VLAN: data VLAN, voice LAN and management VLAN. VLAN configuration interface as following figure 4.5-3: 15  Dinstar Technologies Co., Ltd.  ...
  • Page 21 802.1 protocol to control network traffic priority, Voice 802.1p Priority(0-7) Voice VALN Priority from 0-7. Voice VLAN following Can use dynamic or static IP address separate IP interface Voice VLAN DNS Server Can use dynamic or static DNS server address 16  Dinstar Technologies Co., Ltd.  ...
  • Page 22: Arp

    SIP phone calls. SIP server also called SIP proxy server or registered server. IPPBX and the soft-switch can act as SIP server role. 2)Usually, SIP server does not participate in the media process. 17  Dinstar Technologies Co., Ltd.  ...
  • Page 23 4) SIP server based on windows platform, such as :miniSipServer, Brekeke, VoIPswitch etc. 5)Carrier grade soft-switch platform, such as Cisco, Huawei, Zteetc. SIP server configuration interface as follows: Figure 4.6-1 SIP Server Configuration Interface 18  Dinstar Technologies Co., Ltd.  ...
  • Page 24: Port Configuration

    Heartbeat message detect the connection status between device and SIP server. Use Random Port Random SIP service ports for DAG Set Local SIP port Default SIP service port is 5060. 4.7 Port Configuration Port parameters include: Send gain, receive gain, primary display name etc. 19  Dinstar Technologies Co., Ltd.  ...
  • Page 25 Pre-assign an extension or phone number so that automatically dial a number Offhook Auto-dial as soon as you pick up the phone set Delay 0-3 seconds to automatically dial a number, 0 means dial number Auto-dial Delay Time immediately 20  Dinstar Technologies Co., Ltd.  ...
  • Page 26: Advanced

    FXO is a telephone. So just lead a inside to FXO port from company’s internal, or directly line a straight up in FXO from the telecom. FXO parameters include: Call progress Tone, Timeout for Dialing, Send Polarity Reversal etc. Configuration interface as follow: 21  Dinstar Technologies Co., Ltd.  ...
  • Page 27 If device detected polarity reversal, and then reported to caller to respond, and began to billing. Delay Time after FXO The time of responding caller by FXO port should be less than this 22  Dinstar Technologies Co., Ltd.  ...
  • Page 28: Media Parameter

    Adjust impedance, used to impedance matching when FXO and PBX AC/DC Impedance docking. 4.8.2 Media Parameter Media parameter mainly include: RTP start port, DTMF parameter, Prefered Vocoder. Configuration Interface as follow: Figure 4.8-2 Media Parameter Configuration Interface 23  Dinstar Technologies Co., Ltd.  ...
  • Page 29 Slience Suppression noise bag and save about VoIP bandwidth. In the low bandwidth environment, can reduce the network congestion, greatly improving VoIP call effect. 24  Dinstar Technologies Co., Ltd.  ...
  • Page 30: Sip Parameter

    URI Includes user=phone SIP carries the information, the system defaults not open. Default is no, it indicates the DAG accept incoming call from Only Accept Call from Server SIP server only 25  Dinstar Technologies Co., Ltd.  ...
  • Page 31 Voice mail instructions : Here DAG work with Elastix the example, introduces how voicemail work in DAG. 1) DAG register to Elastix server. Corresponding extension number enable voice mail function in Elastix and set password. As below: 26  Dinstar Technologies Co., Ltd.  ...
  • Page 32 DAG100 00&2000 Ser ries FXO Voice e Gateway Us ser Manual   Figure e 4.8-4 Elastix Voicemail Con nfiguration Int terface 2)c check feature e code in Elas stix and chan nge it as nece essary. Its de efault feature e codes settin ng as elow: Figure 4.8-5 5 Elastix Voice email Setting...
  • Page 33 DAG100 00&2000 Ser ries FXO Voice e Gateway Us ser Manual   Figu ure 4.8-7 Voice email Setting 4)D DAG dial *20 00#, then dia l voicemail a ccount and t thenask passw word for Vali idation. After r that e user will he ear voice mes ssage.
  • Page 34: Digit Map

    1. Supported objects Digit: A digit from "0" to "9". Timer: The symbol "T" matching a timer expiry. DTMF: A digit, a timer, or one of the symbols "A", "B", "C", "D", "#", or "*". 29  Dinstar Technologies Co., Ltd.  ...
  • Page 35 "411". We have a partial match with "xxxxxxx", but a complete match with "x11", and hence we send "411" to the Call Agent. 2. [2-8] xxxxxx | 13xxxxxxxxx Means that first is "2","3","4","5","6","7" or "8", followed by 6 digits; 30  Dinstar Technologies Co., Ltd.  ...
  • Page 36: Feature Codec

    Means that first is "1","2","3" or "5" or "7","8","9", followed by 2 digits. 4.8.6 Feature Codec Feature codec includes device function and call function. Feature codec as follow: Figure 4.8-10 Feature Code Configuration Interface 31  Dinstar Technologies Co., Ltd.  ...
  • Page 37 *92*+ forward no reply number# Call Forward No Reply Deactivate *93#, close this function Do Not Disturb Activate *78#, enable DND function Do Not Disturb Deactivate *79#, close DND function Dial Voicemail *200#, visit voice mail box 32  Dinstar Technologies Co., Ltd.  ...
  • Page 38: System Parameter

    NAT for a local port. Two back of NAT router devices established UDP communication through this information. STUN doesn’t support TCP connection and H.323. 2)NTP:Network Time Protocol(NTP)is a computer time synchronization protocol. System parameter configuration interface as follow: Figure 4.8-11System Configuration Interface 33  Dinstar Technologies Co., Ltd.  ...
  • Page 39: Call & Routing

    Enable or disable accessing web by WAN Telnet Port Telnet service port, default is 23. 4.9 Call & Routing 4.9.1 Port Group Port group parameter include: Index, description etc. Port group configure interface as follow: 34  Dinstar Technologies Co., Ltd.  ...
  • Page 40 User account information, provided by VoIP service Primary/Secondary SIP User ID provider (ITSP). Usually in the form of digit similar to phone number or actually a phone number. Primary/Secondary Authenticate ID SIP service subscriber’s Authenticate ID used for 35  Dinstar Technologies Co., Ltd.  ...
  • Page 41: Ip Trunk

    DAGs and also receiving incoming calls from other peer to peer gateway. IP trunk is help to DAGs establish peer-to-peer call between DAGs and other VoIP phones. IP trunk will be used in routing configuration. 36  Dinstar Technologies Co., Ltd.  ...
  • Page 42: Routing Configuration

    Default is disable, if enable, DAG will send “OPTION” to peer device 4.9.3 Routing Configuration Figure 4.9-3 Routing Parameter Configuration Interface This option determines the following routing of call take effect before or after manipulation. 37  Dinstar Technologies Co., Ltd.  ...
  • Page 43: Ip-Tel Routing

    Callee Prefix 008675526456659, the called prefix can be 0086755 or 00.,“any” means match any called number Calls to This call routing is routing to port or port group 38  Dinstar Technologies Co., Ltd.  ...
  • Page 44: Tel-Ip/Tel Routing

    Callee Prefix 008675526456659, the called prefix can be 0086755 or 00., “any” means match any called number Calls to This call routing is routing to port, port group, IP trunk and SIP server. 39  Dinstar Technologies Co., Ltd.  ...
  • Page 45: Manipulation Configuration

    This call routing is routing to port, port group Stripped Digits from Left Remove the called number digits from the left Stripped Digits from Right Remove the called number digits from the right Prefix to Add Add a number prefix 40  Dinstar Technologies Co., Ltd.  ...
  • Page 46: Tel-Ip Caller

    Add a number suffix Number of Digits to Leave from Starting from the right to retain the called number digits Right 4.10.2 Tel-IP Caller Figure 4.10-2 Tel-IP Caller Configuration parameters are the same with “IP->Tel Callee”. 41  Dinstar Technologies Co., Ltd.  ...
  • Page 47: Tel-Ip Callee

    Syslog agreement belongs to a kind of master slave agreement: Syslog sender will sent a small text information (less than 1024 bytes) to syslog the receiver. The receiver are: “syslogd”、 “syslog daemon” or syslog server. Syslog message can be transferred by TCP/UDP. 42  Dinstar Technologies Co., Ltd.  ...
  • Page 48: Firmware Upload

    2) Browse files and choose the loading program (Name the file extension. ldf) 3) Click “Upload”, the upload process will last about 60s and device can automatically restart after uploading.(The firmware update process don't shut off the power) Figure 4.11-2 Firmware upload Configuration 43  Dinstar Technologies Co., Ltd.  ...
  • Page 49: Data Backup

    It is ping. Used to test internet and analyzed network fault. Application format:Ping IP address. It is used to check the network connectivity or network connection speed command. Pinginstructions: 1) Click “ping test” 44  Dinstar Technologies Co., Ltd.  ...
  • Page 50: Tracerttest

    The next set have a hop limit value of 2, so that the second router will send the error reply. This continues until the destination host receives the packets and returns an ICMP Echo Reply message. Trace route uses the returned ICMP messages to produce a list of hops (which usually consists 45  Dinstar Technologies Co., Ltd.  ...
  • Page 51: Password Modification

    2) Fill IP address or domain connected, click start. Figure 4.11-6 Tracert Test Interface 4.11.7 Password Modification Includes WEB username and password, Telenet username and password modify. Note:Default web and telnet username and password is: admin, admin. 46  Dinstar Technologies Co., Ltd.  ...
  • Page 52: Factory Reset

    Click the “Save” button in the Configuration page to save the changes to the equipment configuration. The following screen confirms that the changes are saved. If the changes need restart, reboot or power cycle the equipment to make the changes take effect. Figure 4.11-9 Device Restart 47  Dinstar Technologies Co., Ltd.  ...
  • Page 53: Glossary

    ARP:Address Resolution Protocol • CID:Caller Identity • DND:Do NOT Disturb • DTMF:Dual Tone Multi Frequency • NTP:Network Time Protocol • DMZ:Demilitarized Zone • STUN:Simple Traversal of UDP over NAT • PSTN:Public Switched Telephone Network • 48  Dinstar Technologies Co., Ltd.  ...

This manual is also suitable for:

Dag2000Dag1000-4oDag1000-8oDag1000-16oDag2000-16o
