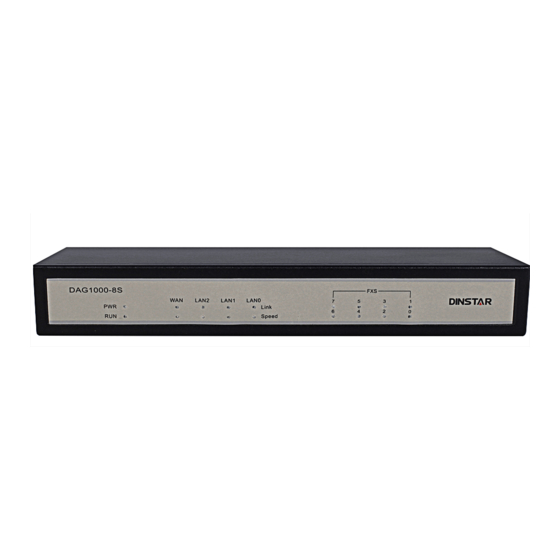

DINSTAR FXS VoIP Gateway
User Manual V2.1
Dinstar Technologies Co., Ltd.
Address: Floor 6 Guoxing Building Changxing Road Nanshan District Shenzhen China
518052
Telephone: 86-755-26456664
Fax:
86-755-26456659
Email:
sales@dinstar.com, support@dinstar.com
Website:
www.dinstar.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FXS and is the answer not in the manual?

Questions and answers

Related Manuals for Dinstar FXS

Summary of Contents for Dinstar FXS

  • Page 1 DINSTAR FXS VoIP Gateway User Manual V2.1 Dinstar Technologies Co., Ltd. Address: Floor 6 Guoxing Building Changxing Road Nanshan District Shenzhen China 518052 Telephone: 86-755-26456664 Fax: 86-755-26456659 Email: sales@dinstar.com, support@dinstar.com Website: www.dinstar.com...
  • Page 2 Revision Records File Name The FXS VoIP Gateway User Manual Document Version Firmware Version 2.18.02.05 Date 2014/01/16 Revised by Technical Support Department...

  • Page 3: Table Of Contents

    Table of Contents Chapter1: Introduction ..........................1 Welcome ............................1 About this manual ........................... 1 Intended audience ........................... 1 Chapter2: Know your Gateway ........................ 2 Overview ............................2 Equipment Appearance ........................2 Ports and Connectors ........................3 Network Applications ........................5 Functions and Features ........................
  • Page 4 DHCP Server (Routing mode) ....................24 DMZ Host (Routing mode) ....................25 Forward Rule (Routing mode) ....................25 Static Route Table ......................... 26 ARP ............................27 SIP Server ............................27 Port Configuration ......................... 30 Advanced ............................33 FXS/FXO Parameters ......................33...
  • Page 5 Media Parameter ........................35 SIP Parameter ........................37 Fax Parameter ........................42 Digit Map ..........................43 Feature Codes ........................46 System Parameter ......................... 48 Action URL ..........................50 Call & Routing ..........................51 Wildcard Group ........................51 Port Group ..........................51 IP Trunk ..........................
  • Page 6 Syslog ............................ 65 Provision ..........................67 Cloud server .......................... 68 Security ............................68 WEB ACL ..........................68 Telnet ACL ..........................69 Passwords ..........................69 Tools............................... 70 Firmware upload ........................70 Data Backup .......................... 71 Data Restore ......................... 71 Ping Test ..........................72 Tracert Test ...........................

  • Page 7: Chapter1: Introduction

    Welcome Thanks for choosing DINSTAR FXS VoIP Gateway (hereafter named “GATEWAY”, “DEVICE”)! We hope you will make optimum use of this flexible, rich-features multi-ports VoIP to FXS gateway. Please read this document carefully before install your gateway. About this manual This manual provider information about and introduction of installing, configuring and using the gateway.

  • Page 8: Chapter2: Know Your Gateway

    Chapter2: Know your Gateway Overview DINSTAR FXS VoIP gateway is the gateway that provide voice service based on IP network. It’s a cost-effective and flexible solution for SOHO (Small Office-Home office), remote office and branch enterprise, as well as Medium sized enterprise.

  • Page 9: Ports And Connectors

    IP network over a DSL modem or Router or a Ethernet RJ45 LAN switch FXS ports to connect standard analog phone or FAX machine or 0-15 RJ11 a PBX Console port with RS232 standard to connect DB9 to RJ45...
  • Page 10 IP network over a DSL modem or Router or a Ethernet RJ45 LAN switch FXS ports with RJ45 connector that can be separated into 4 RJ11 RJ45 connectors, to connect standard analog phone or FAX machine or a PBX...

  • Page 11: Network Applications

    Dinstar FXS Voice Gateway User Manual Network Applications Network Applications Functions and Features Protocol standard supported • SIP V2.0 (RFC 3261,3262,3264) • SDP (RFC 2327) • REFER (RFC 3515) • RTP/RTCP (RFC 1889,1890) • STUN (RFC 3489) • ARP/RARP (RFC 826/903) •...

  • Page 12: Voice And Fax Parameters

    Dinstar FXS Voice Gateway User Manual • DNS/DNS SRV (RFC 1706/RFC 2782) • VLAN 802.1P/802.1Q Voice and Fax parameters • G.711A/U law, G.723.1, G.729AB,iLBC,AMR • Comfortable Noise Generation (CNG) • Voice Activity Detection (VAD) • Echo Cancellation (G.168) • Adaptive Dynamic Jitter Buffer •...

  • Page 13: Chapter3: Basic Operations

    Direct IP Calls THE GATEWAY with FXS port allow two parties directly call through IP address. The user need only a simulation with the FXS port unit equipment linked together and set up calls not registered. Elements necessary to completing a direct IP call：...

  • Page 14: Call Hold

    Dinstar FXS Voice Gateway User Manual Call Hold Place a call on hold by pressing the “flash” button on the analog phone (if the phone has that button).Press the “flash” button again to release the previously held Caller and resume conversation.

  • Page 15: Attended Transfer

    ; if A press 2 key, then A and B continue to call; if A press 3 key, then continue to call A,B,C three parties go to call. Call Features The GATEWAY (FXS) support all traditional and senior phone function.
  • Page 16 Dinstar FXS Voice Gateway User Manual Table 2.5-1 Feature Codec Feature Codec Operation Instructions *158# View the LAN port IP address *159# View the WAN port IP address *114# Inquire port account *150* Set the way of obtain IP address...

  • Page 17: Sending And Receiving Fax

    Mode setting. Local IVR Operation Inquire IP address Analog phone connected with FXS ports of device, then pick up, after dial tone, dialing *158# to inquire LAN port IP address and dialing *159# to inquire WAN port IP address. Factory Reset After picking up, dial *166*000000#, then onhook and restart after “Setting successful”.

  • Page 18: Chapter4: Web Configuration

    Dinstar FXS Voice Gateway User Manual Configure dynamic IP address by DHCP: Offhook; Dial “*150*2#”; Onhook; If the equipment hint success, after 10 seconds, and restart the equipment. (Power-off then power-on) Configure Static IP address: Offhook; Dial “*150*1#”; Onhook; Then configure IP and mask as follow: •...

  • Page 19: Get Web Access

    Dinstar FXS Voice Gateway User Manual Modify IP address Check connection between computer and device, click “Start”-> “run”-> input “cmd”, run ping 192.168.11.10 –t order to check the connectivity between them Connect to private network (behind NAT) Get Web access Open web browser, then input IP address of device, Press“Enter”, it pop up logging on...

  • Page 20: Navigation Tree

    Dinstar FXS Voice Gateway User Manual The GATEWAY Login Interface Default username and password: admin/admin, click “OK” to entry into web interface. Navigation Tree The GATEWAY series voice gateway web configuration interface mainly includes navigation tree and the right configuration interface. Choose navigation tree in order to entry into the...

  • Page 21: State And Statistics

    Dinstar FXS Voice Gateway User Manual When device is in bridge mode, navigation tree won’t display "routing configuration" items and the following "DHCP service", "DMZ host", "forward rules" and "static routing" and "ARP" etc. State and Statistics System Information You can view the information of Device ID, MAC address, IP addresses, version information...
  • Page 22 Dinstar FXS Voice Gateway User Manual Figure 4.3-1 System Information System information as follow: System Information Description An unique ID of each device, this ID is use for cloud server authentication and warrantee Device ID purpose MAC address WAN port hardware address. The device ID in HEX format.
  • Page 23 Dinstar FXS Voice Gateway User Manual Shows WAN IP address of the gateway , DHCP mode: all the field values for the Static IP mode are not used (even though they are still saved in the Flash memory.) The GATEWAY acquires its IP address from the first DHCP server it discovers from the LAN it is connected.

  • Page 24: Registration Information

    Dinstar FXS Voice Gateway User Manual Hint Language Hit language of the gateway Registration Information Port and Port group registration information Primary/Secondary User status: Registered: the port is register to SIP server successfully Unregistered: failed to register to SIP server...

  • Page 25: Quick Setup Wizard

    Dinstar FXS Voice Gateway User Manual Figure 4.3-4 RTP Session Statistics The picture show above is real-time RTP conversation flow data information, includes: Port, voice codec, packet period, local port, peer IP, peer port, sent packets, receive packets, lost packets, jitter and duration.
  • Page 26 Dinstar FXS Voice Gateway User Manual Figure 4.5-1Route Mode Bridge Mode...

  • Page 27: Vlan Parameter

    Dinstar FXS Voice Gateway User Manual “Link Speed & Duplex” used to select Ethernet port work mode, include 5 kinds of choice, “Auto Detect”、“10Mbps half-duplex”、“10Mbps full-duplex”,“100Mbpshalf- duplex”,“100Mbps full-duplex”, default is “Auto Detect”. When select “Obtain IP address automatically”, the GATEWAY will obtain IP address by DHCP.
  • Page 28 Dinstar FXS Voice Gateway User Manual No Quality of Service mechanisms are defined in this standard, but an important requirement for providing QoS is included in this standard, e.g. abitity to regenerate user priority of received frames using priority information contained in the frame and the User Priority Regeneration Table for the reception Port.

  • Page 29: Mac Clone (Routing Mode)

    Dinstar FXS Voice Gateway User Manual Table 4.5-1VLAN parameter configuration Fill out an ID to describe a data VLAN group, ID 0 used Data 802.1Q VLAN ID(0-4095) to management VLAN, can’t use to service configure. Data VLAN 802.1 protocol to control network traffic priority, Data 802.1p Priority（0-7）...

  • Page 30: Dhcp Server (Routing Mode)

    Dinstar FXS Voice Gateway User Manual More client in LAN have already can’t share internet used the traditional “gateway set law”. Because IP address binding in only a legitimate MAC address by ISP. If the ISP’s switch discover illegal MAC address, it will refuse service.

  • Page 31: Dmz Host (Routing Mode)

    Dinstar FXS Voice Gateway User Manual Configuration Interface 【Note】: When configure start and end IP address, subnet mask and gateway, please set the same segment with LAN port. Otherwise, device will not work normally. After configuration, restart device configuration validation.

  • Page 32: Static Route Table

    Dinstar FXS Voice Gateway User Manual The different between forward rule and DMZ host is that DMZ Host offers continuous multiple Port (0-1024) and all the foreign communication agreement; while the forward rule offers a Single or a few port foreign communication on some protocol. When the conflicts exist between forward rule and DMZ host, the configuration of forwarding rules is preferred.

  • Page 33: Arp

    Dinstar FXS Voice Gateway User Manual Static route interface configuration ARP is address resolution protocol. After configuring ARP, users can get physical address through device IP address. Under TCP/IP network environment, each host is assigned a 32-bit IP address. But the message transmission needs to know the purpose the physical address of the party. ARP is a tool that converts IP address into MAC address.
  • Page 34 Dinstar FXS Voice Gateway User Manual In SIP network, the media always using end-to-end to hand the consultation. In some particular situation or business processing, such as “Music On Hold”, SIP server will actively participate in the media negotiation. Simple SIP server is responsible only for establishment, maintenance and cleaning conversation, don't interfere in call.
  • Page 35 Dinstar FXS Voice Gateway User Manual SIP Server Configuration Interface SIP parameter description: Primary SIP Server SIP Server IP address or Domain name provided by VoIP service provider. Address Primary SIP Server port Service port, default is 5060 protects registrar against excessively frequent registration refreshes Register Expires while limiting the state.

  • Page 36: Port Configuration

    Dinstar FXS Voice Gateway User Manual Heartbeat Heartbeat message detect the connection status between device and SIP server. Secondary SIP Server Backup SIP Server’s IP address or Domain name provided by VoIP service address provider. Secondary SIP Server Service port, default is 5060...
  • Page 37 Dinstar FXS Voice Gateway User Manual Port configuration interface Port parameters introduce as follows: Port Port number, Disable port Disable port temporally It is use to control the volume of conversation, Adjust "TX gain" will affect the end users voice size, the default value is 0.
  • Page 38 Dinstar FXS Voice Gateway User Manual It is use to control the volume of conversation, Adjust "RX gain" will affect the end users voice size, the default value is 0. Rx Gain Its value range from -10 – 10 dB...

  • Page 39: Advanced

    Enable call waiting tone, caller will hear special tone. Tone Advanced FXS/FXO Parameters FXS characteristic parameters include: Call progress Tone, Timeout for Dialing, Send Polarity Reversal etc. Configuration interface as follow: FXS Parameters Configuration Interface FXS parameters description: With the help of dialing timeout, you can limit the time while users Timeout for dialing typing the digits from an extension.
  • Page 40 Dinstar FXS Voice Gateway User Manual user is typing in the extension then the GATEWAY will consider the extension as complete and it will try to send to SIP server. Default value is 4 seconds Timeout for This timer set how long the caller party waiting when makes outgoing answer(Outgoing call) call on extension.

  • Page 41: Media Parameter

    Dinstar FXS Voice Gateway User Manual After enable this configuration, The THE GATEWAY send caller to Send CID before phone set before ringing, otherwise the caller ID will display after Ringing ringing. Delay of sending CID Definite delay timer of caller ID while it set to send caller ID after after Ringing ringing.
  • Page 42 Dinstar FXS Voice Gateway User Manual Media parameter description: Use Random Port Enable the gateway to use random RTP port RTP Start Port Default RTP port 8000 DTMF Method SINGAL、INBAND、RFC2833 RFC2833 Payload Payloadvalue, default is 101 Type DTMF Gain Default is 0 DB DTMF Send Interval DTMF send signal interval, default is 200ms.

  • Page 43: Sip Parameter

    Dinstar FXS Voice Gateway User Manual SIP Parameter...
  • Page 44 Dinstar FXS Voice Gateway User Manual SIP Parameter Configuration Interface SIP parameter description： Voicemail message indicator, it is to be realized in the way SUBSCRIBE for MWI of NOTIFY MWI Subscription Expires MWI subscription expires time, default to 3600 Voicemail User ID...
  • Page 45 Dinstar FXS Voice Gateway User Manual Enable anonymous call, “anonymous” will include in SIP Anonymous Call message Enable this function, reject all anonymous call. Disable by Reject Anonymous Call default # as ending Dial Key Dial-up, use # as a end descriptor.
  • Page 46 Dinstar FXS Voice Gateway User Manual Domain Re-resolution Default 0: forbidden Interval DNS cache Cache the DNS query result Early Media Support receive Early Media PRACK(RFC3262) Support reliable transmission of provisional response PRACK Only for 18x with Send PRACK only when there’s SDP in 18x response...
  • Page 47 Dinstar FXS Voice Gateway User Manual Voice mail instructions : Here the GATEWAY work with Elastix as the example, introduces how voicemail work in the GATEWAY. 1）the GATEWAY register to Elastix server. Corresponding extension number enable voice mail function in Elastix and set password. As below：...

  • Page 48: Fax Parameter

    Dinstar FXS Voice Gateway User Manual 3）Enable voice mail in the GATEWAY and Elastix will ask you to leave a message after ringing 15 seconds, then Elastix will record and display your message. Voicemail Setting 4）the GATEWAY dial *200#, then dial voicemail account and then ask password for Validation.

  • Page 49: Digit Map

    Dinstar FXS Voice Gateway User Manual “a=X-fax” expansion Enable support of “a=X-fax” expansion “a=fax” expansion Enable support of “a=fax” expansion “a=X-modem” Enable support of “a=X-modem” expansion expansion “a=modem” expansion Enable support of “a=modem” expansion Digit Map Digit Map Gateway is collect digits dialed by user, if received a number to be immediately report, the efficiency is too low and a large number of take up network resources.
  • Page 50 Dinstar FXS Voice Gateway User Manual T means detected timer overtime; x means any data; “.”means multiple characters can be behind，include 0; “#”means report immediately. Digit Map Syntax: 1. Supported objects Digit: A digit from "0" to "9". Timer: The symbol "T" matching a timer expiry.
  • Page 51 Dinstar FXS Voice Gateway User Manual ?: Match 0 or 1 times. Example: Assume we have the following digit maps: 1. xxxxxxx | x11 and a current dial string of "41". Given the input "1" the current dial string becomes "411". We have a partial match with "xxxxxxx", but a complete match with "x11", and hence we send "411"...

  • Page 52: Feature Codes

    Dinstar FXS Voice Gateway User Manual Feature Codes Feature codec includes device function and call function. Feature codec as follow: Feature Code Configuration Interface Inquiry LAN port IP address Dial*158# to obtain device WAN port IP address...
  • Page 53 Dinstar FXS Voice Gateway User Manual Inquiry WAN port IP address Dial*159# to obtain device WAN port IP address Inquiry Phone Number Dial*114# to obtain port account Inquiry PortGroup Number Dial *115# to obtain port group number *150*0#, means pppmodem, *150*1#, means static IP,...

  • Page 54: System Parameter

    Dinstar FXS Voice Gateway User Manual Call Forward Unconditional *72*+ phone number#, transfer the call from the phone Activate number Call Forward Unconditional *73#, forbid call forward unconditional Deactivate Call Forward Busy Activate *90*+ forward busy number# Call Forward Busy Deactivate...
  • Page 55 Dinstar FXS Voice Gateway User Manual System Configuration Interface Hint Language IVR language NAT Traversal Disable, STUN, static NAT, dynamic NAT Refresh interval Default to 60 STUN Server Address STUN server IP address or domain STUN Server Port STUN server port...

  • Page 56: Action Url

    Dinstar FXS Voice Gateway User Manual Primary NTP server port Default is 123 Secondary NTP server Default is 18.145.0.30 address Secondary NTP server port Default is 123 Every certain time synchronization gateway time, the system SYN Interval default every 3600 s synchronous once.

  • Page 57: Call & Routing

    Dinstar FXS Voice Gateway User Manual Action URL Call & Routing Wildcard Group Port Group Port group parameter include: Index, description etc. Port group configure interface as follow: Port group configuration interface...
  • Page 58 Dinstar FXS Voice Gateway User Manual Index Port group Number, It uniquely identifies a route, range from 0-7 Port group description, its purpose is so you can identify the port Description group with a meaningful name Port group display, which will be used in SIP message, example: INVITE sip:bob@biloxi.com SIP/2.0...

  • Page 59: Ip Trunk

    Dinstar FXS Voice Gateway User Manual  Descending: when system selects ports’ priority, it always begin to select from the maximum priority number  Cyclic descending: when system selects ports’ Priority, it always begin from the number before to the number selected...

  • Page 60: Routing Configuration

    Dinstar FXS Voice Gateway User Manual Remote Port Peer SIP port Default is disable, if enable, THE GATEWAY will send “OPTION” to peer Heartbeat device Routing Configuration Routing Parameter Configuration Interface This option determines the following routing of call take effect before or after manipulation.

  • Page 61: Tel-Ip/Tel Routing

    Dinstar FXS Voice Gateway User Manual Caller number Prefix, its length normally less or equal to caller number, which helps to matching routing exactly. if caller number is 2001, the Caller Prefix caller prefix can be 200 or 2. “any” means match any caller number like “bob1”,”29801”...

  • Page 62: Ip - Ip Routing

    Dinstar FXS Voice Gateway User Manual Caller number Prefix, its length normally less or equal to caller number, which helps to matching routing exactly. if caller Caller Prefix number is 2001, the caller prefix can be 200 or 2. “any” means match any caller number like “bob1”,”29801”...

  • Page 63: Manipulation Configuration

    Dinstar FXS Voice Gateway User Manual number is 008675526456659, the called prefix can be 0086755 or 00., “any” means match any called number Calls to This call routing is routing to IP trunk Manipulation Configuration IP-Tel Callee IP-Tel Callee number configuration...

  • Page 64: Tel-Ip/Tel Caller

    Dinstar FXS Voice Gateway User Manual Called number Prefix, its length normally less or equal to called number, which helps to matching routing exactly. Callee Prefix if called number is 008675526456659, the called prefix can be 0086755 or 00., “any” means match any called...

  • Page 65: Tel-Ip/Tel Callee

    Dinstar FXS Voice Gateway User Manual Tel-IP Caller Configuration parameters are the same with “IP->Tel Callee”. Tel-IP/Tel Callee Figure 4.10-3 Tel-IP Callee Configuration parameters are the same with “Tel->IP Caller”. Routing rule examples Route any calls from any IP to specific port From web management access, Call &...

  • Page 66: Route Any Calls From Any Ip To Specified Port Group

    Dinstar FXS Voice Gateway User Manual In the example above, all calls will be routed to port 0 when the routing rule is matched. Route any calls from any IP to specified port group Create port group Before we can route calls to a port group, create the port group first as below. From Call &...

  • Page 67: Route Any Calls From Any Port To Specific Sip Ip Trunk

    Dinstar FXS Voice Gateway User Manual Route any calls to port group From Call & Routing -> IP-Tel Routing, click “Add” to create a new routing rule. As above show, when this routing rule is matched, the call will be routed to port group 7.

  • Page 68: Maintenance

    Dinstar FXS Voice Gateway User Manual As above, the SIP IP trunk is created, and the remote end IP address is 172.16.125.125, the SIP port is 5060. Create Tel -> IP routing rule From Call & Routing -> Tel-IP Routing, click “Add” to create a new Tel to IP routing rule.

  • Page 69: Snmp

    Dinstar FXS Voice Gateway User Manual TR069 parameters SNMP SNMP Parameter • SNMP enable: to disable or enable the SNMP feature • SNMP version: the gateway support SNMP v1 and v2 • Community: the community name to read through SNMP protocol •...
  • Page 70 Dinstar FXS Voice Gateway User Manual SNMP User configuration This configuration only available on SNMP v3.

  • Page 71: Syslog

    Dinstar FXS Voice Gateway User Manual Group configuration Group: community group name which consist of character string. Community: let community join the community group which configured above Trap configuration Trap configuration enable to configure Trap server IP and port. This setting available for SNMP v2c and v1.
  • Page 72 Dinstar FXS Voice Gateway User Manual RE, the common communication module for SCP and SIM SCP, the communication protocol between gateway and cloud server The media log is include following traces which defined in system by default RTP, RTP stream info collection...

  • Page 73: Provision

    Dinstar FXS Voice Gateway User Manual Syslog Parameter Configuration Enable send CDR, and then send communication information to syslog server. Provision Gateway can be managed by provisioning server for upgrading firmware, configuring parameters. For this purpose, provisioning server must be configured on the gateway.

  • Page 74: Cloud Server

    Dinstar FXS Voice Gateway User Manual Cloud server Register the gateway with cloud server for being managed by cloud server. Cloud server Server Address The cloud server IP address or domain port Cloud server listening port Password Password for register with cloud server...

  • Page 75: Telnet Acl

    Dinstar FXS Voice Gateway User Manual Telnet ACL ACL for telnet enable you to configure IP list/users who allow to access the telnet page of device. IP lists can’t be null once ACL enable. ACL for telnet Passwords Includes WEB username and password, Telnet username and password modify.

  • Page 76: Tools

    Dinstar FXS Voice Gateway User Manual Tools Firmware upload Firmware upload steps: Step 1. Check current running version on gateway, to get firmware version on web page System Information Firmware version Step 2. Prepare firmware package. The most important is that the package must be match with existing version.

  • Page 77: Data Backup

    Dinstar FXS Voice Gateway User Manual Firmware upload Step 4. Keep waiting until it prompt ‘Software loaded successfully!’ Firmware upload success Step 5. Reboot gateway. Refer to web page Maintenance-> Device Restart Restart gateway Data Backup data backup: process 1) Click “Data Backup”...

  • Page 78: Ping Test

    Dinstar FXS Voice Gateway User Manual Click “Data Restore” Browse file, select data file. Click “Restore” and then import successfully, the device will restart automatically. Data restore Ping Test Send test data packets to IP, check each other whether have response and statistical response time.

  • Page 79: Tracert Test

    Dinstar FXS Voice Gateway User Manual Figure 4.14.4 Ping Test Tracert Test Tracert is trace router and used to tracking routing. Tracert sends a sequence of Internet Control Message Protocol (ICMP) echo request packets addressed to a destination host. Determining the intermediate routers traversed involves adjusting the time-to-live (TTL), aka hop limit, Internet Protocol parameter.

  • Page 80: Outward Test

    Dinstar FXS Voice Gateway User Manual Tracert introduce： Click tracert test. Fill IP address or domain connected, click start. Figure 4.14.5 Tracert Test Outward Test Outward test enable you to diagnose the physical phone lines which follow GR909 standards. To start outward test, select the Ports to be tested and click start button. Testing...

  • Page 81: Network Capture

    Test results OK: the analog phone set and phone line are working well FAIL: analog phone doesn't connect to FXS port or something wrong phone set Network Capture Network capture is a very important diagnostic tool for maintenance. This section is describes how to enable network capture.
  • Page 82 Dinstar FXS Voice Gateway User Manual  Click “Start’ to enable PCM capture  Dialing out through gateway, start talking a short while then hangup the call.  Click ‘Stop’ to disable network capture  Save the capture file to local computer The capture is named to ‘capture(x).pcap’, x is serial number of capture and will be...
  • Page 83 Dinstar FXS Voice Gateway User Manual Getting start to RTP capture PCM capture is help to analysis voice stream between gateway and remote IPPBX/SIP Server. To enable RTP capture:  Select RTP special on Network Capture page  Click Start to enable RTP capture ...
  • Page 84 Dinstar FXS Voice Gateway User Manual Getting start to DSP capture DSP capture is help to analysis voice stream inside DSP chipset. The DSP chipset will handle RTP from IP network as well as voice stream from analog phone. To enable DSP capture: ...

  • Page 85: Factory Reset

    Dinstar FXS Voice Gateway User Manual Factory Reset Click “Apply” to restore the factory settings. Factory Reset Device Restart Click the “Save” button in the Configuration page to save the changes to the equipment configuration. The following screen confirms that the changes are saved. If the changes need restart, reboot or power cycle the equipment to make the changes take effect.

  • Page 86: Charpter5. Glossary

    Dinstar FXS Voice Gateway User Manual Charpter5. Glossary DNS：Domain Name System • SIP：Session Initiation Protocol • TCP：Transmission Control Protocol • UDP：User Datagram Protocol • RTP：Real Time Protocol • PPPOE：point-to-point protocol over Ethernet • VLAN：Virtual Local Area Network • ARP：Address Resolution Protocol •...

This manual is also suitable for:

Dag1000-4sDag1000-8sDag2000-16sDag2000-24sDag2000-32sDag3000-112s
