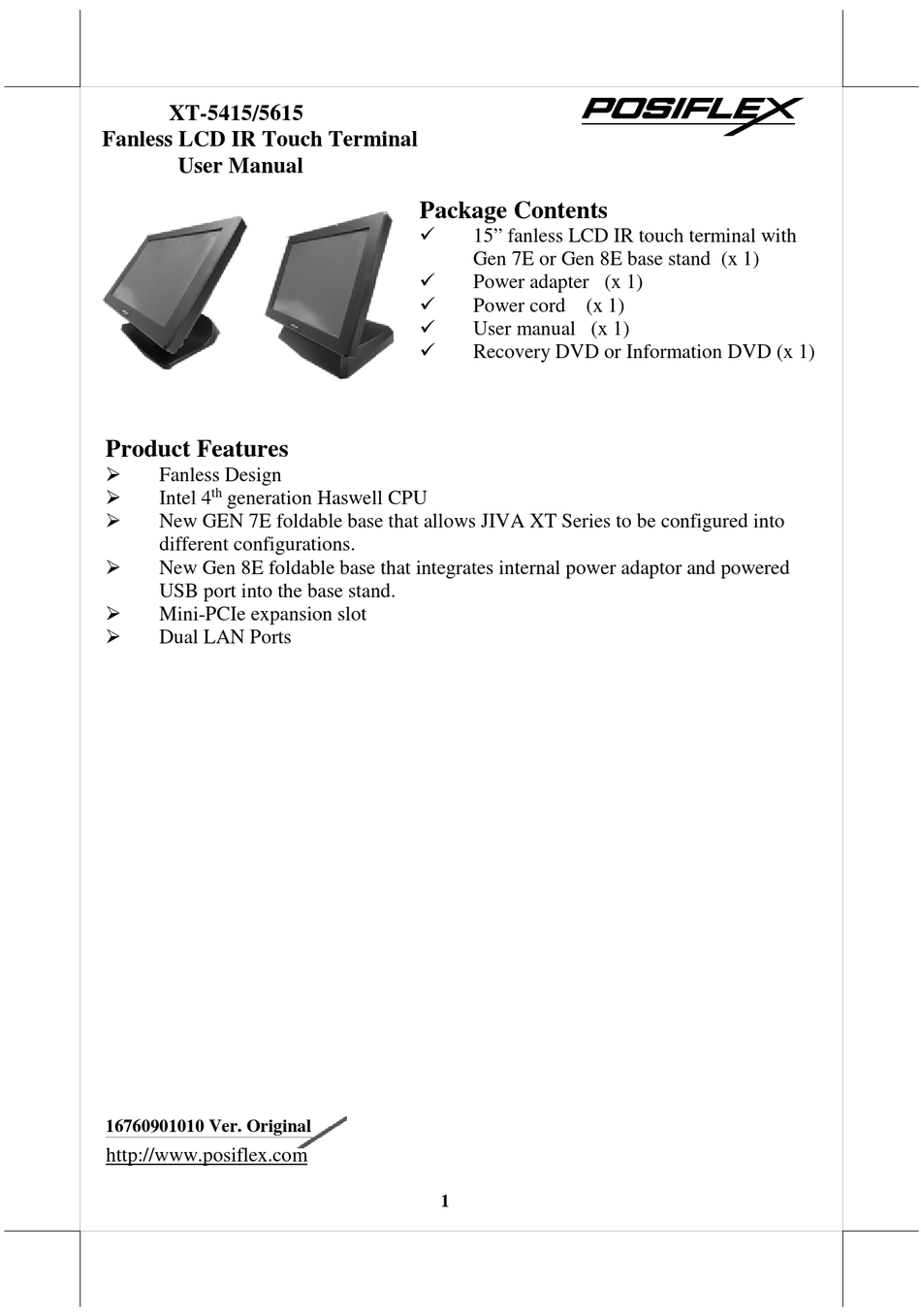

XT-5415/5615
Fanless LCD IR Touch Terminal
User Manual
Product Features
Fanless Design
th
Intel 4
generation Haswell CPU
New GEN 7E foldable base that allows JIVA XT Series to be configured into
different configurations.
New Gen 8E foldable base that integrates internal power adaptor and powered
USB port into the base stand.
Mini-PCIe expansion slot
Dual LAN Ports
16760901010 Ver. Original
http://www.posiflex.com
Package Contents
15" fanless LCD IR touch terminal with
Gen 7E or Gen 8E base stand (x 1)
Power adapter (x 1)
Power cord (x 1)
User manual (x 1)
Recovery DVD or Information DVD (x 1)
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX XT-5415
Summary of Contents for POSIFLEX XT-5415
- Page 1 XT-5415/5615 Fanless LCD IR Touch Terminal User Manual Package Contents 15” fanless LCD IR touch terminal with Gen 7E or Gen 8E base stand (x 1) Power adapter (x 1) Power cord (x 1) User manual (x 1) ...
- Page 2 Views of the XT-5415/5615 with Gen 7E Base Stand Front View XT-5415/5615 LCD IR Touch Panel LED indicator Gen 7E Base Stand Rear View HDD Cover Base Stand Cover Cable Cover Cable Exit Side View Power Button Brightness Adjustment Button ＋...
- Page 3 Bottom View Rubber Feet with Fixing Screw Cable Exit Cable Holder Rubber Feet with Fixing Screw Views of the XT-5415/5615 with Gen 8E Base Stand Front View XT-5415/5615 LCD IR Touch Panel LED indicator Gen 8E Base Stand Rear View...
- Page 4 Brightness Adjustment Button － Bottom View Rubber Feet with Fixing Screw Power Adapter Compartment UPS Battery Compartment Rubber Feet with Fixing Screw View of I/O Interface of XT-5415/5615 Line Out/MIC-In DC IN Combo Jack Power DB9 COM Ports USB 3.0 LAN Ports...
- Page 5 Low profile mode Full extended mode In general, XT-5415/5615 will be set up beforehand in flat folded mode and then packaged into the box for shipping. After it is unpacked, you may re- adjust the terminal in either low profile mode or full extended mode according to your situation.
- Page 6 Push the cable cover outwards to remove it from the base stand. Position your terminal in Full Extended mode. Support the screen with one hand holding onto its bottom edge. Then, while pulling the lever backwards, move the display upwards until the lever is snapped into the hook to raise the screen as shown in the below figure.
- Page 7 Return your terminal back to Flat Folded mode from Full Extended mode. Tilt your screen in a horizontal position. Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, move the display downwards until the lever is lifted off the hook as shown in the figure Hook Lever...
- Page 8 XT-5415/5615 with Gen 8E Base Stand Please refer to the following instructions on how to switch among different positioning modes to find an ideal viewing angle for XT-5415/5615 with Gen 8E base stand. Unpack XT-5415/5615, which is supposed...
- Page 9 Push the cable cover outwards to remove it from the base stand. Position your terminal in Full Extended mode. Support the screen with one hand holding onto its bottom edge. Then, while pulling the lever backwards, move the display upwards until the lever is snapped into the lower hook to raise the screen as shown in the below figure.
- Page 10 Position the terminal in Low Profile mode. While setting up the terminal in low profile mode, ensure that the terminal is placed high enough so that the screen would not hit the table surface. While keeping your terminal steady with your hand holding on to the base stand, tilt your terminal down.
- Page 11 Return the terminal back to Flat Folded mode. While steadying your terminal with your hand holding onto the base stand, tilt your screen up. Support the screen with one hand holding onto its bottom edge. While pulling the lever backwards, release the lever back to the point above the upper hook as shown in the figure.
- Page 12 Routing and Arranging Cables Each base stand features its own cable management to help you well organize the cords whenever you need to connect peripheral devices to XT-5415/5615. Based on different base stands, the following provides some useful cable- routing instructions required to manage your cables.
- Page 13 Tilt the terminal up enough to have the bottom I/O plate towards you. Locate the cable arrangement cover as shown in the figure. Cable Arrangement Cover Remove the cable arrangement cover by pushing it up in the direction shown by the arrow.
- Page 14 For Gen 8E Base Stand Set up your terminal in Full Extended mode and then tilt the screen all the way down. Remove the cable cover at the rear of the terminal. Pull outwards the locking levers with your forefingers and then remove the cover in the direction shown by the arrow.
- Page 15 Installing Optional Upgrade Kits and Peripherals XT-5415/5615 is an expandable model which allows you to upgrade its own capacity by additionally installing multiple peripheral devices, such as magnetic stripe reader (MSR), LCD monitor and cash drawer, according to your preference.
- Page 16 Installing Power Adapter to Gen 8E Base Stand Power adapter is used to provide power which your terminal needs to be operated normally. Please go through the below steps to install the power adapter into Gen 8E base stand. If the power adapter is already installed to Gen 8E base stand, you may skip this section Lay your POS terminal on a flat surface with its bottom facing towards you.
- Page 17 Pass the cable of the power adapter Cable Exit through the cable exit and then connect it to the port on the I/O plate of your POS system. (Please refer to Routing and Arranging Cables section to thread the cable, according to the model of your base stand.) Neatly thread the cord along the bottom edge of the middle compartment (1), and...
- Page 18 Installing an Operating System You are highly advised not to install an operating system on XT-5415/5615 without professional instructions. Not only might the careless handling during installation cause irreversible damage to your machine, but also the improper installation likely leads to system malfunction or failure.
-
Page 19: Operation Environment
Operation Environment To prevent XT-5415/5615 from overheating, it is suggested to position your terminal in a well-ventilated working environment. In doing so, please be advised to keep the POS terminal at least 25mm away from other devices to ensure the machine is properly cooled down and functioning normally. -
Page 20: Specifications
Optional 24V x 1 + 12V x 3 via GEN8E base LAN Port 10 / 100 / 1000 Mb x 2 VGA Port VGA x 1, 12V support for Posiflex monitors CR Port 1, control 2 CR via optional Y-cable UPS Port...
